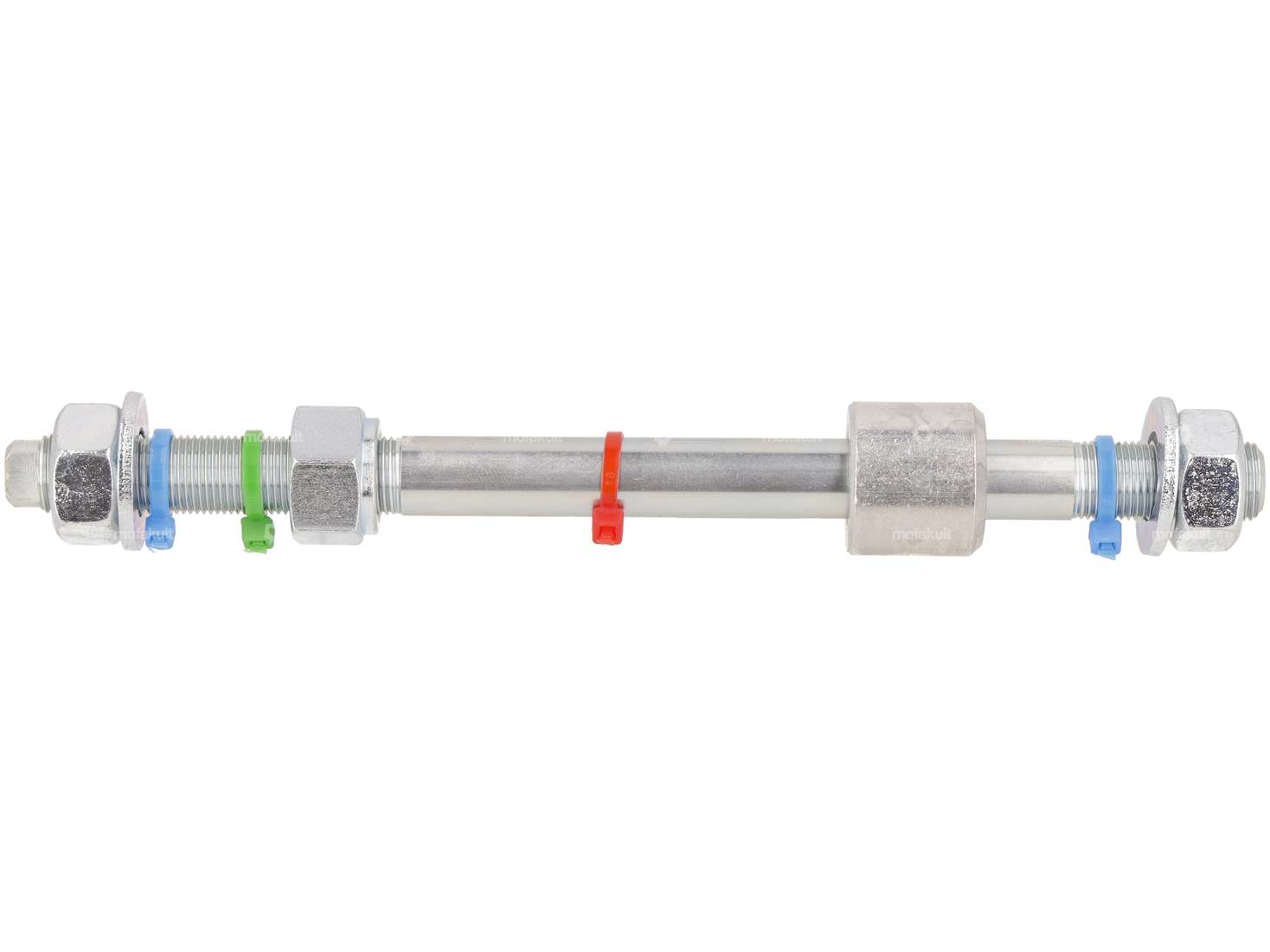

Socket axle M12x185 made of galvanized steel for your moped, moped and small motorcycle.
The threaded shaft is suitable for Puch cast iron rear wheels.

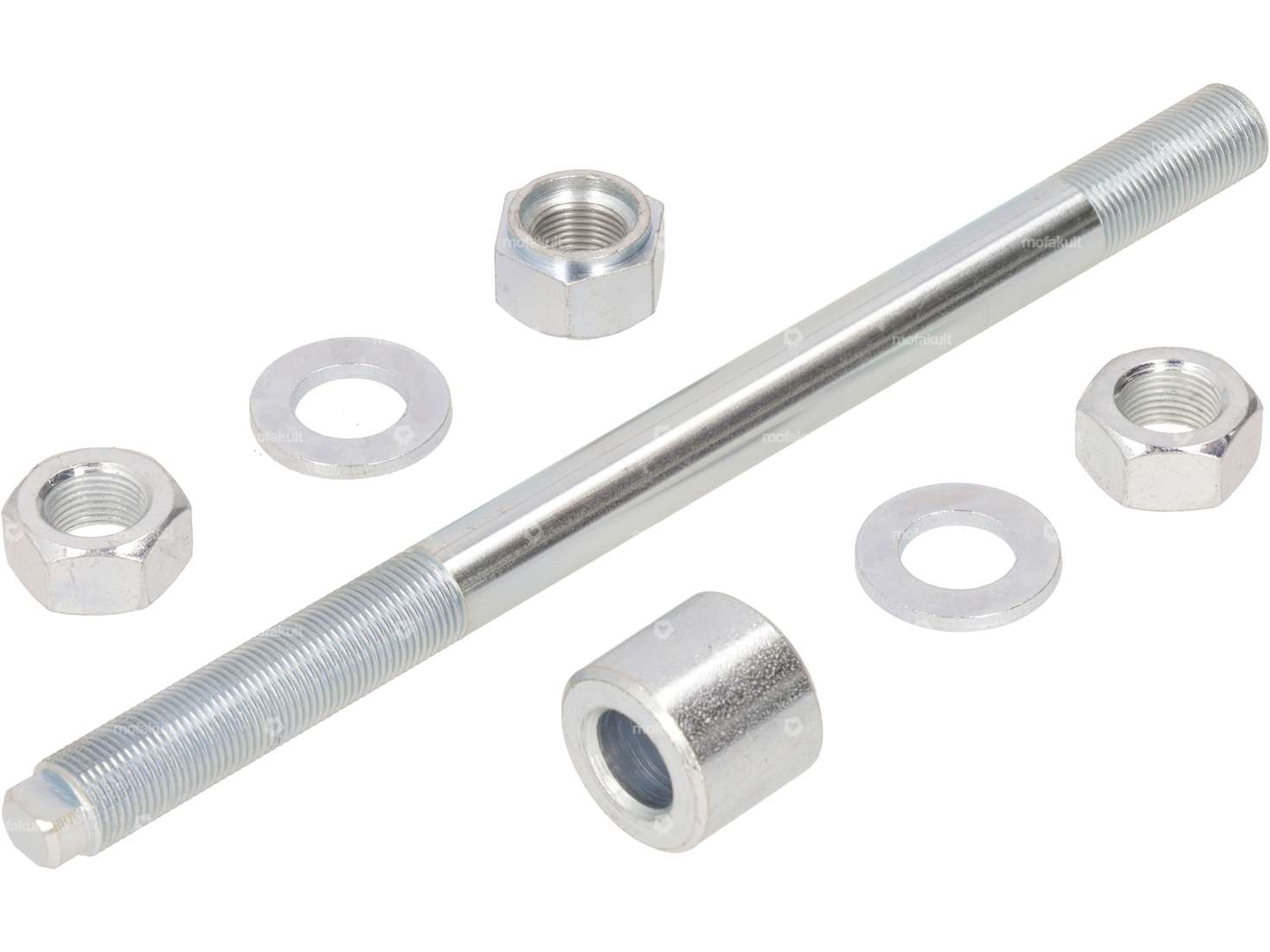

The complete rear axle set is fully pre-assembled and is supplied with all necessary nuts, washers and spacers.
Other axles and axle nuts can be found in the accessories section.
Nostalgic product for the highest demands from the quality brand swiing®.
Details
| Ø outside | 11.8 mm |
| Total length | 185 mm |
| Width across flats SW | 19 mm |
| Thread type | MF12x1 (fine pitch thread) |
| Manufacturer | swiing® revival parts |
| Thread length | 26 mm, 52.5 mm |
| Material | Steel |
| Surface | galvanized (blue) |
| Shank length | 100 mm |
| Ø shaft | 11.9 mm |
Suitable for the following models
| Puch |
