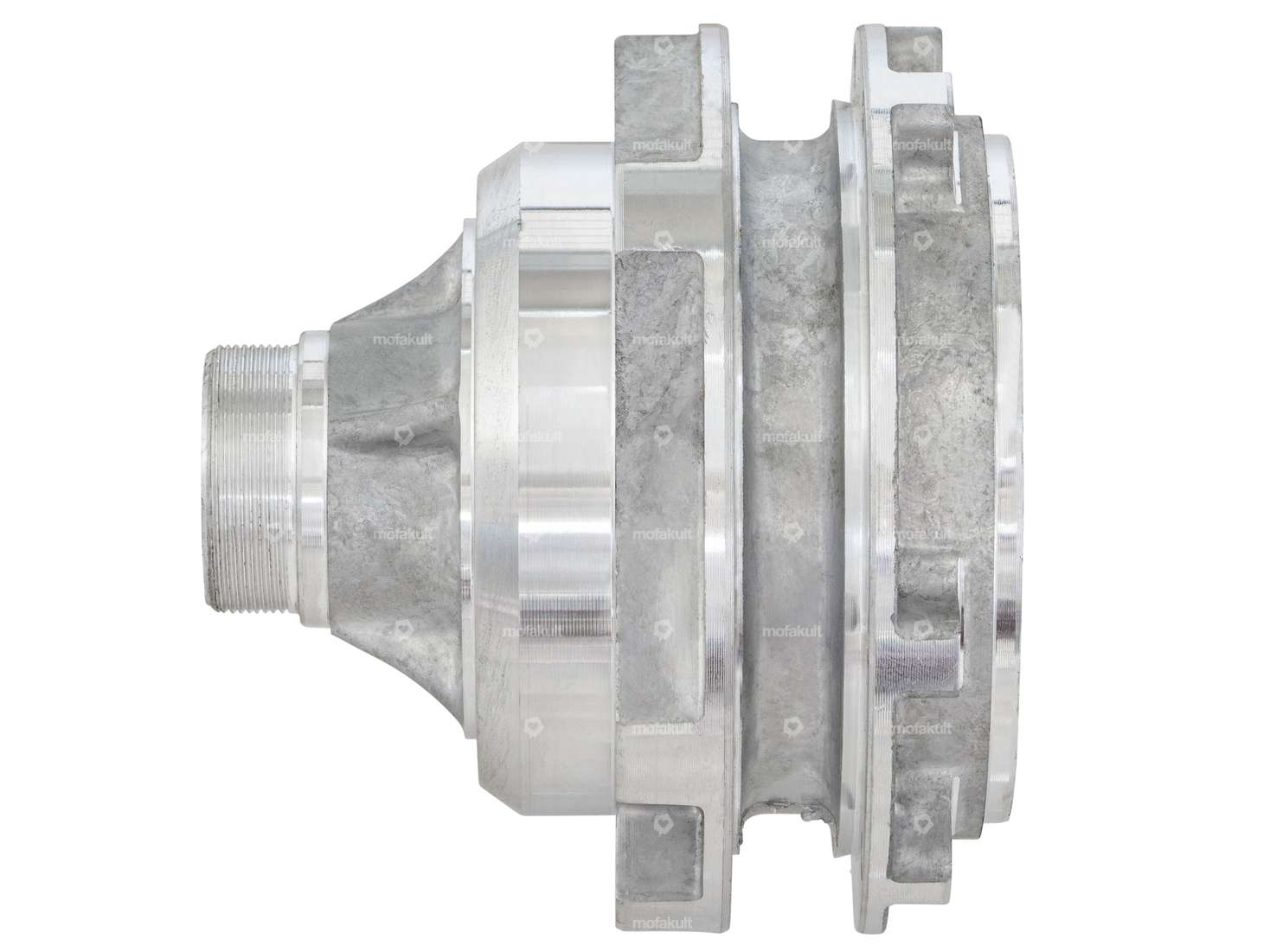

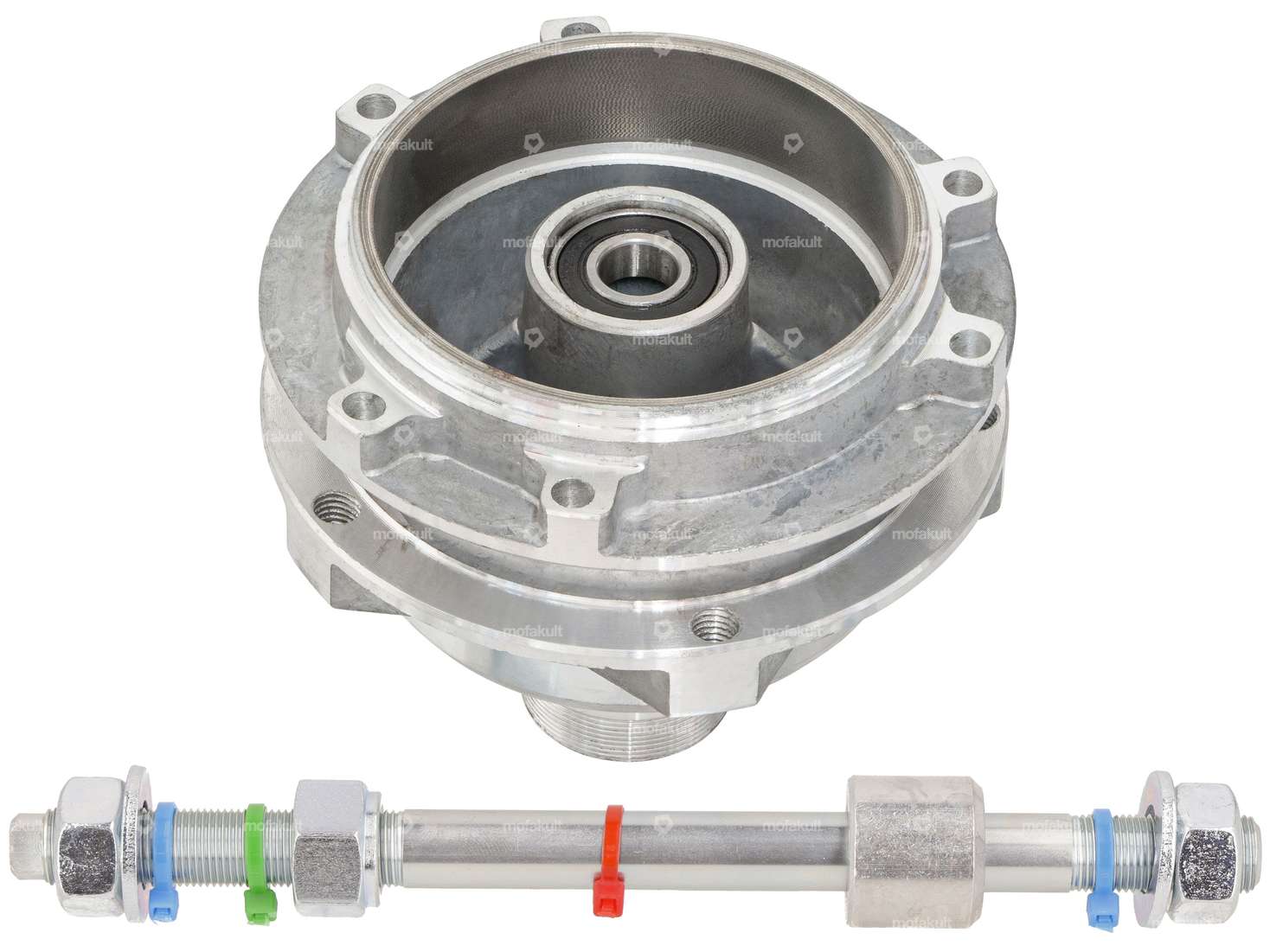

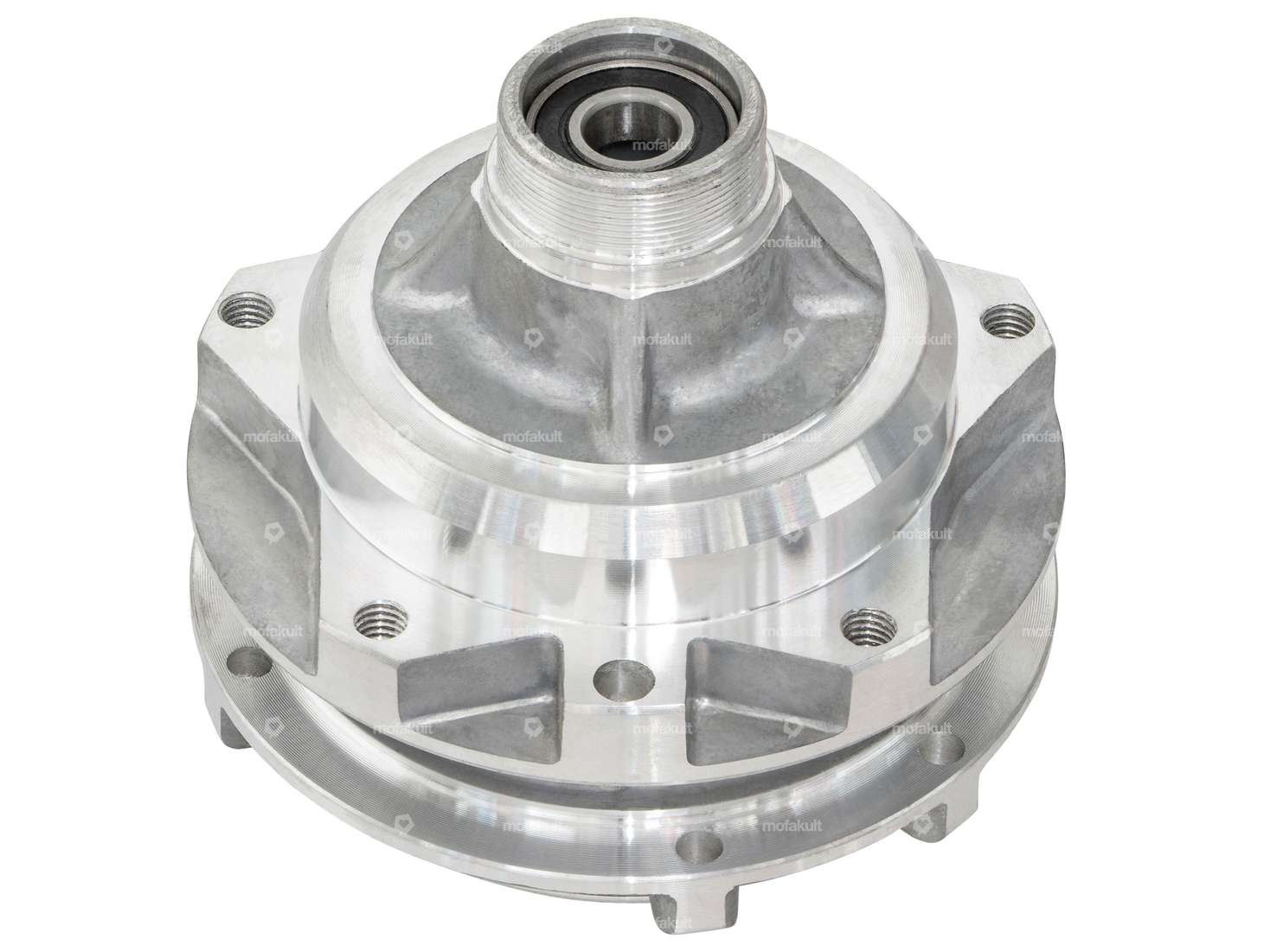

Rear wheel hub including axle matching the cast rim which was originally installed on Puch Maxi S / N, Puch Supermaxi LG1 / LG2 and Puch X30 NG-2AH mopeds / mopeds.
The CNC machined aluminum wheel hub impresses with its good quality. Both wheel bearings are already pressed in, and the matching spacer is also installed between the two bearings.
Ø axle: 12 mm
Axis length: 192 mm
Thread length: 27 mm / 61 mm
Ø shaft: 11.85 mm
Number of mounting points rim: 5 pieces
Thread: M8
Number of mounting points sprocket: 6 pieces
Ø Bore: 6.1 mm
Alternative hubs and suitable mounting material can be found in the accessories section.
The set includes the following fixed parts:
Color: silver · Material: Cast aluminum · Surface: blank, raw · Area of application: Tuning · Ø axle: 12 mm · Ø mounting hole: 6.1 mm · Ø drum: 80 mm · Ø inside: 27.9 mm · Ø outside: 114.7 mm · Ø bolt circle: 105 mm · Total length: 105 mm · Thread type: FG34.8 (1.37" 24G) · Thread length: 12 mm · Number of fixing points: 12 pcs

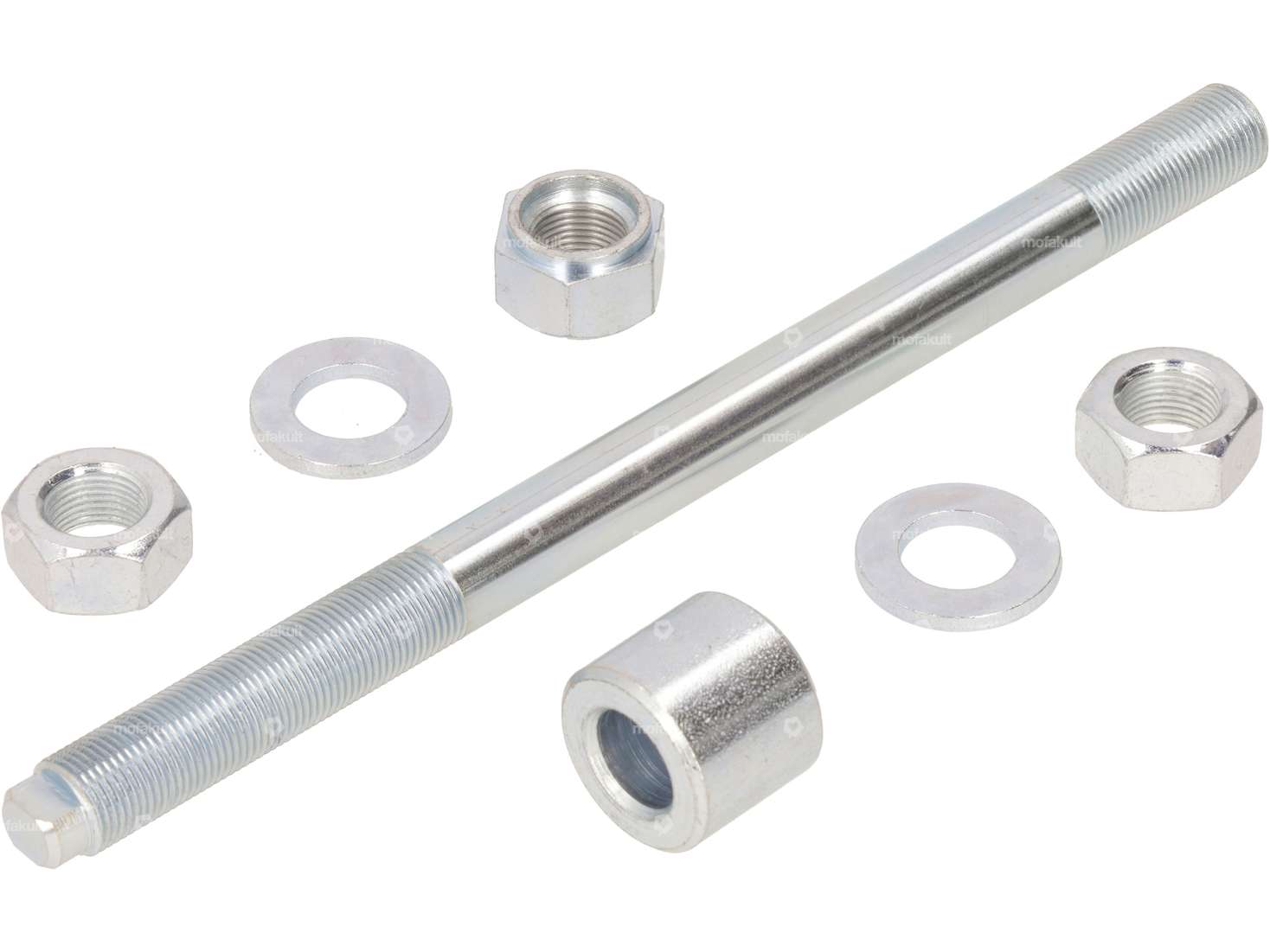

Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized · Thread type: MF12x1 (fine pitch thread) · Ø shaft: 11.9 mm · Ø outside: 11.8 mm · Total length: 185 mm · Thread length: 26 mm, 52.5 mm · Shank length: 100 mm · Width across flats SW: 19 mm
Suitable for the following models
| Puch |
