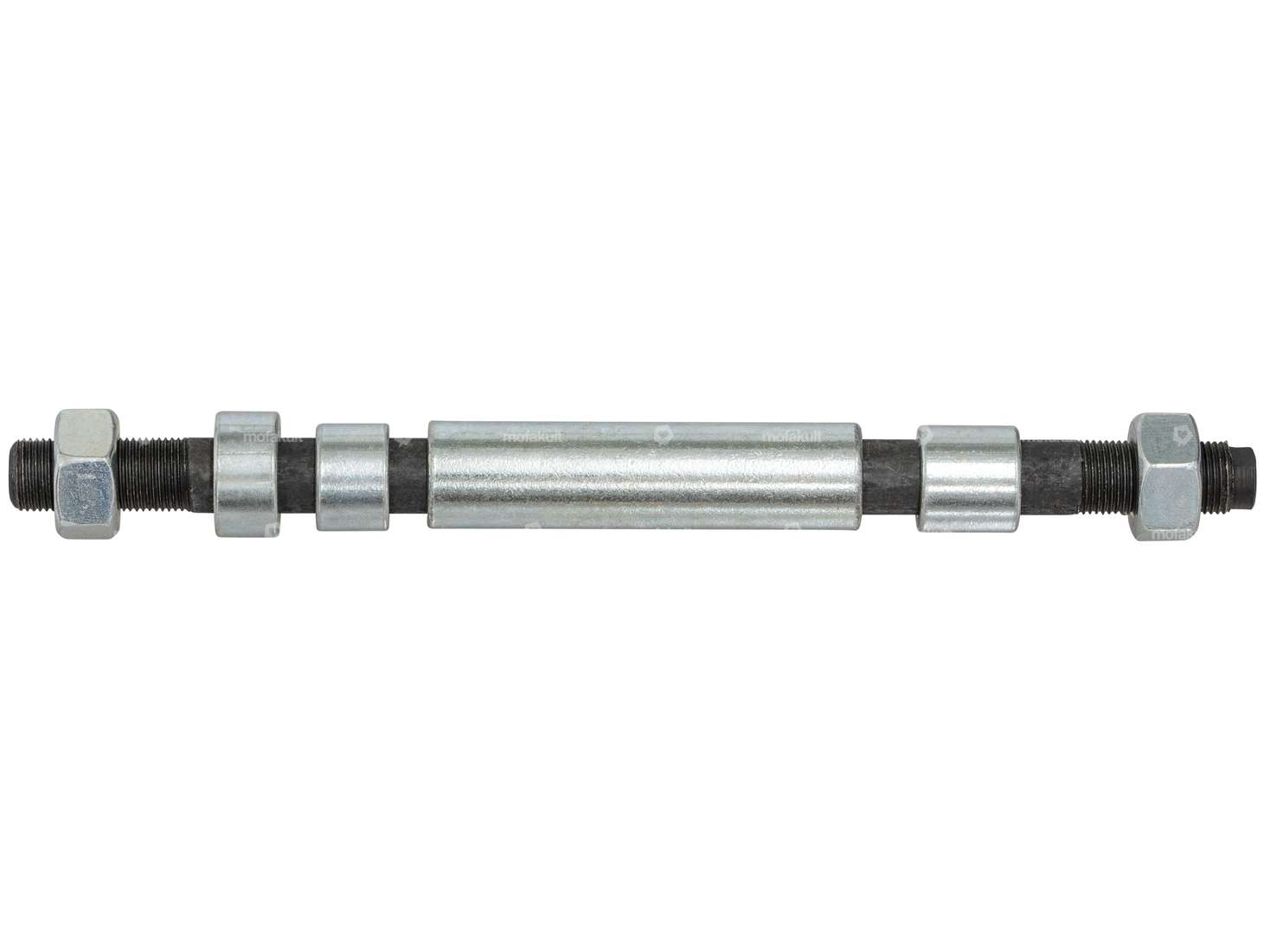

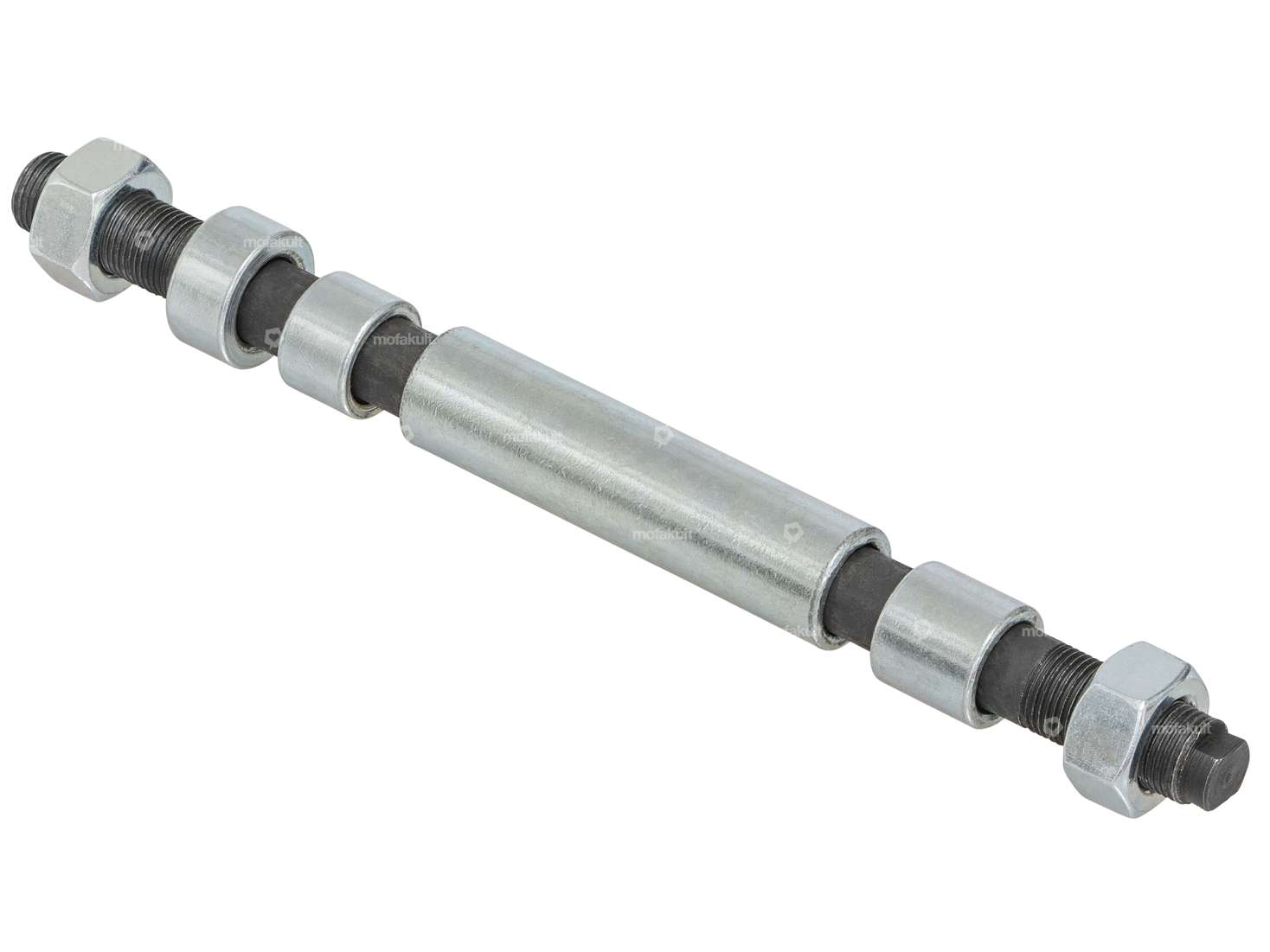

Socket axle M12x195 made of blackened steel for the cast rear wheel on your Puch moped / moped.
The brünated surface does not provide permanent rust protection and should therefore be treated with rust inhibitor.
The complete rear axle set is also equipped with the following parts:
- 2 pieces of M12 x 1 nuts
- 1 piece of spacer ring (Ø 20 x 10 mm)
- 1 piece of spacer sleeve (Ø 17 x 11.5 mm)
- 1 piece of spacer (Ø 17 x 15.6 mm)
- 1 piece of spacer (Ø 17 x 67.8 mm)
The spacers in this complete set may need to be adjusted.
A wheel axle of better quality can be found in the accessories section.
Good quality reproduction product from the Asian market.
Details
| Manufacturer | Quenching |
| Material | Steel |
| Surface | burnished, galvanized (blue) |
| Thread type | MF12x1 (fine pitch thread) |
| Ø shaft | 12 mm |
| Ø outside | 17 mm, 20 mm |
| Width across flats SW | 19 mm |
| Total length | 195 mm |
| Shank length | 137 mm |
| Thread length | 25 mm, 28 mm |
Suitable for the following models
| Puch |
