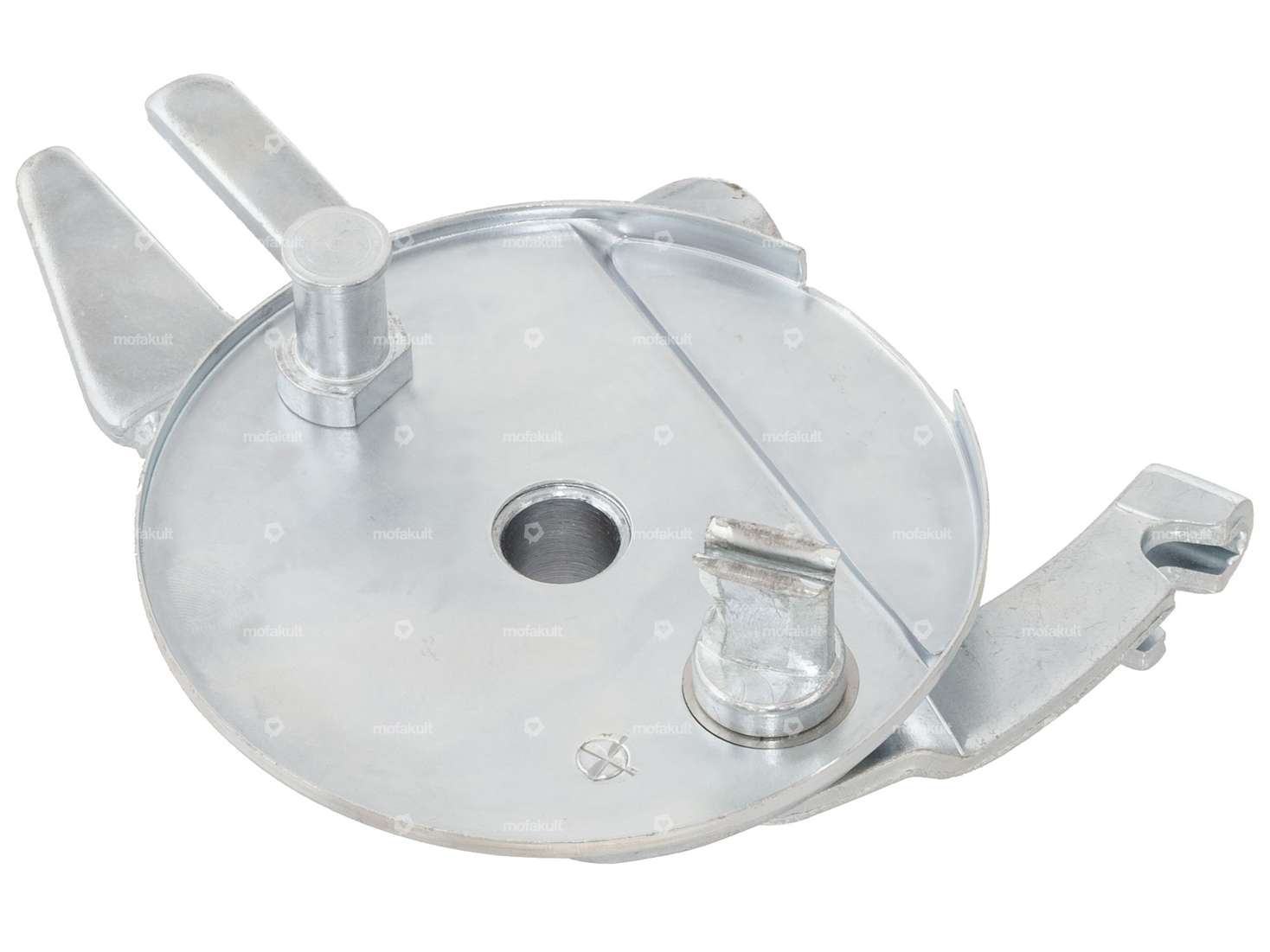

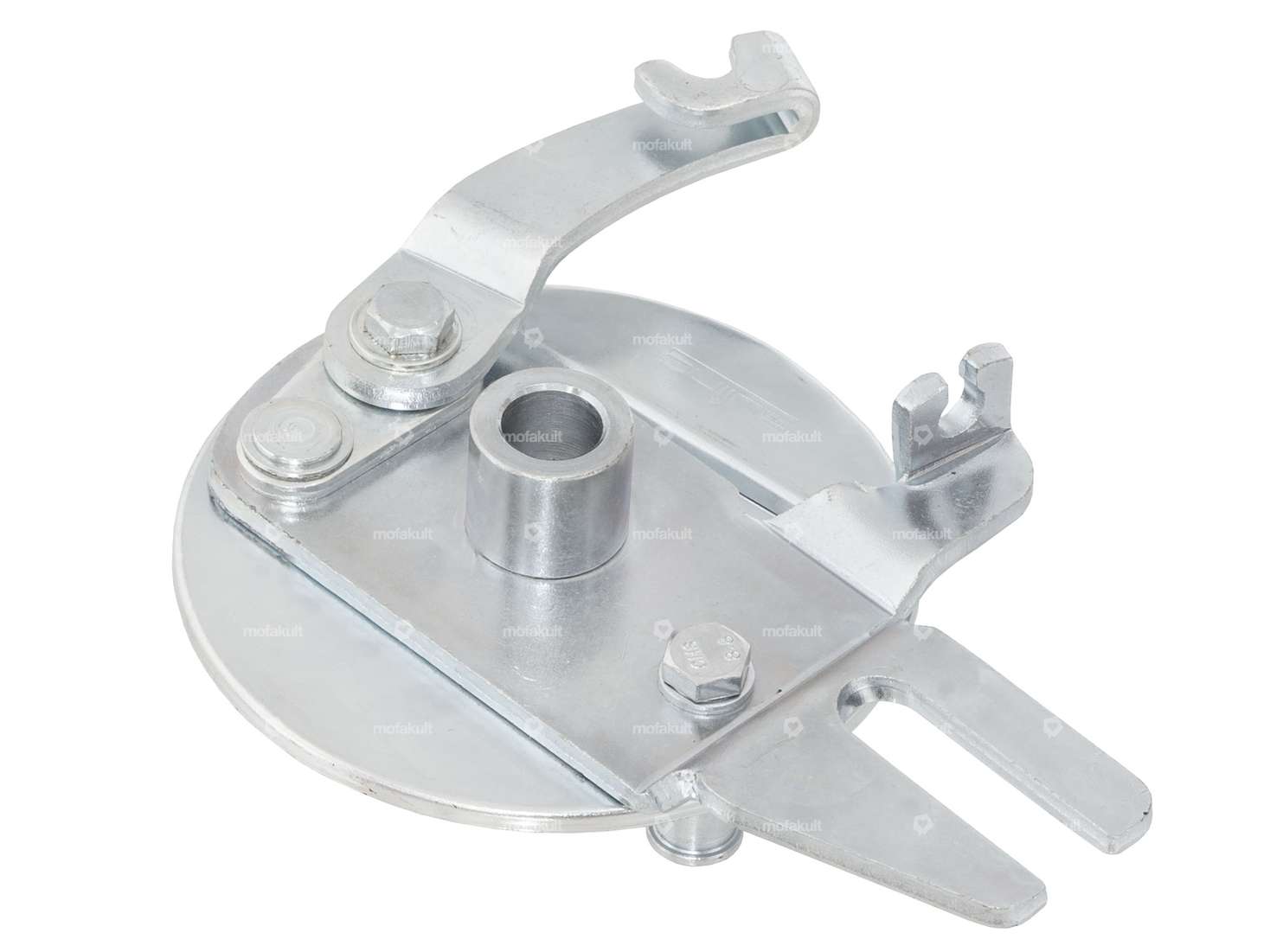

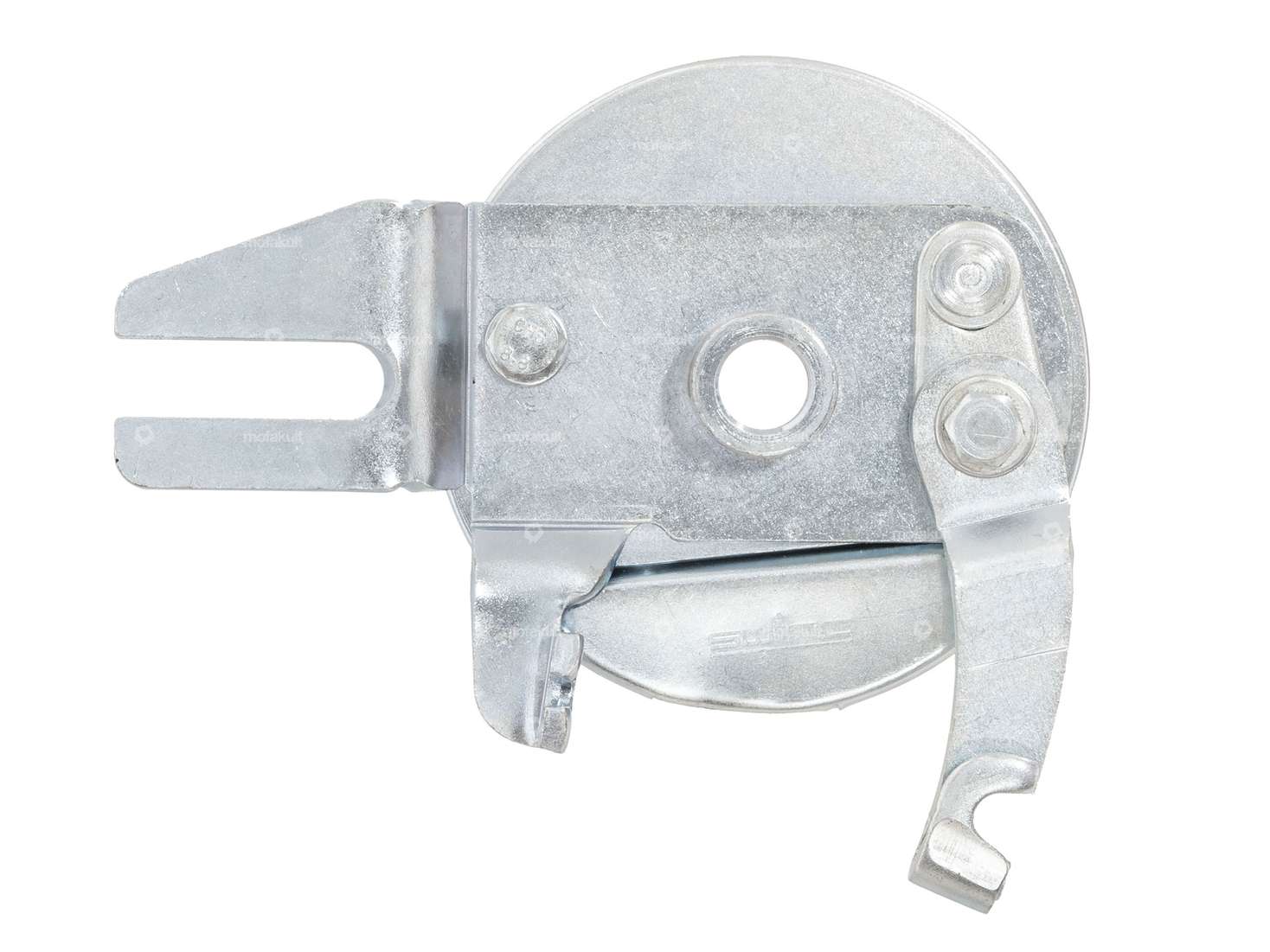

Brake plate suitable for Puch Maxi N rear wheels.
The galvanized brake plate is in no way inferior to the original SGDG / LELEU brake anchor plates in terms of workmanship and functionality.
Ø outer: 92 mm
Ø brake blade outer: 80 mm
Ø axle: 12 mm
Ø shaft: 10 mm
Ø bore: 12.2 mm
Width of cam mount: 12 mm
Length of brake lever (lever length): 68 mm
Crimp: 10 mm
The brake lever and brake cam are bolted together and can be easily removed if necessary.
Nostalgic product for the highest demands of the quality brand swiing®.
Details
| Ø bore | 12.2 mm |
| Manufacturer | swiing® revival parts |
| Material | Steel |
| Surface | blue galvanized |
| Total length | 135 mm |
| Ø External brake pads | 80 mm |
| Ø shaft | 10 mm |
| Ø outside | 92 mm |
| Ø axle | 12 mm |
| Ø screw holder | 6.5 mm |
| Wide cam holder | 12 mm |
| Brake lever length (lever length) | 68 mm |
| Cranking (offset) | 10 mm |
Suitable for the following models
| Puch |
