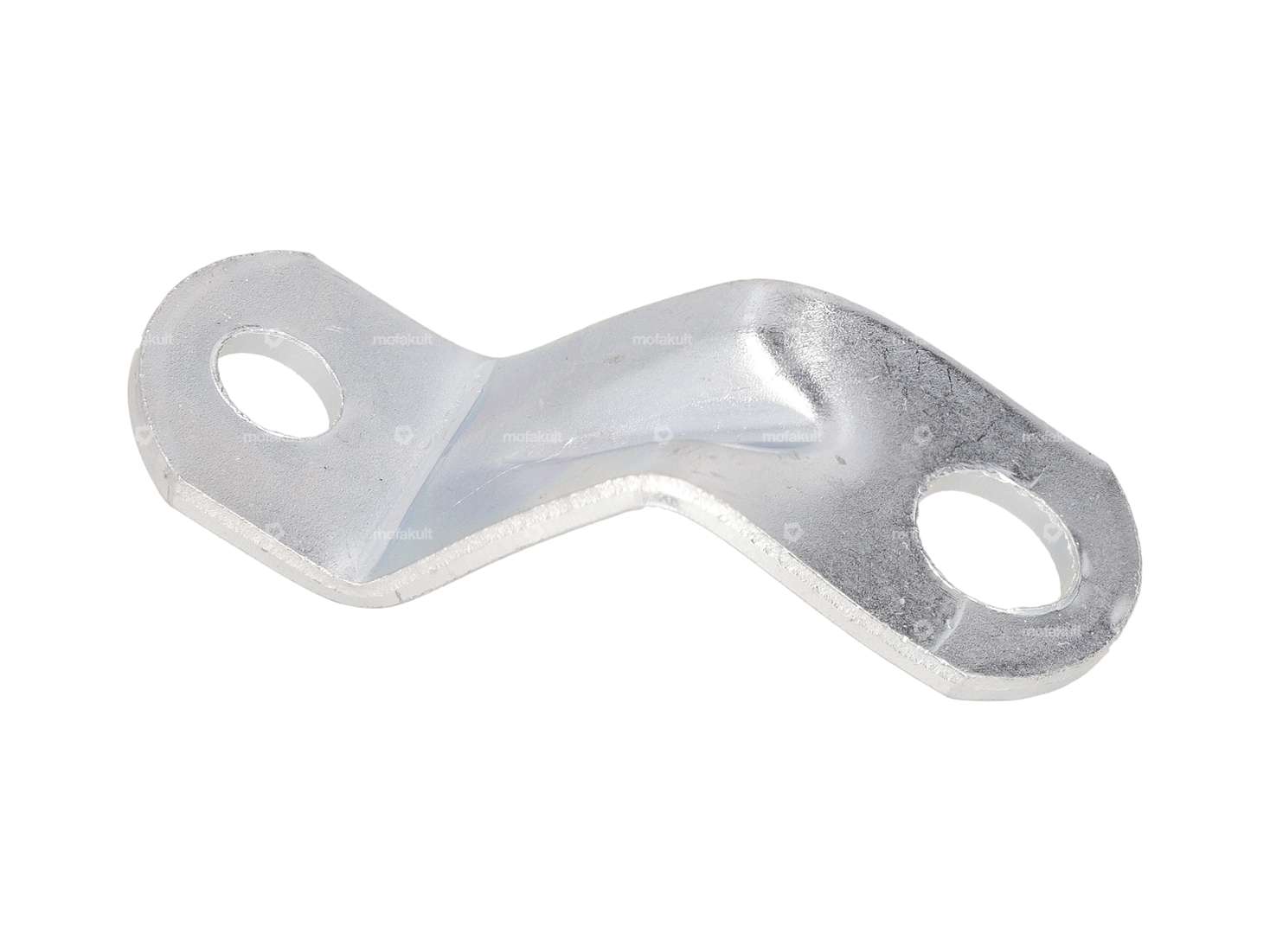

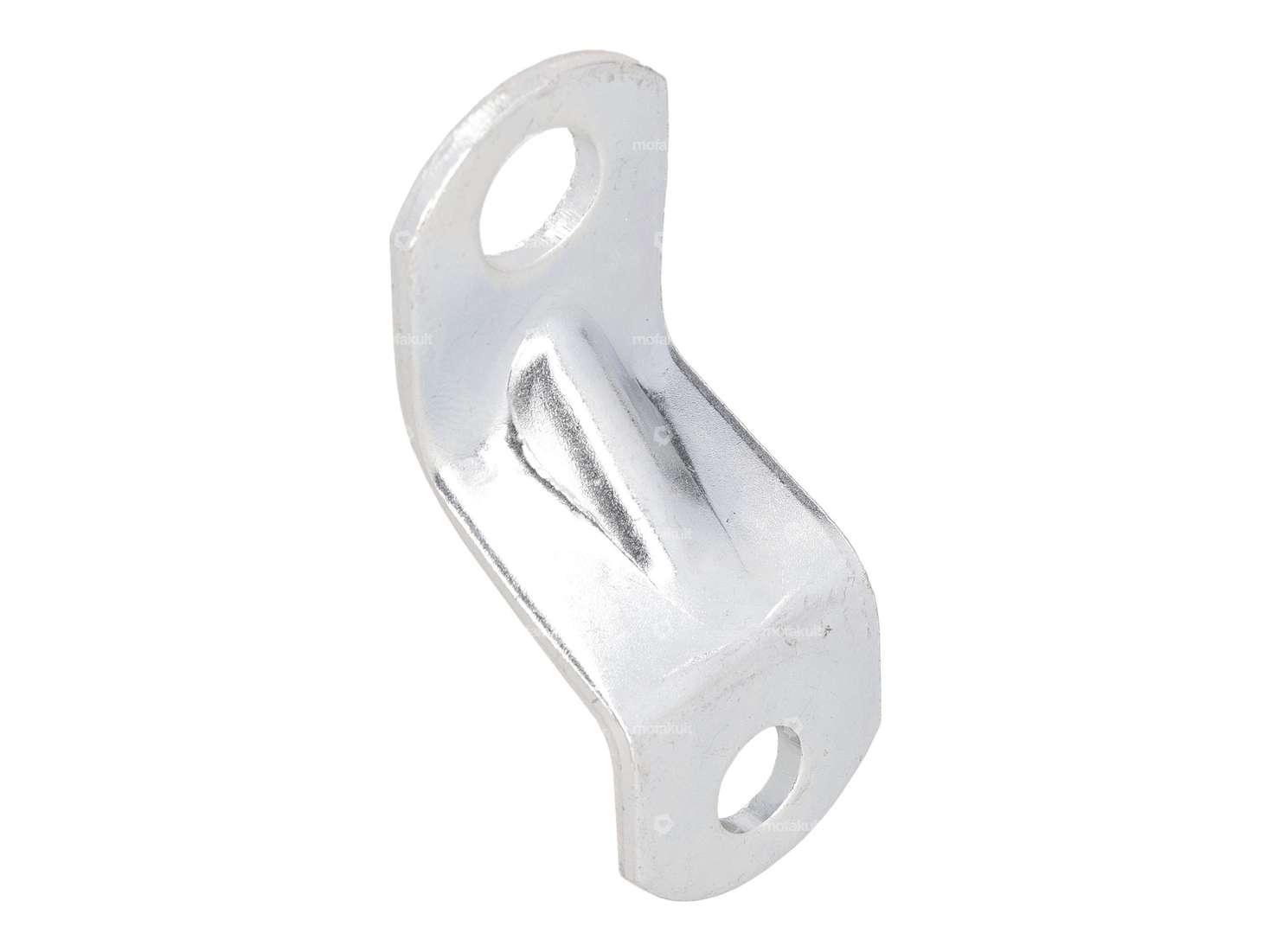

Exhaust mounting plate | Puch Maxi N

swiing® ingenious exhaust 22 mm camouflaged 2-piece | Puch Maxi S, N

Manufacturer: swiing® ingenious parts · Material: Steel · Surface: chrome-plated · Ø outside: 59 mm · Total length: 910 mm · Color: Chrome · Ø Silencer: 54.5 mm · Ø Flame tube outside: 22 mm · Exhaust type: Flute · Mounting type: Stud bolts & nuts · Mounting type: Welded lug · Number of fixing points: 4 pcs · Flame tube attachment: Flange

Exhaust 18 mm replica (with number) | Puch Maxi S, N

Manufacturer: Made in Portugal · Material: Steel · Surface: chrome-plated · Total length: 920 mm · Color: Chrome · Ø Silencer: 59 mm · Ø Internal connection: 14 mm · Ø Flame tube outside: 18 mm · Exhaust type: Flute · Mounting type: Welded lug · Number of fixing points: 4 pcs · Flame tube attachment: Flange

Exhaust cigar 28 mm chrome | Puch Maxi S, N / X30 NS, NL

Manufacturer: Made in Portugal · Material: Steel · Surface: chrome-plated · Ø outside: 70 mm · Total length: 920 mm · Color: Chrome · Ø Internal connection: 28 mm · Ø Flame tube outside: 28 mm · Exhaust type: Cigar · Mounting type: Stud bolts & nuts · Mounting type: Welded lug · Number of fixing points: 1 pcs · Flame tube attachment: Flange

Exhaust 22 mm 2-piece replica (with number) | Puch

Manufacturer: Made in Portugal · Material: Steel · Surface: chrome-plated · Color: Chrome · Total length: 920 mm · Ø Flame tube outside: 22 mm · Exhaust type: Flute · Ø outside: 58 mm · Flame tube attachment: Flange · Mounting type: Stud bolts & nuts · Mounting type: Welded lug · Number of fixing points: 4 pcs

Exhaust clamp 70 mm chrome wide version.

Manufacturer: Made in Portugal · Material: Steel · Surface: chrome-plated · Color: Chrome · Nominal diameter: 70 mm · Clamping diameter: 67 - 71 mm · Width: 28 mm · Thickness: 2 mm · Number of fixing points: 1 pcs · Ø mounting hole: 8.2 mm

Set 28 mm exhaust cigar | Puch Maxi N

Manufacturer: Made in Portugal · Surface: chrome-plated · Ø outside: 70 mm · Material: Steel · Color: Chrome · Ø Internal connection: 28 mm · Exhaust type: Cigar · Mounting type: Screwed clamp · Flame tube attachment: Flange

Bent exhaust bracket

Material: Steel · Surface: galvanized (blue) · Thickness: 3 mm · Hole spacing: 38 mm · Number of fixing points: 2 pcs · Cranking (offset): 15 mm

swiing® revival exhaust gasket 22 mm 2-piece | Puch

Manufacturer: swiing® revival parts · Material: Sealing carton · Place of use: Exhaust · Thickness: 2 mm · Ø inside: 26 mm · Ø outside: 34 mm · Ø outlet inside: 26.5 mm · Area of application: Standard

swiing® ingenious cigar Ø 28 / 70 mm chrome (reso exhaust)

Manufacturer: swiing® ingenious parts · Material: Steel · Surface: chrome-plated · Ø outside: 70 mm · Total length: 730 mm · Color: Chrome · Ø Internal connection: 28 mm · Exhaust type: Cigar · Mounting type: Screwed clamp

swiing resonance exhaust set Ø 28 / 70 mm | Puch Maxi / Puch X30 Sport

Manufacturer: swiing · Material: Steel · Surface: chrome-plated · Ø outside: 70 mm · Total length: 730 mm · Color: Chrome · Ø Internal connection: 28 mm · Exhaust type: Cigar · Mounting type: Screwed clamp · Flame tube attachment: Flange

Exhaust bracket Inox | Puch Maxi N

Material: Chrome steel (stainless steel) · Thickness: 3 mm · Manufacturer: Made in Netherlands · Number of fixing points: 2 pcs · Hole spacing: 50 mm · Ø mounting hole: 7 mm · Ø mounting hole: 10 mm · Cranking (offset): 20 mm

swiing® ingenious exhaust clamp 28 mm heat-resistant

Manufacturer: swiing® ingenious parts · Material: FPM - Rubber · Material: Steel · Surface: chrome-plated · Ø inside: 25 - 28 mm · Total length: 40 mm · Color: Chrome · Width: 40 mm · Mounting type: Nuts & bolts

swiing® revival cable guide mudguard black | Puch

Total length: 74 mm · Manufacturer: swiing® revival parts · Material: Plastic · Color: black · Height: 12.5 mm · Mounting type: Plug connection · Number of fixing points: 2 pcs · Hole spacing: 63 mm

GPO control bearing set M26x1 mm | Puch

Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Color: silver · Bearing type: Bearing ring · Thread type: MF26x1 (fine pitch thread) · Ø mounting frame: 31 mm · Ø inside: 26.8 mm · Ø outside: 41 mm

swiing® revival 17" rear fender Inox | Puch Maxi N

Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel) · Surface: polished · Color: Chrome · Wheel size [inch]: 17 " · Folding the ends: closed folded · Folding the ends: not folded · Shape of the mudguard: angular · Total length over ends: 625 mm · Scope: 940 mm · Wide mudguard profile: 82 mm · Height of mudguard profile: 35 mm · Total height from support surface to top edge: 285 mm · Mounting type: Nuts & bolts

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Thread type: MF12x1 (fine pitch thread) · Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Installation direction: horizontal / horizontal · Outlet direction: below · Mounting type: Union nut · Spare tube shape: curved · Ø fuel hose connection: 6 mm · Reserve level: 70 mm

GPO rear mudguard attachment 17" | Puch Maxi N

Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Color: Chrome · Total length: 300 mm · Ø mounting hole: 6 mm · Wheel size [inch]: 17 " · Number of fixing points: 4 pcs · Mounting type: Nuts & bolts

swiing® revival 17" front fender square Inox | Puch Maxi S, N

Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel) · Surface: polished · Color: Chrome · Wheel size [inch]: 17 " · Folding the ends: closed folded · Shape of the mudguard: angular · Total length over ends: 565 mm · Scope: 740 mm · Wide mudguard profile: 82 mm · Height of mudguard profile: 35 mm · Total height from support surface to top edge: 200 mm · Mounting type: Nuts & bolts

swiing® revival frame guard black | Puch Maxi N

Manufacturer: swiing® revival parts · Total length: 175 mm · Width: 54 mm · Height: 20 mm · Material: Plastic · Surface: raw · Color: black · Number of fixing points: 1 pcs · Ø mounting hole: 21.5 mm · Mounting type: Plug connection

Outlet gasket 18 - 22 mm metal ring

Material: Sealing carton · Material: Sheet metal (steel) · Ø inside: 22 mm · Ø mounting hole: 6.7 mm · Thickness: 2 mm · Place of use: Outlet · Hole spacing: 38 - 42.5 mm · Number of fixing points: 2 pcs

GPO Brake support bolt short Inox | Puch Maxi, Supermaxi

Manufacturer: GPO · Material: Chrome steel (stainless steel) · Area of application: Standard · Thread type: MF10x1 (fine pitch thread) · Drive: Outer edge · Ø External head: 14 mm · Width across flats SW: 13 mm · Width across flats SW: 17 mm · Shank: Yes · Ø shaft: 9.8 mm · Shank length: 9.5 mm · Total length: 32 mm · Thread length: 13 mm · Number of components: 3 pcs

GPO brake cam & retaining plate set | Puch Maxi N

Manufacturer: GPO · Material: Chrome steel (stainless steel) · Material: Steel · Surface: galvanized (blue)
