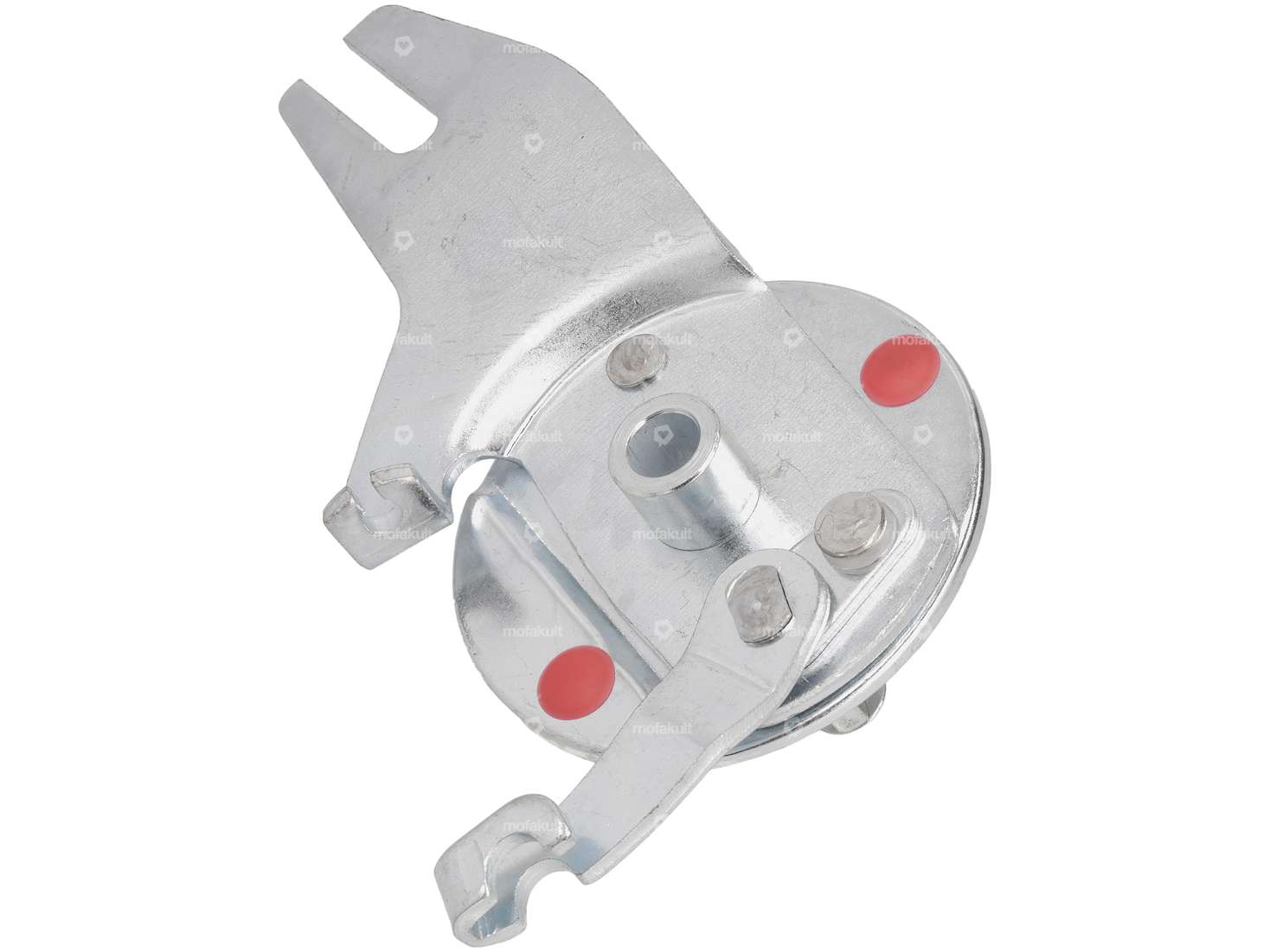

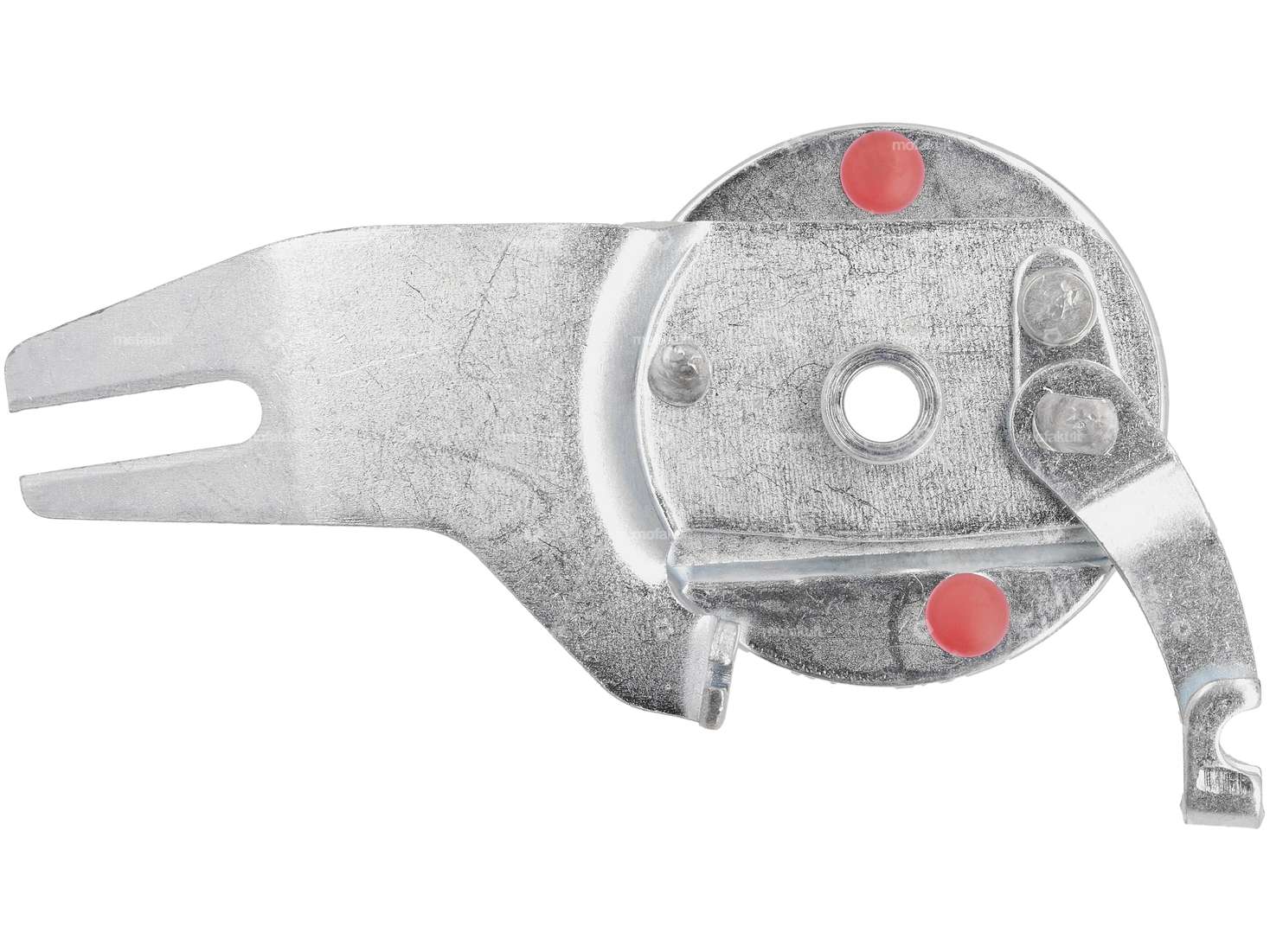

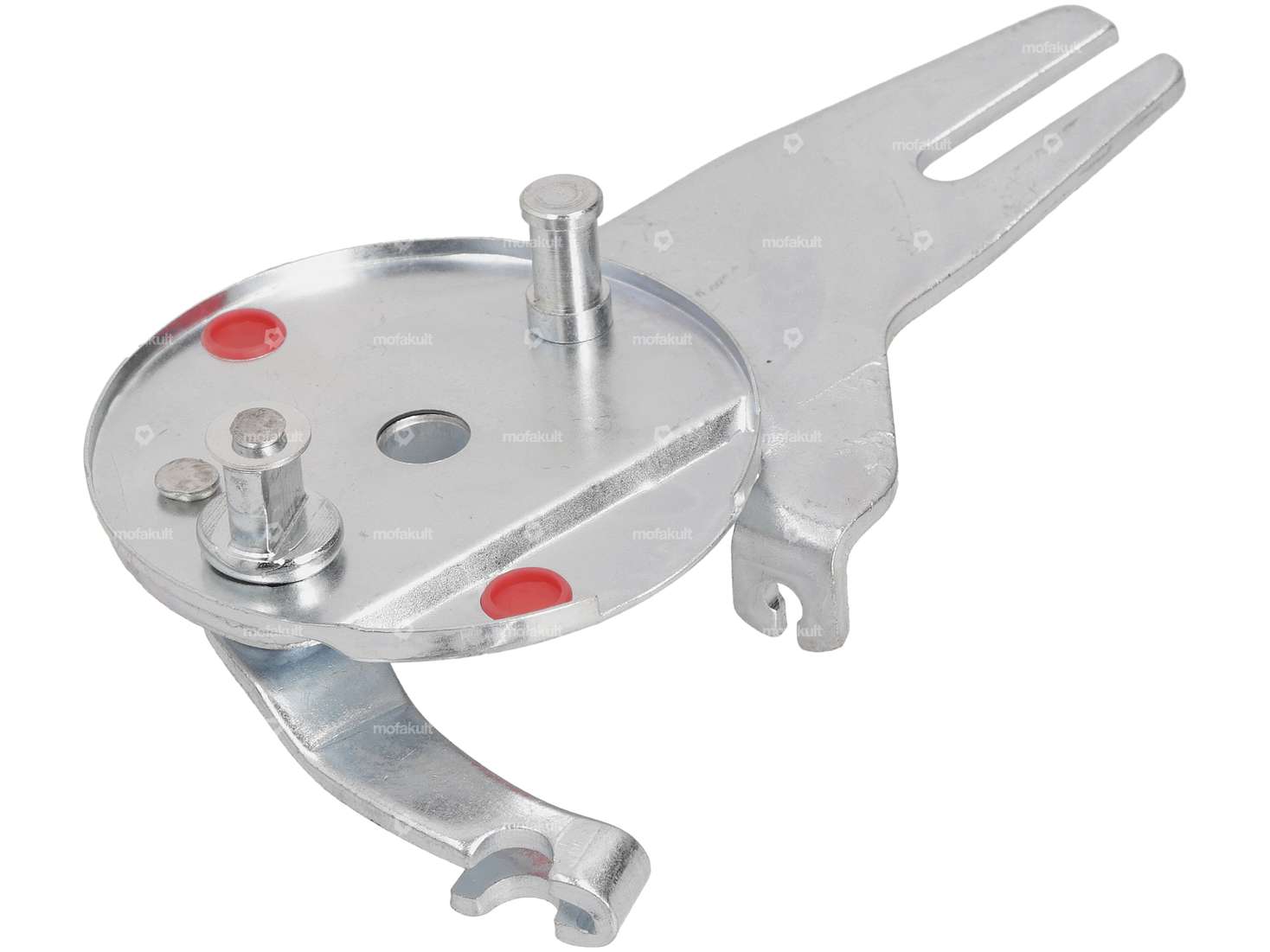

Complete, galvanized brake anchor plate incl. brake shoes for the rear LeLeu rim of Puch Maxi S mopeds / mopeds.
The moving parts of the anchor plate should be coated with grease before installation.
Ø inner cover: 90 mm
Ø axle: 12.15 mm
Brake cam mount: 10.3 mm
As a high-quality alternative, we recommend the brake anchor plate shown below as well as the necessary 80 mm brake shoes in the accessories section.
Suitable for the following models
| Puch |
