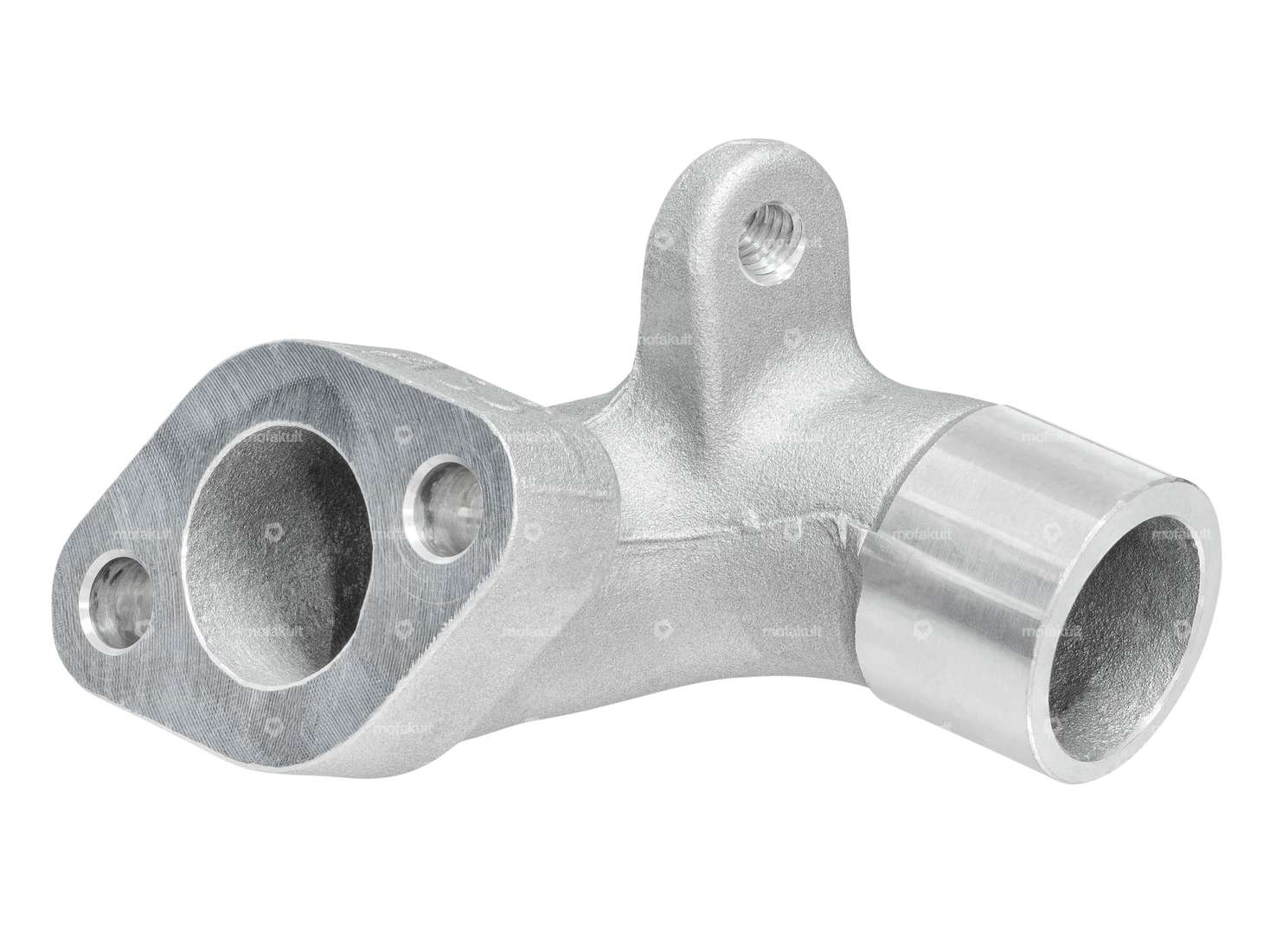

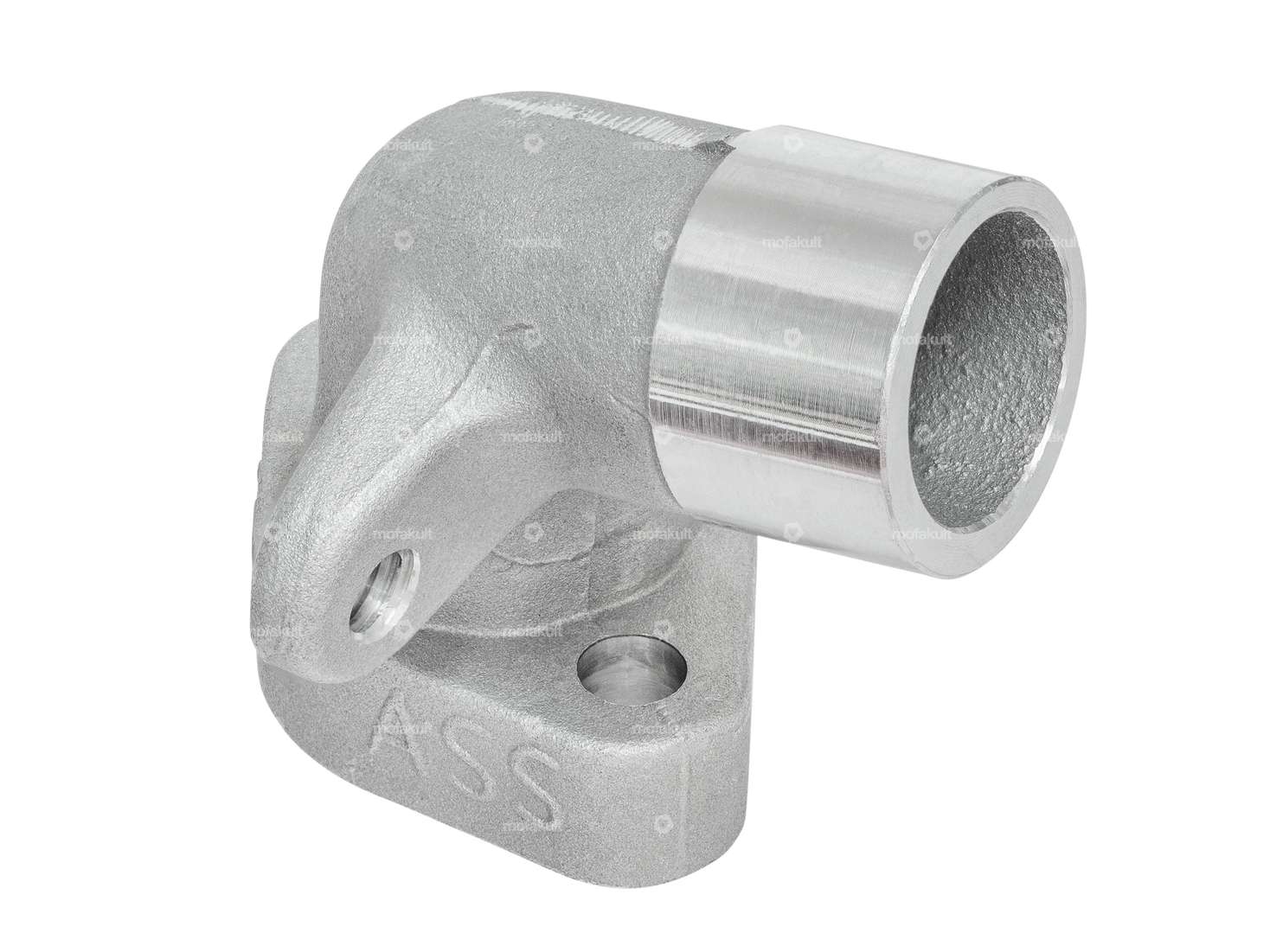

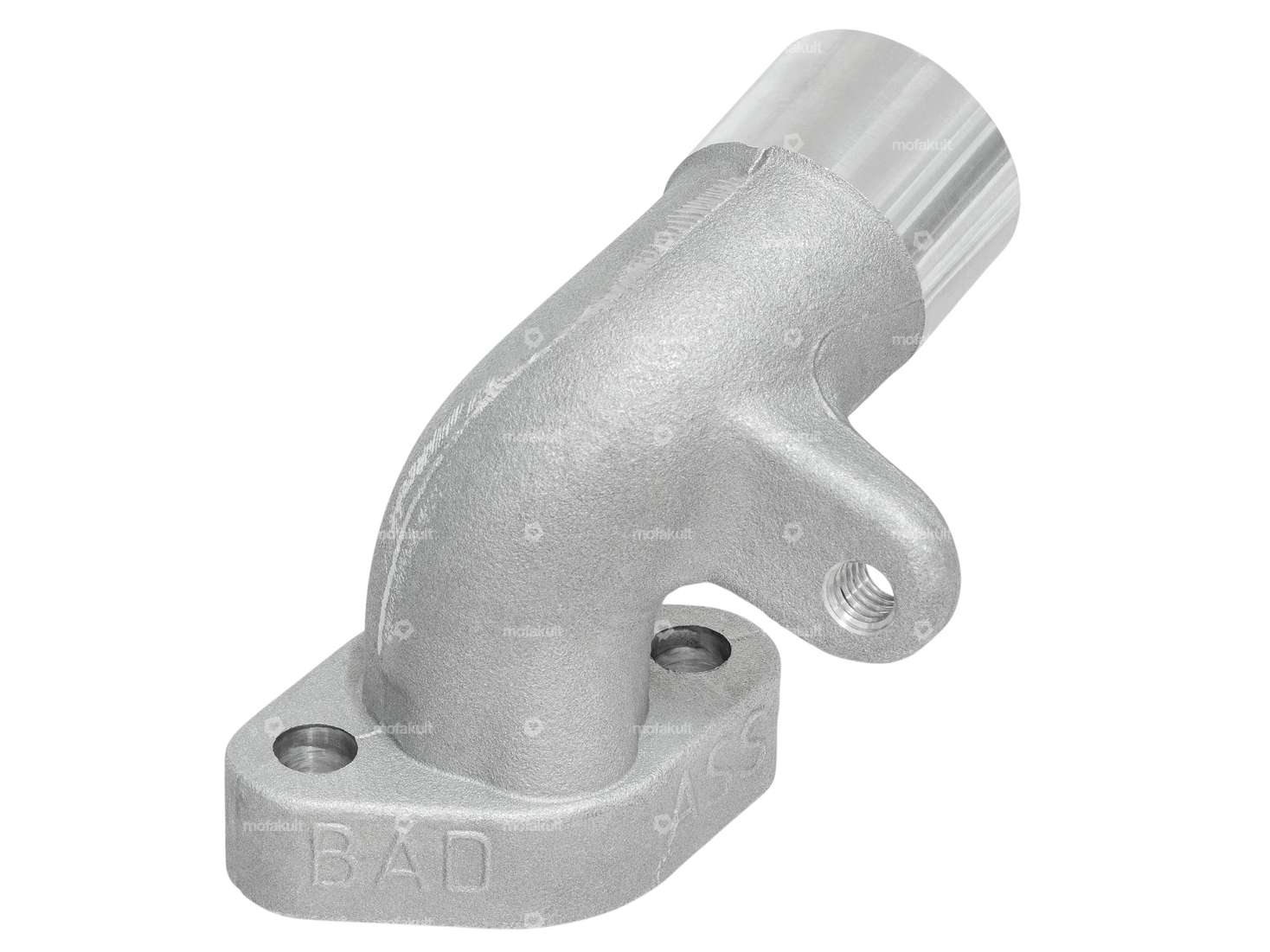

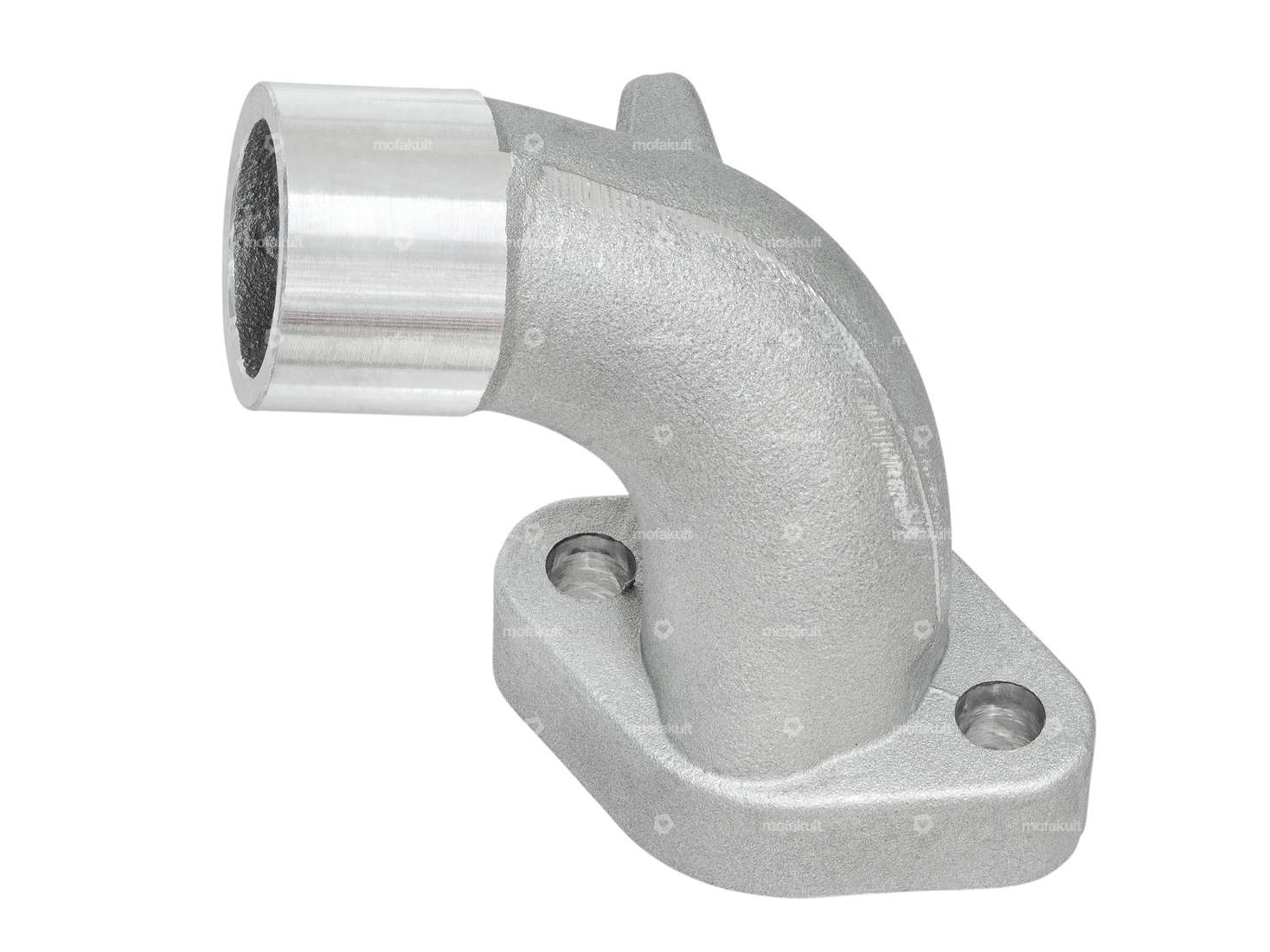

Short 50 mm intake manifold for hand-shifted Sachs 503 2AL and 2BL mopeds / mopeds.
This manifold is recommended in combination with the 41 mm BAD ASS Pandora tuning cylinder and makes it possible to fit a 17 mm Bing SRF or a Dell'Orto or GPO PHBG carburettor with the corresponding sleeve.
- Carburetor connection diameter: 23 mm
- Internal diameter: 17 mm throughout
- Hole spacing: 32 mm
- Threaded bracket: M6
To simplify installation, we recommend using M6 nuts with reduced key width. You can find these special nuts as well as the long 70 mm intake manifold or the sleeve for mounting PHBG carburetors in the accessories.
This is the tuning version of the original Sachs spare part with the number A2177.
Made by the brand BADASS.
Details
| Total height | 56.5 mm |
| Manufacturer | BAD ASS |
| Material | Aluminum |
| Area of application | Tuning |
| Thread type | M6x1 (standard thread) |
| Ø External connection | 23 mm |
| Camouflaged | No |
| Ø inside | 17 mm |
| Number of fixing points | 3 pcs |
| Height flange center hole | 45 mm |
| Total length | 54 mm |
| Mounting type | Screws |
| Hole spacing inlet | 32 mm |
Suitable for the following models
| Sachs | 503 - AAL, ABL, 2AL / 2BL |
Accessories & related products
Magura set screw M6x34 mm lock nut SW8
Slotted: No · Manufacturer: Magura · Material: Brass · Material: Steel · Surface: galvanized (blue) · Surface: nickel-plated · Ø cable holder: 3.05 mm · Thread type: M6x1 (standard thread) · Ø Receptacle: 7.05 mm · Width across flats Screw: 8 mm · Total length: 34 mm · Width across flats nut: 8 mm · Thread length: 24 mm
EUR 2,95
GPO 17.5 mm PHBG AS carburetor hand choke (Dell'Orto replica)
Total length: 71.5 mm · Manufacturer: GPO · Material: Aluminum · Camouflaged: No · Area of application: Tuning · Color: black · Nominal diameter: 17.5 mm · Carburetor type: PHBG AS · Width: 63 mm · Nozzle block: 262AU · Ø Internal connection: 24 mm · Height: 130 mm · Ø without reducing sleeve: 26 mm · Nozzle thread: M5x0.8 (standard thread) · Ø Air filter connection: 32 mm · Air filter connection thread: MF32x1.25 (fine pitch thread) · Ø fuel hose connection: 5.3 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: Yes · Choke control: Hand choke · Choke nozzle size: 55 · Nozzle size: 80 · Size of secondary nozzle: 50 · Mounting type: Bride · Mounting type: Plug connection clamped
EUR 93,70
17 mm Bing SRF carburetor (replica)
Material: Aluminum · Carburetor type: SRF · Total length: 78 mm · Nominal diameter: 17 mm · Width: 64 mm · Ø Internal connection: 23 mm · Ø Air filter connection: 60 mm · Ø Air filter connection: 64 mm · Height: 117 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M4x0.7 (standard thread) · Nozzle block: 2.xx · Mounting type: Plug connection clamped · Clamping screw torque (max.): 3 N/m · Clamping screw torque (max.): 4 N/m · Area of application: Tuning
EUR 76,10
swiing® revival special nut M6 SW8 (sprocket ref. back pedal / intake manifold)
Manufacturer: swiing® revival parts · Material: Steel · Nut type: Hexagon nut · Surface: galvanized (blue) · Drive: External hexagon · Thread type: M6x1 (standard thread) · Height: 6 mm · Width across flats SW: 8 mm
EUR 3,40
Bing "19 mm" SRF carburetor
Carburetor type: SRF · Nominal diameter: 17 mm · Ø Internal connection: 23 mm · Ø Inside entrance: 19 mm · Ø Output inside: 19 mm · Ø Air filter connection: 60.2 mm · Ø fuel hose connection: 6 mm · Choke control: Hand choke · Nozzle thread: M4x0.7 (standard thread) · Mounting type: Plug connection clamped · Area of application: Tuning
EUR 99,50
swiing® ingenious 15 mm intake manifold long version | Sachs 503 2AL, 2BL
Manufacturer: swiing® ingenious parts · Camouflaged: No · Material: Aluminum · Ø inside: 15 mm · Ø External connection: 20 mm · Mounting type: Screws · Hole spacing inlet: 32 mm · Number of fixing points: 2 pcs · Total height: 80 mm · Height flange center hole: 70 mm · Total length: 70 mm · Thread type: M6x1 (standard thread) · Area of application: Tuning · Pony OEM number: A2176
EUR 70,20

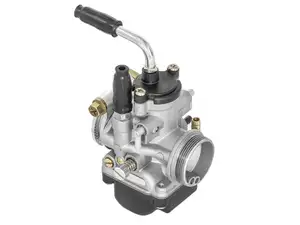

GPO 17.5 mm PHBG AD carburetor cable choke (Dell'Orto replica)
