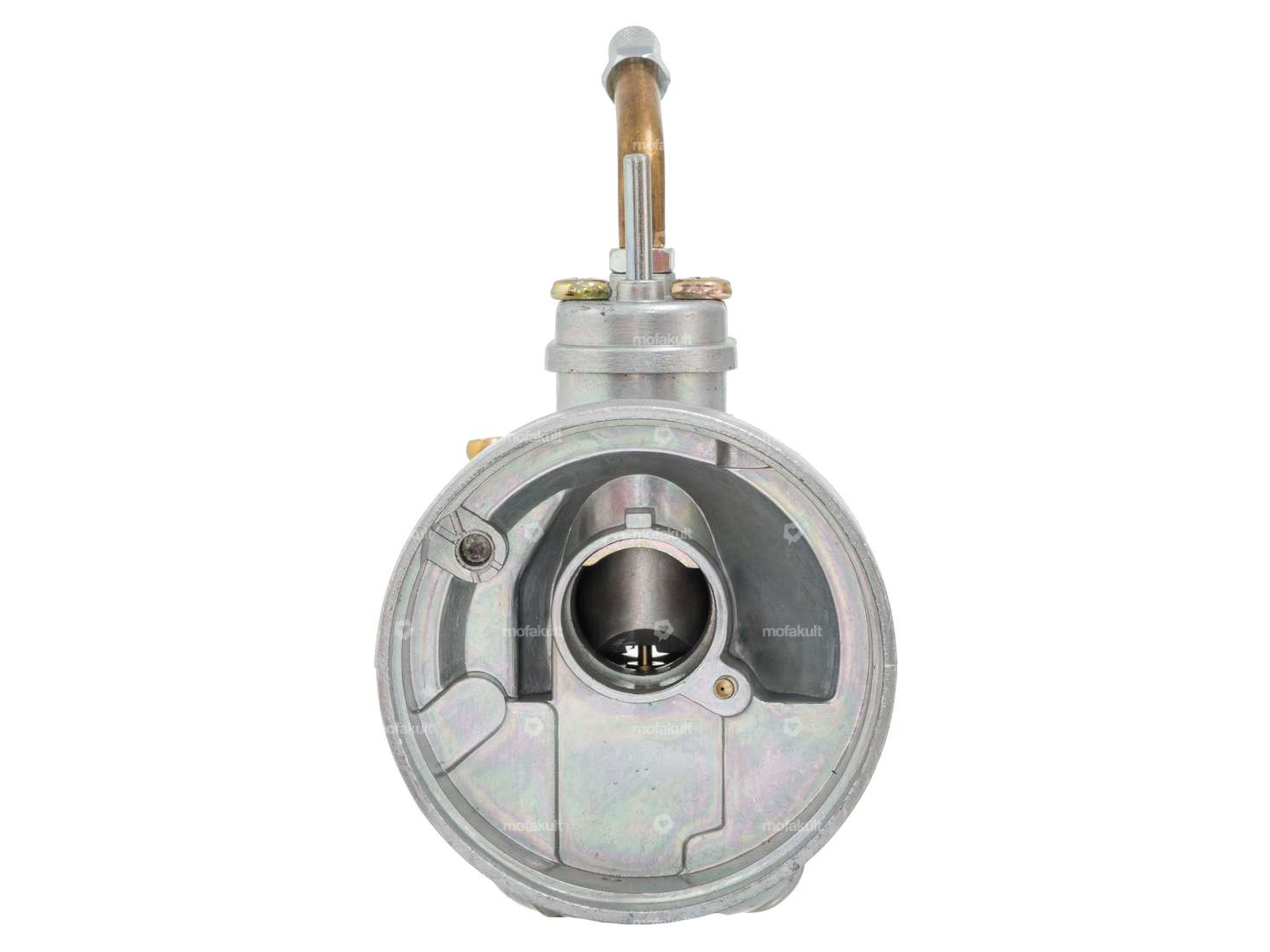

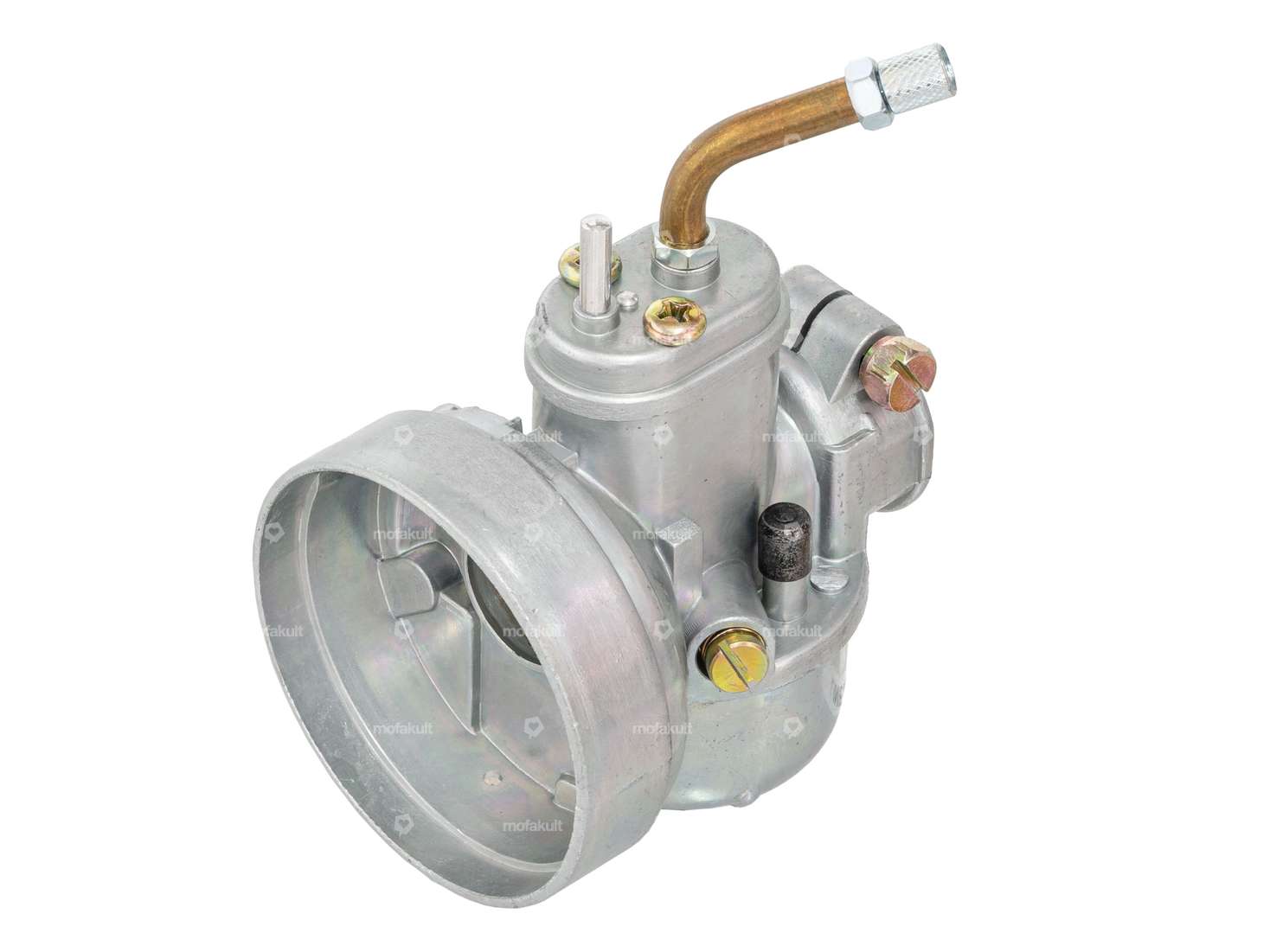

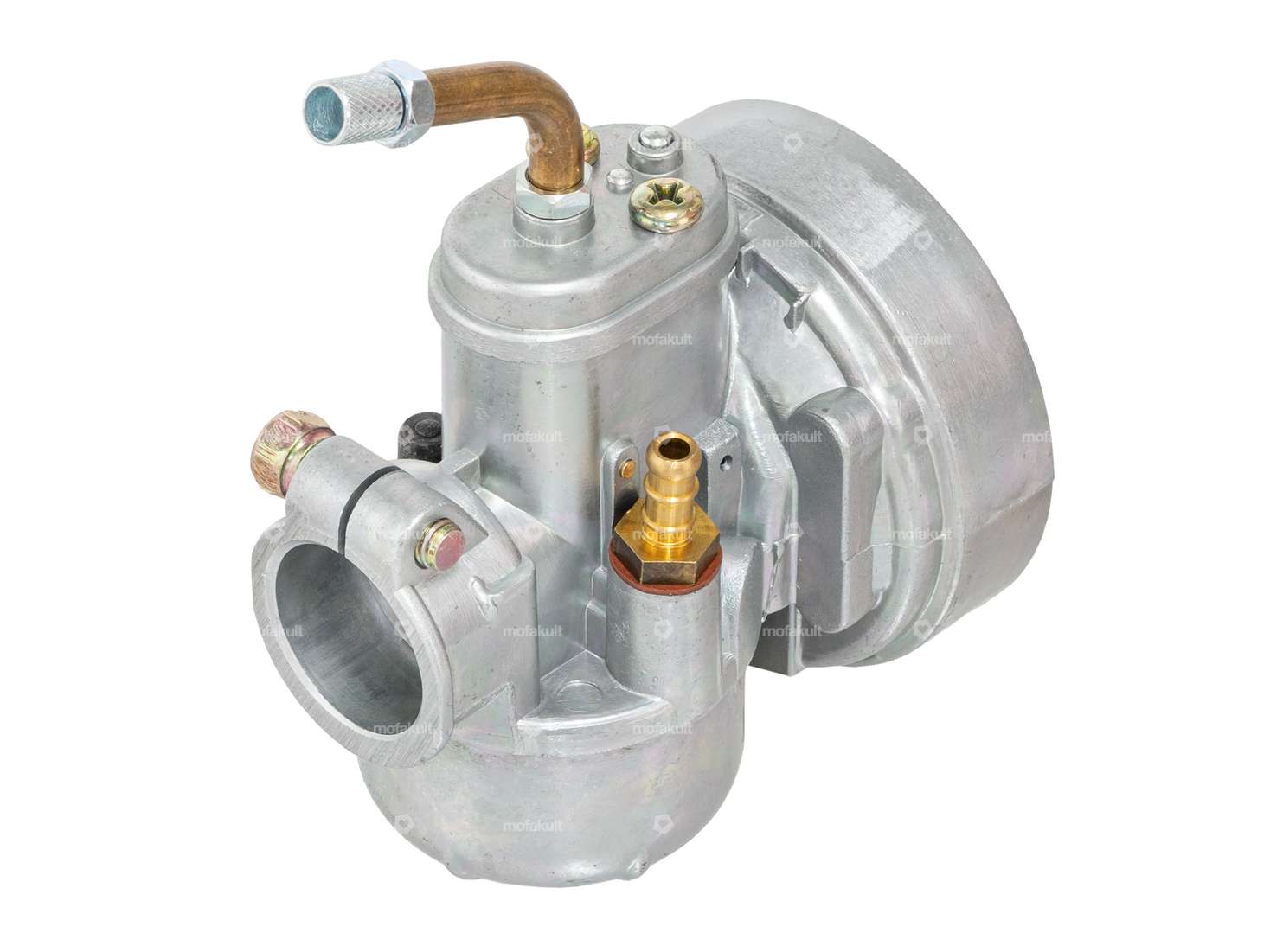

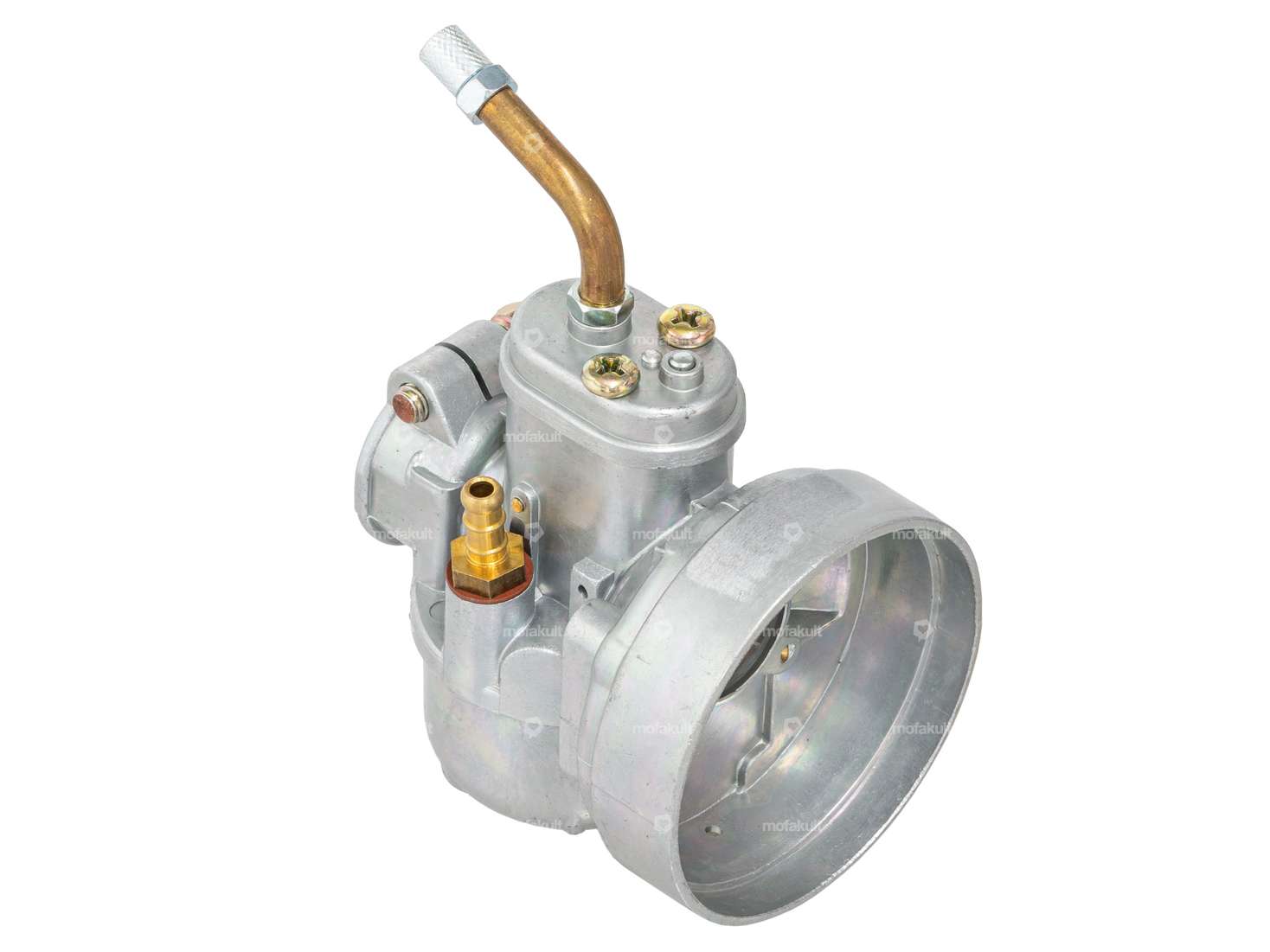

A supposed 19 mm Bing SRF replica carburetor.
The passage is slightly conical, so that the diameter is 19 mm on the outside, but only slightly larger than 17 mm in the middle.
The carburetor is not of the same quality as original Bing products, but is a good and inexpensive alternative.
Sink block is for nozzles with M4 thread.
ØAir filter screen: 60.2 mm
Connection diameter to intake manifold: 23 mm
Mounted nozzle size: unknown
Details
Area of application | Tuning |
Carburetor type | SRF |
Nominal diameter | 17 mm |
Ø Internal connection | 23 mm |
Ø Inside entrance | 19 mm |
Ø Output inside | 19 mm |
Ø Air filter connection | 60.2 mm |
Ø fuel hose connection | 6 mm |
Mounting type | Plug connection clamped |
Choke control | Hand choke |
Nozzle thread | M4 |
Suitable for the following models
Puch | |
Zündapp Belmondo | |
Kreidler |
