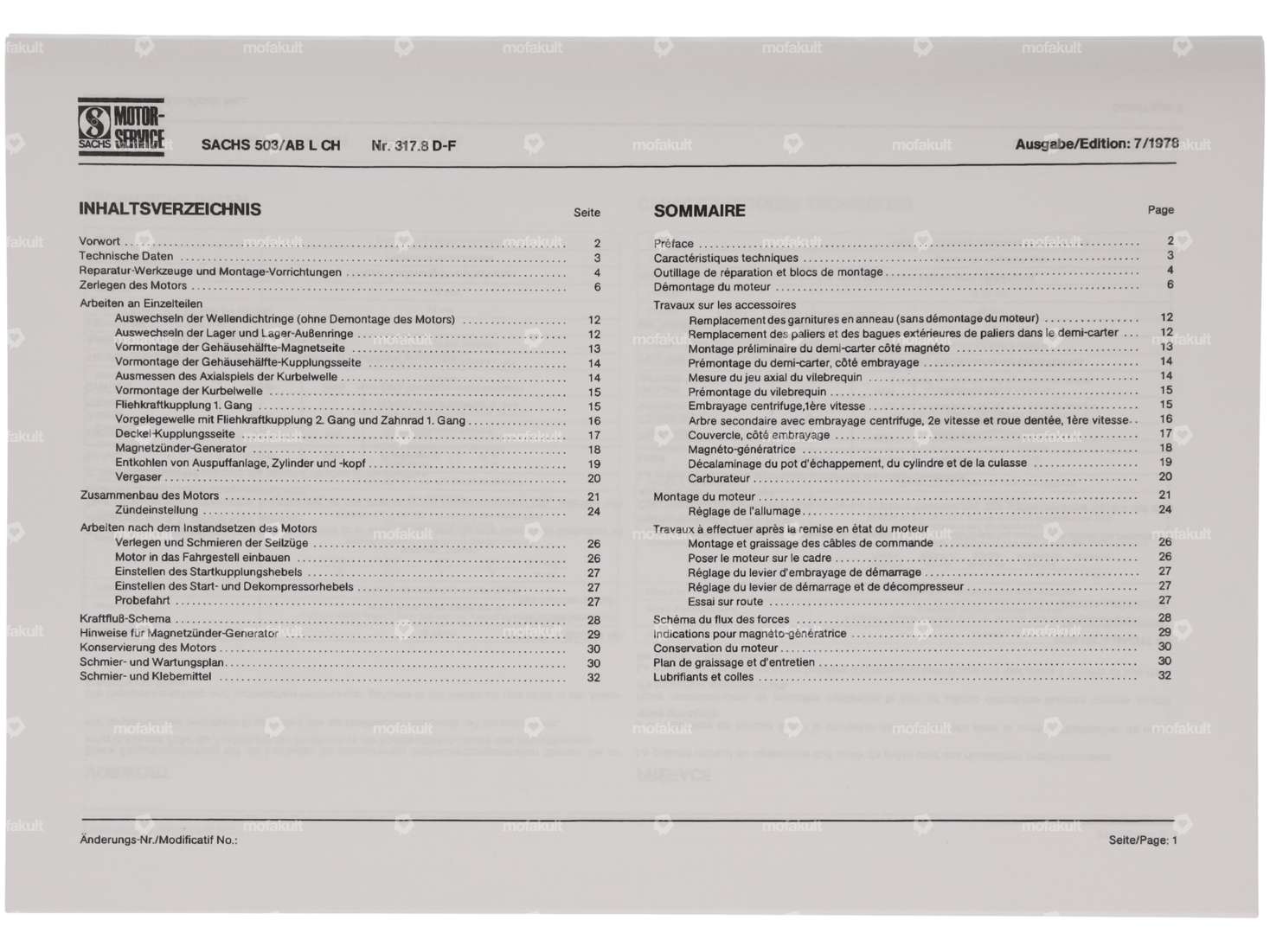

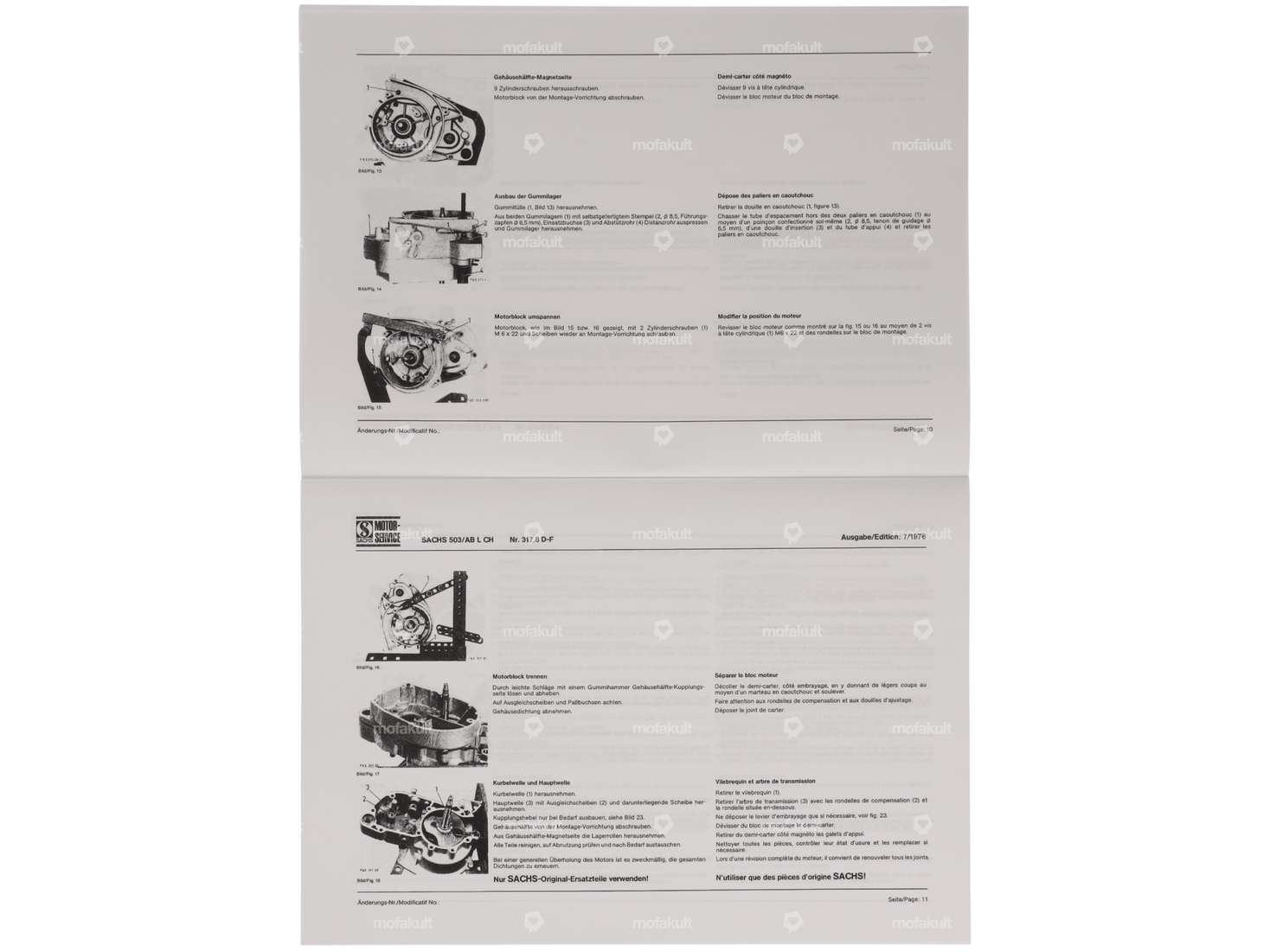

Nostalgic repair manual with complete exploded views and descriptions for the repair of your Sachs 503 AB L CH moped / moped engine.

All aspects of the engine are described in detail and are illustrated by comprehensive overhaul instructions, numerous pictures and important facts.
In addition, the following areas are explained in detail: technical data, special tools, engine, inspection work, carburetor and the ignition system.

Details

Material	Paper
DIN format	A4
Number of pages	36 pcs

Suitable for the following models

Sachs

503 - ABL
