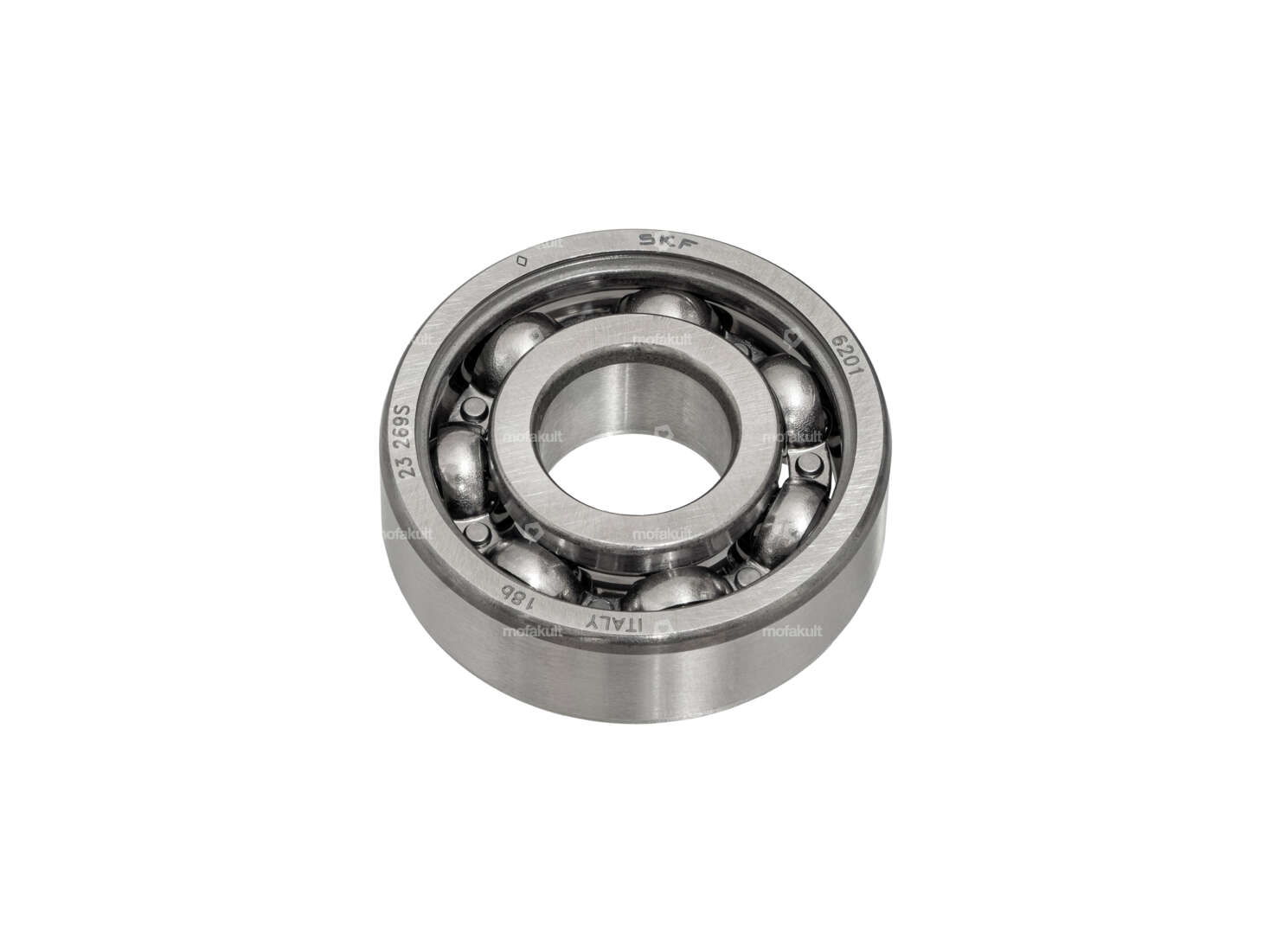

SKF 6201 ball bearing 12/32/10

swiing® revival bearing press-on sleeve | Puch, Sachs

Ø inside: 17.6 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Nominal diameter inside: 17.5 mm · Ø outside: 25 mm · Total length: 86 mm

GPO bearing puller set inside

Width across flats Screw: 14 mm · Span: 8 mm · Span: 25 mm · Manufacturer: GPO · Clamping depth: 10 mm · Clamping depth: 20 mm · Material: Steel · Surface: burnished · Area of application: (Dis)assembly tool · Number of components: 11 pcs · Total length: 140 mm

NSK 6201 ball bearing 12/32/10

Bearing type: Shoulder bearing · Inner ring width: 10 mm · Manufacturer: NSK · Bearing clearance: CM (special/noise-reduced) · Bearing cage: "-" Sheet steel cage ball-guided · Groove ring: No · Surface: blank · Material: Steel · Width: 10 mm · Stock number: 6201 · Ø outside: 32 mm · Ø inside: 12 mm · Ball bearing closed: No · Area of application: Standard

Eurol ball bearing grease 110 g

Temperature resistance (min.): -30 - 120 °C · Manufacturer: Eurol · Area of application: Chemistry · Area of application: Fat · Contents [g]: 110 g

Motorex Lithium Grease 190 EP 400 g

Temperature resistance (min.): -30 - 120 °C · Manufacturer: Motorex · Contents [g]: 400 g · Area of application: Chemistry · Area of application: Fat

BGS Bearing puller 2-arm

Span: 50 mm · Span: 140 mm · Manufacturer: BGS - Do it yourself · Pull-off depth inside: 100 mm · Number of components: 4 pcs · Width across flats Screw: 17 mm · Material: Chrome vanadium · Surface: burnished · Surface: galvanized (blue) · Area of application: (Dis)assembly tool

swiing® ingenious bearing press-on plunger Ø 12/32 mm (type 6201)

Ø Pin: 12 mm · Ø inside: 12 mm · Total length: 52.5 mm · Manufacturer: swiing® ingenious parts · Number of components: 2 pcs · Material: Aluminum · Surface: anodized · Ø outside: 32 mm · Area of application: Special tool

Motorex Automatic Motor Oil (ATF) 450 ml

Manufacturer: Motorex · Contents [ml]: 450 ml · Gearbox type: Automatic machine · Temperature resistance (min.): -45 - 200 °C · Area of application: Gearbox lubrication with clutch · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

Oil seal NBR 17/33/7 B DUO crankshaft | Sachs 503 AB, ADV

Temperature resistance (min.): -30 - 100 °C · Simmering type: B DUO - With sheet metal outer casing / two sealing lips. · Manufacturer: Sachs · Material: NBR · Ø inside: 17 mm · Place of use: Crankshaft · Ø outside: 33 mm · Width: 7 mm

NSK BO15 shoulder ball bearing 15/40/10 (A4502)

Bearing type: Shoulder bearing · Stock number: BO15 · Bearing cage: Brass cage ball-guided · Inner ring width: 10 mm · Manufacturer: NSK · Ball bearing closed: No · Material: Brass · Material: Steel · Surface: blank · Ø inside: 15 mm · Width: 10 mm · Ø outside: 40 mm · Area of application: Standard · Pony OEM number: A4502 · Sachs OEM no.: 0932 007 001

Shaft seal NBR 14.96x31.5x3.5 Pinion shaft | Sachs 502, 50/2, 503 (A1134)

Width: 3.5 mm · Manufacturer: Sachs · Material: NBR · Surface: coated · Place of use: Pinion shaft · Temperature resistance (min.): -30 - 100 °C · Ø inside: 14.96 mm · Ø outside: 31.5 mm · Area of application: Standard · Pony OEM number: A1134 · Sachs OEM no.: 0230 011 100 · Sachs OEM no.: 0230 011 200

NTN 608 Ball bearing 8/22/7

Manufacturer: NTN · Bearing type: Deep groove ball bearing · Inner ring width: 7 mm · Bearing clearance: CN (standard) · Bearing cage: "-" Sheet steel cage ball-guided · Ø outside: 22 mm · Ø inside: 8 mm · Stock number: 608 · Width: 7 mm

GPO gasket set engine small | Sachs 503

Manufacturer: GPO · Number of components: 8 pcs · Hole spacing inlet: 32 mm · Hole pattern [mm]: 60 x 40 · Area of application: Standard

Oil seal NBR 15/30/5.5 A crankshaft | Sachs (A4215 & A5602)

Simmering type: A - With rubberized outer part / one sealing lip. · Manufacturer: Sachs · Material: NBR · Surface: rubberized · Ø inside: 15 mm · Ø outside: 30 mm · Place of use: Crankshaft · Temperature resistance (min.): -30 - 100 °C · Width: 5.5 mm · Pony OEM number: A5602 · Sachs OEM no.: 0230 111 100

Jasil crankshaft | Sachs 503 AB-CH / ABL CH (A2901 / A2902)

Manufacturer: Jasil · Material: Steel · Cheek type: standard · Area of application: Standard · Crankshaft stroke: 42 mm · Connecting rod length center-center: 84 mm · Thread type: MF10x1 (fine pitch thread) · Ø piston pin (B): 12 mm · Total length of crankpin on clutch side: 101.15 mm · Total length crankpin ignition side: 64.1 mm · Ø crank webs: 85 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Thread length: 11 mm · Dimension needle bearing: 12 / 15 x 12.8 mm (axe 12) · Wide crank webs: 30.3 mm · Length 1st paragraph: 19 mm · Length 2nd paragraph: 51 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14 mm · Ø 3rd step (on the clutch side): 8 mm · Length of shoulder (ignition side): 34 mm · Weight: 875 g · Number of gears: 2 pcs · Alternative version of the Pony OEM number: A2900 · Pony OEM number: A2901 · Pony OEM number: A2902 · Alternative version of the Sachs OEM number: 0288 115 002 · Alternative version of the Sachs OEM number: 0288 115 102

Oil seal NBR 15/30/7 B DUO | Sachs 50/2 / 503 (A1830)

Simmering type: B DUO - With sheet metal outer casing / two sealing lips. · Manufacturer: Sachs · Material: NBR · Width: 7 mm · Ø inside: 15 mm · Ø outside: 30 mm · Temperature resistance (min.): -30 - 100 °C · Pony OEM number: A1830 · Sachs OEM no.: 0250 090 000

Engine overhaul kit | Sachs 503 ABL CH Automatic

Manufacturer: NSK · Manufacturer: NTN · Area of application: Standard · Alternative version of the Pony OEM number: A2553 · Alternative version of the Sachs OEM number: 0286 125 050
