Repair instructions for Sachs 50/2 engines.
This super A5 catalog with 32 pages contains a lot of interesting facts about the Sachs Zweigang engine. Several repairs are described.

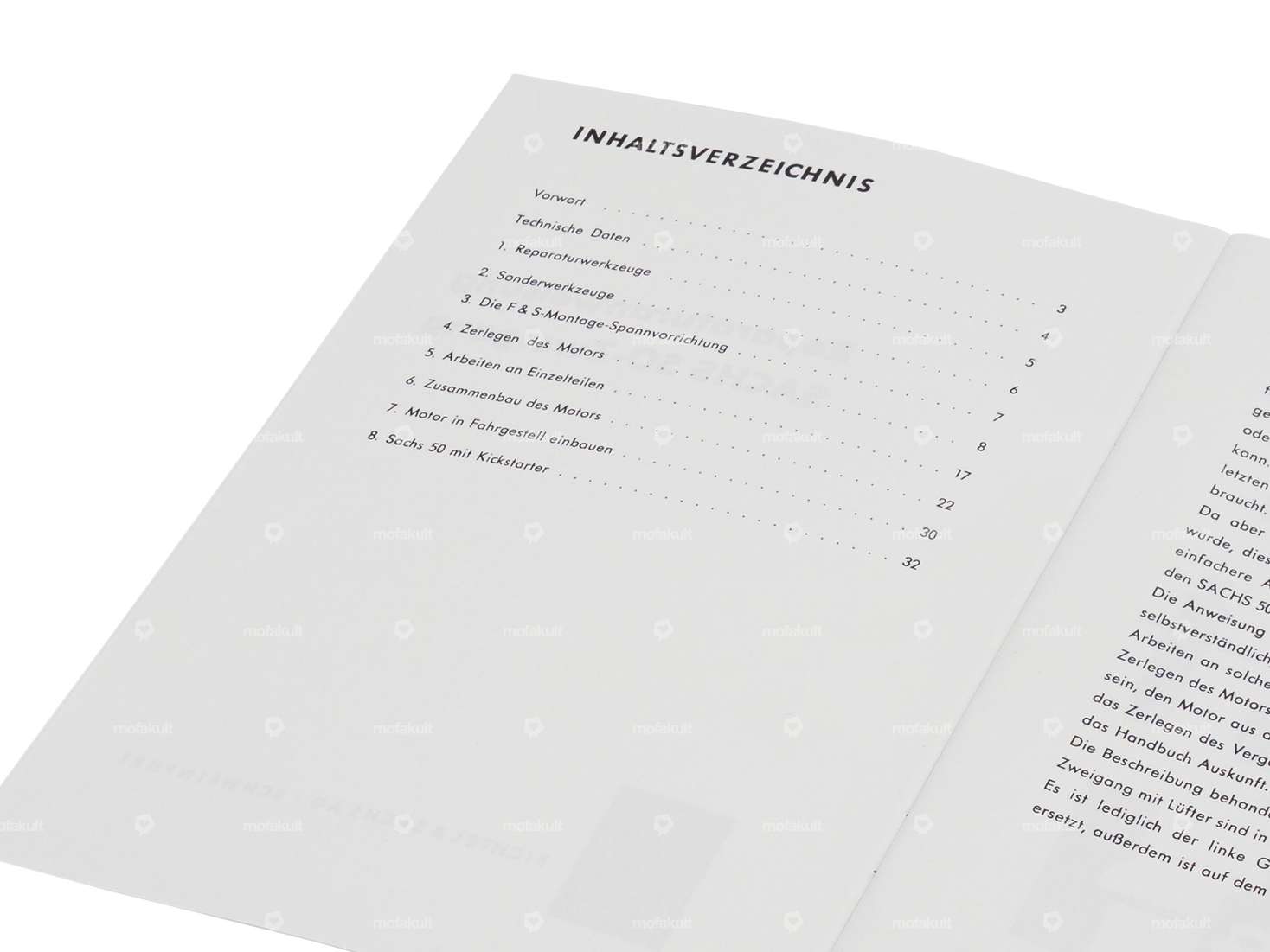

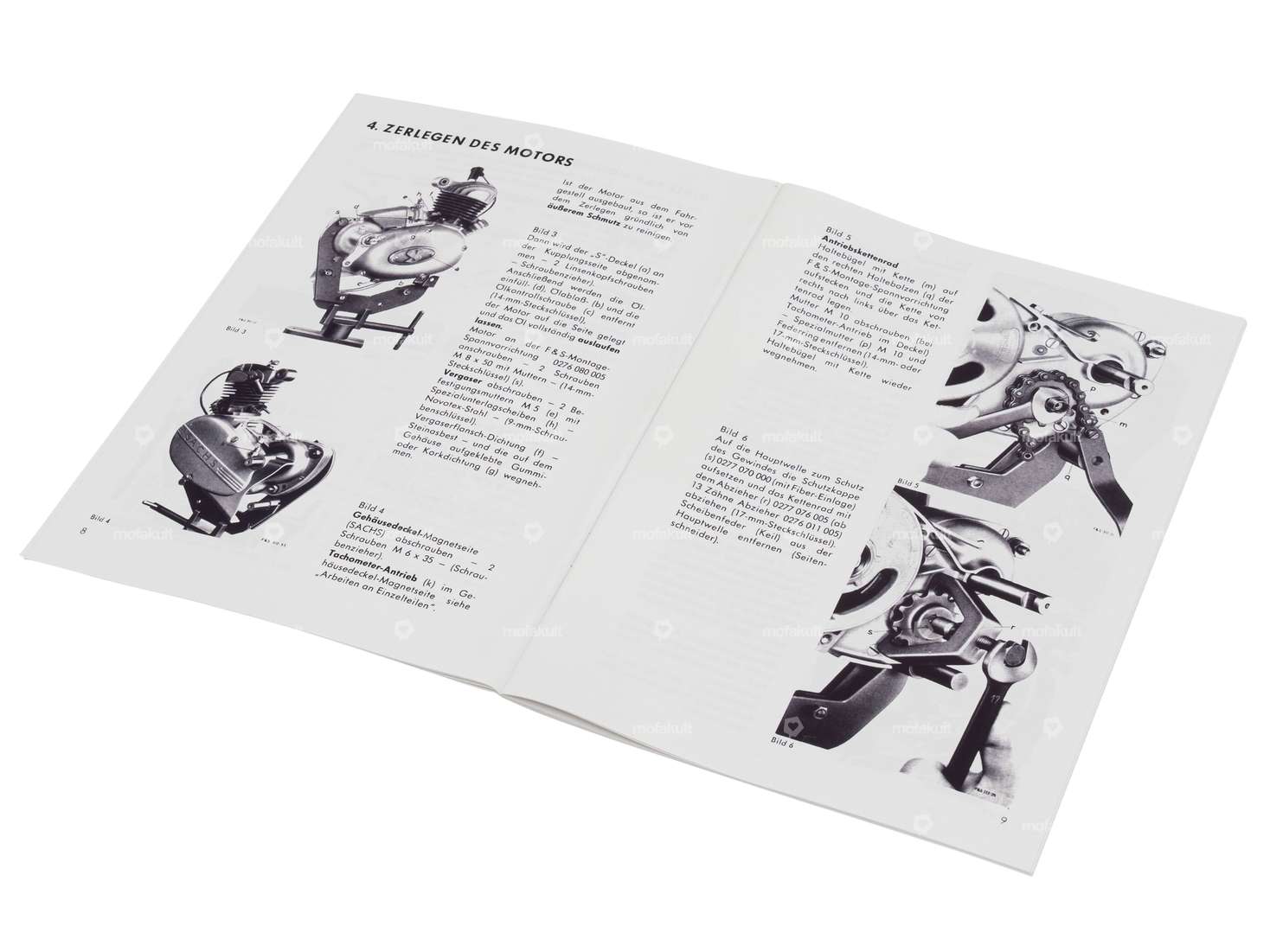

The engine is described in detail with revision instructions, many pictures and important facts.
We advise every Sachs fan/ mechanic to read such a book - you can always learn something.
Details
Material | Paper |
DIN format | A5 |
Number of pages | 32 pcs |
Suitable for the following models
Sachs | 50 (Fahrtwind, 1.25 / 1.5 PS, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) |
