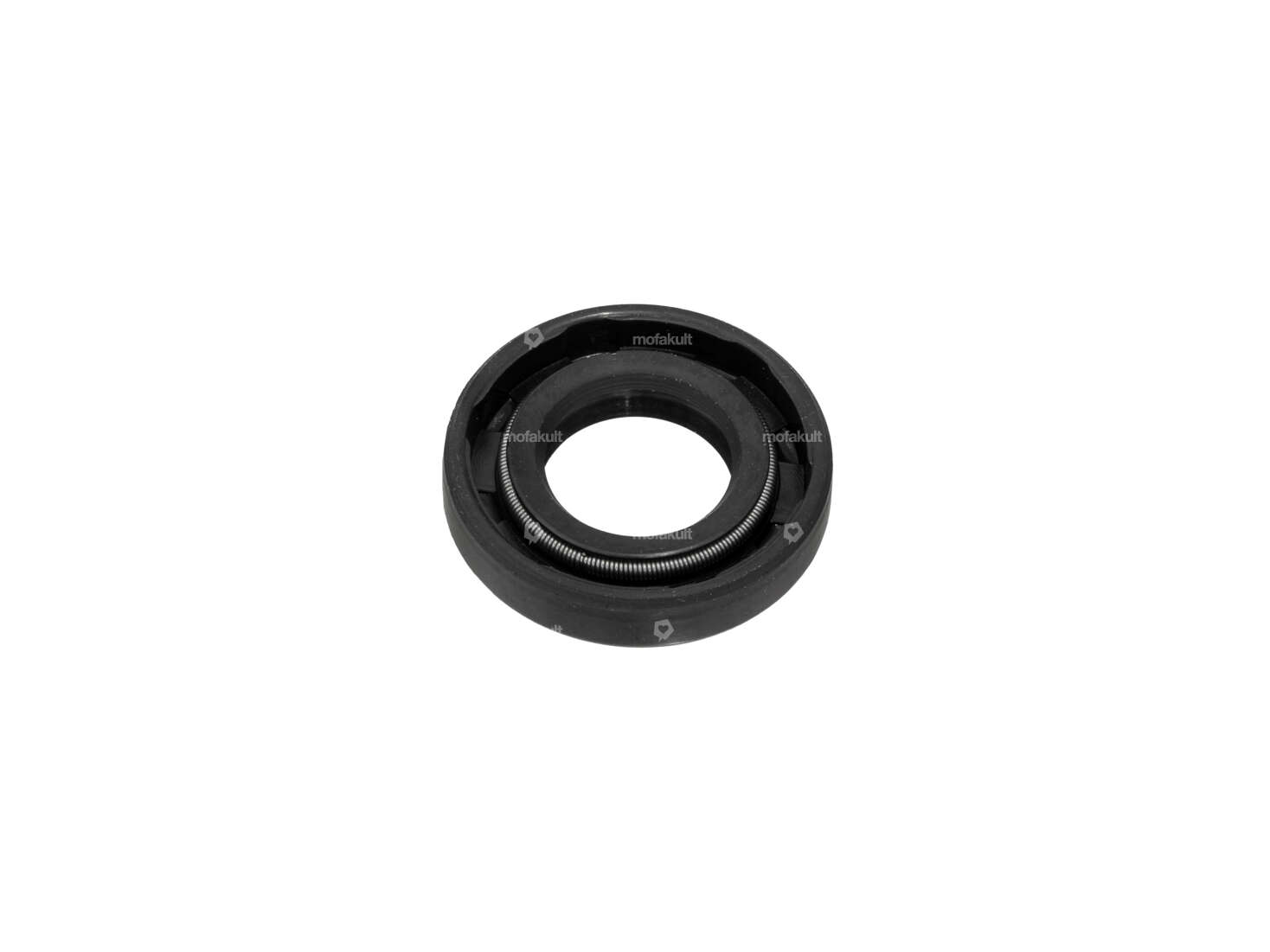

Oil seal NBR 13/25/5 AS

Oil seal NBR 14.96x31.5x3.5 Pinion shaft | Sachs 502, 50/2, 503 (A1134)

Width: 3.5 mm · Manufacturer: Sachs · Ø inside: 14.96 mm · Ø outside: 31.5 mm · Material: NBR · Area of application: Standard · Surface: coated · Place of use: Pinion shaft · Temperature resistance (min.): -30 - 100 °C · Pony spare part no.: A1134 · Sachs spare part no.: 0230 011 100 · Sachs spare part no.: 0230 011 200

Cylindrical roller Ø 4x8 mm | Sachs 504/1, 50/3 (A1147)

Manufacturer: Sachs · Material: Steel · Surface: Hardened · Diameter: 4 mm · Width: 8 mm

GPO gasket set diaphragm version | Sachs 50/2 engine

Manufacturer: GPO · Area of application: Standard · Hole spacing inlet: 67 mm · Ø outlet inside: 28 mm · Number of components: 12 pcs · Hole pattern [mm]: 60 x 40

Gasket set slot version | Sachs 50/2 engine

Area of application: Standard · Number of components: 11 pcs · Ø outlet inside: 28 mm · Hole pattern [mm]: 60 x 40 · Hole spacing inlet: 31 mm

Gasket set with oil seals Diaphragm version | Sachs 50/2

Area of application: Standard · Number of components: 16 pcs · Ø outlet inside: 28 mm · Hole pattern [mm]: 60 x 40 · Hole spacing inlet: 31 mm · Hole spacing inlet: 67 - 31 mm · Pony spare part no.: A2548 · Sachs spare part no.: 0286 125 021

Oil seal FPM 14.96/31.5/3.5 Pinion shaft | Sachs 50/2, 503 (A1134)

Ø inside: 14.96 mm · Ø outside: 31.4 mm · Manufacturer: Sachs · Material: FPM - Rubber · Width: 3.5 mm · Place of use: Pinion shaft · Temperature resistance (min.): -30 - 200 °C · Pony spare part no.: A1134 · Sachs spare part no.: 0230 011 200 · Sachs spare part no.: 0230 011 100

NSK E15 shoulder ball bearing 15/35/8 (A1149)

Bearing type: Shoulder bearing · Stock number: E15 · Inner ring width: 8 mm · Manufacturer: NSK · Ball bearing closed: No · Bearing clearance: CN (standard) · Bearing cage: Brass cage ball-guided · Groove ring: No · Area of application: Standard · Material: Brass · Material: Steel · Width: 8 mm · Surface: blank · Ø inside: 15 mm · Ø outside: 35 mm · Pony spare part no.: A1149 · Sachs spare part no.: 0232 017 006

GPO ball bearing countershaft | Sachs 50/2, 50/3, 50/4, 503 2AL/2BL (A2531)

Bearing type: Deep groove ball bearing · Thread type: MF20x1 (fine pitch thread) · Manufacturer: GPO · Ball bearing closed: No · Bearing clearance: CN (standard) · Bearing cage: "-" Sheet steel cage ball-guided · Area of application: Standard · Material: Steel · Width: 8 mm · Width: 25.6 mm · Surface: blank / oiled · Ø inside: 15 mm · Ø outside: 35 mm · Pony spare part no.: A2531 · Sachs spare part no.: 0286 079 105

Oil seal NBR 24.8/31.4/4 A Brake shaft | Sachs 50

Simmering type: A - With rubberized outer part / one sealing lip. · Ø inside: 24.8 mm · Ø outside: 31.4 mm · Manufacturer: Sachs · Material: NBR · Surface: rubberized · Width: 4 mm · Place of use: Clutch cover · Temperature resistance (min.): -30 - 100 °C

GPO gasket set with oil seals slotted version | Sachs 50/2 engine

Manufacturer: GPO · Area of application: Standard · Number of components: 14 pcs · Ø outlet inside: 28 mm · Hole pattern [mm]: 60 x 40 · Hole spacing inlet: 31 mm · Pony spare part no.: A2582 · Sachs spare part no.: 0286 156 001

Bottom bracket washer 16x28x0.5 mm

Thickness: 0.5 mm · Ø inside: 16.1 mm · Nominal diameter (thread): 16 mm · Ø outside: 28 mm

Clutch basket lock washer | Sachs 50/2, 503 2AL/2BL (A1555)

Thickness: 0.5 mm · Material: Steel · Surface: blue galvanized · Ø outside: 32 mm · Ø inside: 21 mm · Pony spare part no.: A1555

Oil seal NBR 16/24/4 A

Simmering type: A - With rubberized outer part / one sealing lip. · Ø inside: 16 mm · Ø outside: 24 mm · Material: NBR · Surface: rubberized · Width: 4 mm · Temperature resistance (min.): -30 - 100 °C

swiing® revival ball bearing countershaft | Sachs 50/2, 50/3, 50/4, 503 2AL/2BL (A2531)

Bearing type: Deep groove ball bearing · Stock number: E15 · Thread type: MF20.8x1 LH (fine/left-hand thread) · Inner ring width: 25.6 mm · Manufacturer: swiing® revival parts · Bearing clearance: CN (standard) · Bearing cage: "-" Sheet steel cage ball-guided · Area of application: High End · Area of application: Standard · Material: Steel · Width: 8 mm · Ø inside: 15 mm · Ø outside: 35 mm · Pony spare part no.: A2531 · Sachs spare part no.: 0286 079 105

Oil seal NBR 13/25/5 AS 13 mm pinion shaft | Sachs 50

Place of use: Pinion shaft · Temperature resistance (min.): -30 - 100 °C · Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Width: 5 mm · Manufacturer: Sachs · Material: NBR · Surface: rubberized · Ø inside: 13 mm · Ø outside: 25 mm
