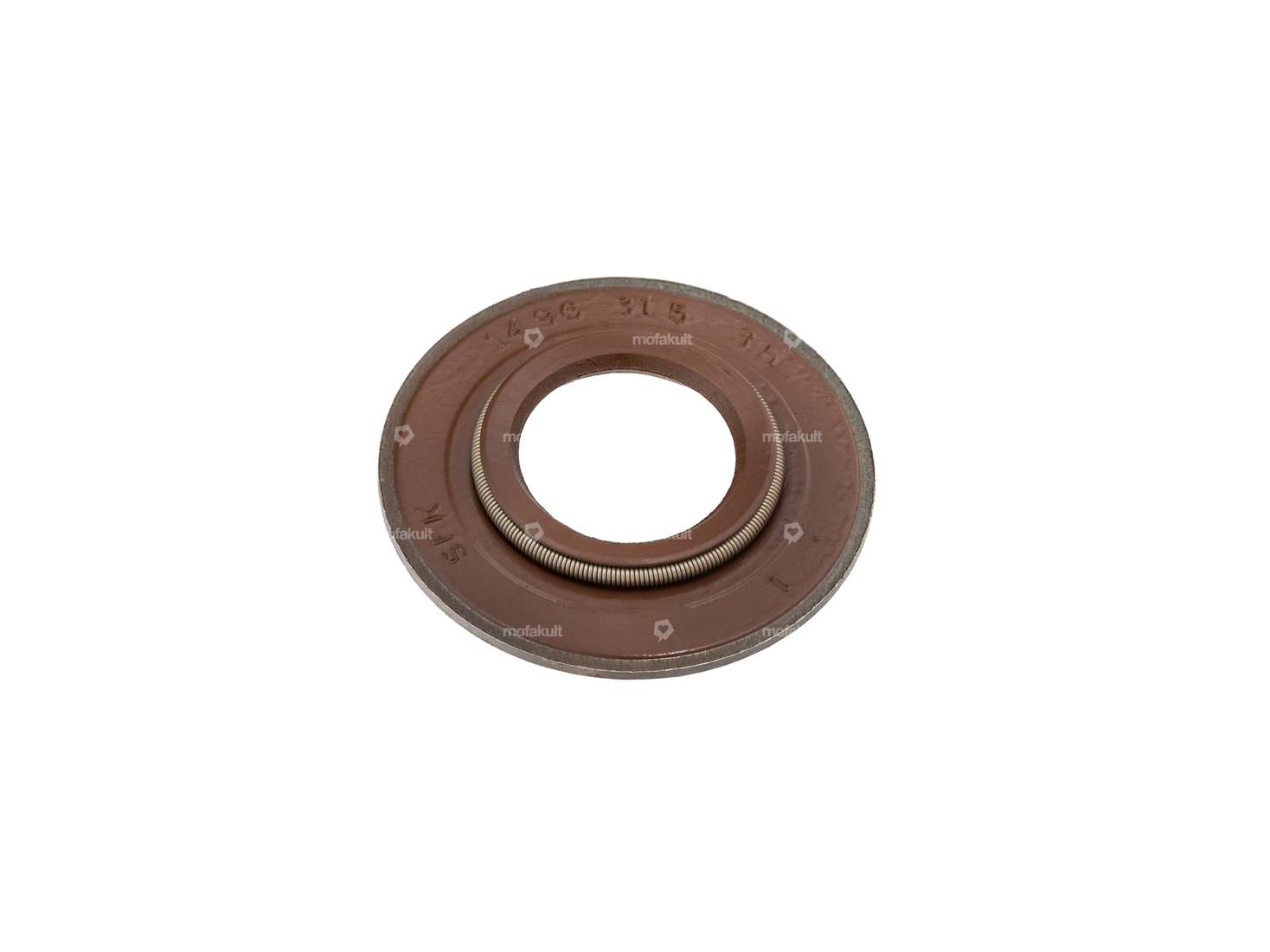

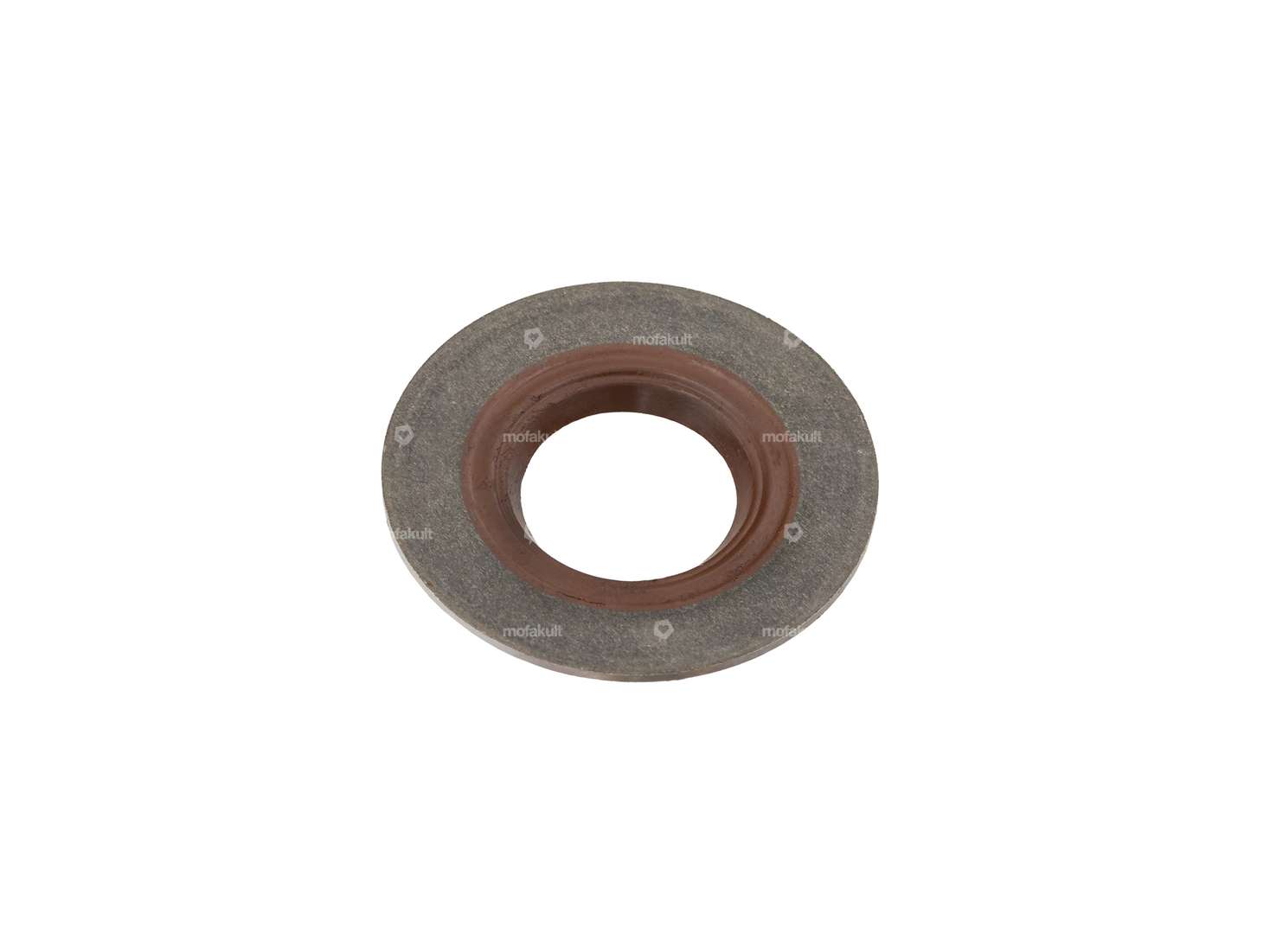

Shaft seal ring (also known under the famous brand name Simmerring®) 14.96x31.5x3.5 for the pinion shaft of your Sachs moped / moped with the following engines:
- 50/2 with diaphragm cylinder
- 503 ABL / AB / 2AL / 2BL / AAL / ADV
This axial shaft seal with fluorine rubber sealing lip is resistant up to a temperature of 200 °C.
Manufactured NBR shaft seals are temperature-resistant up to 100°C.
Viton rotary shaft seals are particularly suitable for racing, as they are designed for higher speeds and can therefore withstand higher temperatures.
Ø inside: 14.96 mm
Ø outer: 31.40 mm
Height: 3.5 mm
Material: Fluorocarbon rubber FPM (Viton)
Temperature resistant: -30 to +200 °C, briefly up to 220 °C
Original Sachs spare part number: A1134
Details
| Manufacturer | Sachs |
| Material | FPM - Fluororubber |
| Ø inside | 14.96 mm |
| Ø outside | 31.4 mm |
| Width | 3.5 mm |
| Place of use | Pinion shaft |
| Temperature resistance (min.) | -30 - 200 °C |
| Pony OEM number | A1134 |
| Sachs OEM no. | 0230 011 200, 0230 011 100 |
Suitable for the following models
| Universal | |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 PS, DE) 502 (Saxonette) - AML 50/2 - ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) 503 - AAL, ABL, 2AL / 2BL, AB, AC, ADV |
