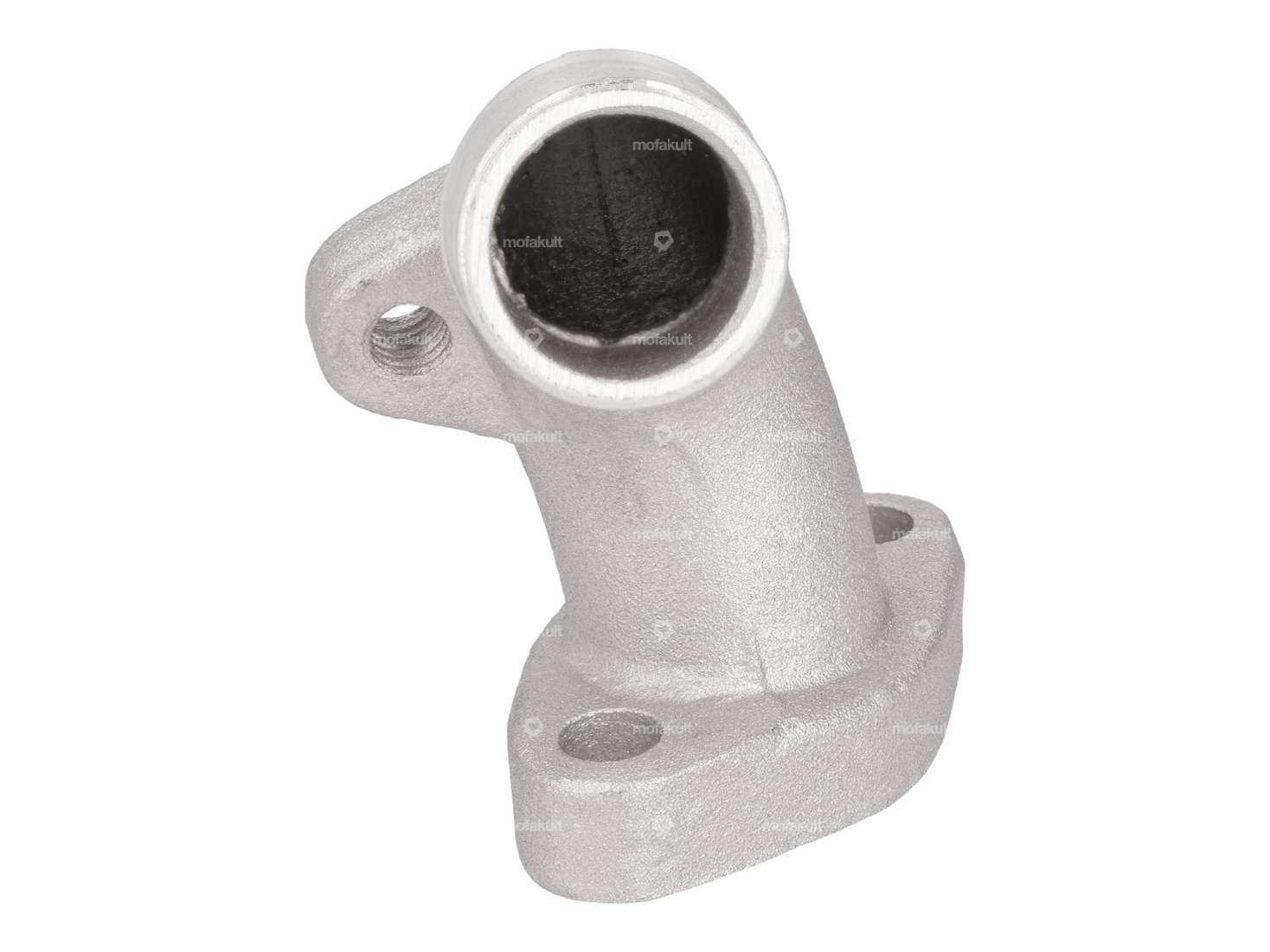

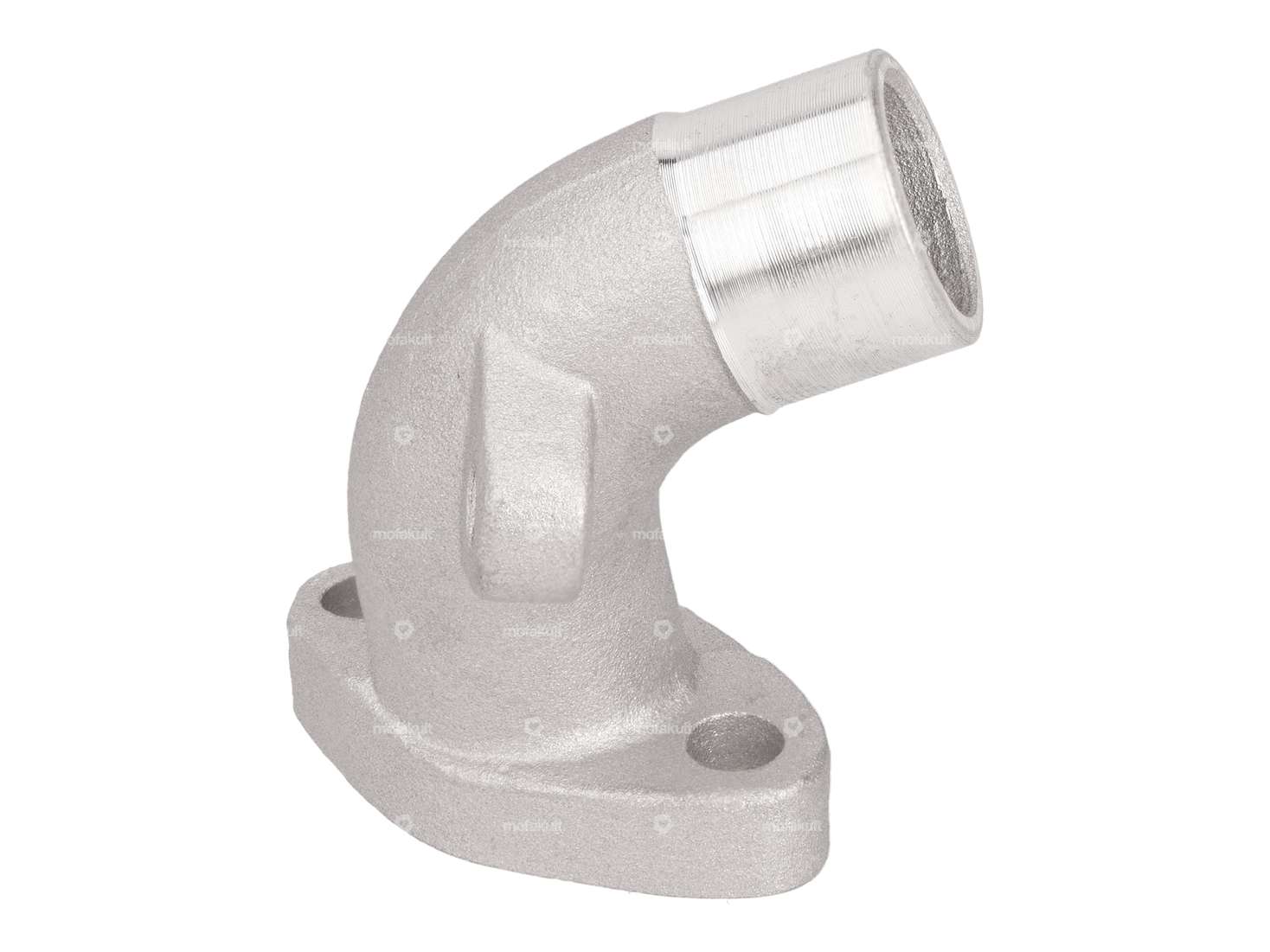

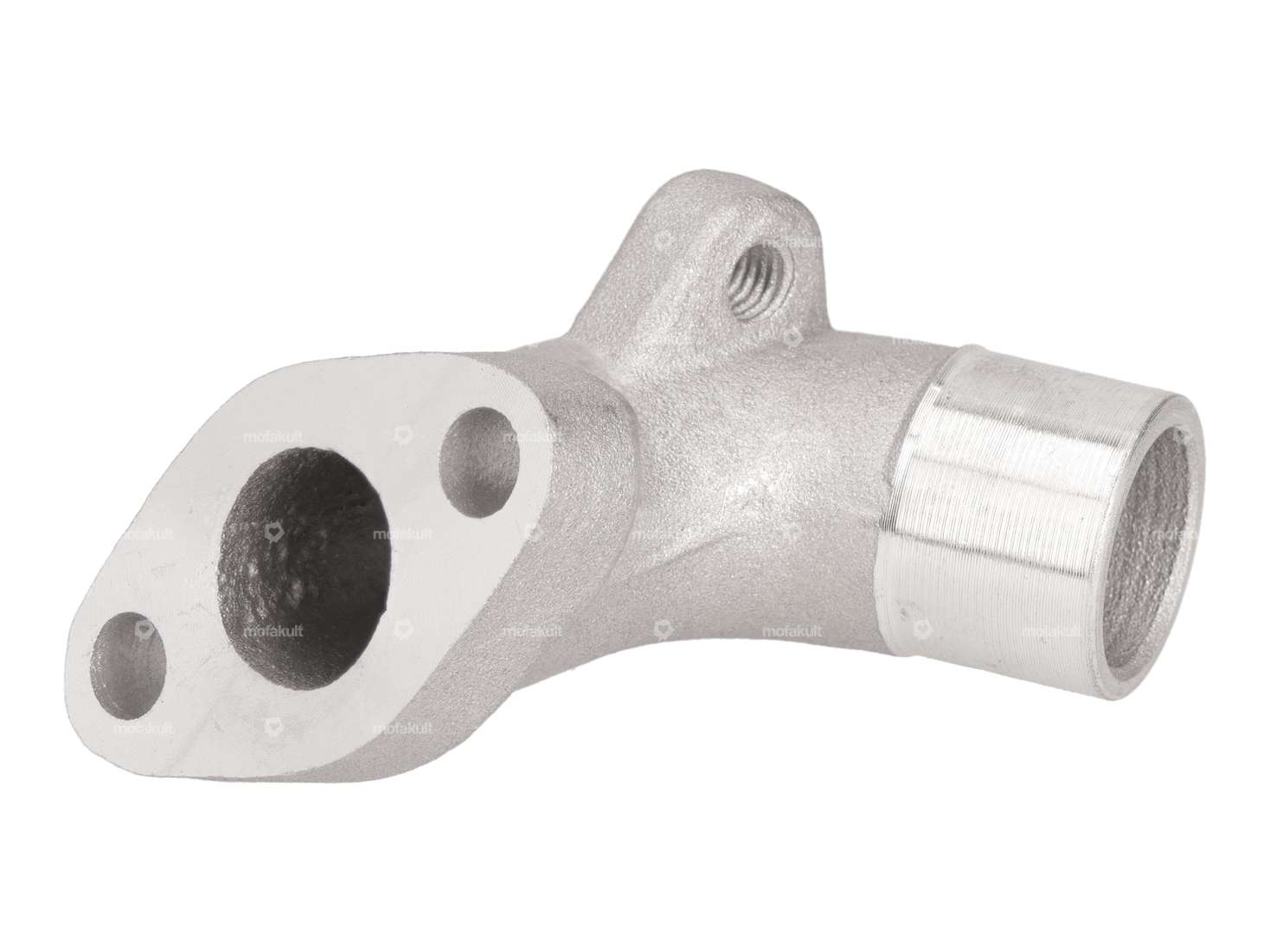

50 mm short intake manifold with 15 mm inner diameter for your manual Sachs 503 2AL, 2BL moped / moped with Bing SRE carburetor.
Note: To simplify installation of the intake manifold, we recommend using M6 nuts with reduced key width.
You can find the right nuts for installation as well as other intake manifolds and other parts in the accessories section.
Tuning version of the original Sachs spare part with the number A2177.
Details
Material | Aluminum |
Area of application | Tuning |
Ø inside | 15 mm |
Ø External connection | 20 mm |
Total length | 50 mm |
Hole spacing inlet | 32 mm |
Number of fixing points | 2 pcs |
Mounting type | Screws |
Thread type | M6x1 (standard thread) |
Sachs spare part no. | A2177 |
Suitable for the following models
Sachs | 503 - AAL, ABL, 2AL / 2BL |
