Complete tuning set with 40 mm cylinder suitable for all mopeds / mopeds with blown Sachs 503 engine (503 2AL, AAL, 2BL, ABL CH).
The individual components are finely tuned to each other and guarantee optimum power delivery.
You have the option of choosing between the "short" or "long" intake manifold.

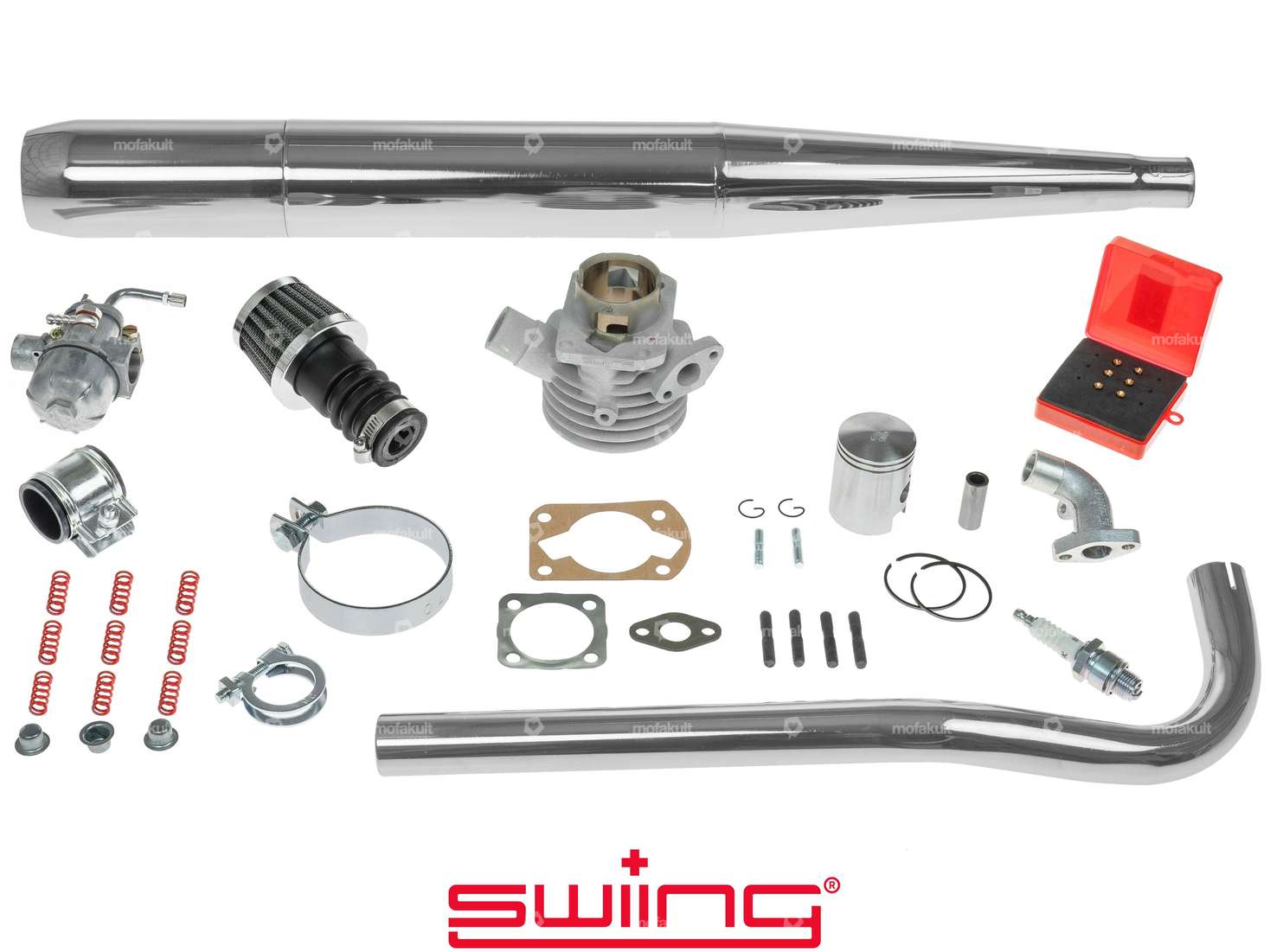

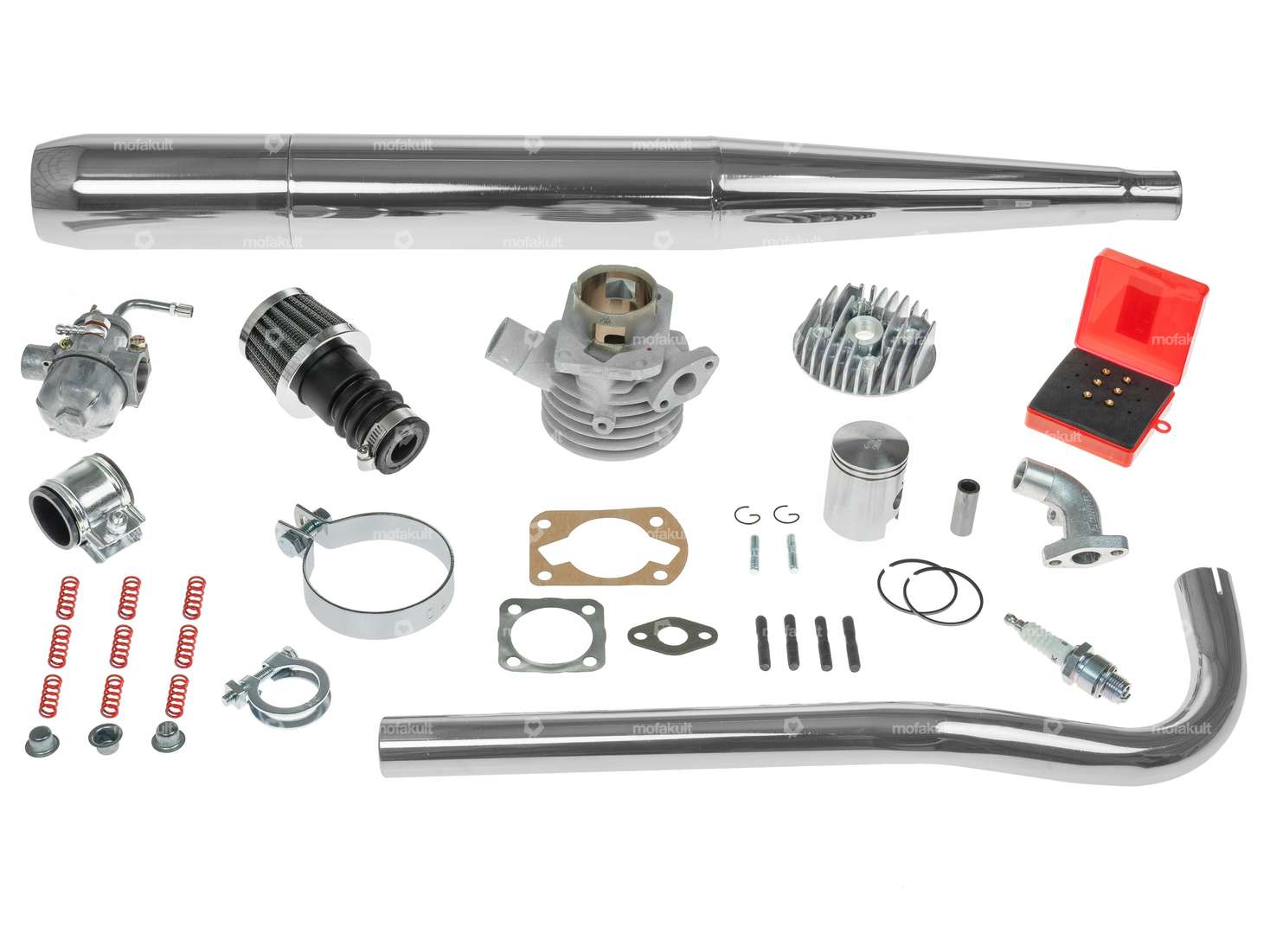

The tuning set consists of the following components:
- Cylinder: 40 mm swiing tuning with or without cylinder head
- Carburetor: 15 mm Bing SRE
- Intake manifold: 15 mm HG to Bing SRE
- Flame tube: 28 mm Racing
- Exhaust: Cigar 70 mm or Resonance Cigar 70 mm + Exhaust clamp 70 mm
- Air filter: Air filter Sachs 503 Racing or mushroom air filter grille
- Plug: NGK B8HS
- Düsenset: M3.5, size 54 - 64
- Clutch springs: Clutch springs strong, 9 pcs. & cup galvanized 3 pcs.
Attention: For Sachs 503 ABL engines, the engine housing must be ground slightly in the area of the cylinder neck.
When purchasing this complete set, you will receive a substantial percentage off the retail price of the individual parts.
Exceptional product for the highest demands of the quality brand swiing®.
Sorry, we screwed up! The cylinder kit is completely sold out and therefore cannot be ordered. It will be reworked so that you can look forward to an even better and stronger cylinder if the tuning goods are kind to us. Many thanks for your patience.
The set includes the following fixed parts:
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Ø inside: 26 - 28 mm · Ø outside: 39 mm · Material thickness: 1.5 mm · Width: 42 mm · Mounting type: Nuts & bolts
Manufacturer: swiing® ingenious parts · Material: Spring steel · Surface: coated · Ø inside: 5.9 mm · Ø outside: 8.85 mm · Number of springs: 9 pcs · Thickness: 1.4 mm · Area of application: Tuning
Nozzle block: 2.17 · Nozzle size: 62 · Manufacturer: swiing® ingenious parts · Camouflaged: Yes · Material: Aluminum · Carburetor type: SRE · Nominal diameter: 15 mm · Ø Internal connection: 20 mm · Ø Inside entrance: 15 mm · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Mounting type: Plug connection clamped · Clamping screw torque (max.): 4 N/m · Total length: 66 mm · Width: 50 mm · Height: 95 mm · Area of application: Tuning
Manufacturer: swiing · Material: Steel · Surface: chrome-plated · Color: Chrome · Ø inside: 26 mm · Ø outside: 28 mm · Total length: 410 mm · Mounting type: Bride · Flame tube attachment: inserted
Manufacturer: Made in Portugal · Material: Steel · Surface: chrome-plated · Color: Chrome · Nominal diameter: 70 mm · Clamping diameter: 67 - 71 mm · Width: 28 mm · Thickness: 2 mm · Number of fixing points: 1 pcs · Ø mounting hole: 8.2 mm
Nozzle size: 54, 56, 58, 60, 62, 64 · Manufacturer: swiing · Material: Brass · Quantity: 6 pcs · Carburetor type: SRE, SRA (1/11/35) Velux, SRA (1/11/31) Velux, SRF, SRC · Nozzle type: Main nozzle · Nozzle thread: M3.5x0.6 (standard thread) · Total length: 6 mm · Drive: Slot
Details
| Manufacturer | swiing® ingenious parts, GPO, NGK |
| Area of application | Tuning |
| Displacement | 55 ccm |
| Crankshaft stroke | 42 mm |
| Ø piston pin (B) | 12 mm |
| Nominal diameter | 40 mm |
| Camouflaged | No |
| Hole pattern [mm] | 60 x 40 |
| Decompressor | No |
| Outlet type | clamped |
| Hole spacing inlet | 32 mm |
Suitable for the following models
| Sachs | 503 - AAL, ABL, 2AL / 2BL |
