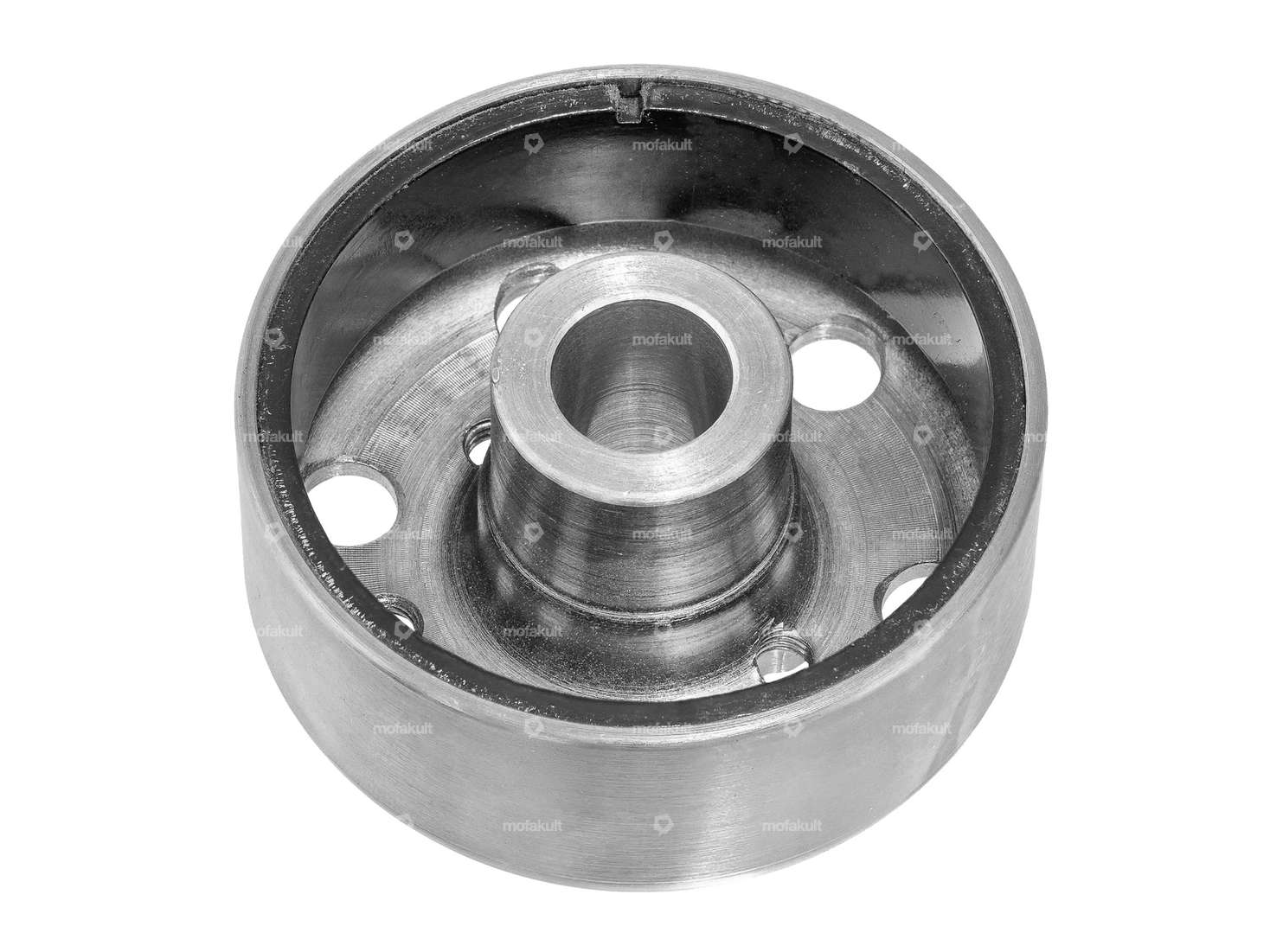

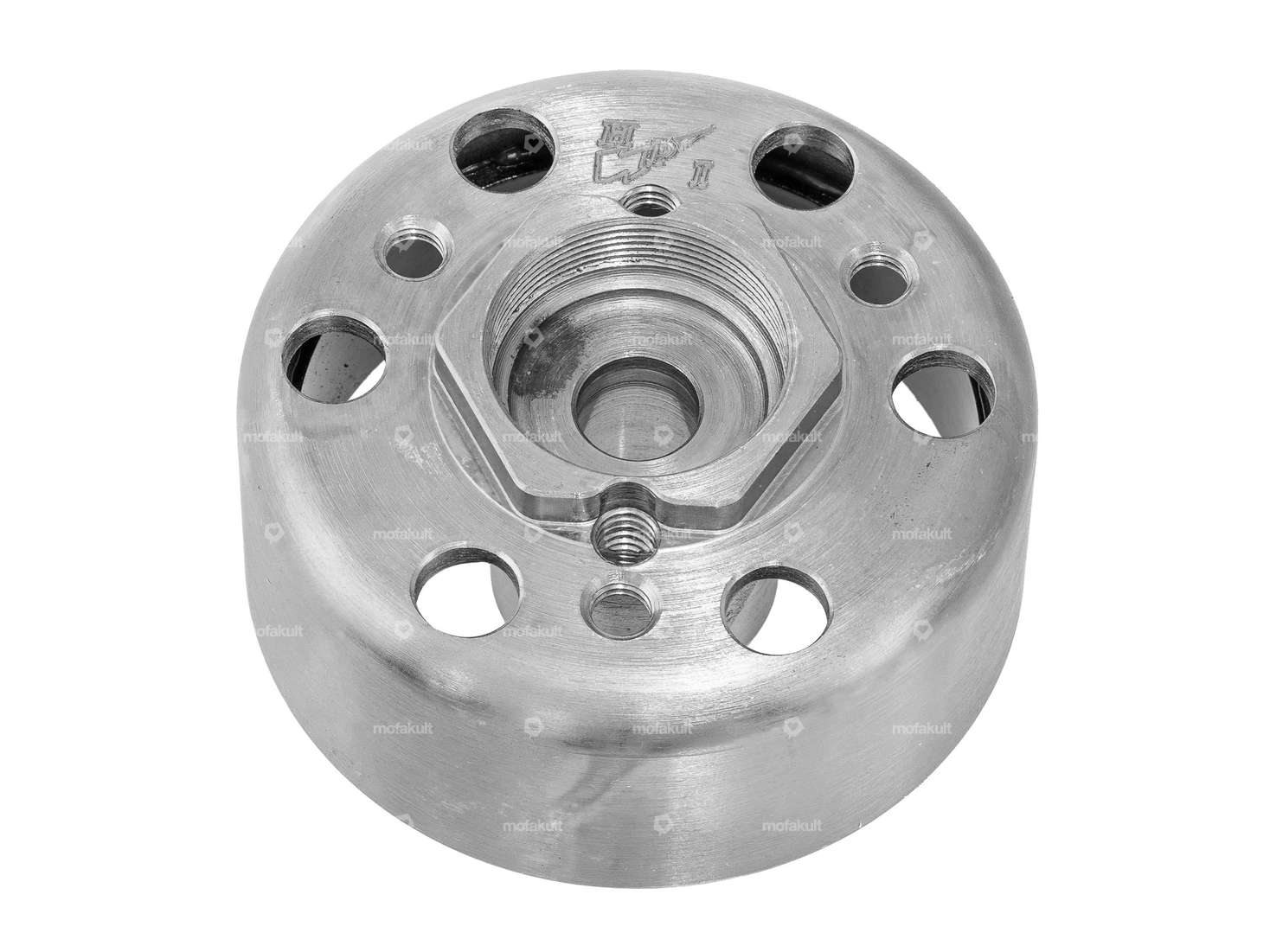

Rotor for HPI 210 ignition with light coil.
The cone is suitable for all Bosch and Ducati ignitions which were installed on mopeds and mopeds such as Puch, Sachs 50/2 & 503, Zündapp Belmondo, Pony Beta with Minarelli engine etc..
Ø outer: 71.5 mm
Ø cone small: 10.9 mm
Ø cone large: 15.8 mm
Length cone: 28 mm
Branded product of the manufacturer HPI – Horse Power Ignition.
Details
| Manufacturer | HPI |
| Material | Steel |
| Direction of rotation | left, right |
| Ø cone small inside | 10.9 mm |
| Ø cone large inside | 15.8 mm |
| Ø Flywheel outside | 71.5 mm |
| Cone length | 28 mm |
| Cone ratio | 1:5 |
| Thread type | MF27x1 LH (fine/left-hand thread) |
Suitable for the following models
| Puch | E50 ZA50 (Fahrtwindgekühlt) ZA50 (Gebläsegekühlt) Z50 (X30 Sport) Z50 (X30 Velux) 2-Gang MS, MV, MV50 3-Gang VSD, DS, VZ, MC |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 PS, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) 503 - AAL, ABL, 2AL / 2BL, AB, AC, ADV 505 (mit Tretwelle) - 1A (AT), 2 A (HG) 535 |
| Pony / Cilo (Beta 521 & 512) | Beta 512 Beta 521 (Motor) |
| Zündapp Belmondo | |
| DKW | |
| Hercules | |
| Kreidler | Flory MF Florett |
| Zündapp | 434 Fahrgestell (Bergsteiger) 247 Motor 278 Motor |
| KTM | |
| Rixe |
