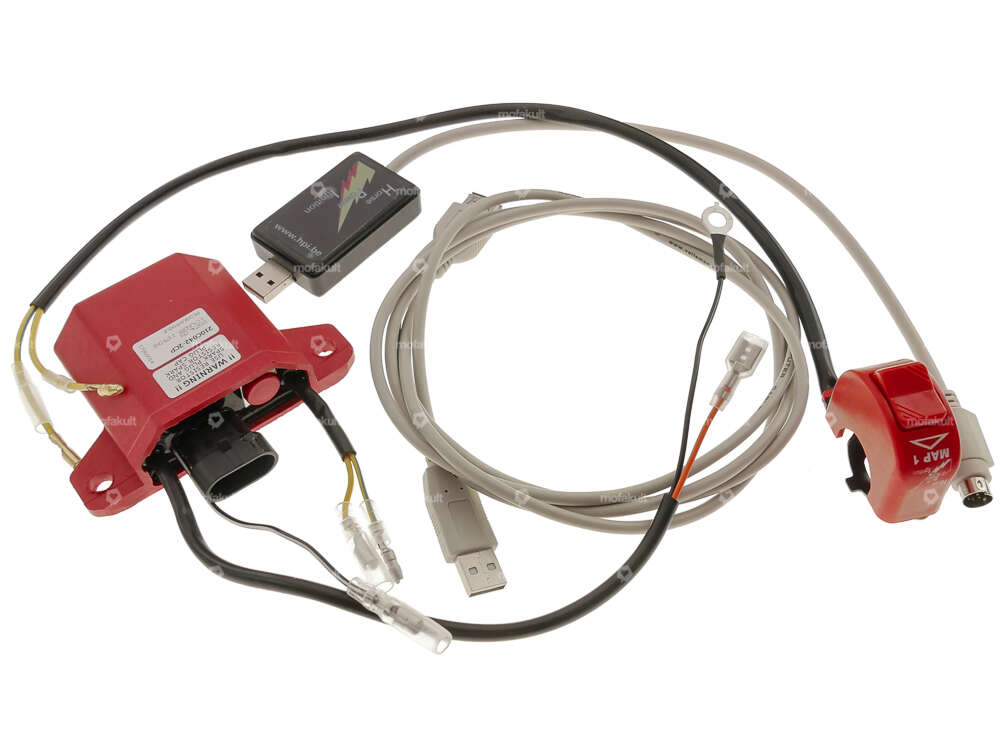

Complete set for programmable HPI racing ignition for your racing moped.
With this tuning set, you can program the ignition individually on the computer according to your wishes. You can download the corresponding software free of charge from the HPI homepage (Tune Box).
Compatible with all HPI-210 ignitions. The usual CDI box is replaced by the red, programmable box. Two ignition curves and speed limits can be individually programmed. The associated switch can be used to quickly and easily switch between the two ignition curves while driving.
The round socket is plugged into the CDI box and connected to the computer via the USB port.
Only for real tuning freaks who are familiar with the subject.
For a closer look, the spare parts are listed individually below in the accessories.
Branded product from the manufacturer HPI – Horse Power Ignition.
The set includes the following fixed parts:
Manufacturer: HPI · Material: Plastic · Housing material: Plastic · Substructure material: Steel · Color: red · Functions: Light on, Light off · Number of positions: 2 pcs · Number of cables: 2 pcs · Ø Handlebars: 22 mm · Cable length: 500 mm
Manufacturer: HPI · Material: Plastic · Color: red · Total length: 63 mm · Width: 100 mm · Height: 28 mm · Number of fixing points: 2 pcs · Ø mounting hole: 7.5 mm · Hole spacing: 80 mm · Area of application: Performance, Racing, High End, Tuning
Manufacturer: HPI · Area of application: High End
Details
| Manufacturer | HPI |
| Area of application | High End |
Suitable for the following models
| Universal | |
| Puch | |
| Sachs | |
| Pony / Cilo (Beta 521 & 512) | |
| Piaggio | |
| Zündapp Belmondo |
