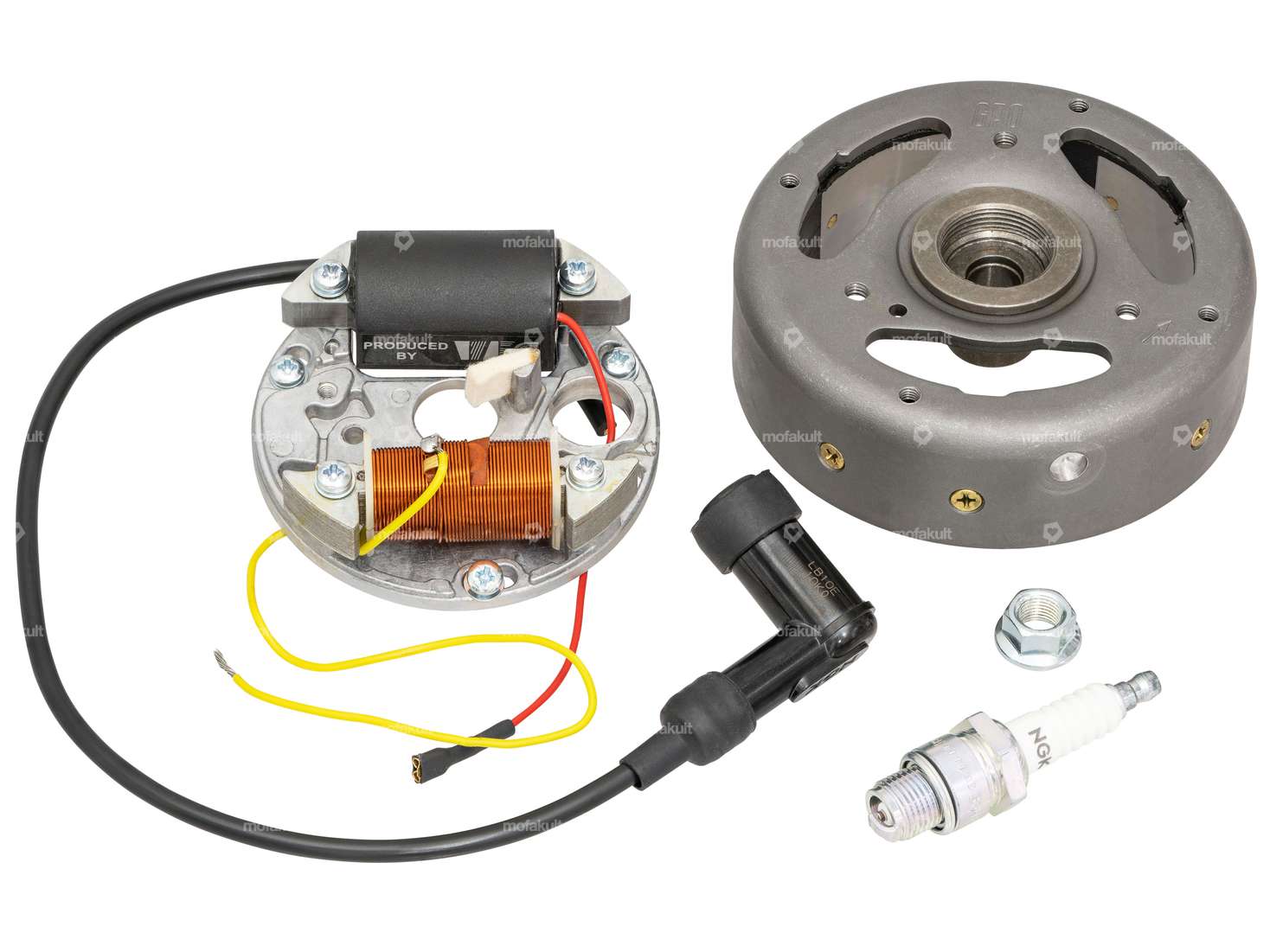

Complete ignition with VEC coil and 6 volt light coil for left-turning two-speed engines on mopeds / mopeds such as Puch X30 Sport, Puch X30 Velux / Sachs 50/2, Sachs 503 or Zündapp Belmondo.

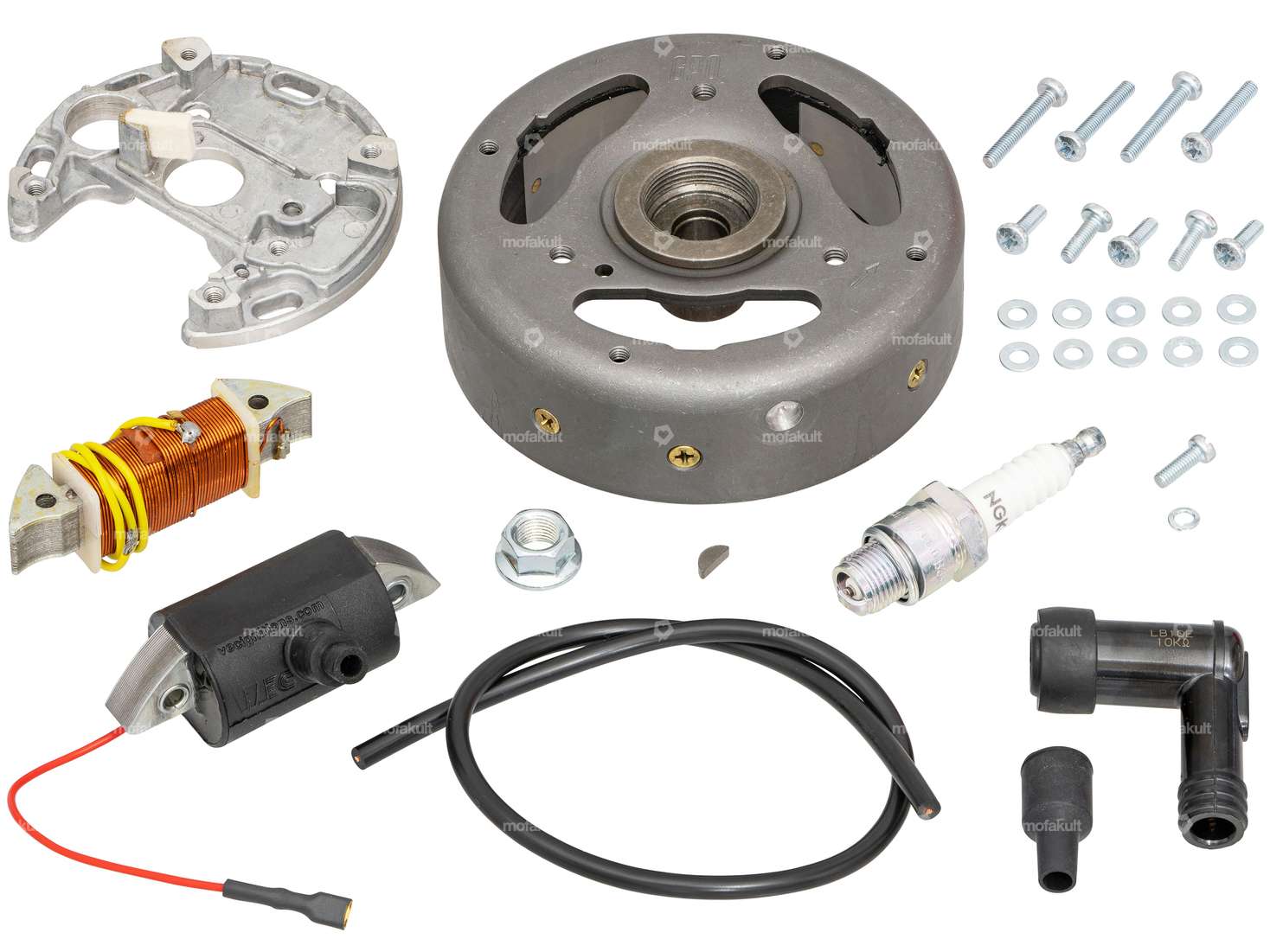

The set includes all parts such as fastening screws, flywheel nut with wedge, ignition plate, ignition and light coil, pole wheel and spark plug connector.
The components are supplied individually and still need to be assembled.
Direction of rotation: Left (counterclockwise)
Operating voltage of the light system: 6 volts
Wattage of the light system: 17 watts
Ø inside flywheel: 90 mm
Attention: A spark plug connector with at least 10 kOhm discharge must be used, the spark plug must not be discharged!
With Beru or MERIT spark plug connectors, misfiring may occur.
Adjusting the ignition:
In principle, nothing needs to be adjusted on the ignition. Only the ignition plate can be turned slightly for a perfect ignition spark, the rest is regulated by the ignition chip.
In the basic setting, the three fastening screws of the ignition plate are located in the middle of the slotted holes. Pre-tensioning is achieved by turning the ignition plate against the direction of motor rotation. Fine adjustment is carried out at medium speed using the strobe light. The electrode gap on the spark plug must be set to 0.7-0.8 mm in advance.
The ignition timing adjustment gun as well as other tools and individual parts for your ignition can be found in the accessories section.
The set includes the following fixed parts:
Manufacturer: GPO · Pony spare part no.: A2133, A5532 · Sachs spare part no.: 0265 140 005, 0265 206 000
Manufacturer: GPO · Material: Steel · Tension: 6 V · Performance: 17 W · Direction of rotation: left · Ø cone small inside: 11.5 mm · Ø cone large inside: 15 mm · Cone length: 18.5 mm · Cone ratio: 1:5 · Ø Internal flywheel: 91.1 mm · Ø Flywheel outside: 116.5 mm · Thread type: MF26x1.5 (fine pitch thread) · Thread length: 8 mm · Weight: 900 g · Height: 36.1 mm · Pony spare part no.: A2600 · Sachs spare part no.: 0286 175 005
Manufacturer: NGK · Material: Plastic, Rubber · Color: black · Ø cable: 5 mm, 7 mm · Spark plug socket: SAE · Cable available: No · Suppressed: Yes · Resistance: 10000 Ω
Manufacturer: GPO · Material: Steel · Surface: blue galvanized · Area of application: Standard · Nut type: Flange nut · Drive: External hexagon · Thread type: MF10x1 (fine pitch thread) · Ø outside: 18.8 mm · Height: 8.9 mm · Width across flats SW: 14 mm · Pony spare part no.: A4513 · Sachs spare part no.: 0942 072 102
Material: Steel · Total length: 9.15 mm · Width: 3 mm · Height: 3.7 mm
Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized · Alternative version of the Puch spare part no.: 900.3202, 900.1509
Tension: 6 V · Performance: 17 W · Ø Internal flywheel: 90 mm · Height: 25.2 mm · Total length: 76.8 mm · Mounting type: Screws · Number of fixing points: 2 pcs · Ø mounting hole: 4.1 mm · Hole spacing: 54 mm · Area of application: Standard, Original
Manufacturer: VEC · Place of use: Internal (in the ignition) · Ø Internal flywheel: 90 mm · Ø cable holder: 5 mm · Cable length: 140 mm, 420 mm · Color: black · Total length: 77 mm · Height: 48 mm · Mounting type: Screws · Number of fixing points: 2 pcs · Ø mounting hole: 4.6 mm · Hole spacing: 54 mm · Area of application: Standard, Original, Performance
Details
| Manufacturer | VEC, GPO |
| Tension | 6 V |
| Area of application | Tuning, Standard |
| Performance | 17 W |
| Direction of rotation | left |
| Ø Internal flywheel | 90 mm |
| Ø cable | 5 mm |
| Mounting type | Screws |
Suitable for the following models
| Puch | ZA50 (Fahrtwindgekühlt) ZA50 (Gebläsegekühlt) Z50 (X30 Sport) Z50 (X30 Velux) 2-Gang MS, MV, MV50 3-Gang VSD, DS, VZ, MC |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 PS, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) 503 - AAL, ABL, 2AL / 2BL, AB, AC, ADV 505 (mit Tretwelle) - 1A (AT), 2 A (HG) 535 |
| Zündapp Belmondo |
Accessories & related products
GPO flywheel trigger M26x1.5 / M22x1.5 | Puch, Sachs, Beta 521
Width across flats (trigger): 27 mm · Manufacturer: GPO · Clamping depth: 10 mm · Number of components: 1 pcs · Material: Steel · Surface: blackened · Thread type: MF22x1.5 (fine pitch thread) · Thread type: MF26x1.5 (fine pitch thread) · Area of application: (Dis)assembly tool · Width across flats Screw: 19 mm · Total length: 55 mm · Total length: 75 mm · Strength class: 8.8
EUR 11,20
HPI racing ignition 12V with light 60W
Manufacturer: HPI · Material: Aluminum · Material: Steel · Ø Internal flywheel: 61.5 mm · Light coil voltage: 12 V · Tension: 12 V · Direction of rotation: left · Direction of rotation: right · Performance: 60 W · Weight: 340 g · Ø mounting plate: 90 mm · Ø Flywheel outside: 71.5 mm · Area of application: Tuning · Ø cable: 7 mm · Mounting type: Screws · Number of fixing points: 6 pcs
EUR 338,00
swiing® ingenious flywheel holder 3 pins (Bosch / Ducati flywheels)
Ø inside: 27 mm · Manufacturer: swiing® ingenious parts · Area of application: Special tool · Material: Steel · Surface: blue galvanized · Surface: rubberized · Diameter: 19 mm · Total length: 290 mm · Height: 80 mm · Ø outside: 93 mm · Thickness: 5 mm · Number of components: 1 pcs · Ø Pin: 8 mm
EUR 54,00

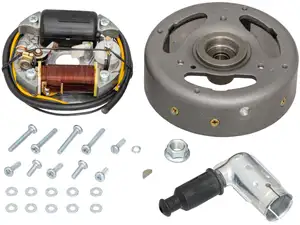

swiing® revival ignition set (Bosch / Ducati / swiing)
