Complete electronic ignition suitable for Piaggio Ciao, Si, Bravo and Boxer mopeds / mopeds.
This contactless ignition impresses with its high quality and has been extensively tested. The 800 gram flywheel also provides better acceleration values compared to the 1300 gram flywheel that is often installed.
The cables are identical to the factory-fitted ELO ignition from Piaggio.

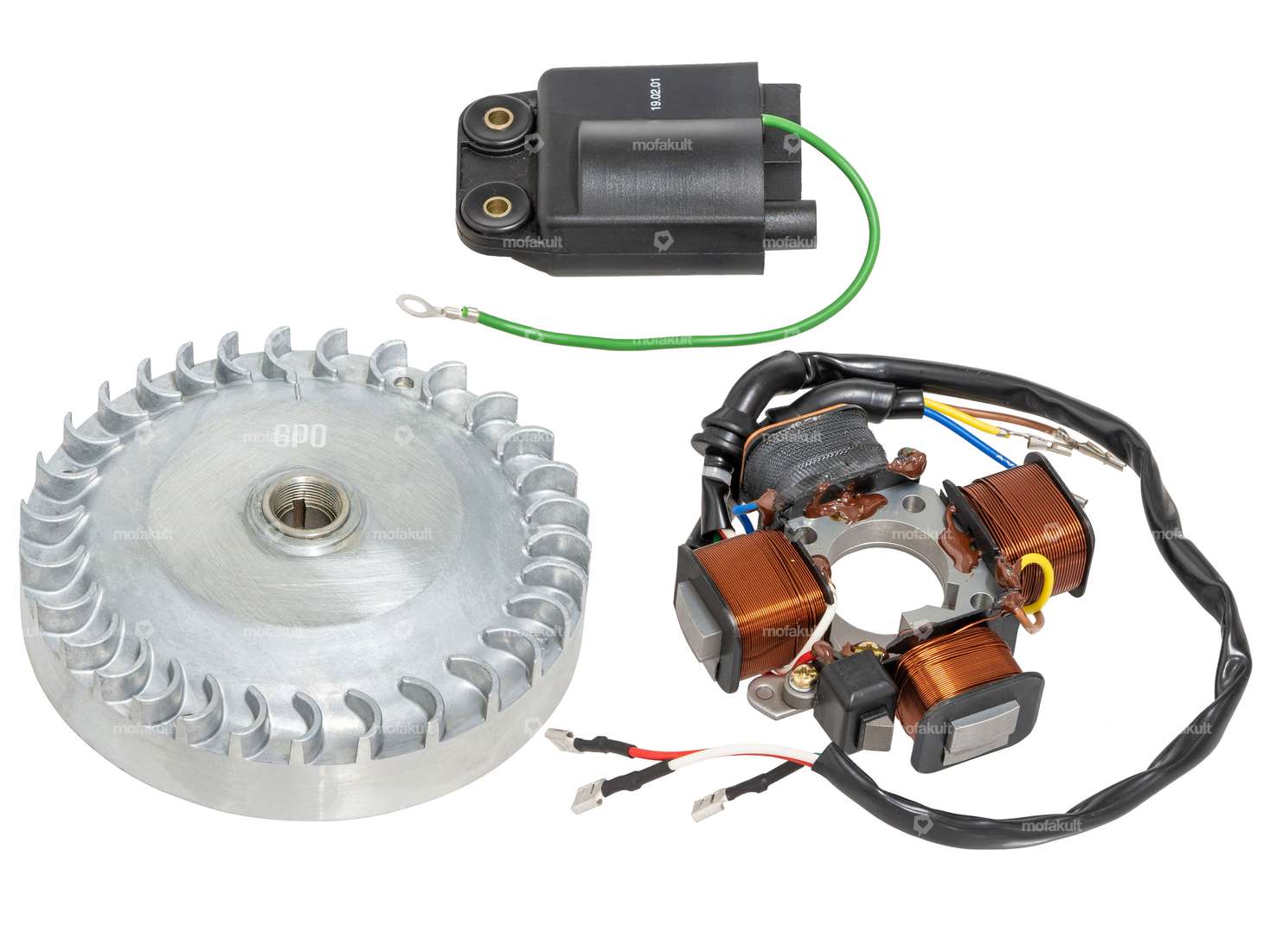

Scope of delivery:

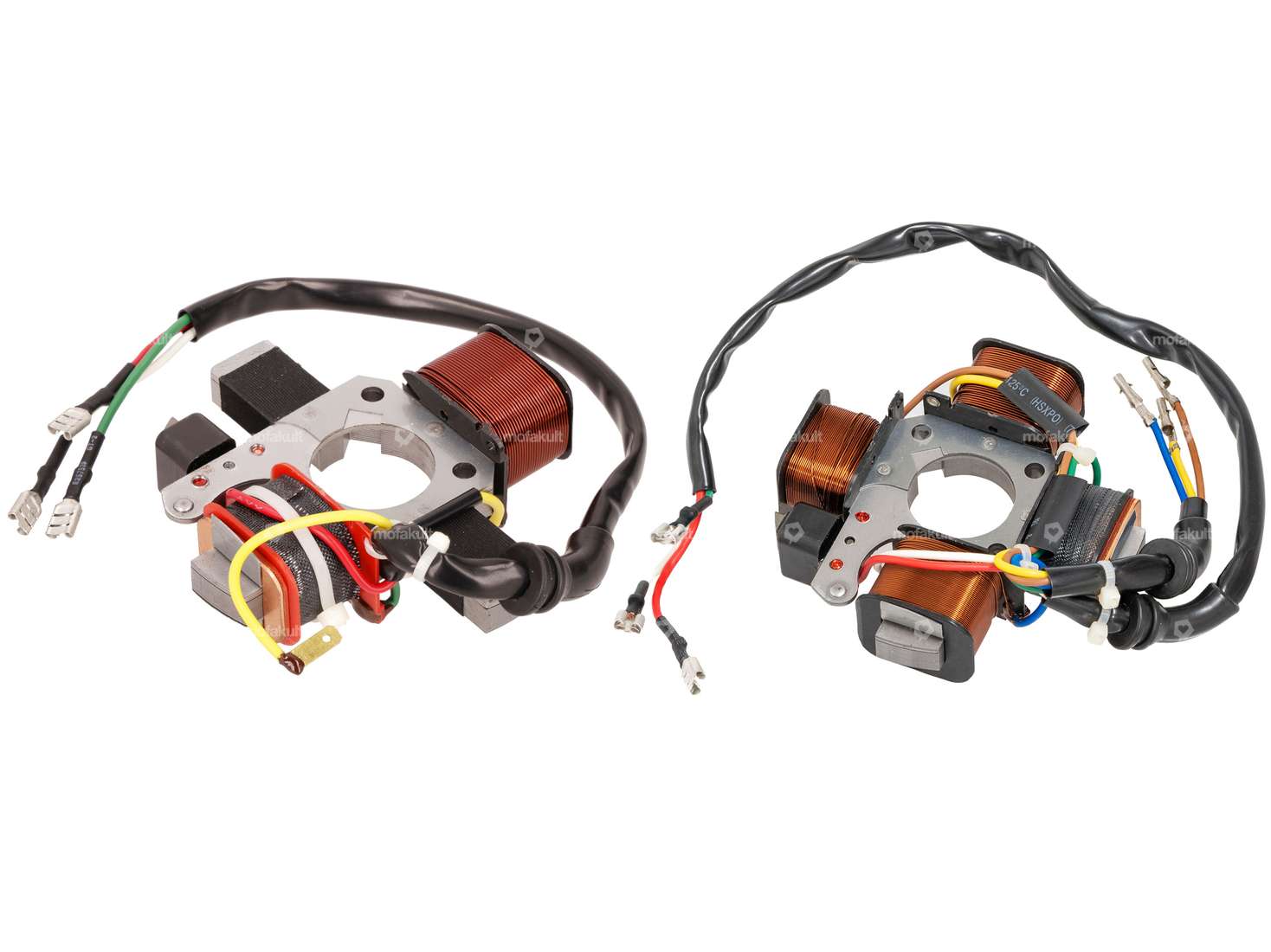

- Stator (armature plate) with three consumer outputs
- Flywheel 800 g
- CDI electronics box
Technical data:
- Voltage: 12 volts
- Power: 90 watts
- Yellow output: light
- Brown output: brake light (if fitted)
- Blue output: indicators (if fitted)
Advantages of the CDI ignition:
- optimal ignition timing at any engine speed
- always a strong, constant ignition spark
- no more misfiring
- ;possibility to connect several consumers
- no need to adjust the ignition
- little to no wear and tear
Note: This ignition only fits on the housing that already had an original electronic ignition installed. It also fits on racing housings such as the Polini Speed Engine or the Malossi housing for electronic ignitions. When converting your engine with 6 V breaker ignition to this 12V ignition, you must also convert the glow plug to 12V and also install a voltage regulator.
You will find a voltage regulator or 12V glow plug in the accessories section.
Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.
Original Piaggio spare part number: 219965 (stator) / 181103 (flywheel) / 244127 (CDI ignition coil)
The set includes the following fixed parts:

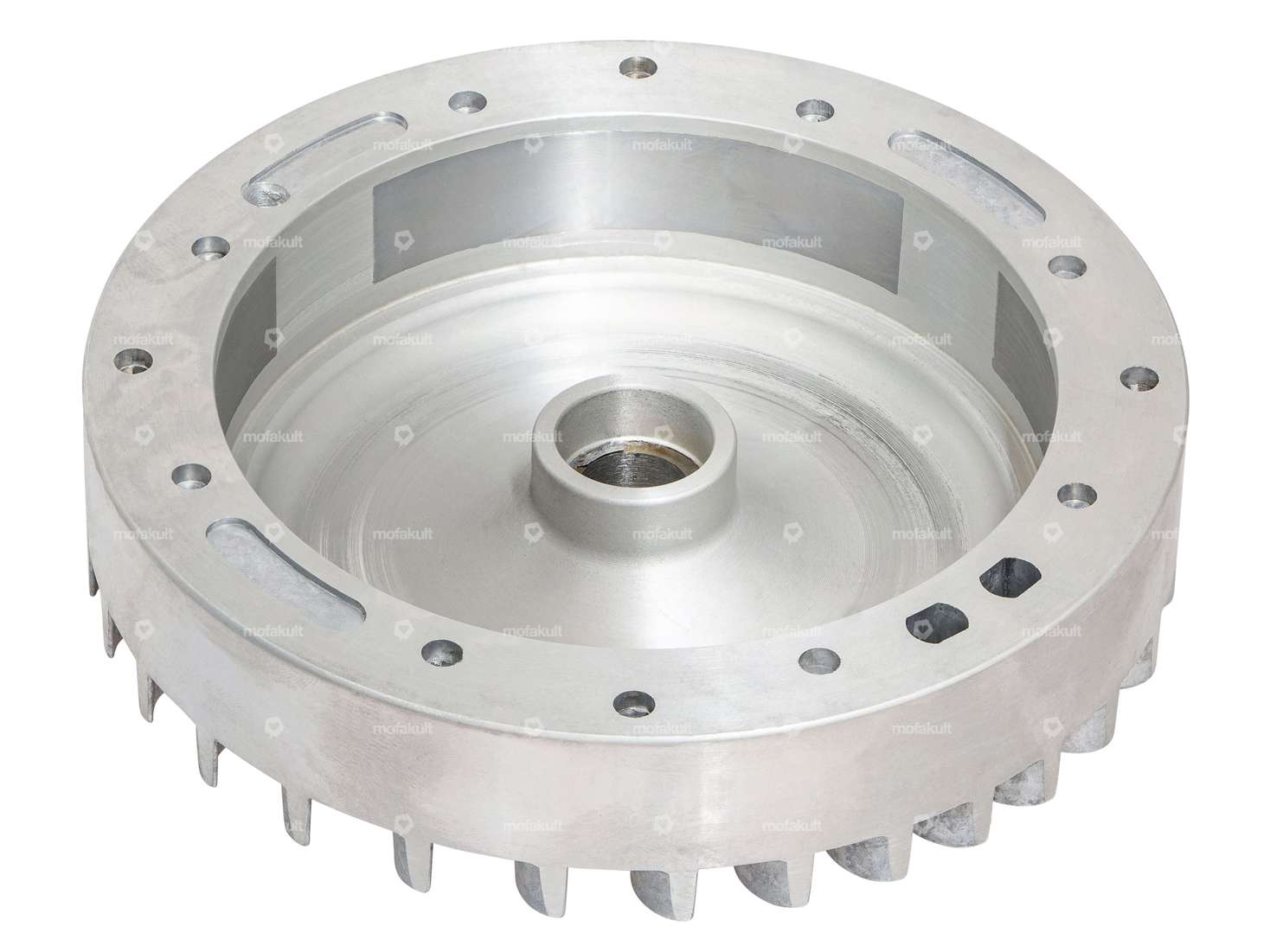

Manufacturer: GPO · Material: Aluminum · Direction of rotation: right · Ø Internal flywheel: 106 mm · Ø Flywheel outside: 139.5 mm · Thread type: MF17x1 (fine pitch thread) · Weight: 800 g · Alternative version of Piaggio spare part no.: 181103, 2238183

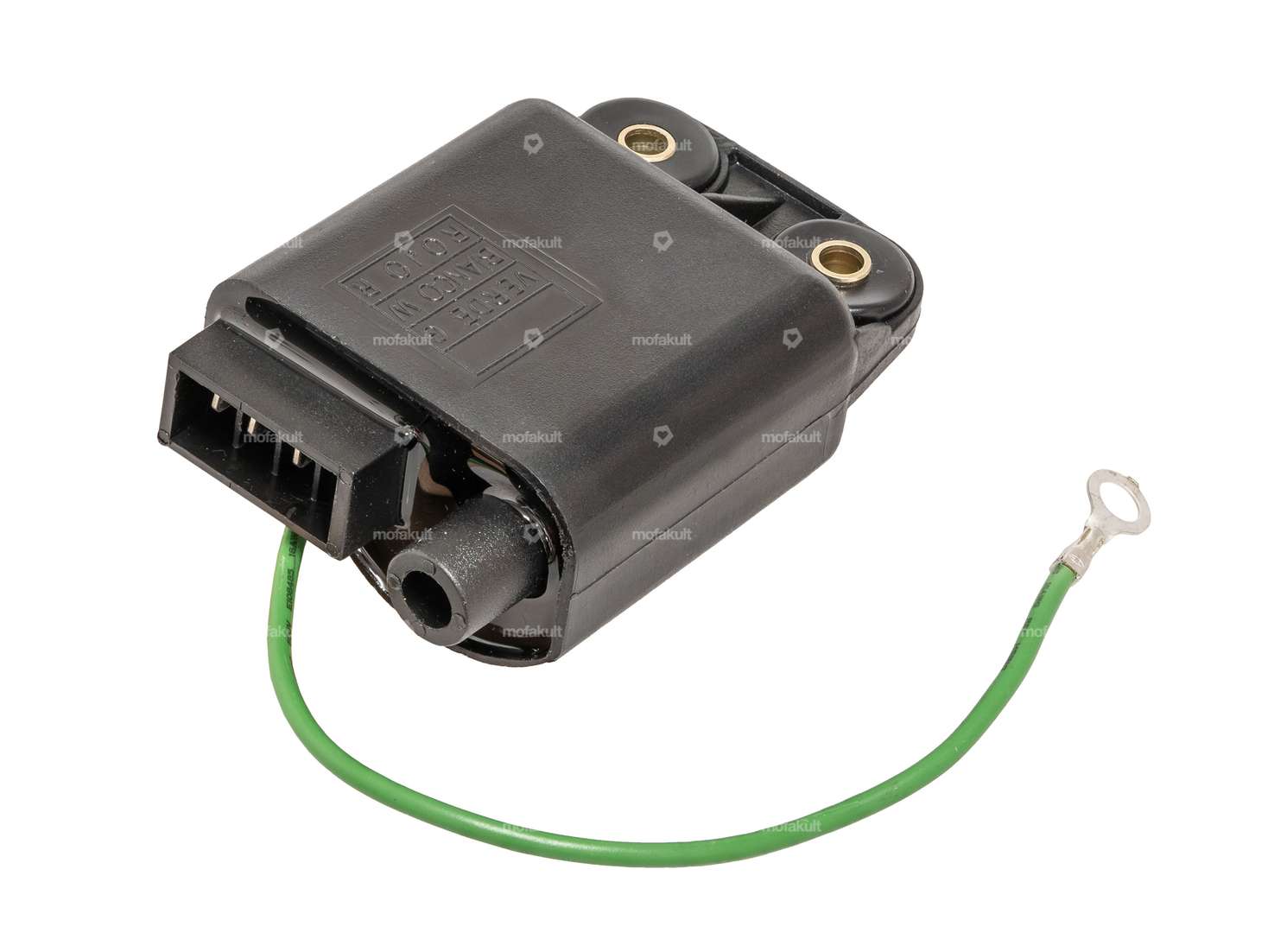

Manufacturer: GPO · Place of use: External (outside the ignition) · Ø cable holder: 7.9 mm · Cable length: 192 mm · Color: black · Total length: 95 mm · Height: 35.5 mm · Mounting type: Screws · Number of fixing points: 2 pcs · Ø mounting hole: 5.7 mm · Hole spacing: 33 mm · Area of application: Standard, Original, Performance
Details
| Manufacturer | GPO |
| Area of application | Standard, Original |
| Light coil voltage | 12 V |
| Direction of rotation | right |
| Performance | 90 W |
| Mounting type | Screws |
| Number of fixing points | 3 pcs |
| Piaggio spare part no. | 219965, 181103, 244127 |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao Si Bravo/Superbravo Boxer Grillo |
