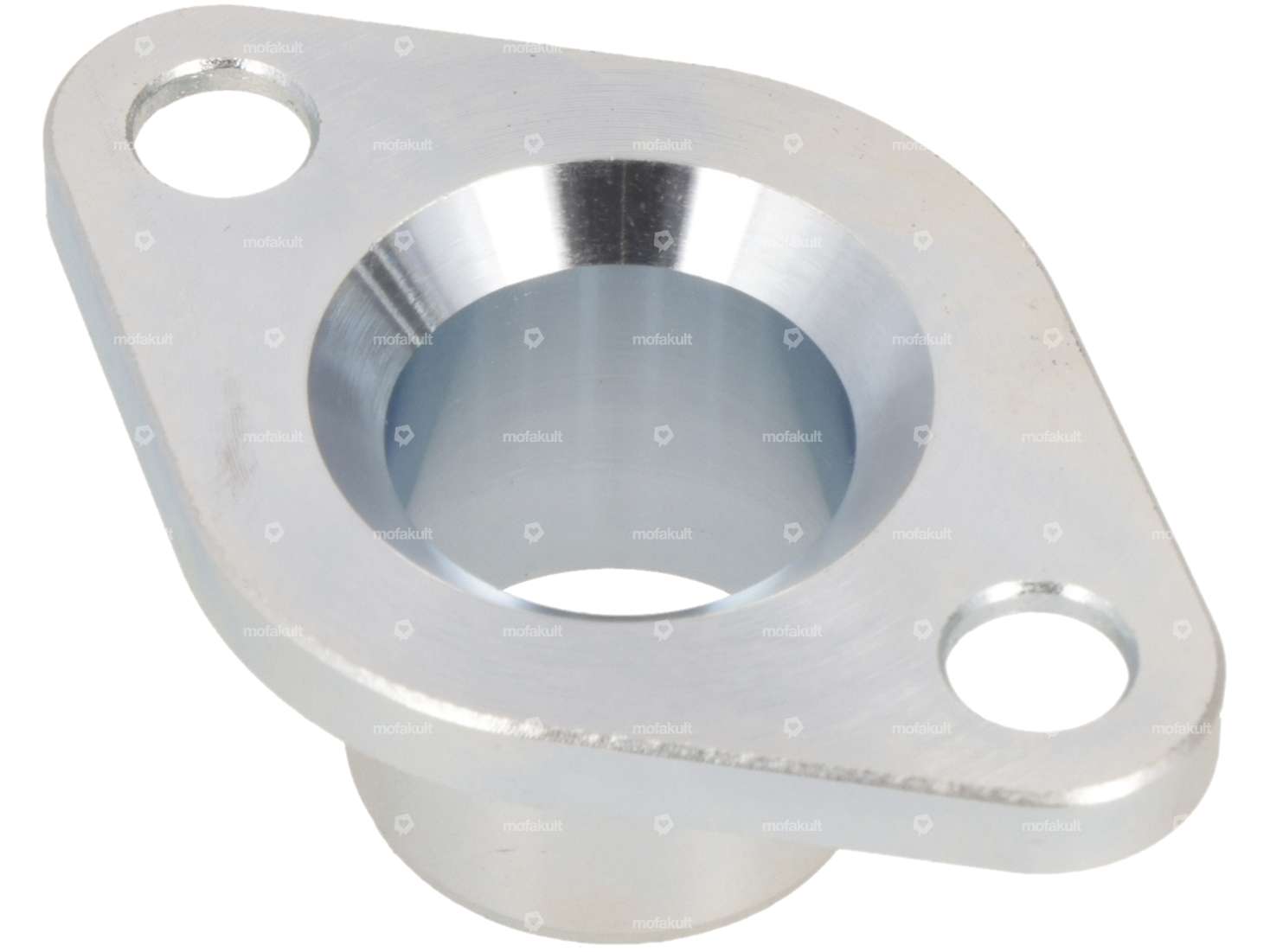

CNC machined exhaust adapter made of galvanized steel, suitable for the Athena cylinder on your moped / moped with Sachs 504, 505 or 508 engine.
As is well known, the Athena exhaust flange included in the cylinder set can only be fitted with laborious adjustments due to incorrect holes and a missing seal. The swiing® exhaust adapter is supplied with a gasket and the matching countersunk screws and solves this problem without any adjustment work.
Details
| Manufacturer | swiing® ingenious parts |
| Material | Steel |
| Surface | blue galvanized |
| Ø inside | 22 mm |
| Width | 43 mm |
| Height | 25.5 mm |
| Ø mounting hole | 8.3 mm |
| Ø outside | 26 mm |
| Total length | 67 mm |
| Hole spacing | 50 mm |
Suitable for the following models
| Sachs | 50/4 505 (mit Tretwelle) - 1A (AT), 2 A (HG) 508 - 1 A 535 |
| Hercules |
Accessories & related products
Athena 38 mm cylinder kit without mounting parts | Sachs (504), 505, 508
Nominal diameter: 38 mm · Manufacturer: Athena · Material: Cast aluminum · Camouflaged: No · Area of application: Tuning · Surface: sandblasted · Crankshaft stroke: 44 mm · Displacement: 50 ccm · Ø piston pin (B): 12 mm · Hole spacing inlet: 32 mm · Ø cylinder neck: 51.7 mm · Ø outlet inside: 28.3 mm · Inlet window: 23.6 x 12.8 / 16.5 · Thread inlet: M6x1 (standard thread) · Hole spacing outlet: 50 mm · Decompressor: M10x1.5 · Outlet type: straight · Thread outlet: M8x1.25 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 56/61 x 56
EUR 314,20
Athena 45 mm cylinder kit incl. mounting parts | Sachs (504), 505, 508
Nominal diameter: 45 mm · Manufacturer: Athena · Material: Cast aluminum · Camouflaged: No · Area of application: Tuning · Surface: sandblasted · Crankshaft stroke: 44 mm · Ø piston pin (B): 12 mm · Hole spacing inlet: 31.5 mm · Ø cylinder neck: 51.7 mm · Ø Outlet outside: 25.9 mm · Ø Inlet inside: 14.3 mm · Ø outlet inside: 19.5 mm · Inlet window: 23.4 x 12.6 · Thread inlet: M6x1 (standard thread) · Hole spacing outlet: 50 mm · Decompressor: M10x1.5 · Outlet type: clamped · Outlet type: straight · Thread outlet: M8x1.25 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 56 (61) x 56
EUR 338,00
Athena 48 mm cylinder kit incl. diaphragm | Sachs (504), 505, 508
Nominal diameter: 48 mm · Manufacturer: Athena · Material: Cast aluminum · Camouflaged: No · Area of application: Tuning · Surface: sandblasted · Crankshaft stroke: 44 mm · Ø piston pin (B): 12 mm · Hole spacing inlet: 32.5 mm · Ø cylinder neck: 51.8 mm · Ø Outlet outside: 26 mm · Ø Inlet inside: 14.7 mm · Ø Inlet inside: 17.8 mm · Ø outlet inside: 19.4 mm · Inlet window: 31.9 x 36.2 · Thread inlet: M5x0.8 (standard thread) · Hole spacing outlet: 50 mm · Decompressor: M10x1.5 · Outlet type: clamped · Outlet type: straight · Thread outlet: M8x1.25 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 56/60 x 56
EUR 338,00
Athena piston 45 mm #A | Sachs 504 / 505
Nominal diameter: 45 mm · Manufacturer: Athena · Ø outside piston (A): 44.92 mm · Ø piston pin (B): 12 mm · Compression height (C): 28.2 mm · Total piston height (E): 45.2 mm · Number of piston rings (F): 1 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Tolerance group: A
EUR 78,80

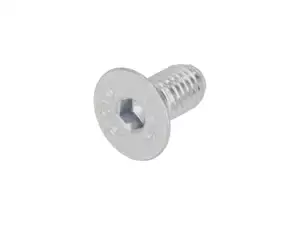

M8x16 countersunk Allen screw, galvanized (strength 10.9)
Total length: 16 mm · Width across flats SW: 5 mm · Material: Steel · Surface: blue galvanized · Thread type: M8x1.25 (standard thread) · Drive: Hexagon socket · Screw head: Countersunk head · Ø External head: 16 mm · Shank: No · Thread length: 10 mm · Strength class: 10.9
EUR 2,05
swiing ingenious exhaust adapter 24 mm Athena cylinder| Sachs 504, 505, 508
Height: 25.5 mm · Width: 43 mm · Total length: 67 mm · Manufacturer: swiing® ingenious parts · Ø inside: 20 mm · Ø outside: 24 mm · Material: Steel · Surface: blue galvanized · Hole spacing: 50 mm · Ø mounting hole: 8.3 mm
EUR 28,10
