Hot
Extravagant 17 inch spoke front wheel for your moped, moped and small motorcycle. Original 80 mm LELEU brake anchor plates and 12 mm wheel axles can be used. This means that this custom rim can be mounted on your Puch moped / moped without any adaptation work.
The lightweight rim weighs just 2.7 kg. Nevertheless, the front wheel is extremely stable and perfectly suited for both road and cross use.
The wheel hub made of CNC-milled aluminum is already equipped with wheel bearings and sealing lips. The rim ring and wheel hub are made of aluminum. The spokes and nipples are chrome-plated.
Rim dimensions: 17 x 1.40" (rim width: 47 mm)
Ø Spoke: 3.5 mm
Number of spokes: 36 pcs.
Ø Wheel axle: 12 mm
Ø Brake drum: 80 mm
Weight: 2.7 kg
Note: The brake drum is screwed into the hub shell. This means that the rim should only be used if your brake anchor plate is mounted on the left-hand side (in the direction of travel). Otherwise, there is a risk that the brake drum can unscrew from the hub shell.
You can find corresponding add-on parts such as the brake anchor plate, wheel axle, speedometer drive, tires, etc. in the accessories section.
Details
| Nominal diameter | 438 mm |
| Weight | 2700 g |
| Material | Aluminum |
| Surface | anodized |
| Color | silver |
| Wheel size [inch] | 17 " |
| Rim well depth | 7.5 mm |
| Ø axle | 12 mm |
| Overall width outside | 47 mm |
| Jaw width [inch] | 1.4 " |
| Ø spoke | 3.5 mm |
| Jaw width | 34.6 mm |
| Ø Nipple hole | 6.6 mm |
| Number of spoke holes | 36 pcs |
| Ø Brake drum | 80 mm |
Suitable for the following models
| Puch | |
| Sachs | |
| Zündapp Belmondo |
Accessories & related products
swiing® revival wheel axle M12x1 x 165 ball bearing, galvanized version
Total length: 165 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized · Thread type: MF12x1 (fine pitch thread) · Ø shaft: 11.95 mm · Shank length: 75 mm · Thread length: 40 mm · Thread length: 50 mm
EUR 14,50
Michelin 2.25 x 17" tire set
Manufacturer: Michelin · Tire width [inch]: 2.25 " · Tire width [mm]: 57.15 · Wheel size [inch]: 17 " · Old designation: 21 x 2.25 · Speed index: P = 150 km/h · Load capacity index: 38 = 132 kg · Profile type: City Extra · Tire type: Allround · Color: black · White wall: No · Tubeless (yes/no): Tubetype TT (requires hose)
EUR 140,80
Transval speedo drive 17" | Puch / Sachs
Ø outside: 41 mm · Total height: 59.5 mm · Manufacturer: Transval · Ø axle: 11 mm · Material: Aluminum · Color: gray · Thread type: MF10x1 (fine pitch thread) · Place of use: left · Place of use: right · Wheel size [inch]: 17 " · Overall width outside: 60 mm · 4-edge speedometer cable: 1.9 mm · 4-edge speedometer cable: 2.6 mm · Ø mounting hole: 11 mm
EUR 31,50
Not in stock
66HEROES cap nut M12x1 stainless steel polished
Thread type: MF12x1 (fine pitch thread) · Manufacturer: 66HEROES · Material: Chrome steel (stainless steel) · Surface: polished · Nut type: Cap nut · Drive: External hexagon · Width across flats SW: 17 mm · Thread depth: 23.4 mm · Height: 26.2 mm
EUR 13,40

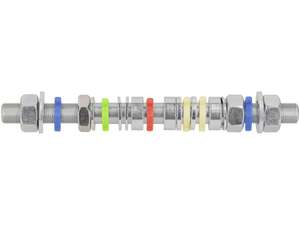

swiing® revival wheel axle set M12x1 x 165 mm cast & spoke hubs | Puch
