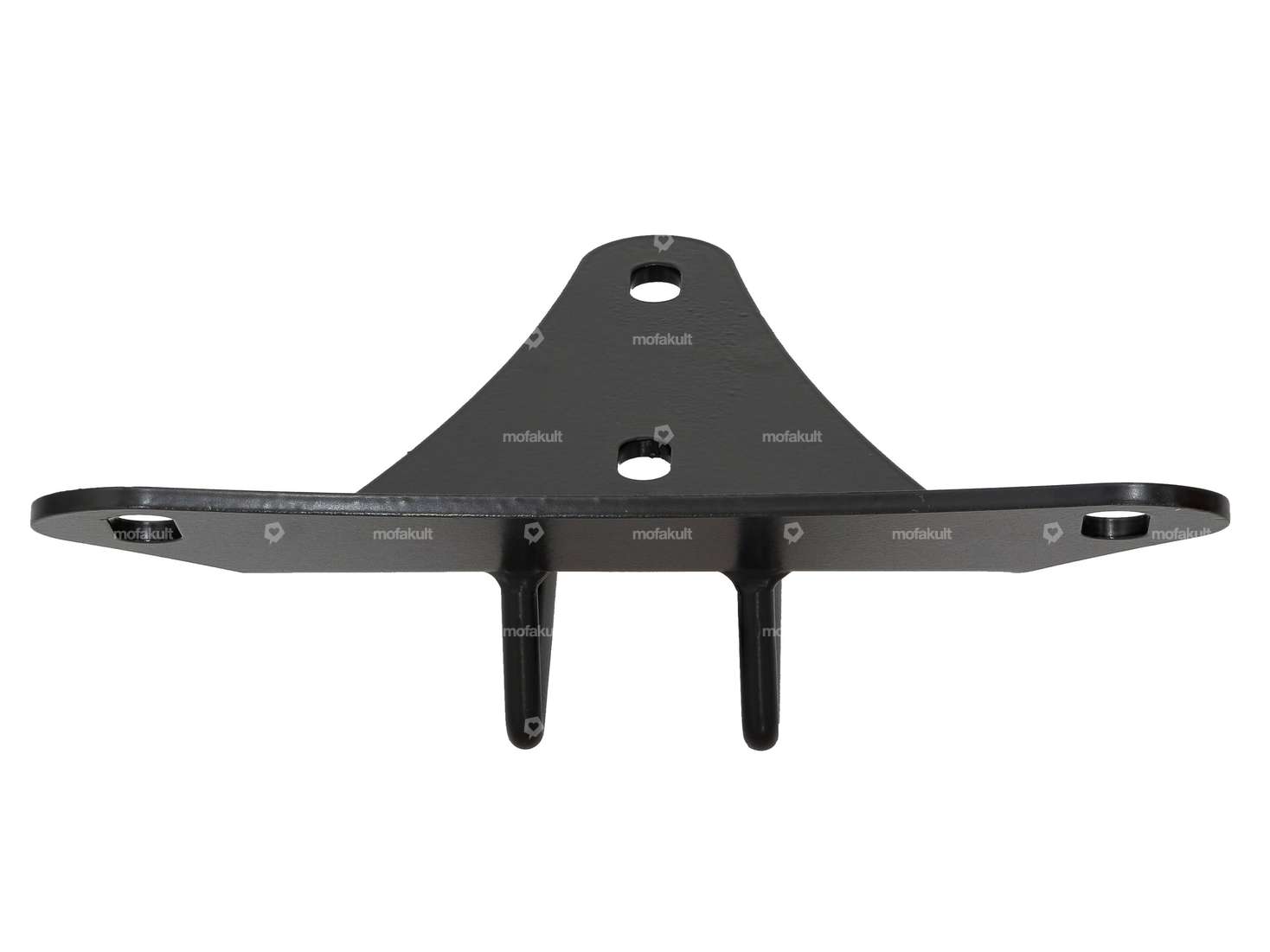

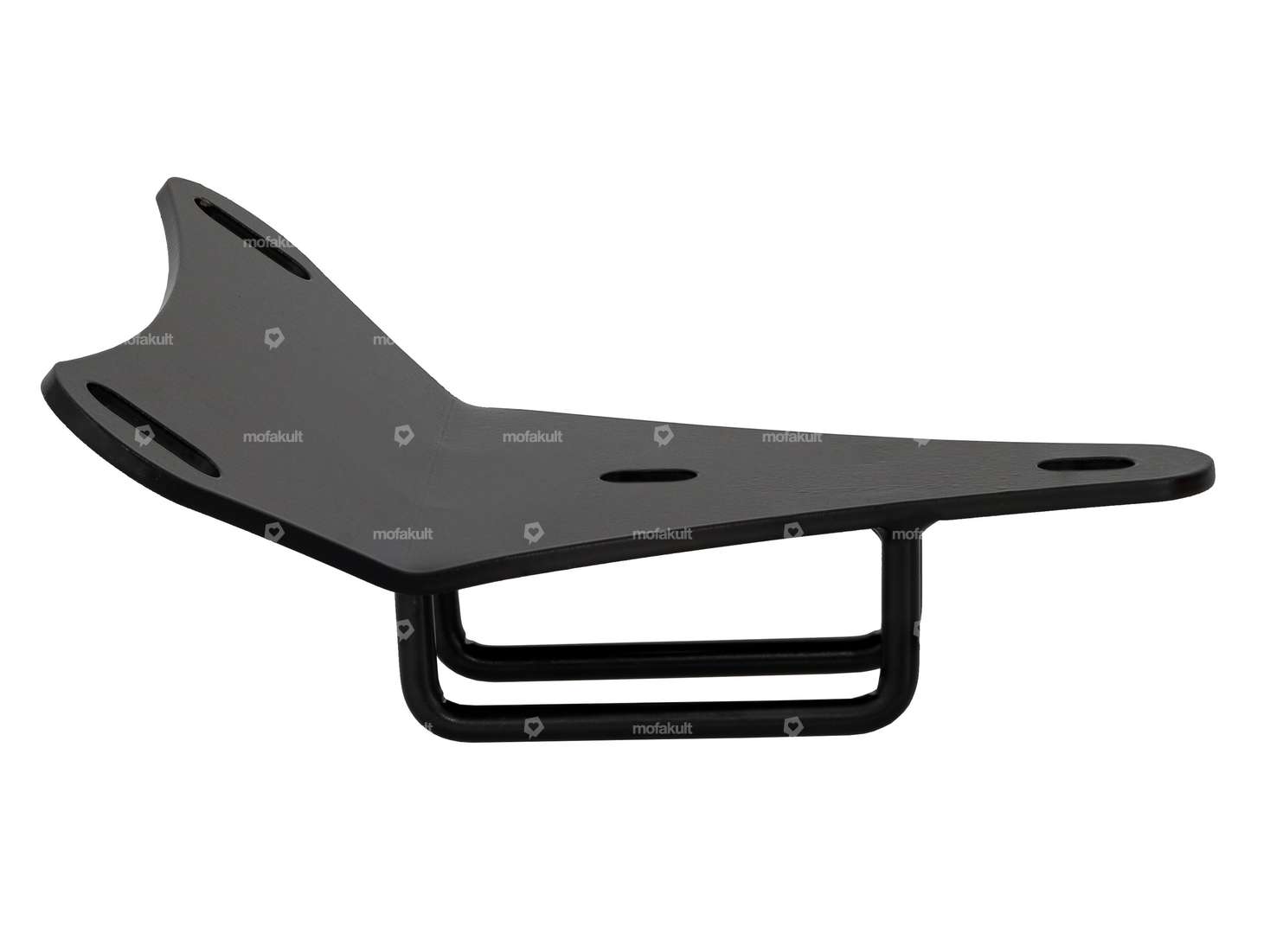

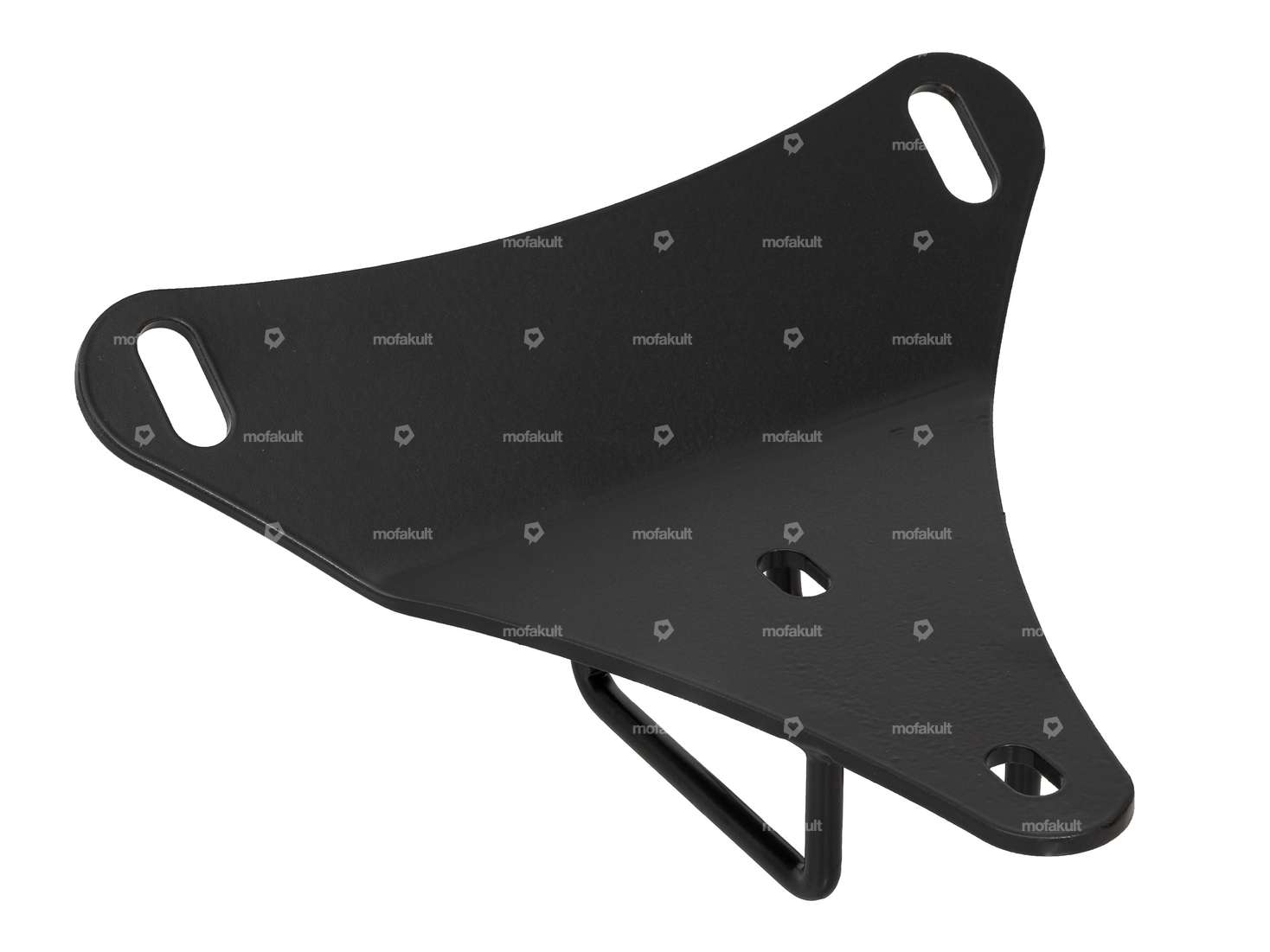

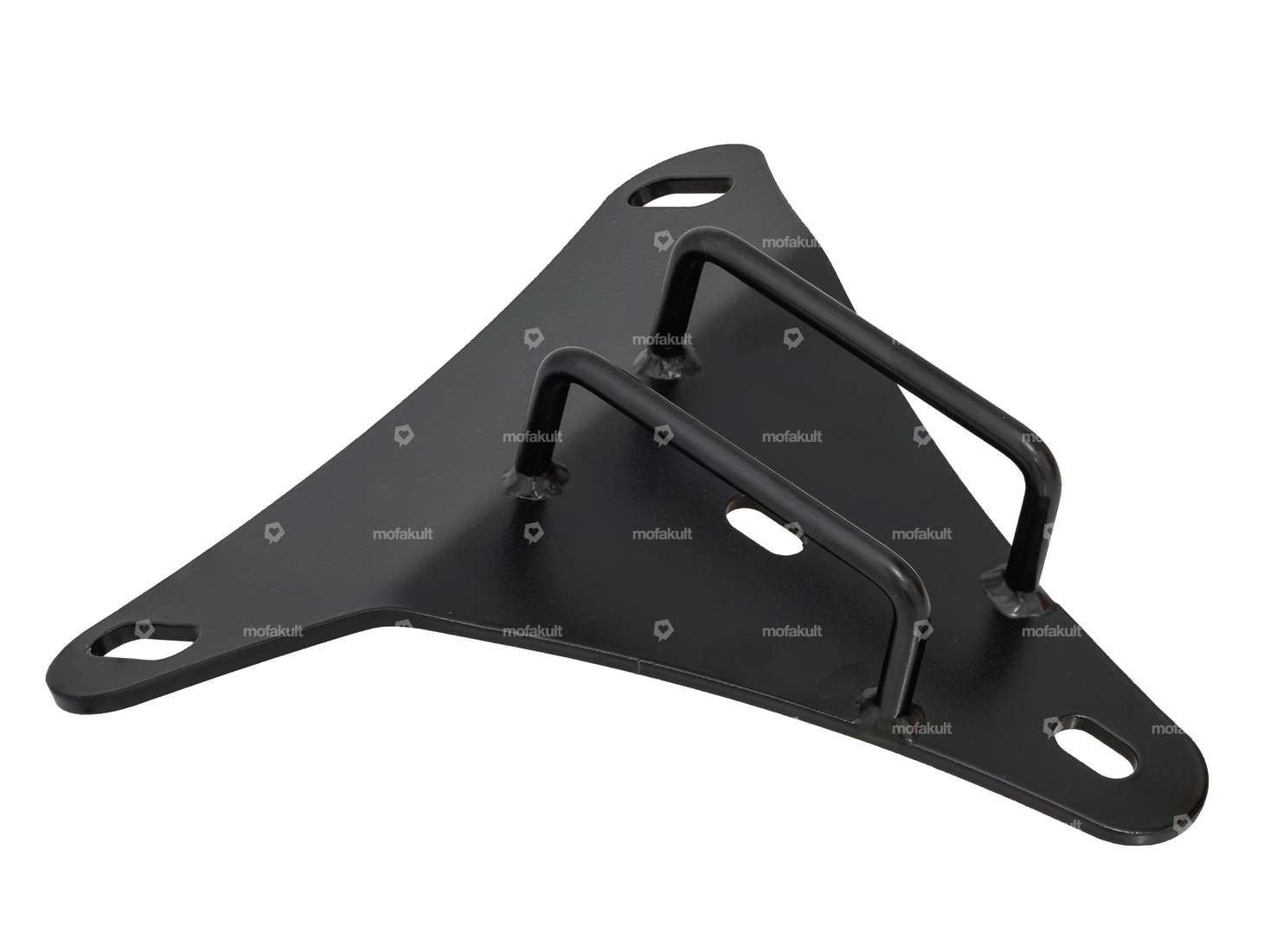

High-quality saddle base for the saddle shells of the «Tuck & Roll» product line. The mounting holes in the plate match the threaded sockets on the saddle shells perfectly.
This means that the custom shells can be easily mounted on your moped, moped and small motorcycle in conjunction with the substructure.
If the substructure is used with the Tuck & Roll genuine leather saddle, the two Siggnature transition pieces should also be fitted, as the rear threaded studs on the saddle are not parallel to the lower surface.
Hole spacing at the front: 80 mm
Ø slotted hole at the front: Ø 10 x 20
Hole spacing at the rear: 180 mm
Slotted hole at the rear: Ø 12 x 25
Ø clamp: 7 mm
Clamp spacing: 45 mm
Clamp length: 97 mm
Corresponding attachments such as saddle shells, saddle clamps, adapters etc. can be found in the accessories section. You'll find them in the accessories section.
A super cool custom product straight from the Siggnature workshop.
Details
| Manufacturer | Siggnature |
| Color | black |
