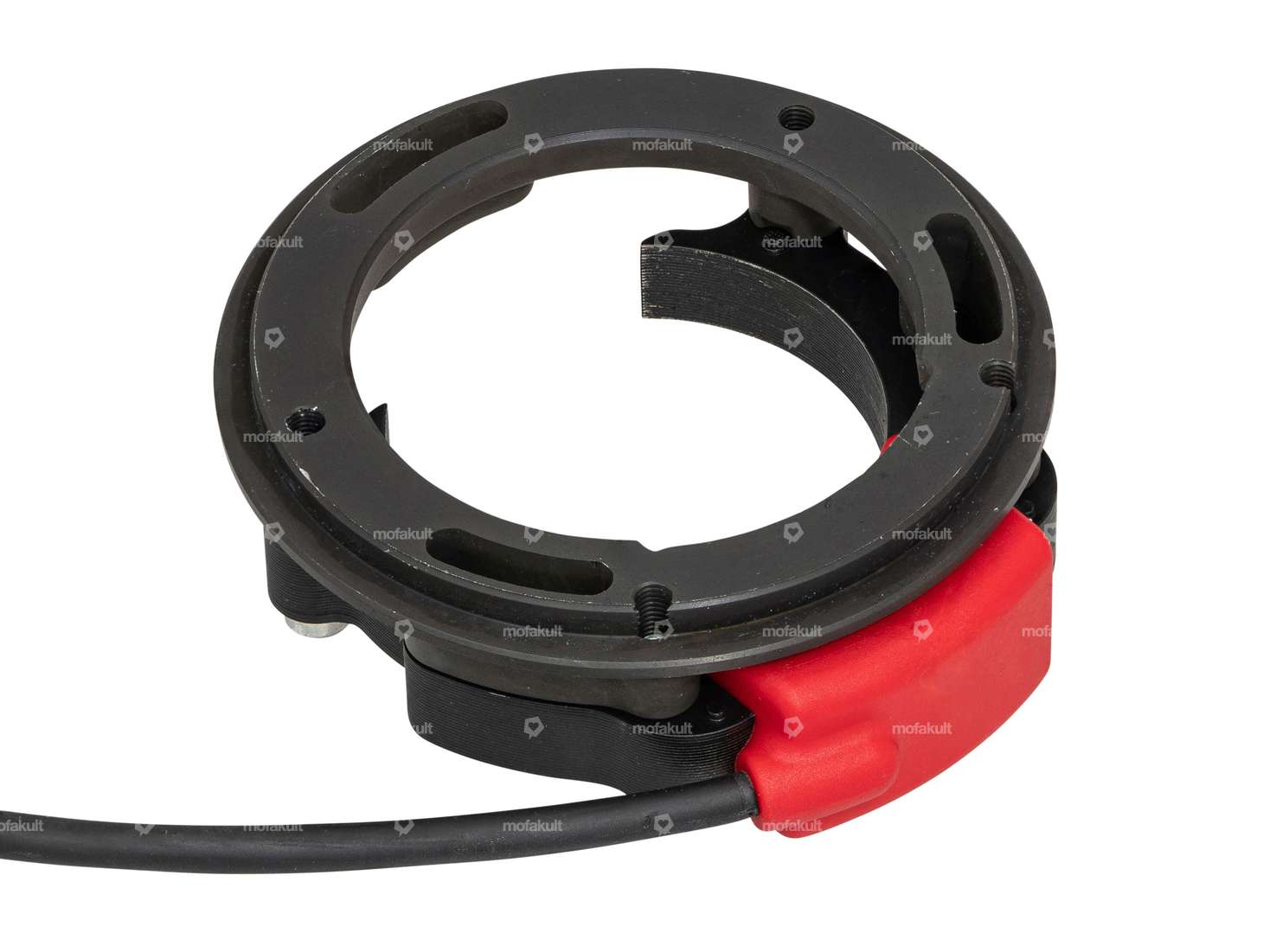

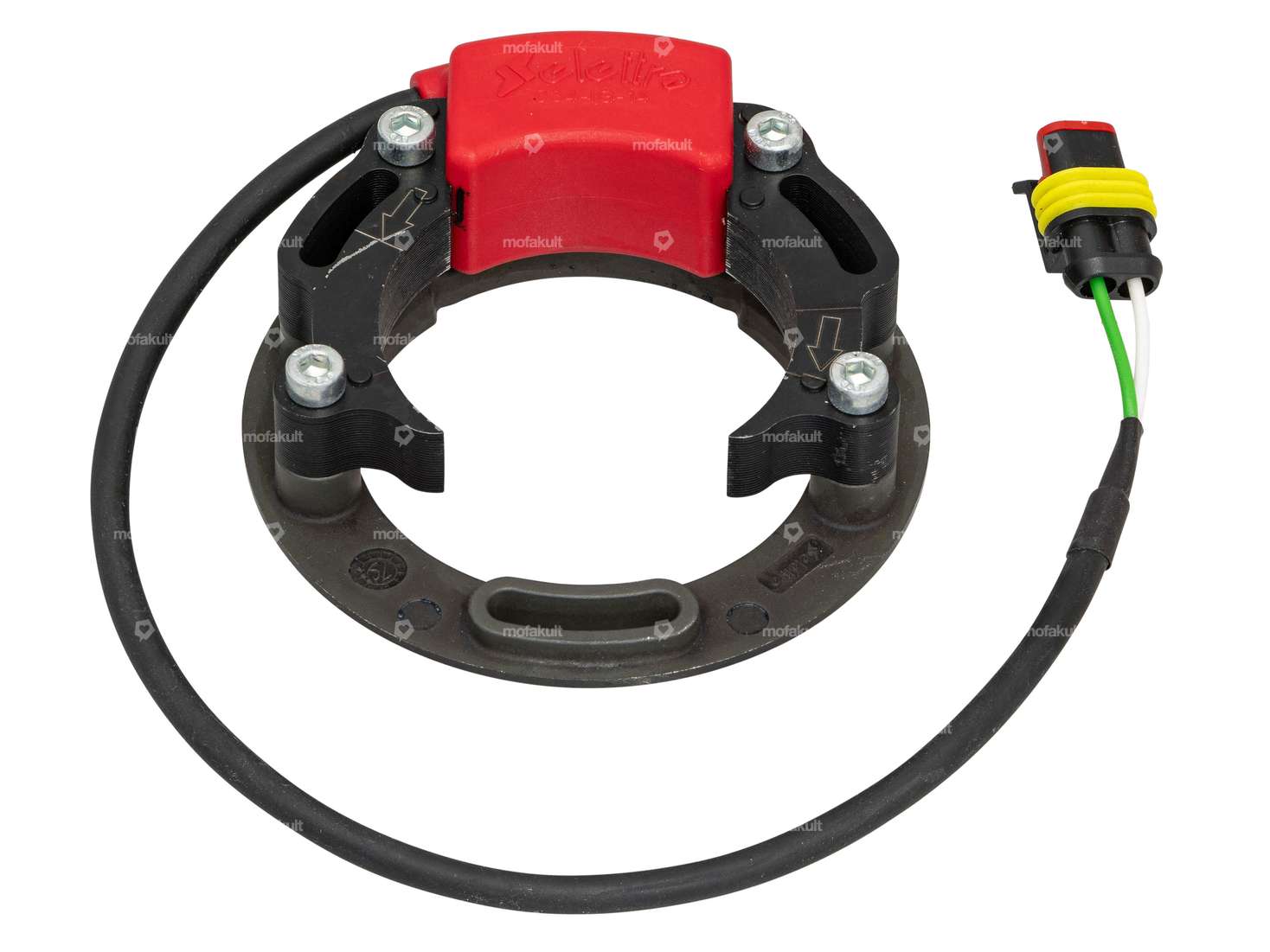

Selettra stator suitable for ignition type NO2019, for left- and right-turning engines with Ø 90 mm ignition plate mount.
The ignition stator can be mounted on various mopeds, mopeds and small motorcycles such as Puch Maxi S / N, Puch X30 Sport NS / NL, Puch X30 NG-2AH, Puch X30 Velux, Sachs 503, Sachs 50/2, Zündapp Belmondo, Kreidler etc.
Type number: 034-IG-14
Fits system: NO2019 (adjustment angle 3°)
Direction of rotation: Left & Right
Light connection: No
Number of turns: 2400

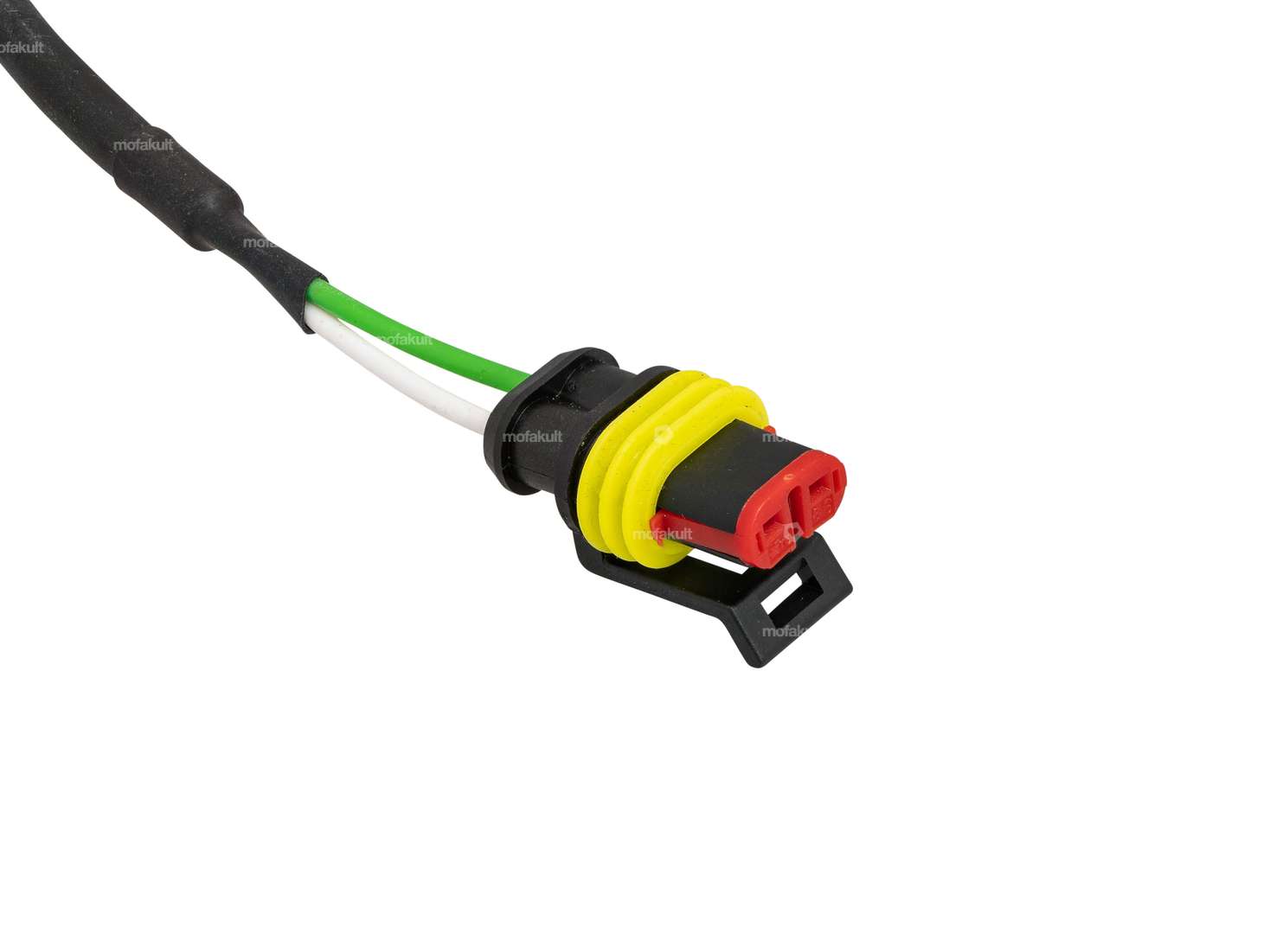

Plug type: Superseal
Basic adjustment of the ignition: Set the crankshaft to 15 - 20° before TDC (top dead center), the markings must then match.
Corresponding add-on parts such as stator, ignition coil, complete ignitions, adjustment tool, additional weights etc. can be found in the accessories section.
Quality product from the Italian manufacturer Selettra.
Details
| Manufacturer | Selettra |
| Area of application | Tuning |
| Color | red |
| Number of cables | 2 pcs |
Suitable for the following models
| Puch | E50 ZA50 (Fahrtwindgekühlt) ZA50 (Gebläsegekühlt) Z50 (X30 Sport) Z50 (X30 Velux) 2-Gang MS, MV, MV50 3-Gang VSD, DS, VZ, MC |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 PS, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) 503 - AAL, ABL, 2AL / 2BL, AB, AC, ADV 505 (mit Tretwelle) - 1A (AT), 2 A (HG) 535 |
| Zündapp Belmondo |
