Repair instructions for 1-speed automatic Maxi models from Steyr-Daimler-Puch AG.

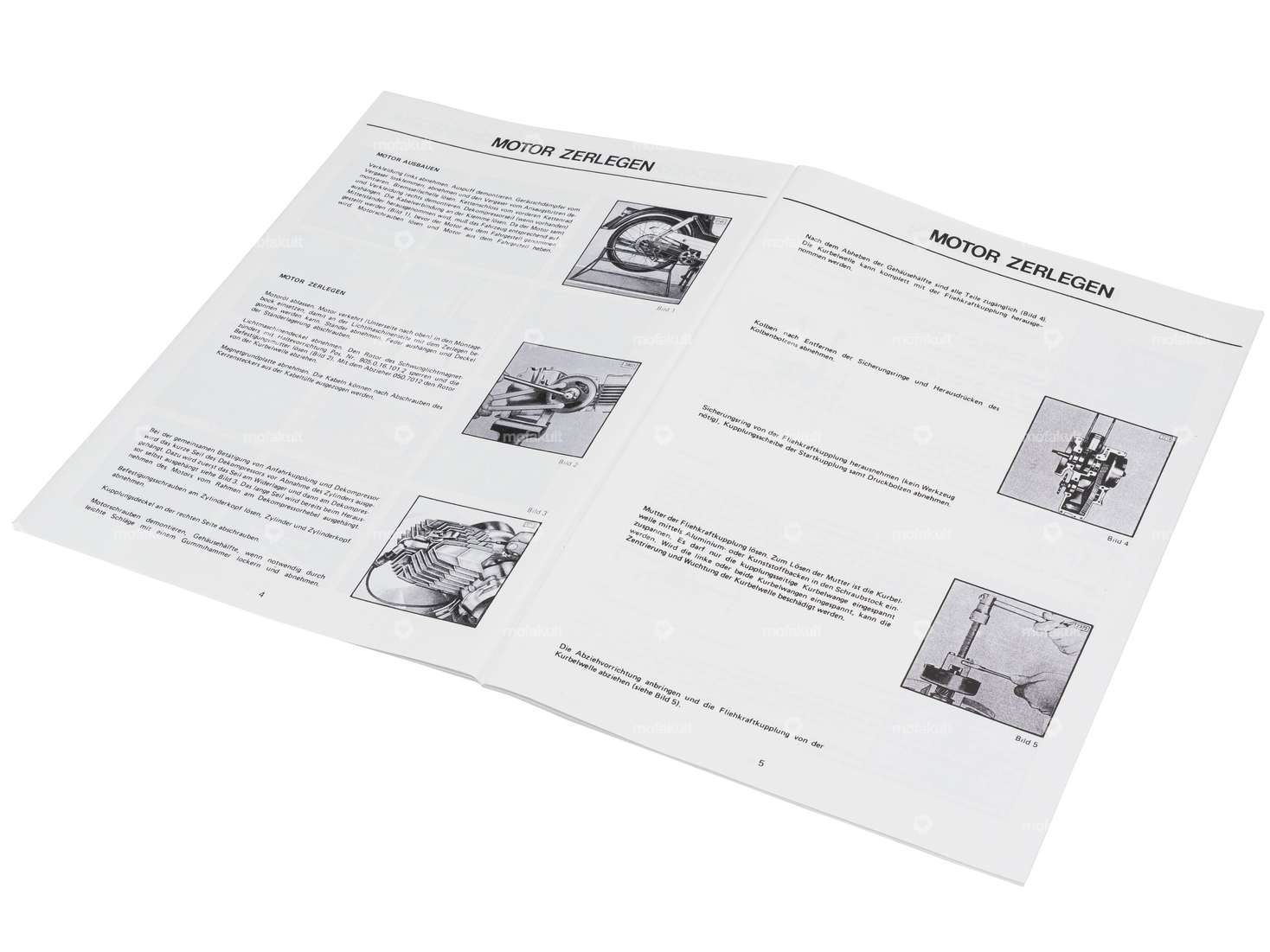

Described are interesting facts about the engine, chassis and electrics including pictures, diagrams and technical drawings.
The following items are also comprehensively described: technical data, special tools, engine, inspection work, carburetor, frame, front fork, brakes, wheels and the electrical system. No Puch workshop should be without this instruction manual.
Size: A4 (210 x 297 mm)
Pages: 21
Language: German
High-quality facsimile (reproduction) of the original edition.
Further workshop manuals, spare parts catalogs and repair instructions can be found in the accessories section.
