In this super A4 sized catalog with 48 pages everything worth knowing about the 2-speed automatic X30 is listed. Every conceivable repair is described.

With detailed repair instructions for 2-speed automatic ZA50 engines, which were installed on Puch X30 NG-2AH, X30 N-2A and Supermaxi LG2 mopeds.
.

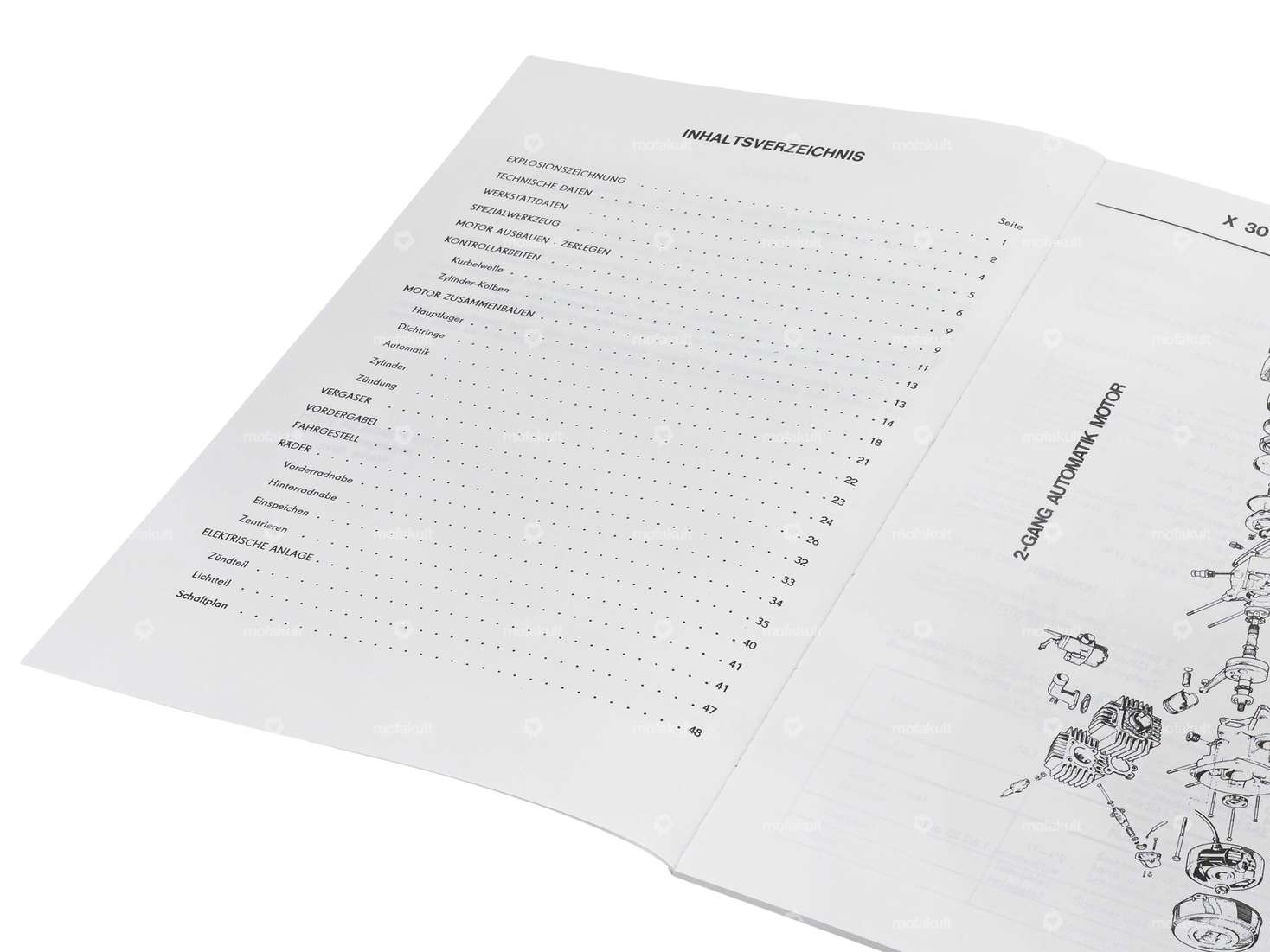

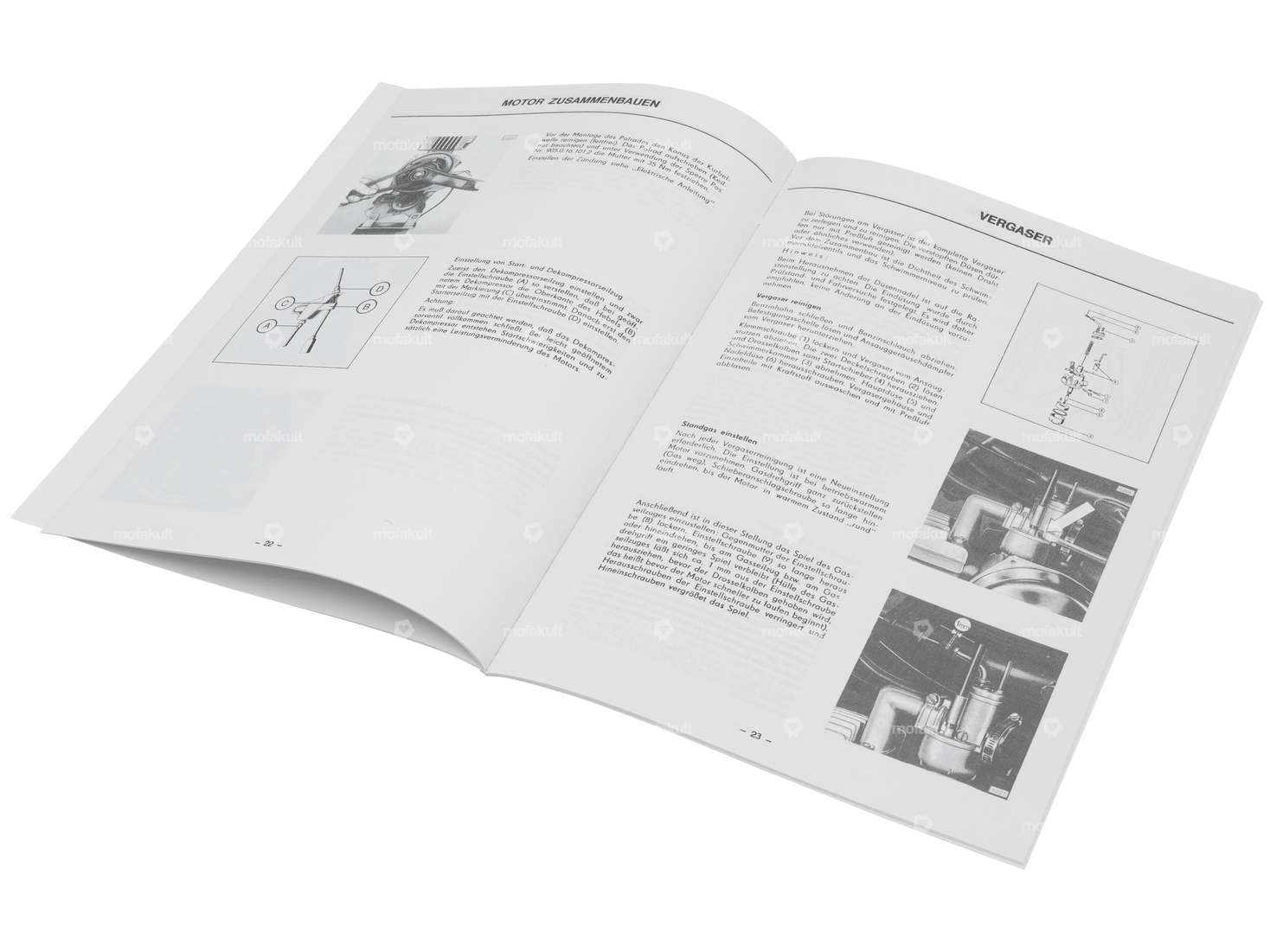

The following things are also comprehensively described: technical data, workshop data, special tools, engine, inspection work, carburetor, frame, front fork, brakes, wheels and the electrical system.

I advise every Puch fan/screwdriver to read a book like this, you can always learn something new.

Details

Material	Paper
DIN format	A4
Number of pages	48 pcs

Suitable for the following models

Puch

ZA50 (Fahrtwindgekühlt)

ZA50 (Gebläsegekühlt)
