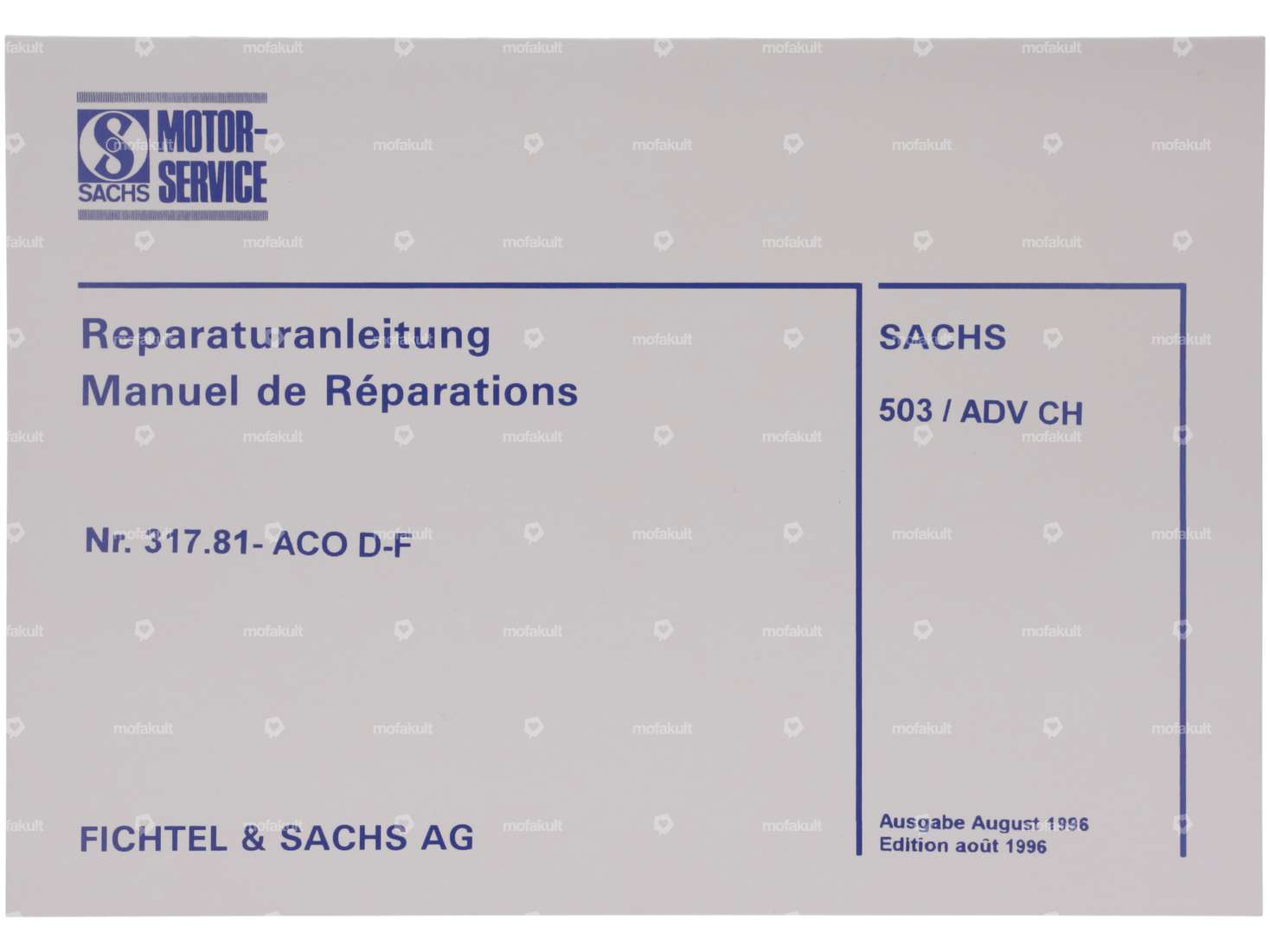

Nostalgic repair manual with various exploded views and descriptions for the repair of your Sachs 503 ADV CH moped / moped engine.

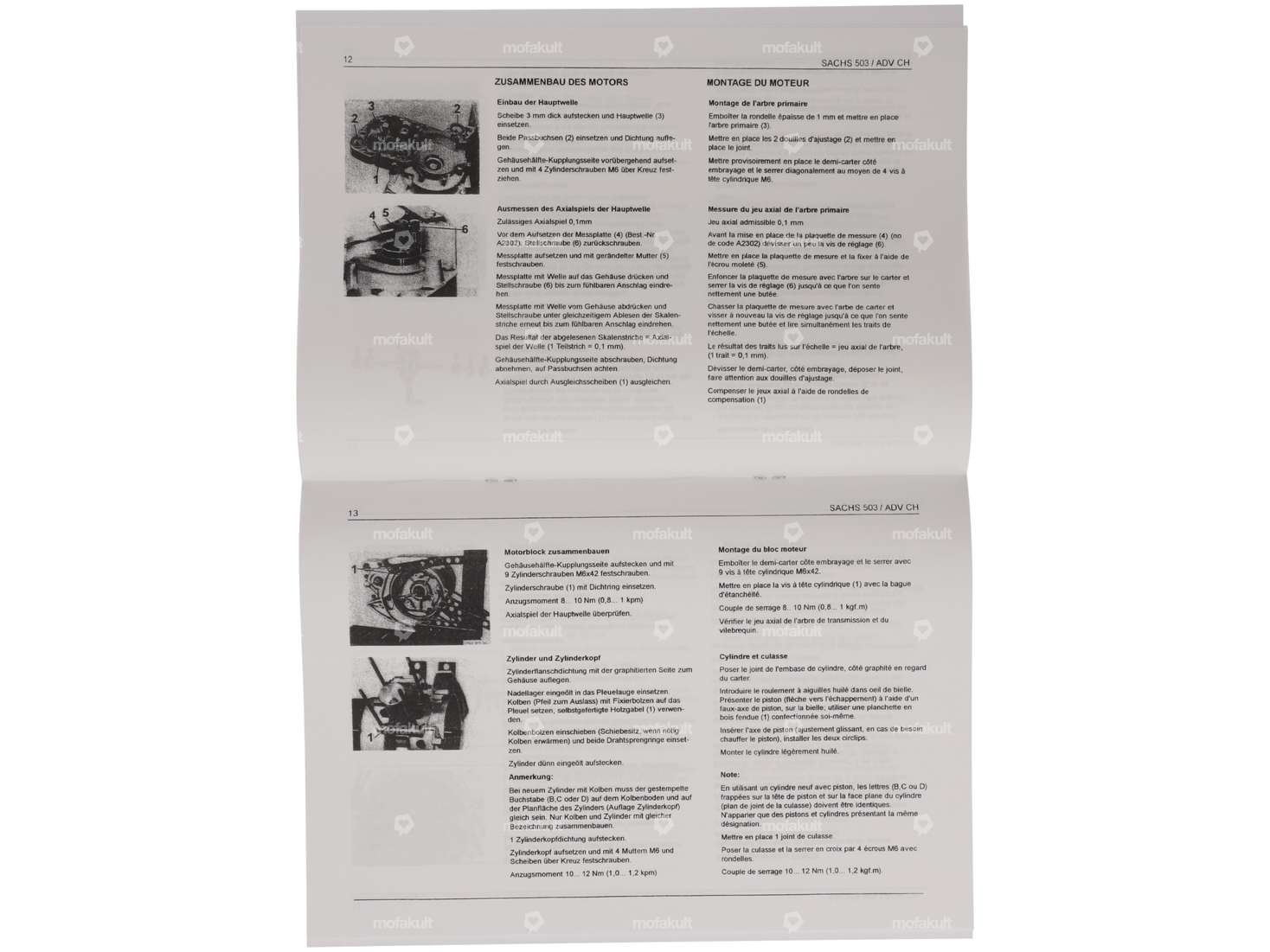

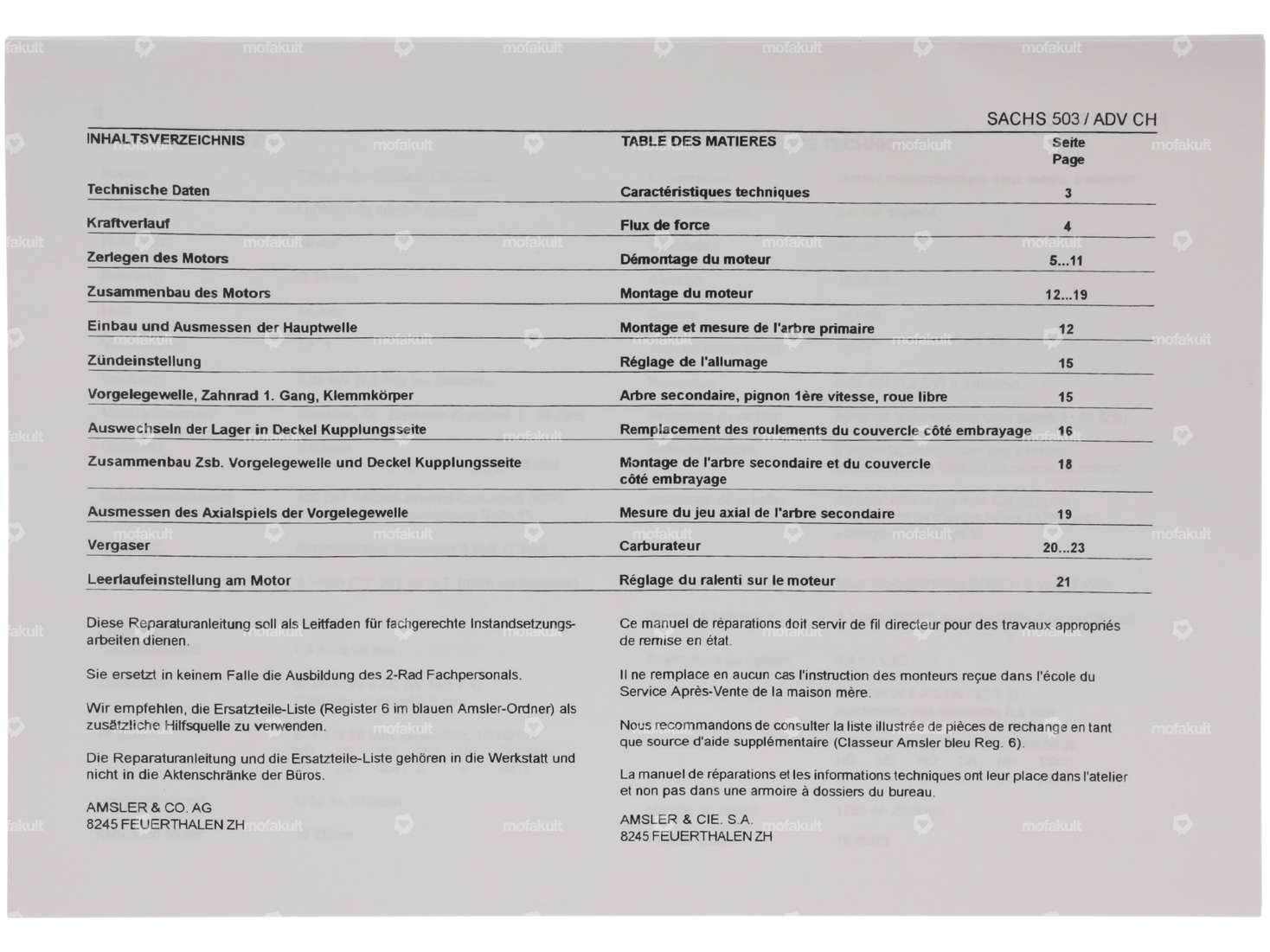

All aspects of the engine are described in detail and are illustrated by comprehensive overhaul instructions, numerous pictures and important facts. In addition, the following areas are explained in detail: technical data, special tools, engine, inspection work, carburetor and the ignition system.
A helpful read with 28 interesting pages to reminisce about old memories and get your pearl back in shape.
You can find more catalogs or repair instructions in the accessories section.
List number: 317.81 - ACO
Details
| Material | Paper |
| DIN format | A4 |
| Number of pages | 28 pcs |
Suitable for the following models
| Sachs | 503 - ADV |
