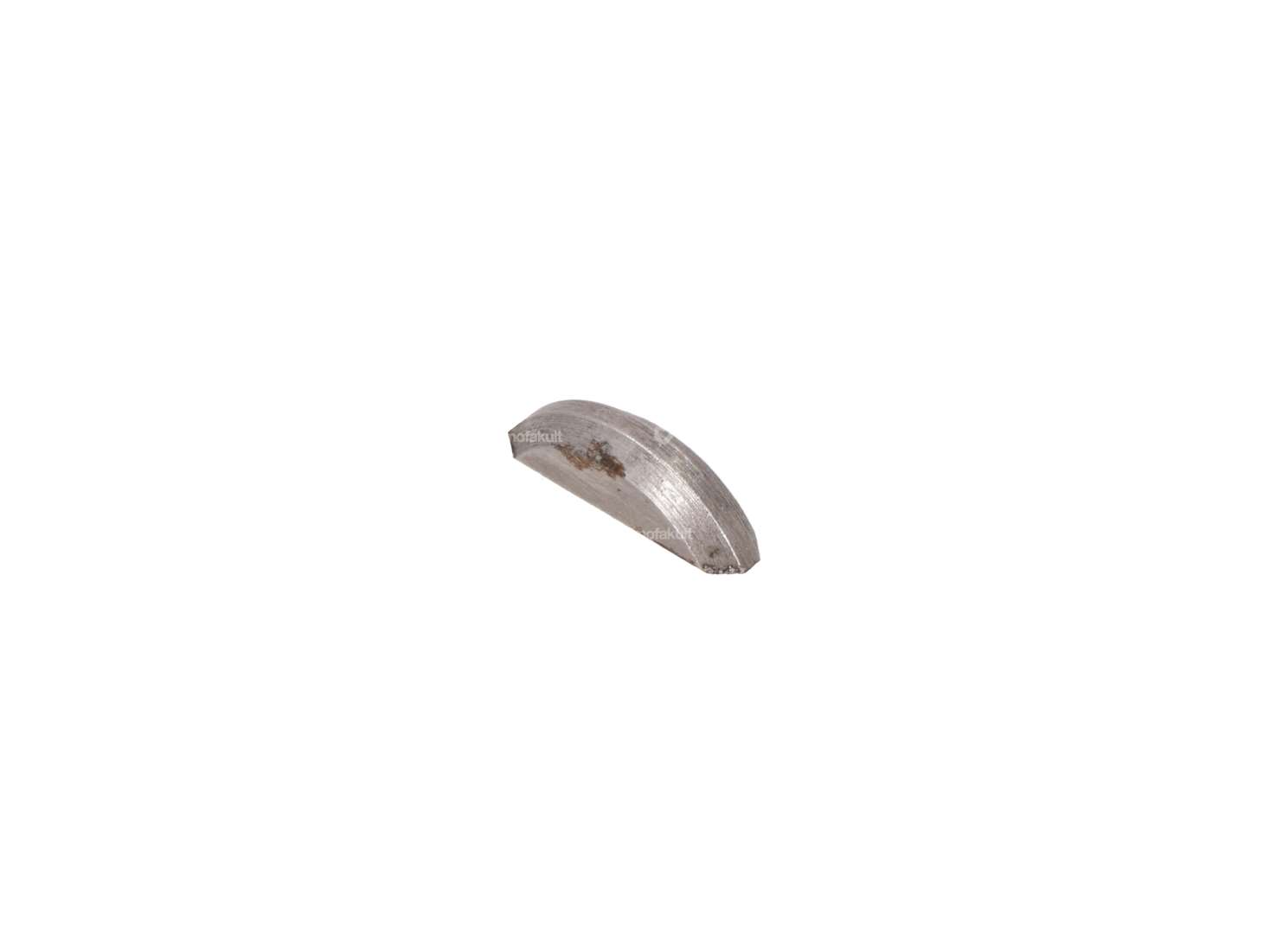

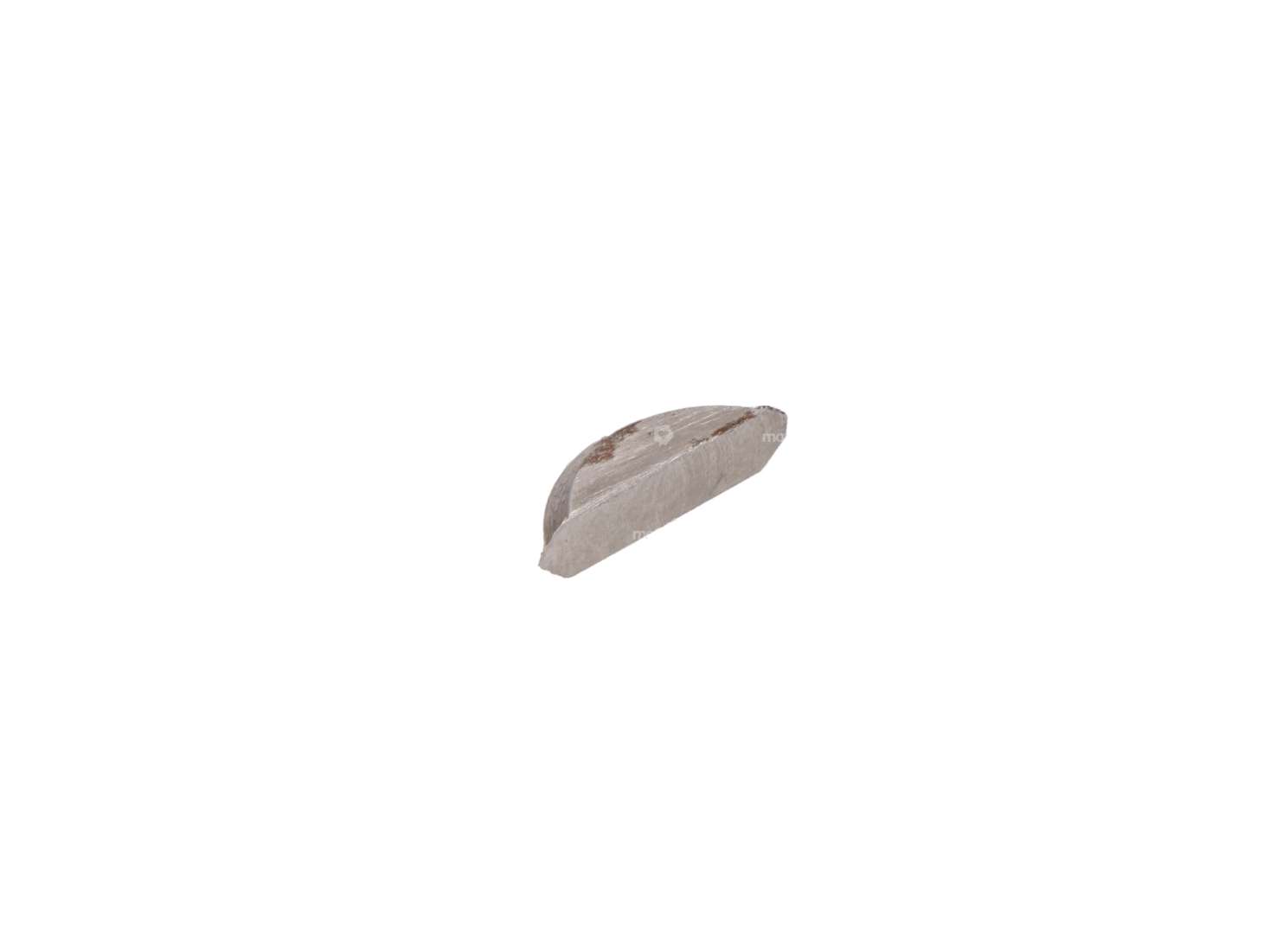

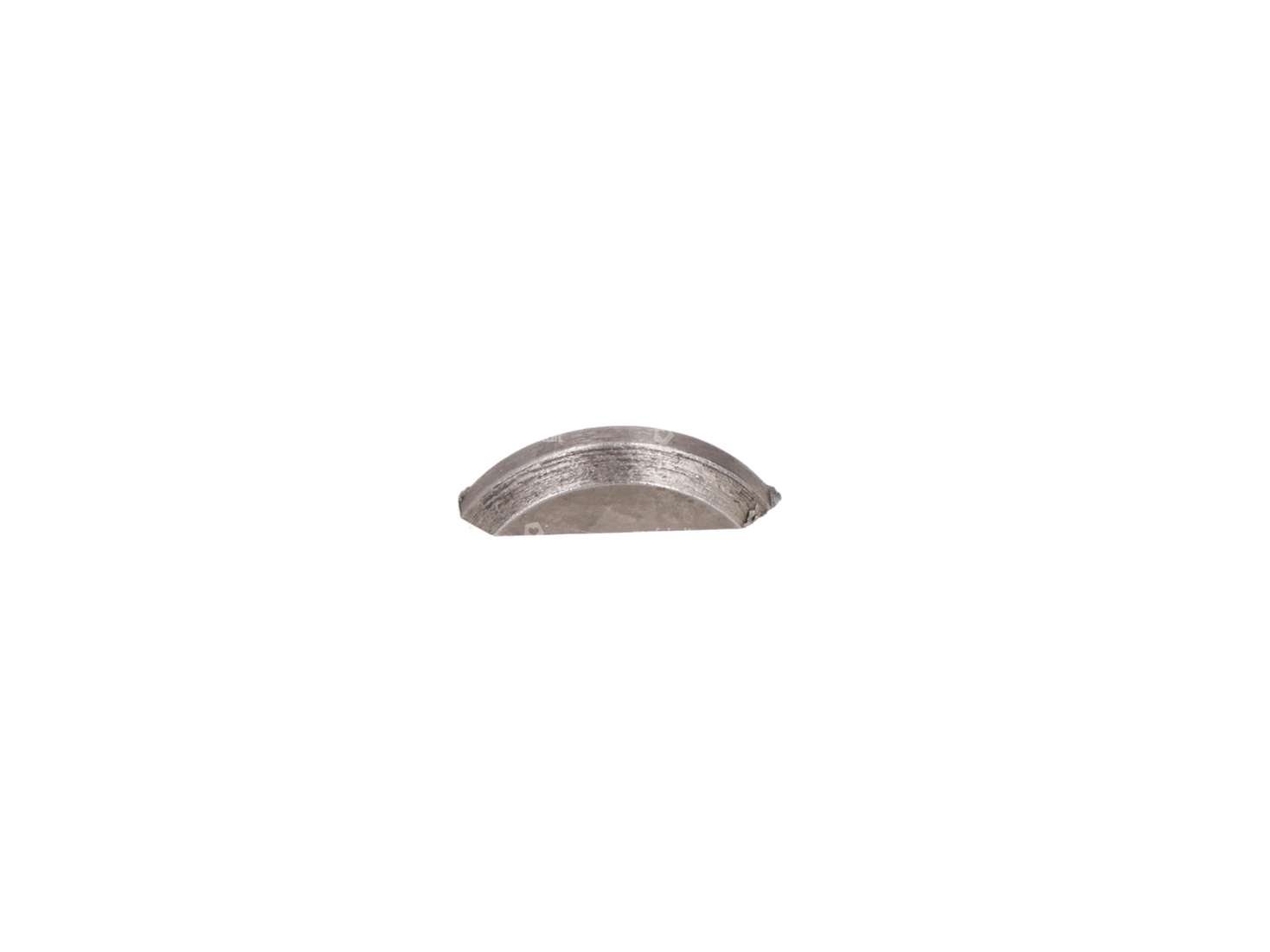

Woodruff key for the EVO REED crankshaft from Polini for Piaggio Ciao, Si, Bravo and Boxer mopeds / mopeds.
The Woodruff key (also called half moon) is characterized by a strong chamfer, which has a positive effect on assembly.
You can find the crankshaft and other parts from the EVO series in the accessories section.
Quality product from the Italian manufacturer Polini.
Details
| Total length | 12 mm |
| Width | 3 mm |
| Manufacturer | Polini |
| Material | Steel |
| Height | 3.6 mm |
Suitable for the following models
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
