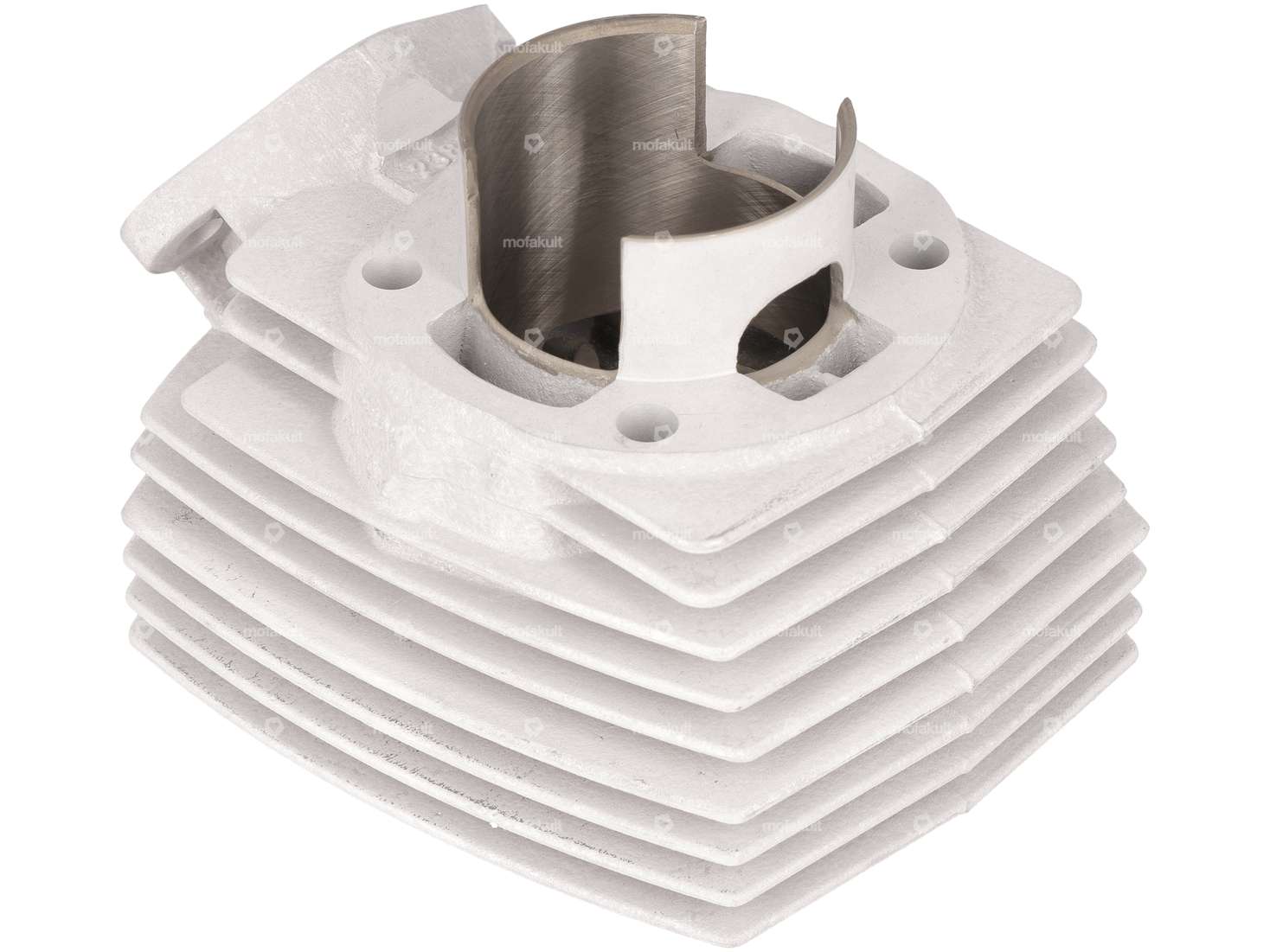

Aluminum racing cylinder kit with 65 cc displacement for your Peugeot 103, SPX50, 104, 105, GL 10 moped / moped.
According to the manufacturer Polini, the racing kit delivers an impressive 7.3 hp at 8,000 rpm.
Details
| Manufacturer | Polini |
| Material | Aluminum |
| Displacement | 65 ccm |
| Ø piston pin (B) | 7 mm |
| Ø cylinder neck | 50 mm |
| Nominal diameter | 46 mm |
| Ø Outlet outside | 25 mm |
| Number of fixing points | 4 pcs |
| Hole spacing outlet | 50 mm |
| Outlet type | slanted |
| Hole pattern [mm] | 45.4 x 50.5 |
| Thread outlet | M7x1 (standard thread) |
| Decompressor | Yes |
| Camouflaged | No |
Suitable for the following models
| Peugeot |
Accessories & related products

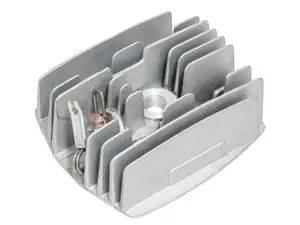

Airsal cylinder head 40 mm | Peugeot 103
