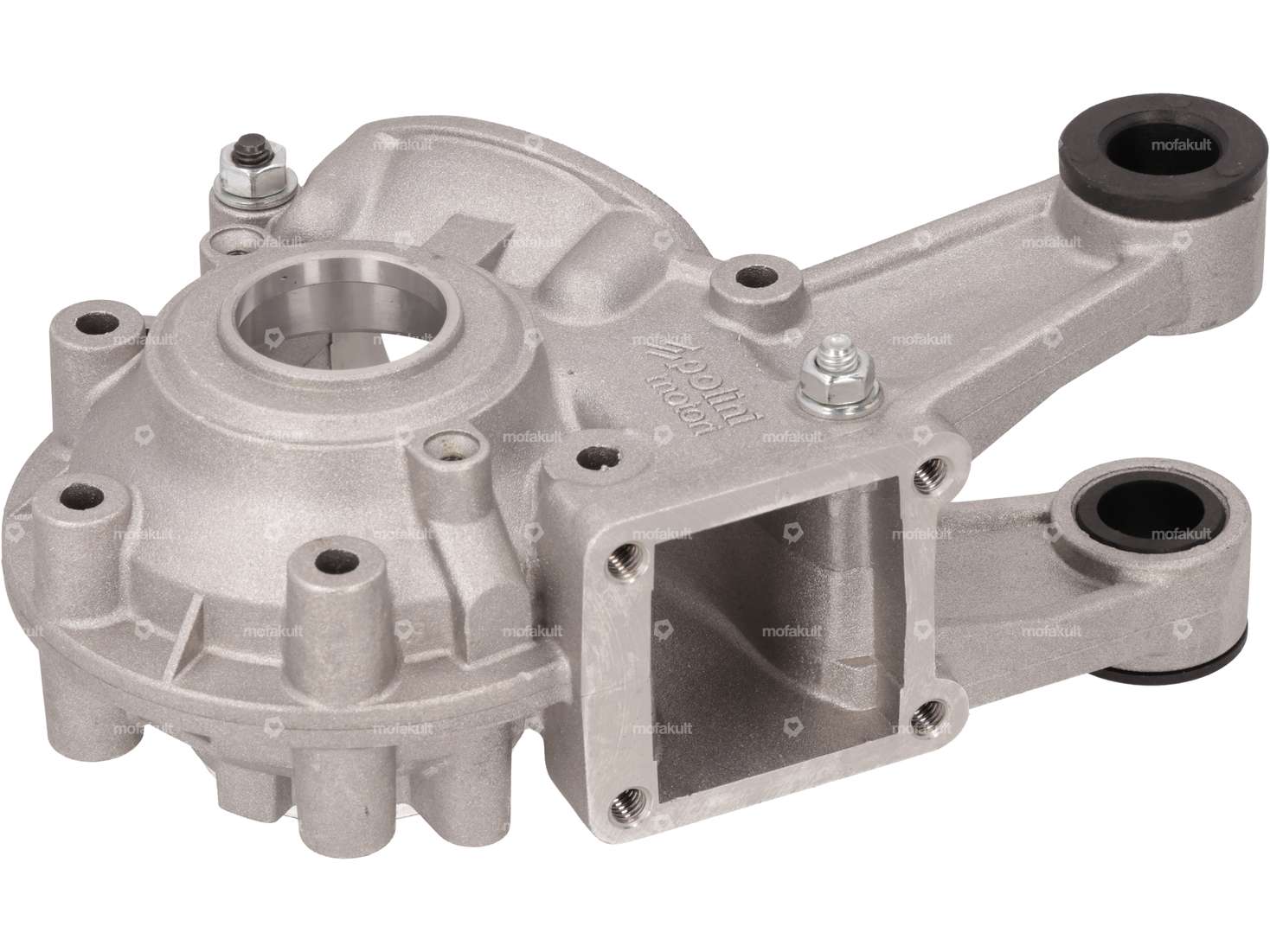

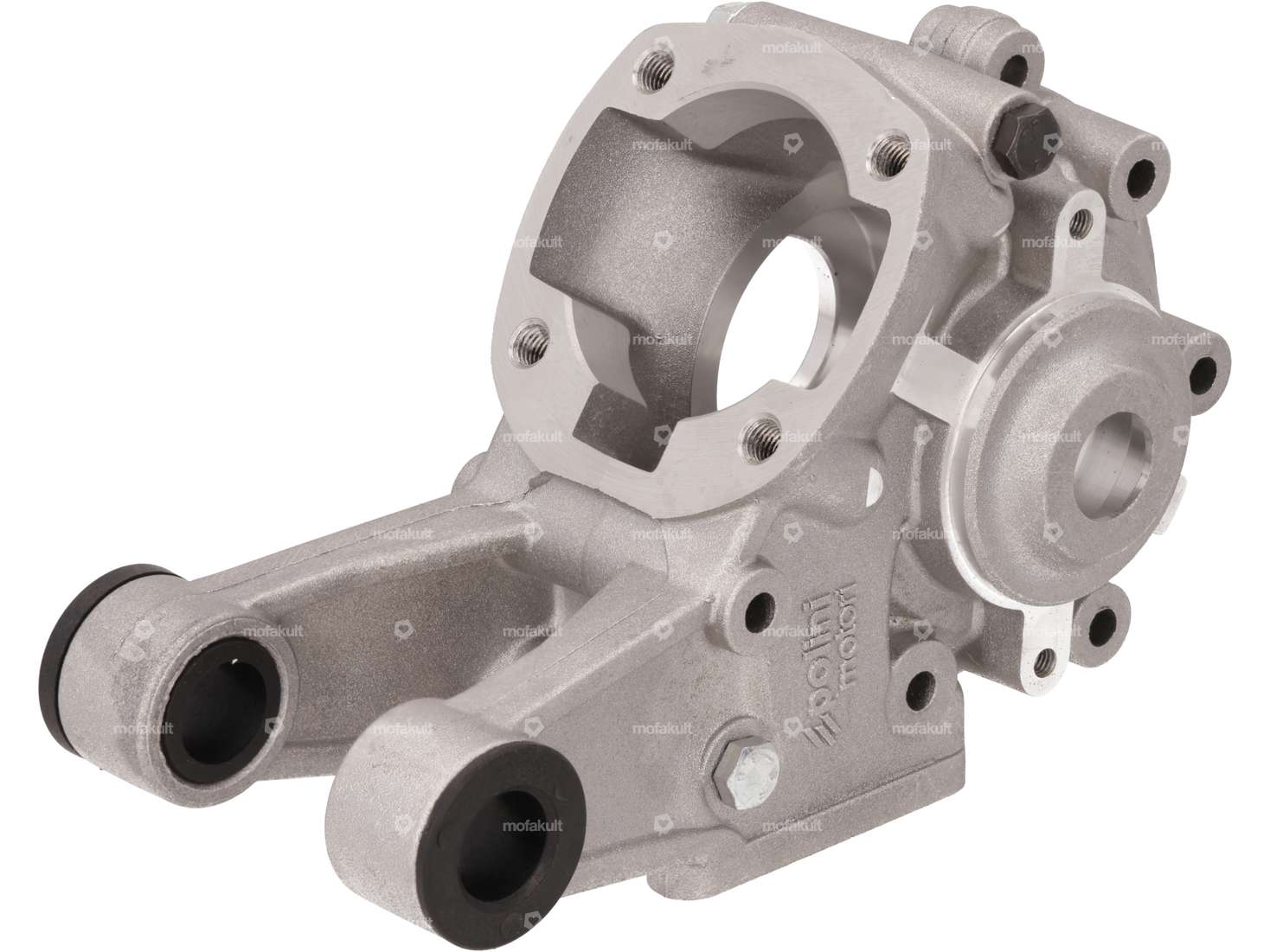

Complete racing case with starter pedal from Polini, suitable for your Peugeot 103, 103 SPX50, 104, 105, GL 10 moped / moped.
The workmanship is high quality and the housing shells are supplied with the required bearings, oil seals (also known under the famous brand name Simmerring®) and reed valve inlet system.

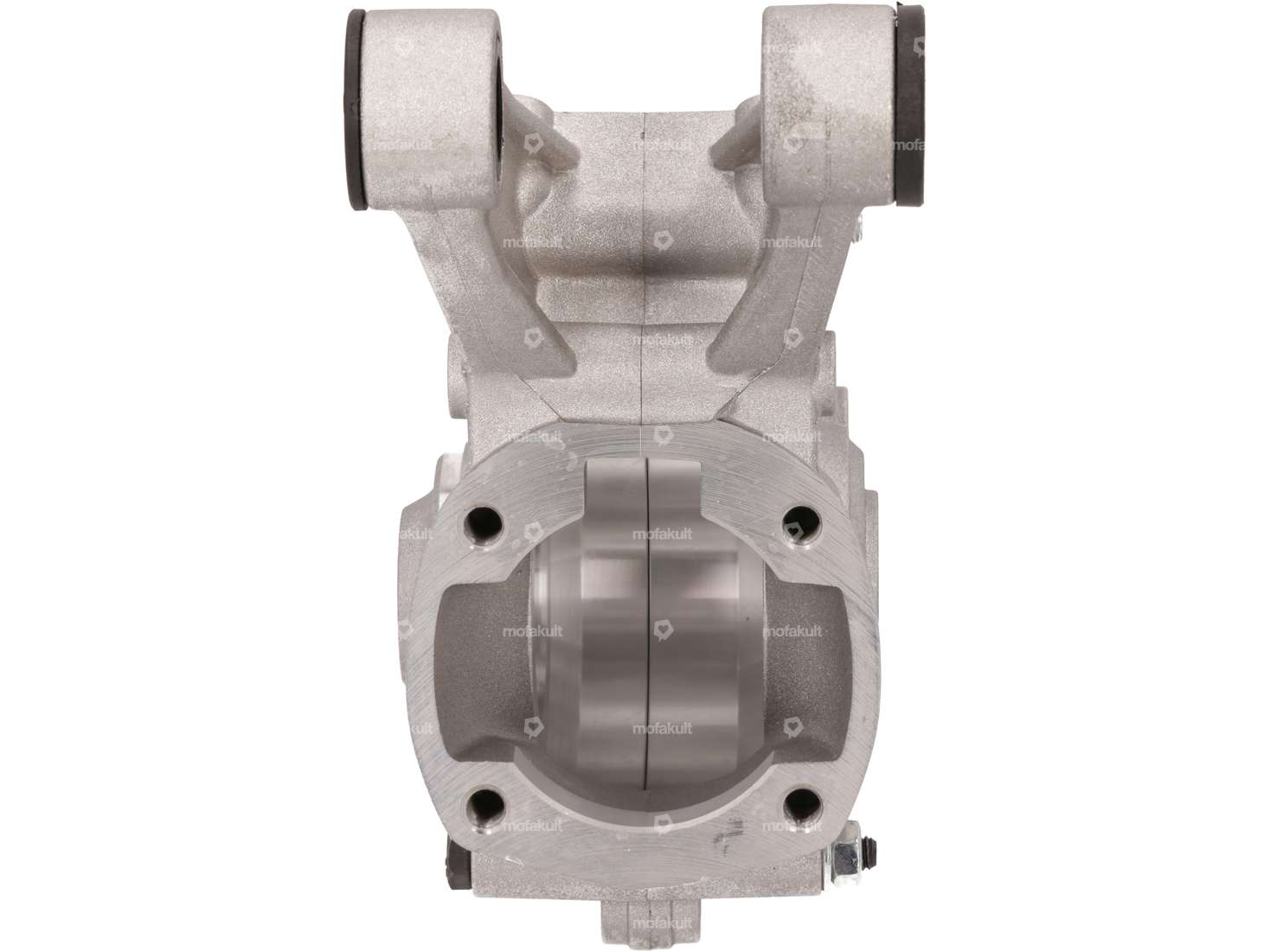

Cylinder hole pattern: 50x45 mm
Cylinder neck: 50 mm
Diaphragm hole pattern: 48x42 mm

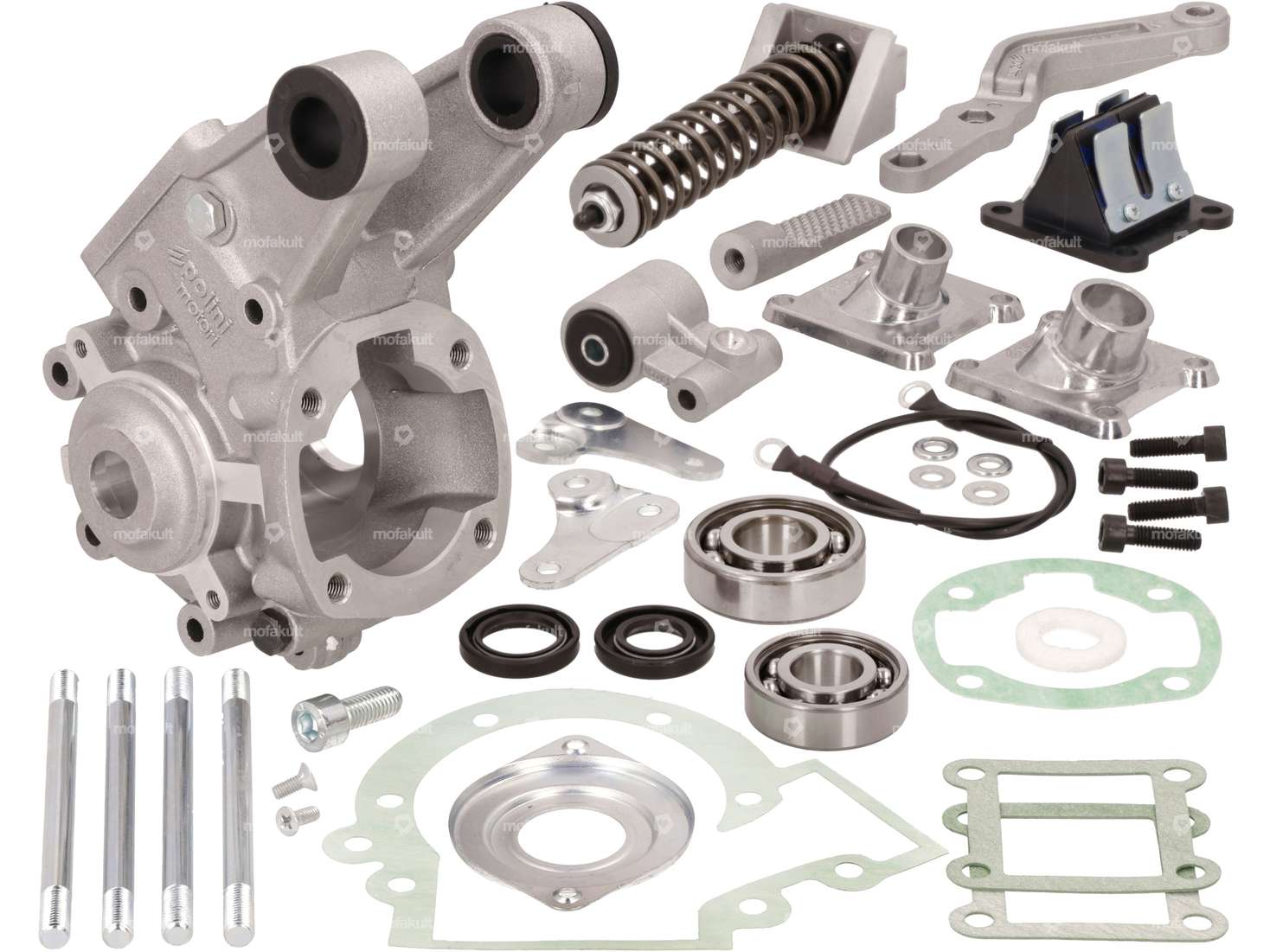

Scope of delivery:
- Handles right and left
- 1 crankshaft bearing 6203 C3 17 x 40 x 12 mm
- 1 crankshaft bearing 6204 C3 20 x 47 x 14 mm
- 1 oil seal AS 20 x 30 x 4.5 mm
- 1 shaft seal AS 15 x 30 x 5 mm

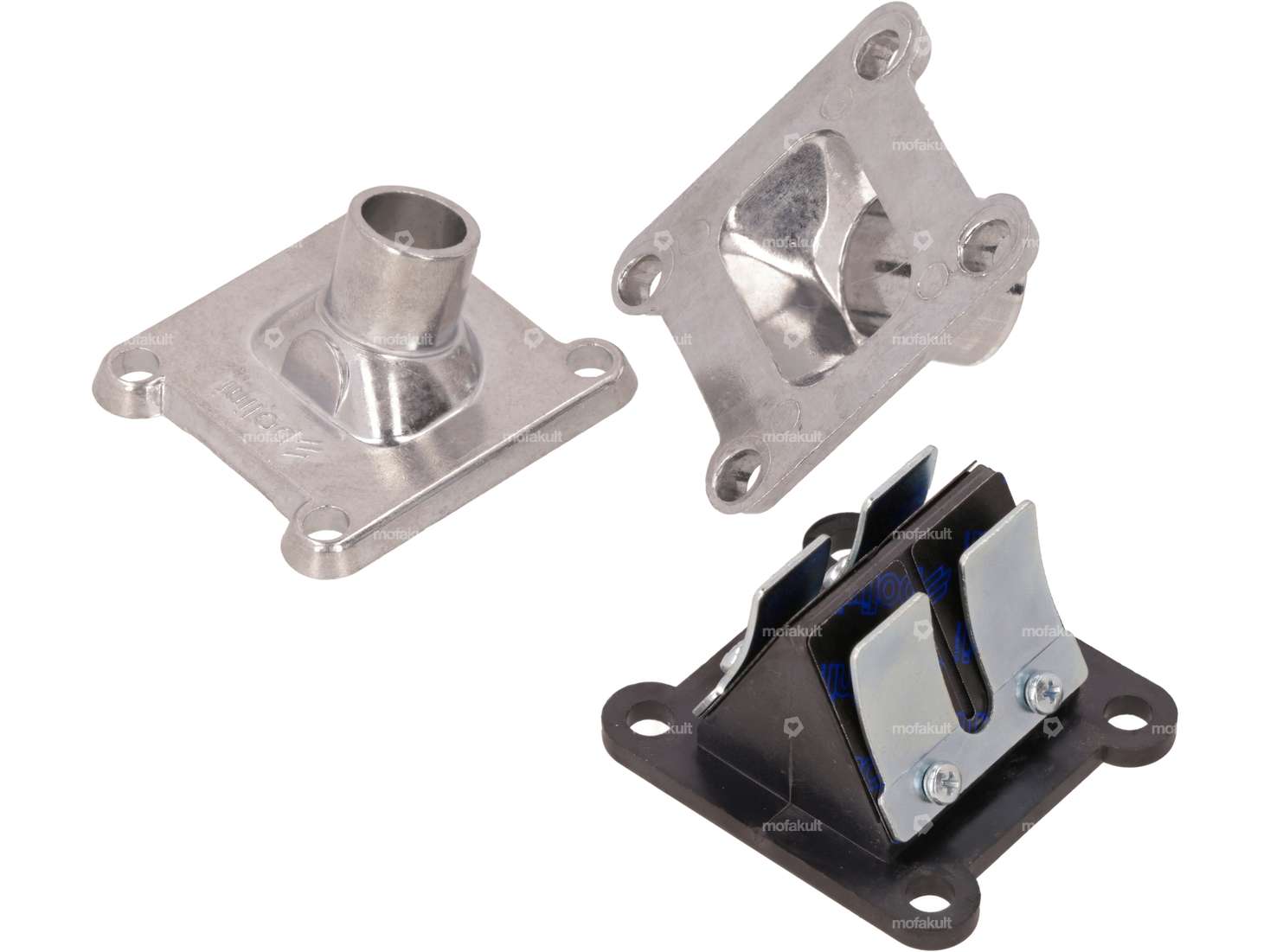

- 4-flap diaphragm system
- 2 intake manifolds (for 15 or 19 mm carburetor)
- Gasket set
- 4 cylinder stud bolts
- Engine mount with silentblocs

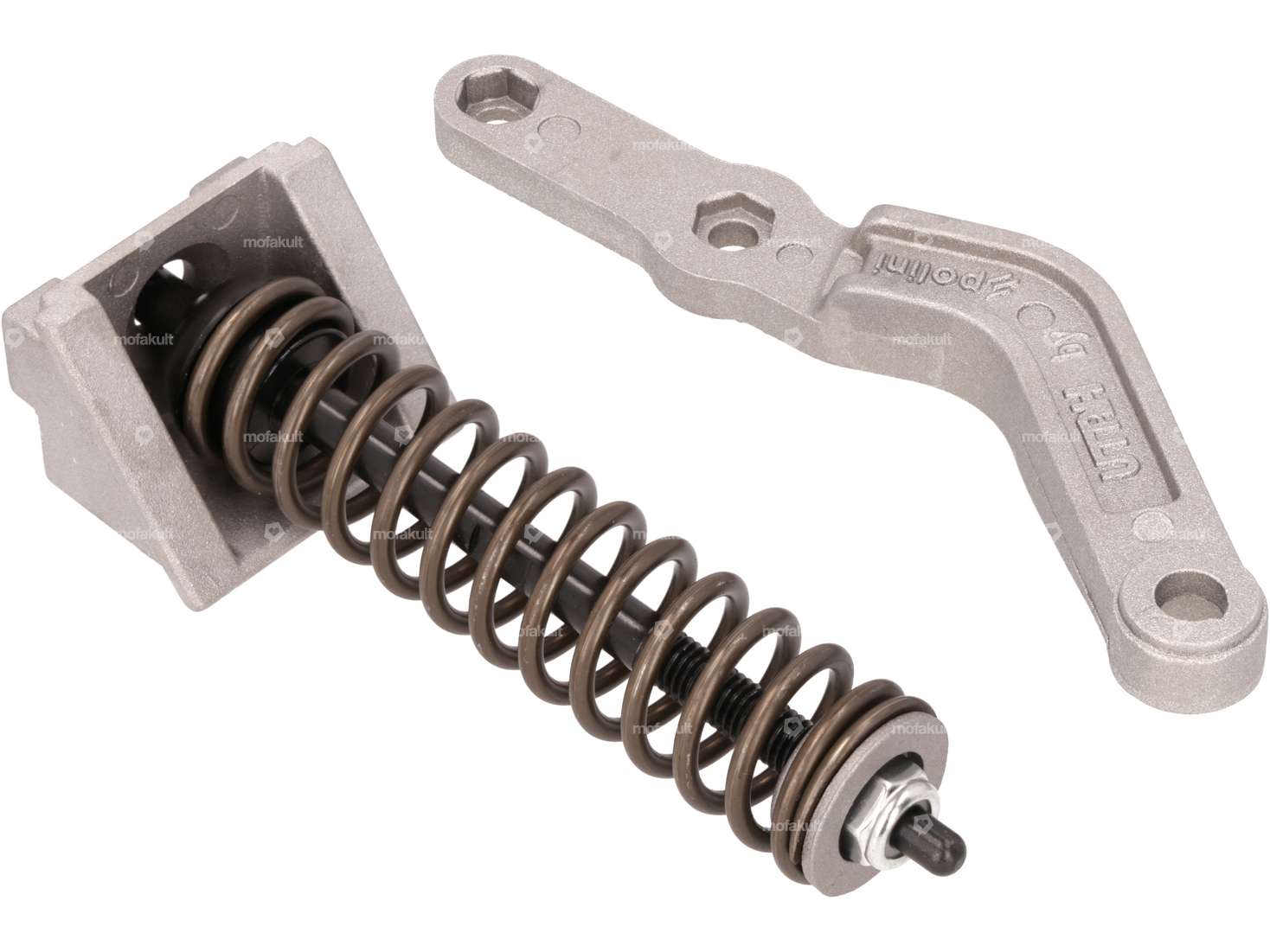

- Starter pedal
- Fastening material and small parts
You can find more engine mounts in the accessories section.
Quality product from the Italian manufacturer Polini.
Details
| Manufacturer | Polini |
| Material | Cast aluminum |
| Crankshaft stroke | 39 mm |
| Hole pattern [mm] | 45 x 50 |
Suitable for the following models
| Peugeot |
