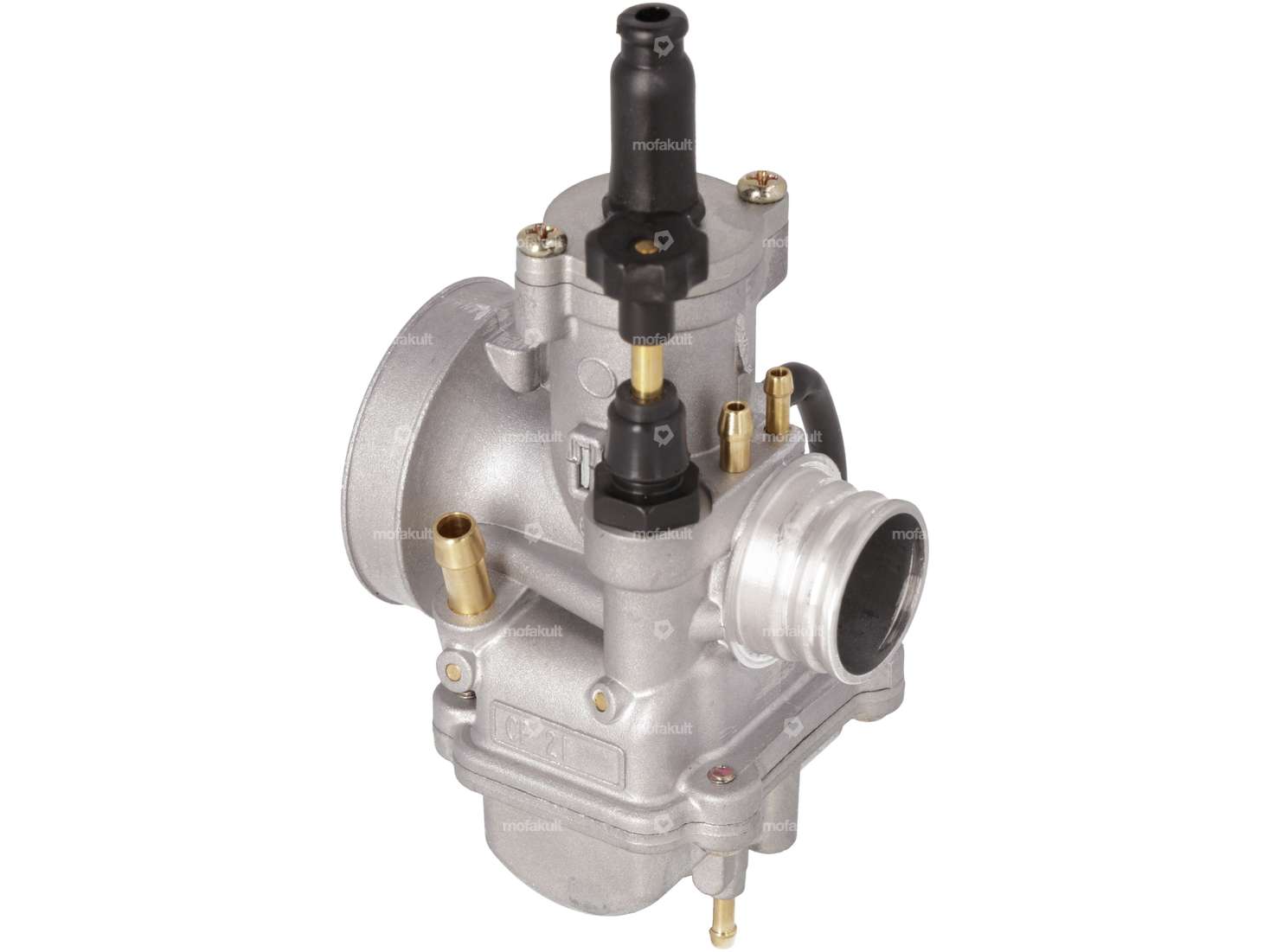

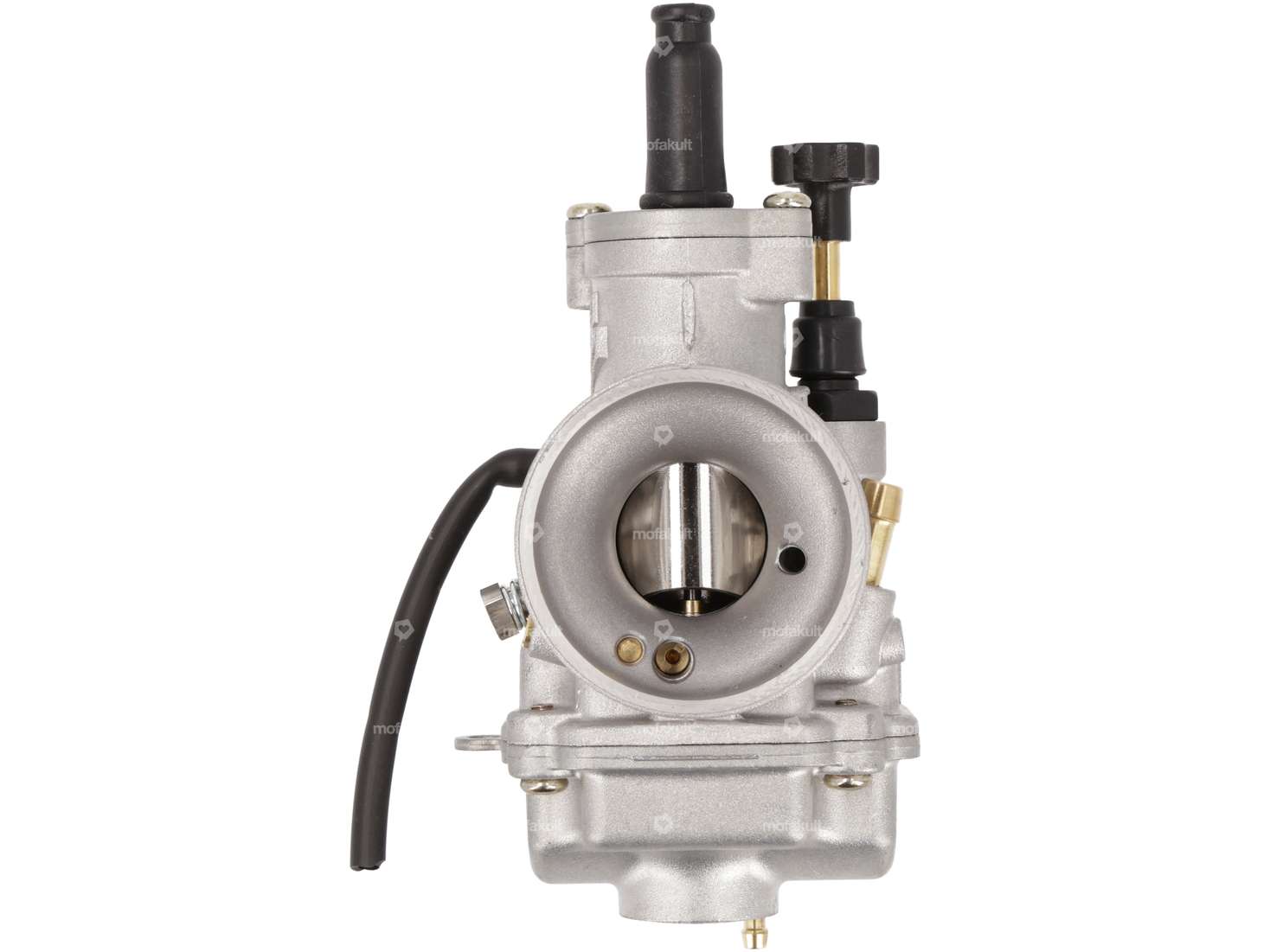

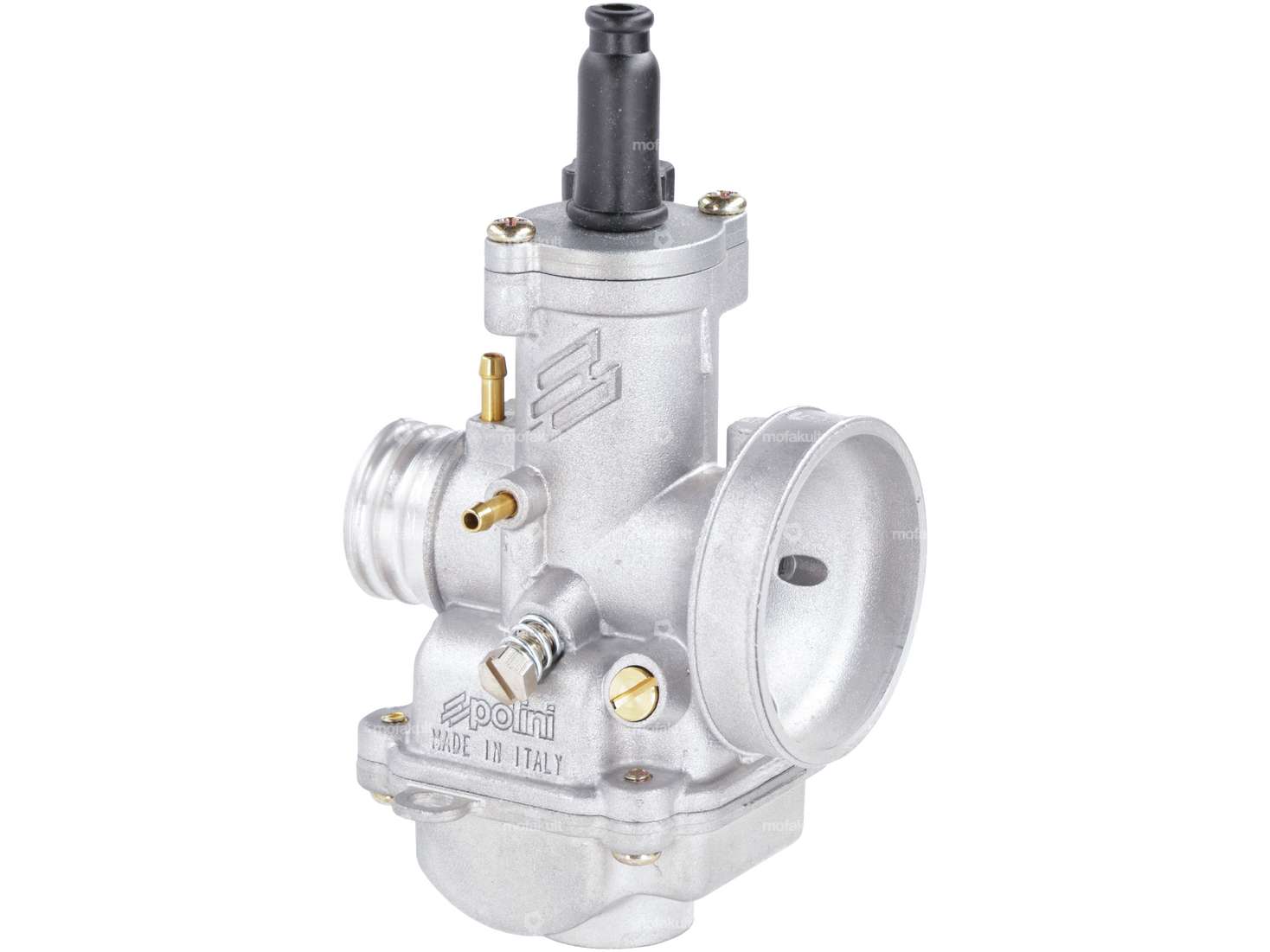

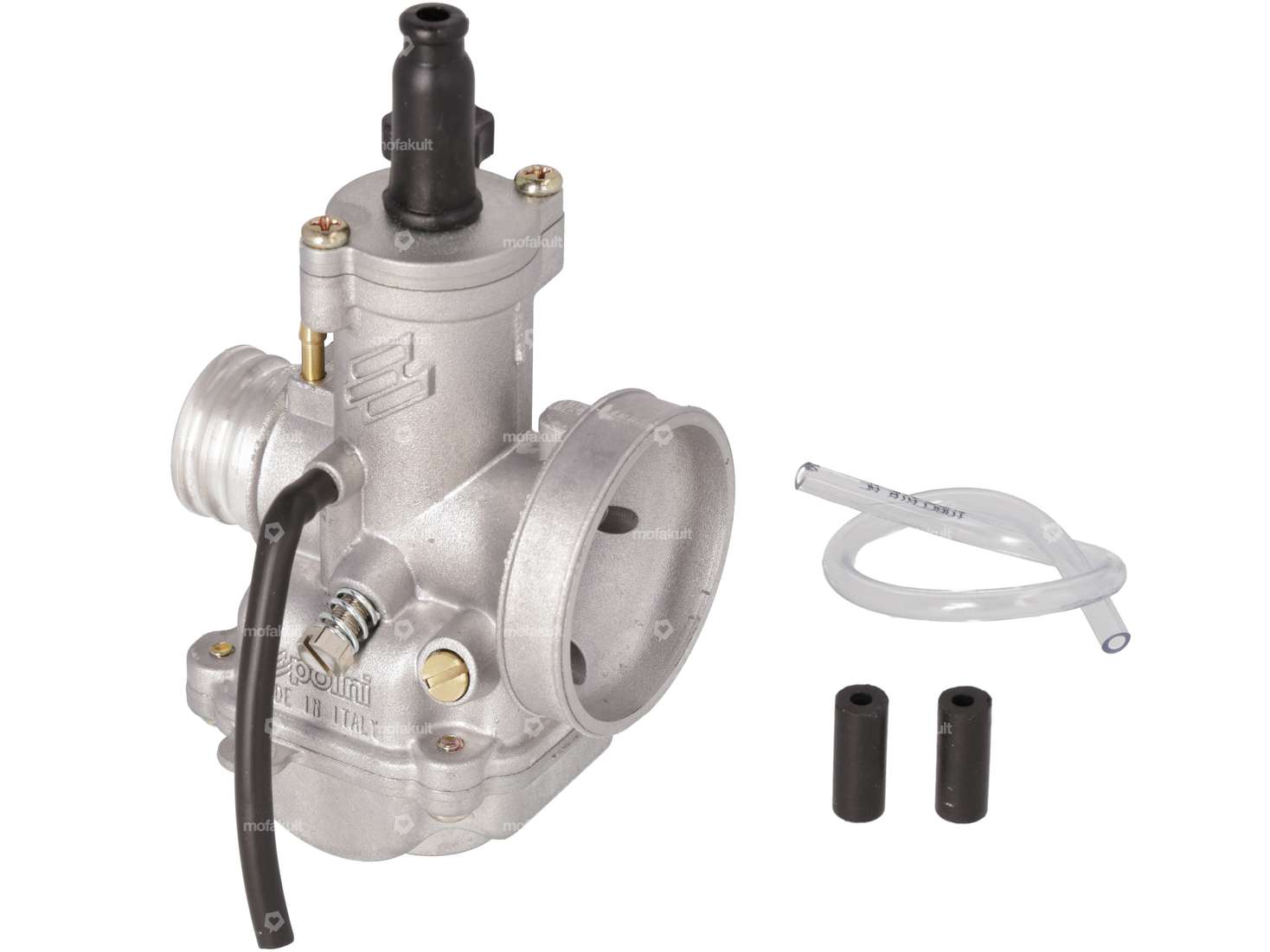

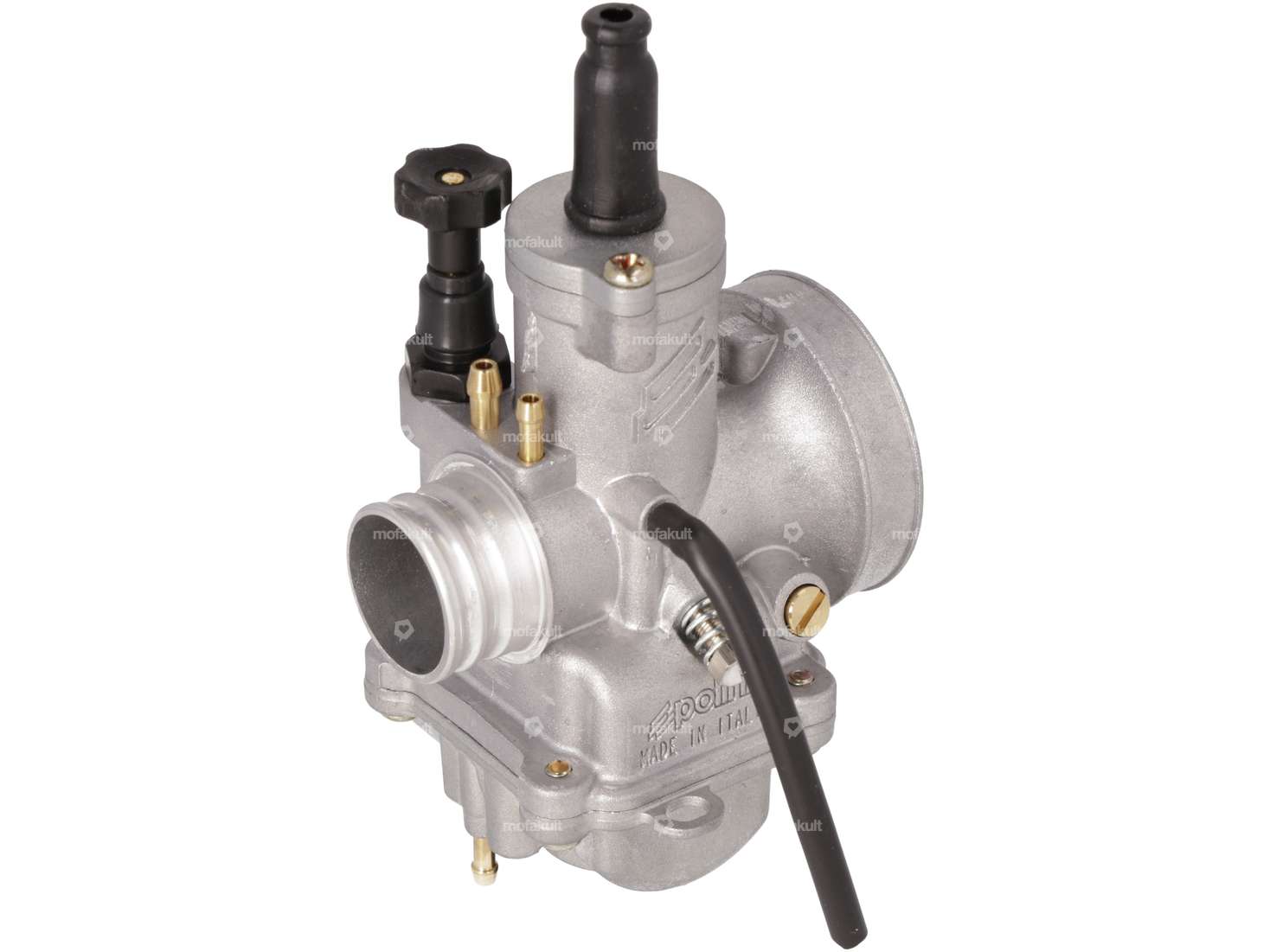

Polini CP 21 carburetor for your racing moped, moped and small motorcycle. The racing carburetor developed by Polini has a compact design and is around 40 % lighter than comparable carburetors. The air flow is optimized thanks to the short intake path and the circular passage. The larger needle and an adapted mixing tube support the atomization of the gas mixture. This makes it very easy to tune the carburetor. In addition, consumption is reduced even at high power levels.

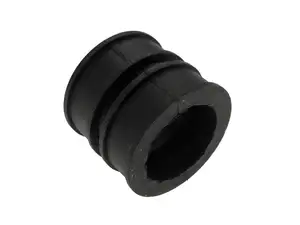

Fastening to the intake manifold is by means of a rubber sleeve.
Installed main throttle body: 100
Installed secondary throttle body: 40
Ø Nominal: 21 mm
Ø Air filter connection: 46 mm
Ø Intake manifold connection: 25 mm
Alternative racing carburetors, the sleeve for installation and the matching nozzles can be found in the accessories section.
Quality product from the Italian manufacturer Polini.
Details
| Manufacturer | Polini |
| Camouflaged | No |
| Material | Aluminum |
| Area of application | Tuning, Racing, Performance |
| Component group Carburetor | Carburetor complete |
| Nominal diameter | 21 mm |
| Carburetor type | CP |
| Choke control | Hand choke |
| Width | 66 mm |
| Nozzle thread | M5x0.8 (standard thread) |
| Total length | 71 mm |
| Nozzle size | 100 |
| Ø Inside entrance | 42 mm |
| Height | 132 mm |
| Ø Output inside | 22.5 mm |
| Ø Air filter connection | 47 mm |
| Ø fuel hose connection | 6 mm, 7 mm |
| Mixed oil connection | Yes |
| Vacuum connection | Yes |
| Mounting type | Rubber sleeve |
| Nozzle block | 35-12 |
| Size of secondary nozzle | 40 |
