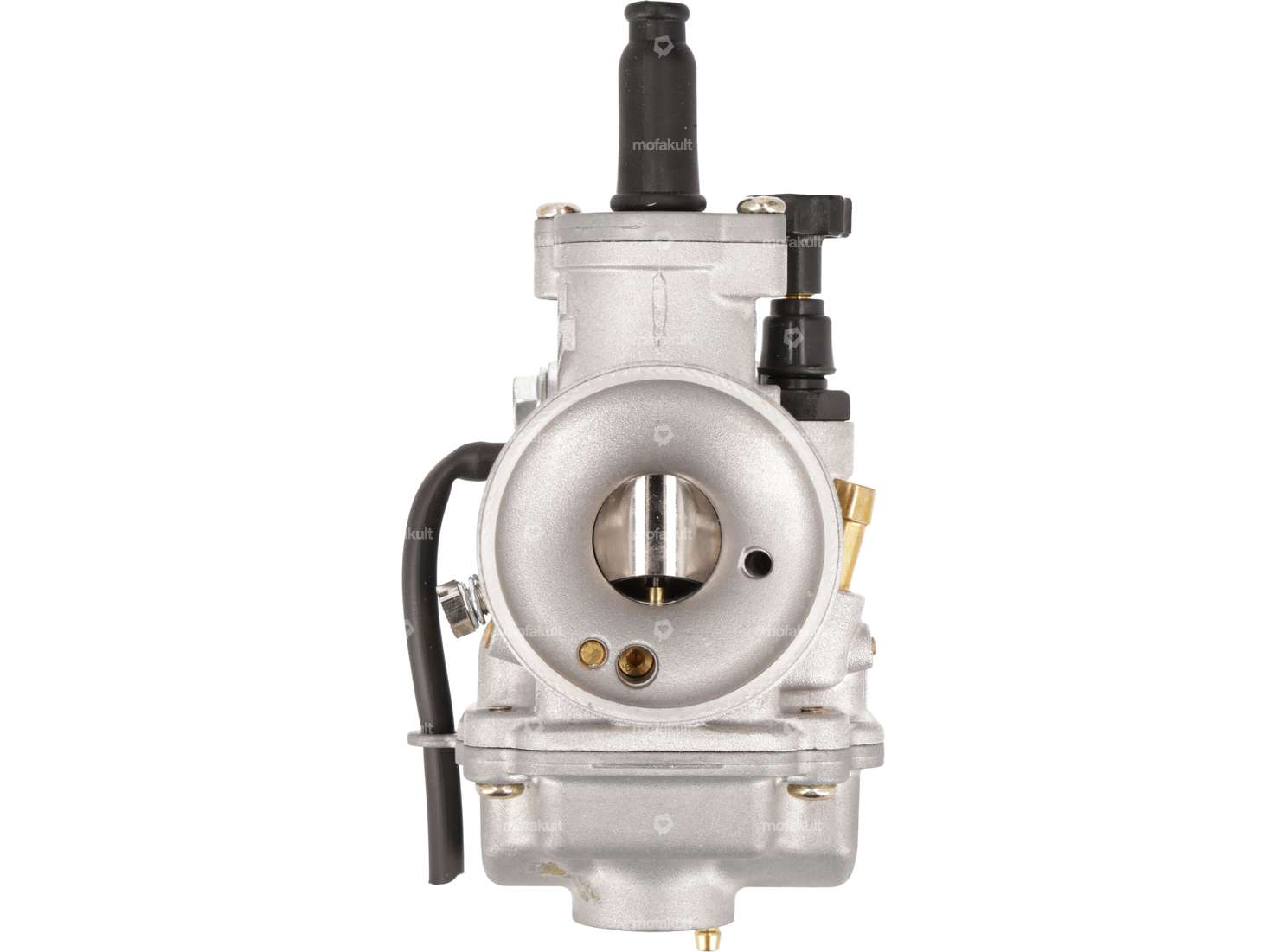

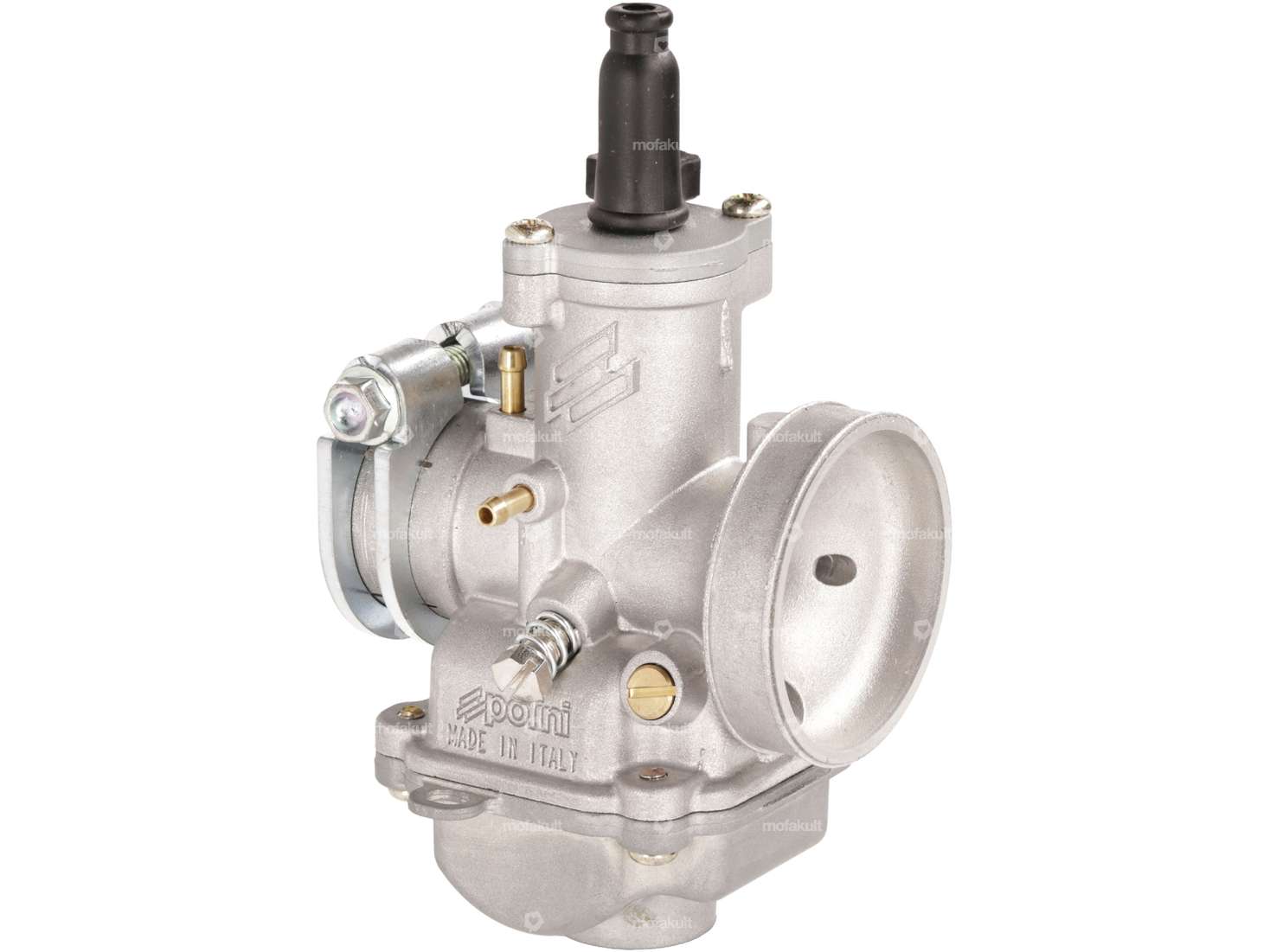

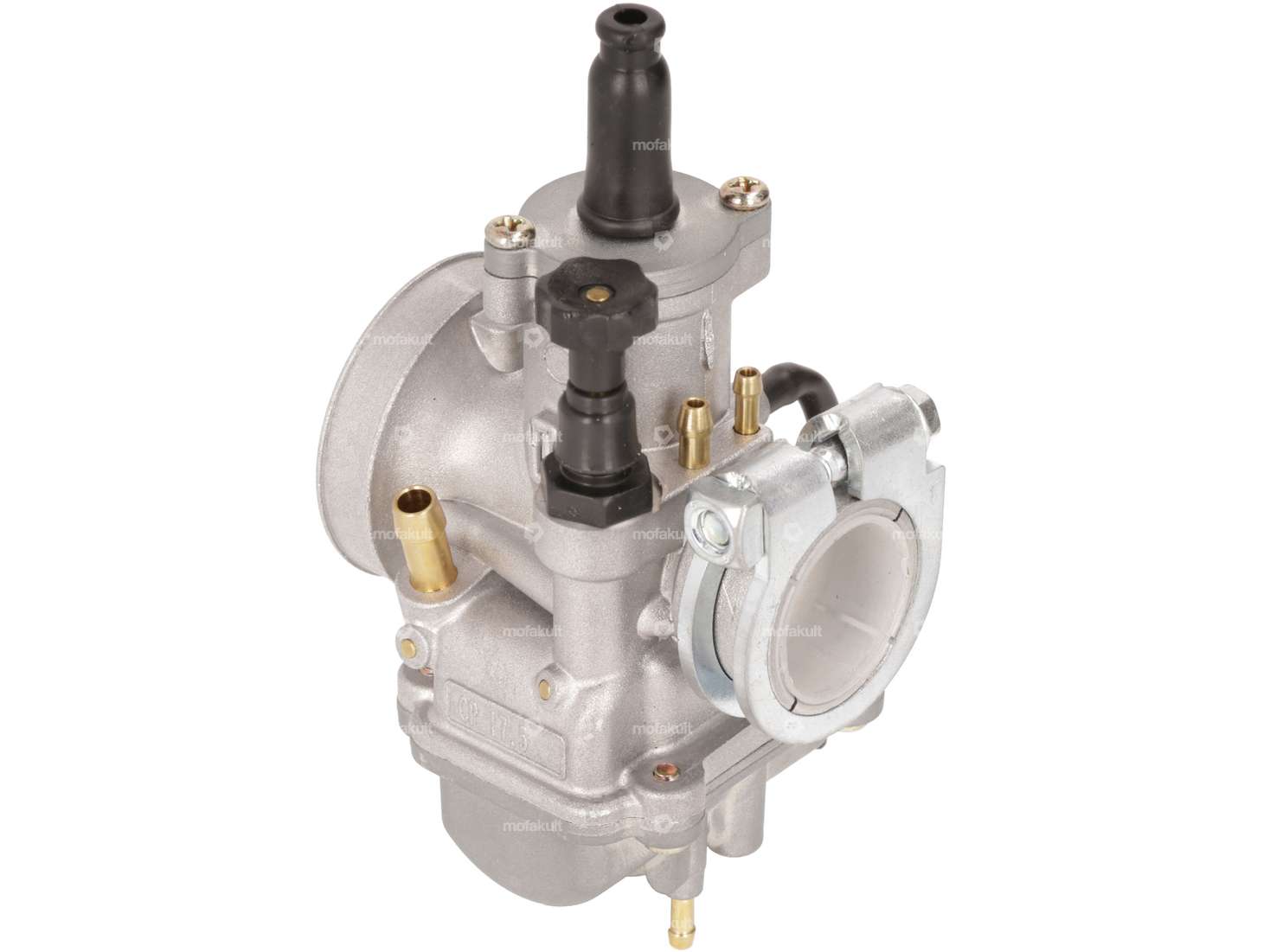

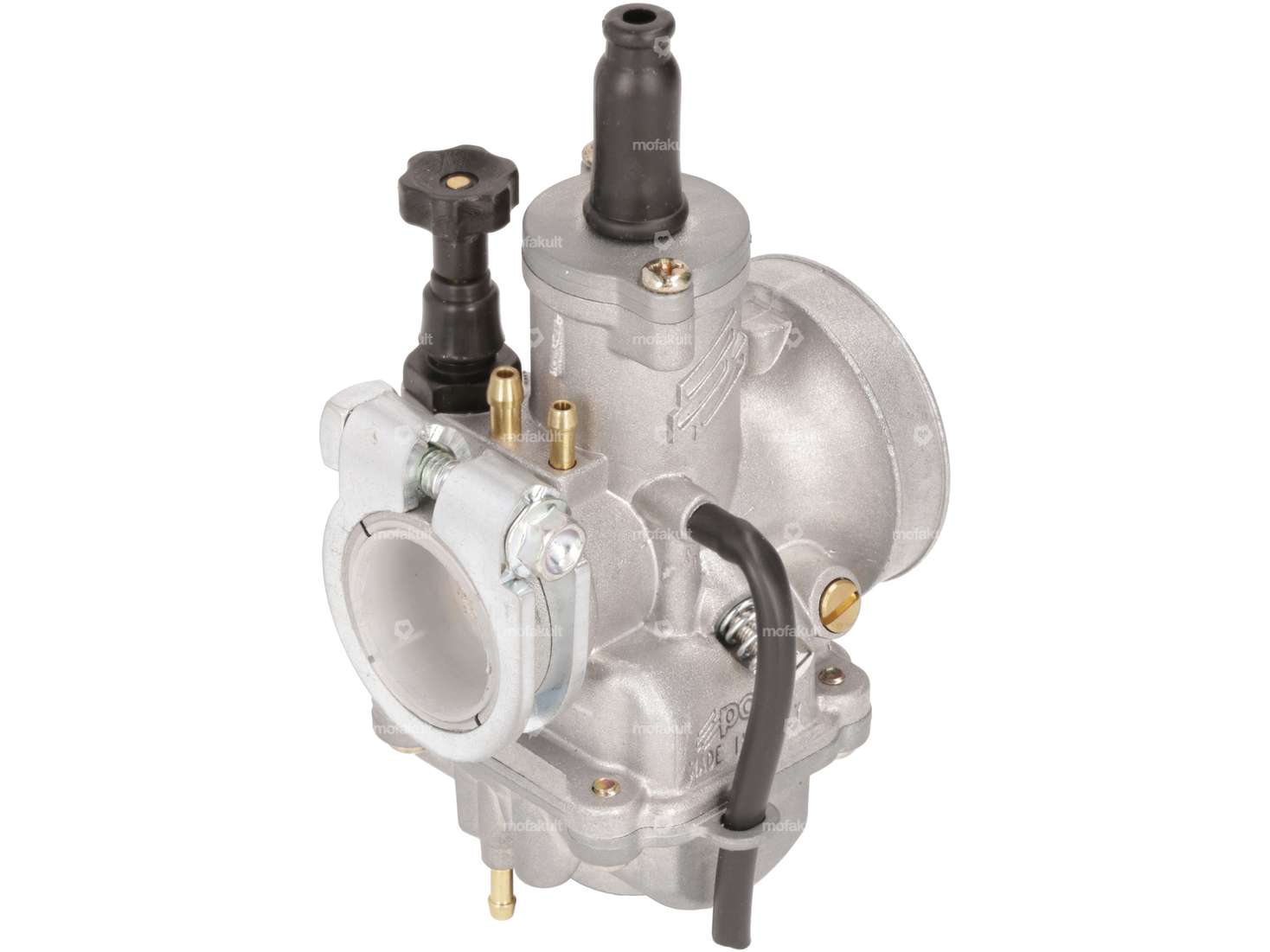

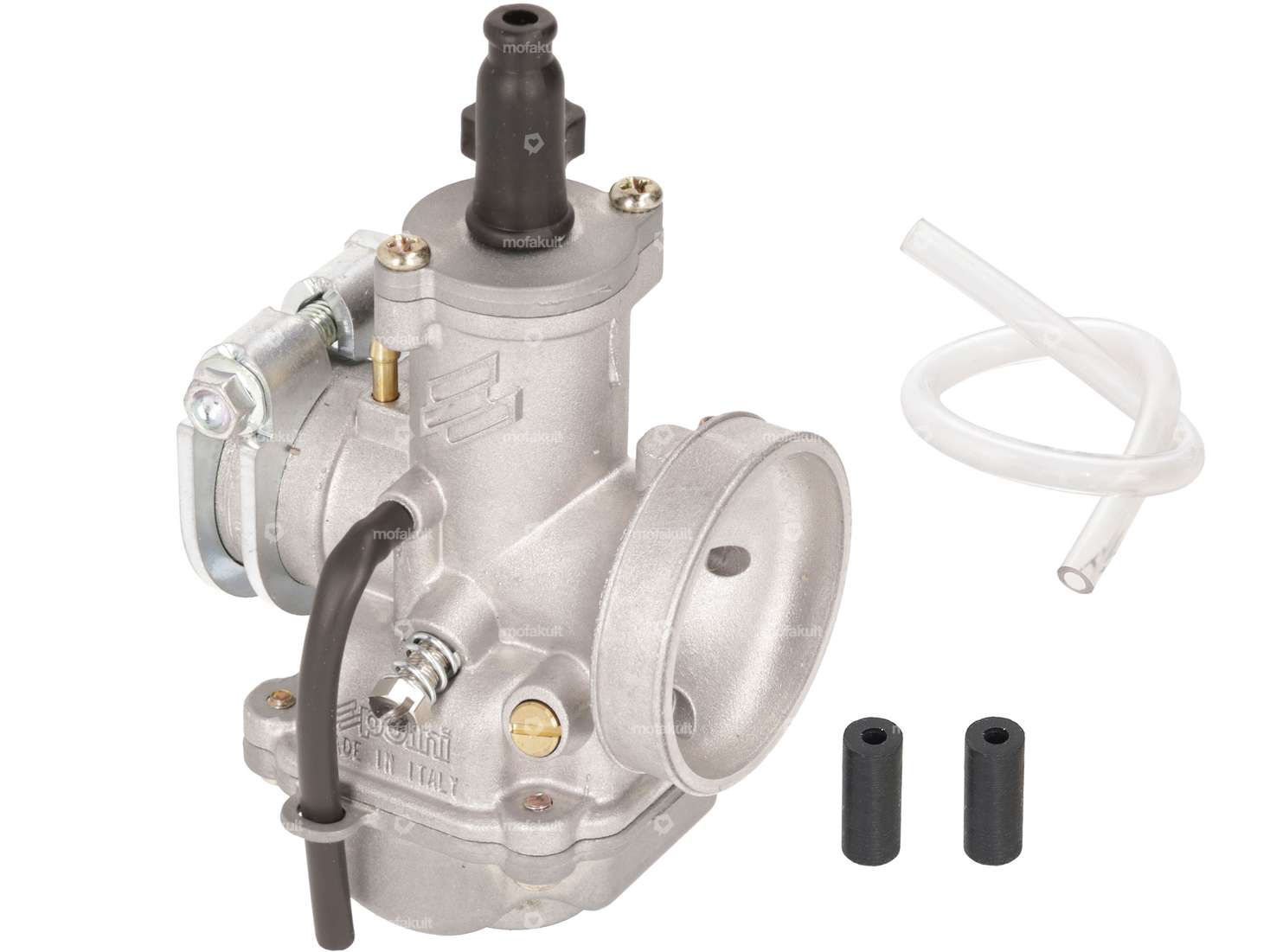

Polini has placed particular emphasis on size and weight in the development of the CP model; this carburetor is therefore particularly compact and around 40% lighter than traditional carburetors.
Due to the compact design, the intake path is very short. Unique is the concentric design of the passage, i.e. a circular passage instead of an oval one as with most other carburettors - a geometry that optimizes the air flow. Modifications to the mixing tube and the use of a larger needle ensure better atomization of the gas mixture.
This is intended to simplify the tuning of the carburetor and enable high performance with low consumption. All CP carburetors have an oil and vacuum connection.
Inlet connection diameter: 24 or 26 mm if the bushes are removed.
Connection diameter of air filter: 46 mm
Main nozzle size: 62
Secondary nozzle size: 40
Choke is located directly on the carburetor and must be operated by hand.
Special Polini nozzles must be used.
Quality product from the Italian manufacturer Polini.
Details
| Nominal diameter | 17.5 mm |
| Manufacturer | Polini |
| Area of application | Tuning |
| Carburetor type | CP |
| Ø without reducing sleeve | 26 mm |
| Ø Air filter connection | 46 mm |
| Ø Internal connection | 24 mm |
| Ø fuel hose connection | 6 mm |
| Mixed oil connection | Yes |
| Vacuum connection | Yes |
| Choke control | Hand choke |
| Nozzle thread | M5 |
| Mounting type | Plug connection clamped |
| Nozzle size | 62 |
| Size of secondary nozzle | 40 |
