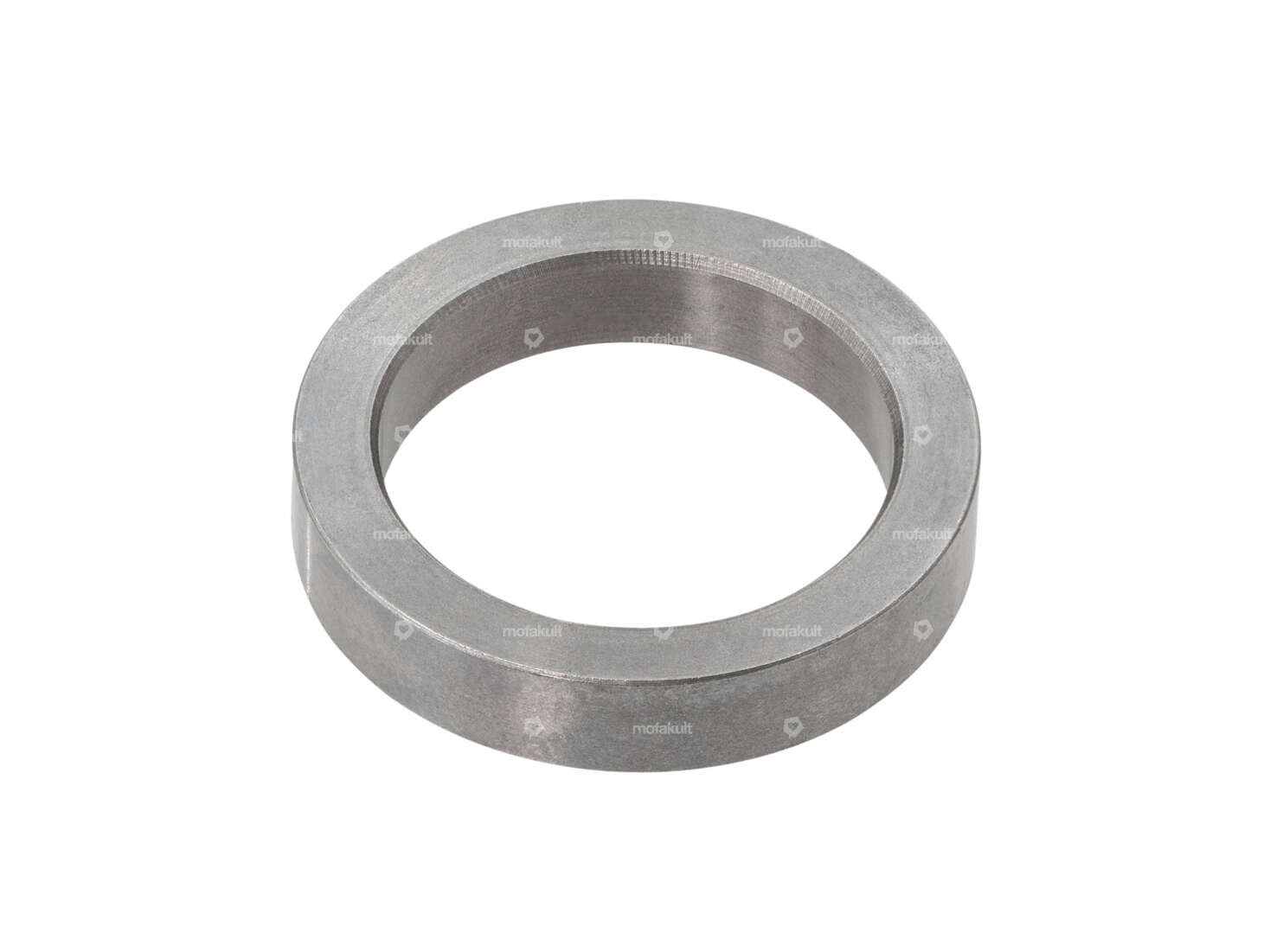

Bearing ring with the dimensions 31.5x23.5x6 mm for the roller bearing on the 15.5 mm pinion shaft of the following Sachs engines:
- 50/2 with diaphragm (not for slotted engines)
- 50/3
- 50/4
- 502 Saxonette (not for slotted engines)
- 503 AB / AC / ADV / ABL / AAL / 2AL / 2BL
Mass of the bearing race:
Ø inside: 23.5 mm
Ø outer: 31.5 mm
Thickness: 6 mm
Original Sachs spare part number: A1157
Details
| Material | Steel |
| Surface | hardened & ground |
| Ø inside | 23.5 mm |
| Ø outside | 31.5 mm |
| Width | 6 mm |
| Pony spare part no. | A1157 |
| Sachs spare part no. | 0232 049 000 |
Suitable for the following models
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 PS, DE) 502 (Saxonette) - AML 50/2 - ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) 503 - AAL, ABL, 2AL / 2BL, AB, AC, ADV |
Accessories & related products
Oil seal NBR 14.96x31.5x3.5 Pinion shaft | Sachs 502, 50/2, 503 (A1134)
Manufacturer: Sachs · Material: NBR · Area of application: Standard · Surface: coated · Ø inside: 14.96 mm · Place of use: Pinion shaft · Ø outside: 31.5 mm · Width: 3.5 mm · Temperature resistance (min.): -30 - 100 °C · Pony spare part no.: A1134 · Sachs spare part no.: 0230 011 100 · Sachs spare part no.: 0230 011 200
EUR 8,45
swiing® revival pinion shaft | Sachs 503 2AL, 2BL (A1322)
Manufacturer: swiing® revival parts · Material: Steel · Surface: blank / oiled · Thread type: MF12x1 (fine pitch thread) · Recording type: Ø15 x SW12 · Toothing type: straight toothed · Number of teeth: 4 pcs · Ø inside: 12.9 mm · Ø outside: 15.4 mm · Total length: 91.5 mm
EUR 83,30

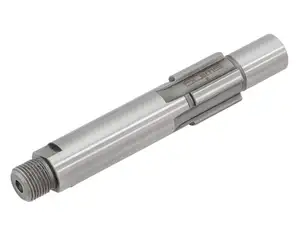

swiing® revival pinion shaft | Sachs 50/2 manual (A1291)
