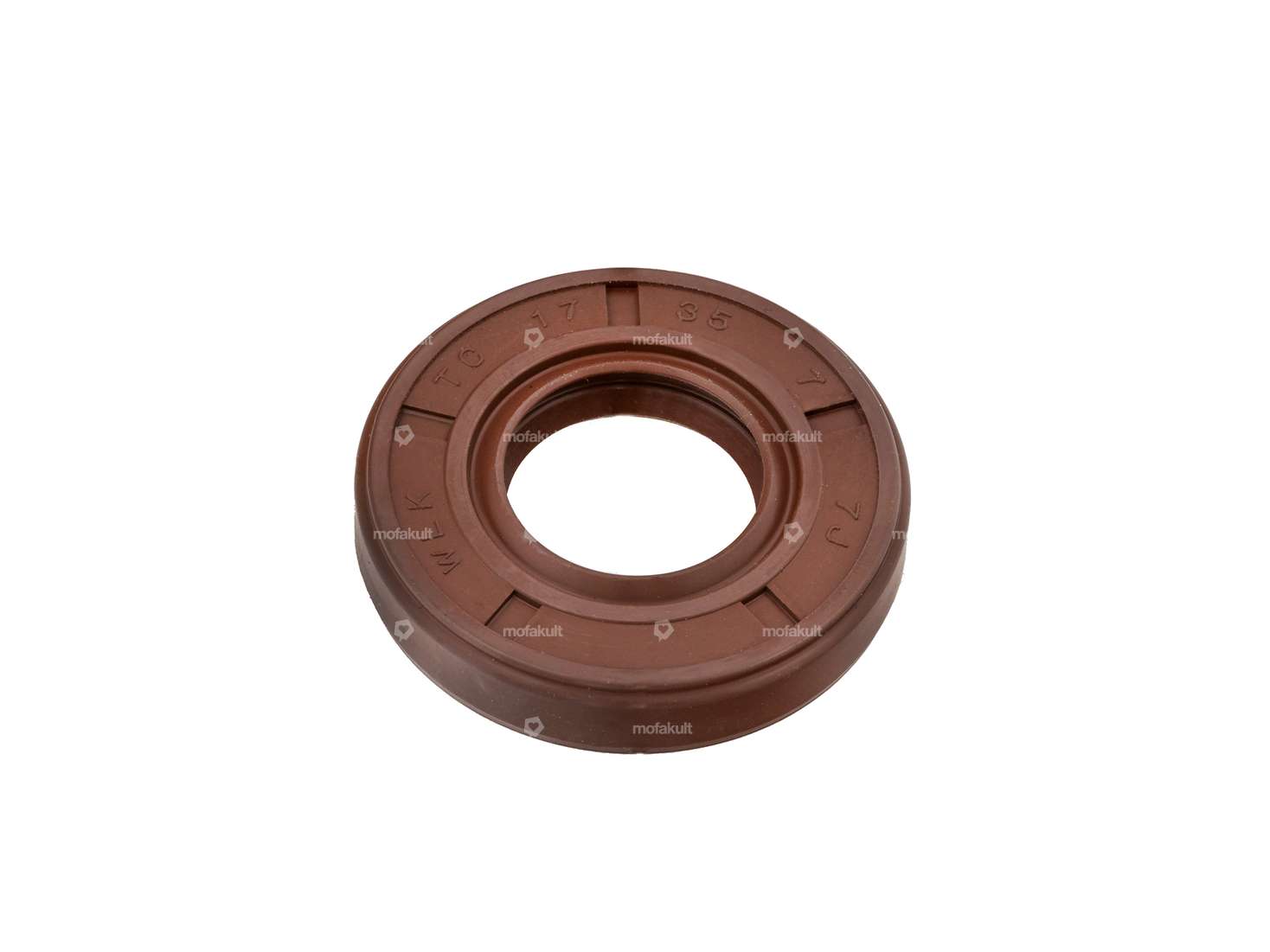

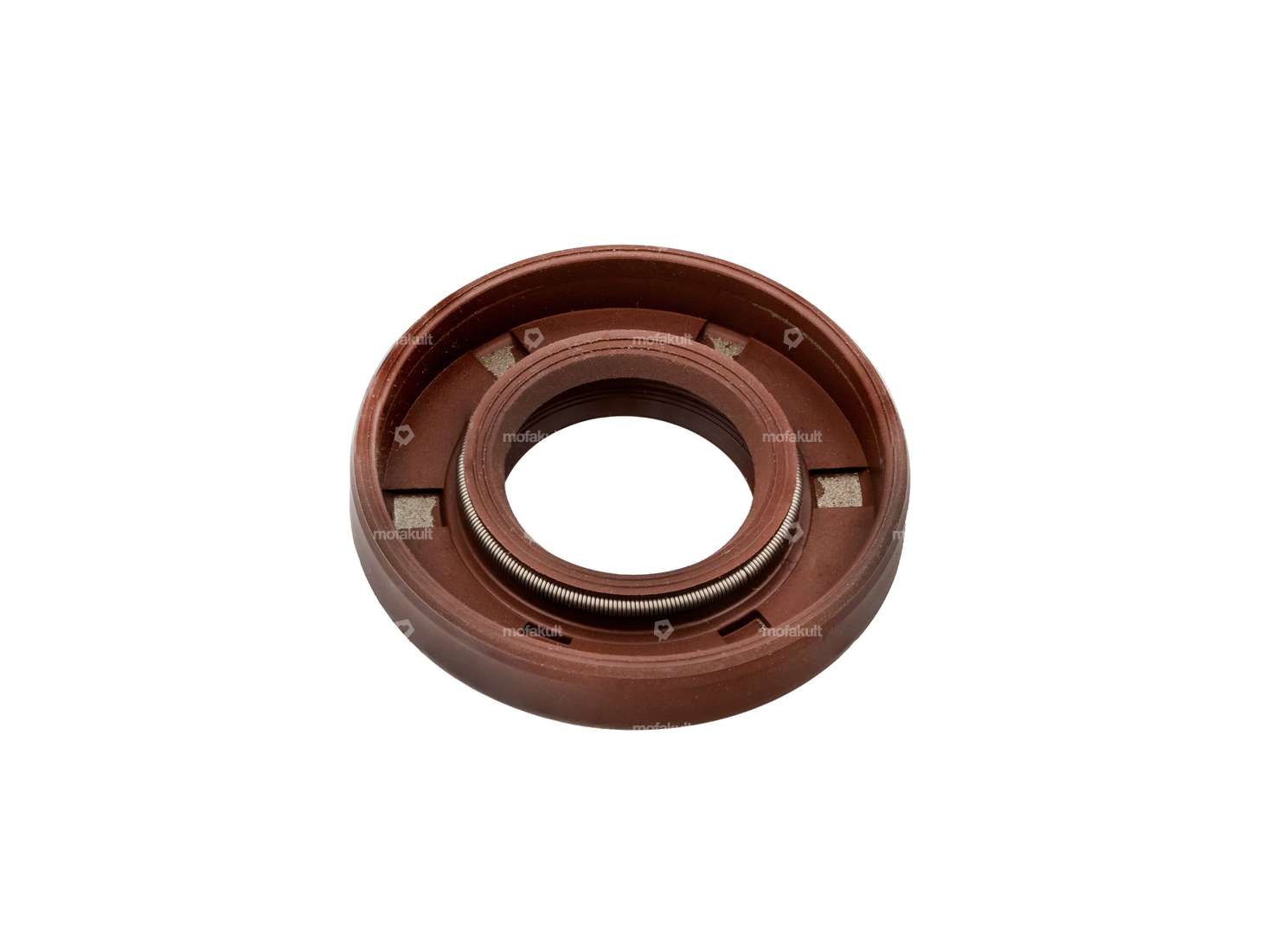

Radial shaft seal 17x35x7 mm for use on the crankshaft (on the ignition side) on your Puch moped / moped with Z50 engine.
This radial shaft seal with fluorine rubber outer jacket is resistant up to a temperature of 200 °C.
Manufactured NBR oil seals are temperature-resistant up to 100 °C.
Viton oil seals are particularly suitable for racing, as they are designed for higher speeds and can therefore withstand higher temperatures.
Details
| Temperature resistance (min.) | -30 - 200 °C |
| Simmering type | A - With rubberized outer part / one sealing lip. |
| Material | FPM - Rubber |
| Surface | rubberized |
| Width | 7 mm |
| Ø outside | 35 mm |
| Place of use | Crankshaft |
| Ø inside | 17 mm |
Suitable for the following models
| Puch | Z50 (X30 Sport) Z50 (X30 Velux) 2-Gang MS, MV, MV50 3-Gang VSD, DS, VZ, MC |
Accessories & related products
Oil seal NBR 17/35/7 AS crankshaft | Puch X30
Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Ø inside: 17 mm · Manufacturer: Puch · Material: NBR · Surface: rubberized · Place of use: Crankshaft · Width: 7 mm · Ø outside: 35 mm · Temperature resistance (min.): -30 - 100 °C
EUR 8,90
Loctite 243 medium-strength threadlocker 10 ml
Temperature resistance (min.): -75 - 200 °C · Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Type of application: 1K · Area of application: Chemistry · Color: blue · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Contents [ml]: 10 ml · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Adhesion: medium strength · Gap dimension (max.): 0.01 mm · Alignment time: 600 sec · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m
EUR 24,70
EUR 2.470,00/l
Oil seal NBR 17/35/7 A DUO crankshaft | Puch Z50, ZA50
Place of use: Crankshaft · Temperature resistance (min.): -30 - 100 °C · Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Ø inside: 17 mm · Ø outside: 35 mm · Width: 7 mm · Manufacturer: Puch · Material: NBR · Surface: rubberized
EUR 8,35
Not in stock
Oil seal NBR 17/35/7 A DUO crankshaft | Tomos
Place of use: Crankshaft · Temperature resistance (min.): -30 - 100 °C · Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Ø inside: 17 mm · Ø outside: 35 mm · Width: 7 mm · Manufacturer: Tomos · Material: NBR · Surface: rubberized · Tomos spare part no.: 044838
EUR 8,35
Not in stock
