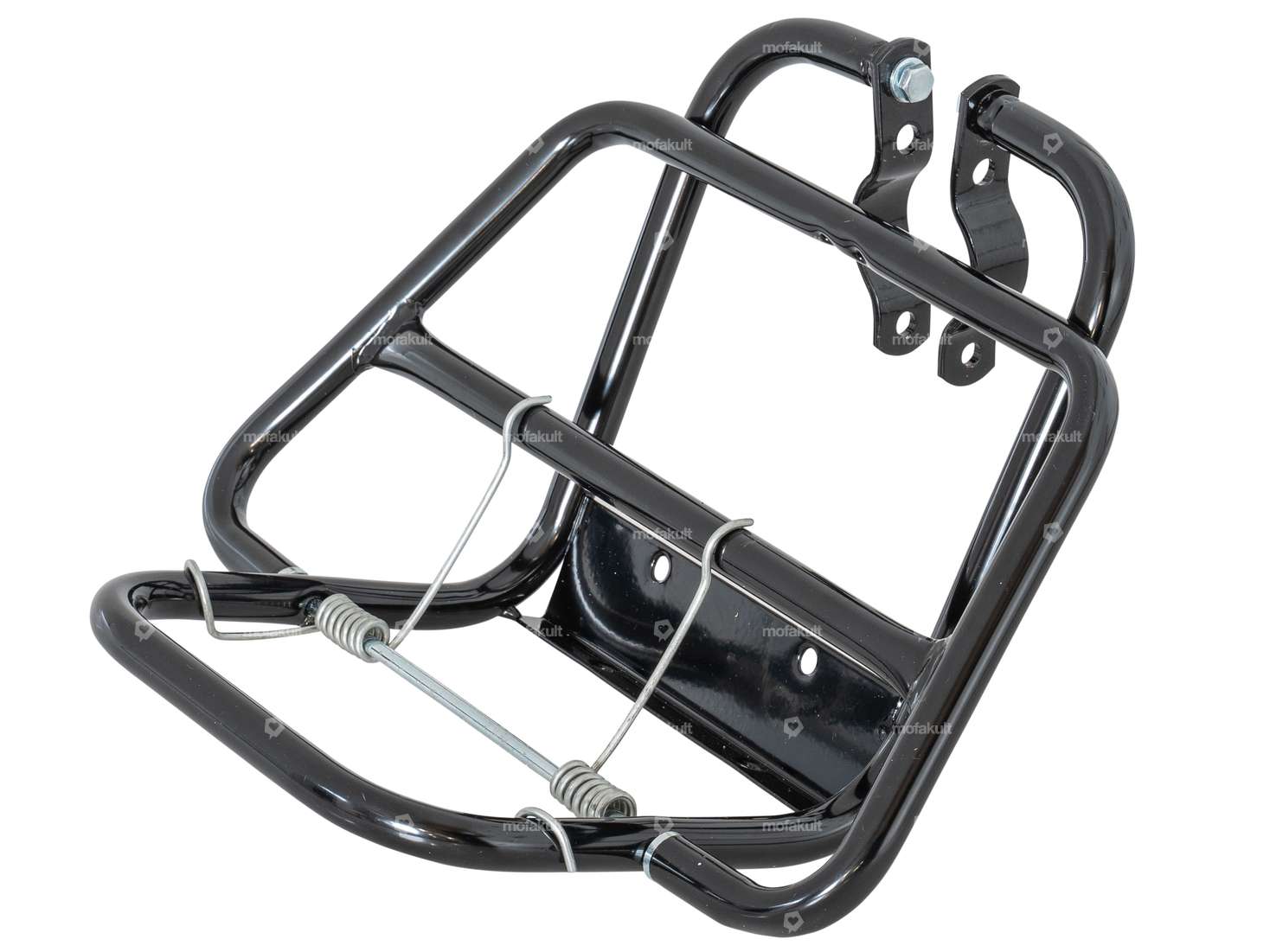

Black painted additional luggage rack for your Piaggio Ciao moped / moped.
The luggage rack attachment is clamped to the front of the steering column with the screwed-on clamp and mounted at the bottom with two clamps.
This mounting method means that the position can be freely selected and no holes need to be drilled in the vehicle. The stable support opens to the rear and can be loaded with a rucksack, drinks, etc.
We recommend wrapping the hooks with shrink tubing or insulating tape to protect the paintwork of the frame parts so that there is no direct contact with the paintwork.
Top clamping range: 40/65 mm
Bottom hole spacing: 70 mm
Top/bottom fixing hole spacing: 160 mm
Total height: 200 mm
Total width: 300 mm
Total length: 210 / 330 mm

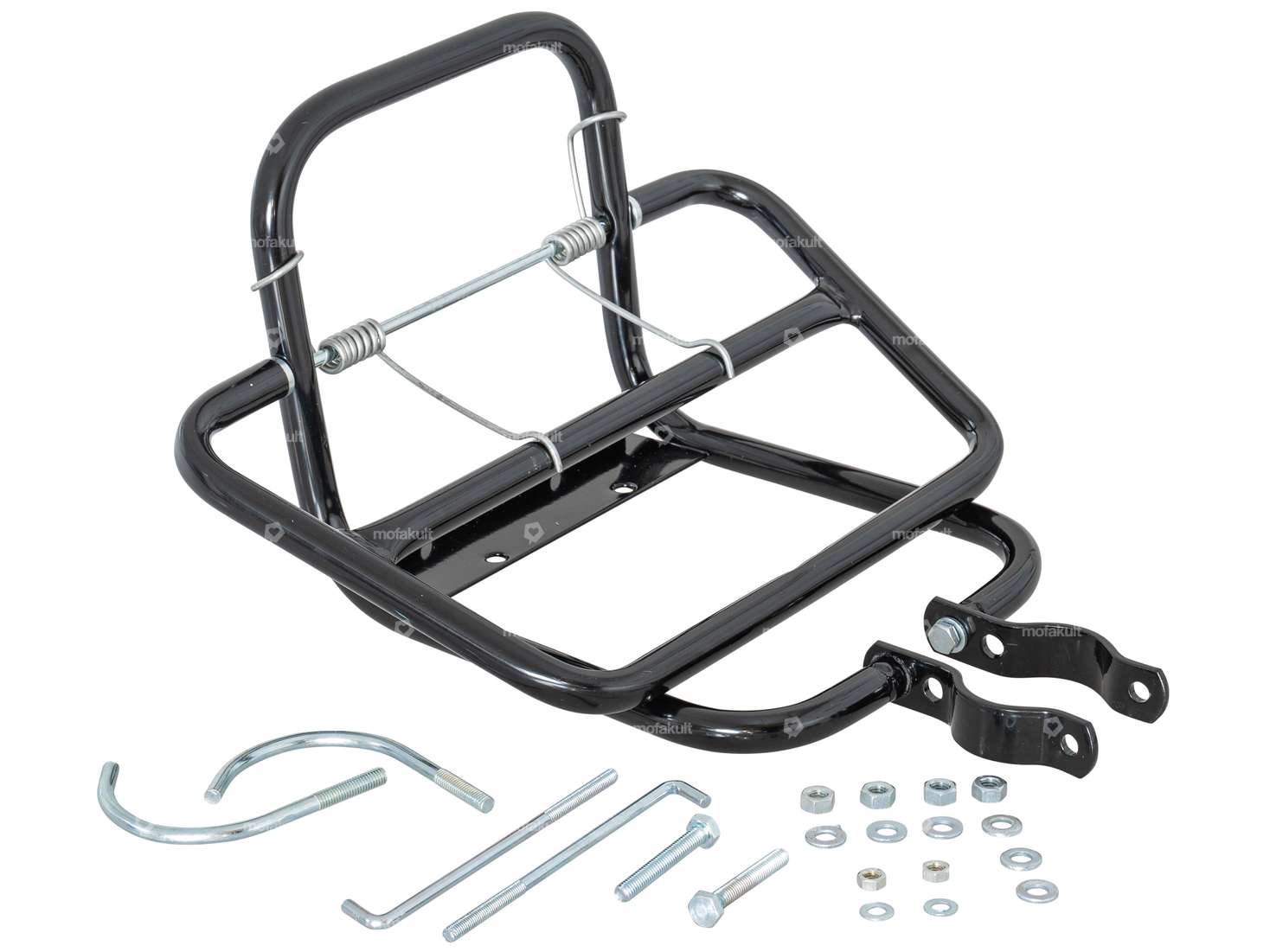

The fastening material for the hinged luggage rack is included in the scope of delivery.
Other luggage carriers, tensioning straps etc. can be found in the accessories section.
Original Piaggio spare part. NOS – New from old stock.
Details
| Manufacturer | Piaggio |
| Material | Steel |
| Surface | varnished |
| Color | black |
| Total length | 210 mm, 330 mm |
| Width | 300 mm |
| Height | 200 mm |
| Mounting type | Screwed clamp |
| Hole spacing | 70 mm, 160 mm |
| Number of fixing points | 3 pcs |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao |
