For: Puch

30436

Large repair manual 1955- | Puch

Home
| Workshop & standard parts
| Miscellaneous
| Literature & Posters
EUR 70,20

Incl. 20% VAT.

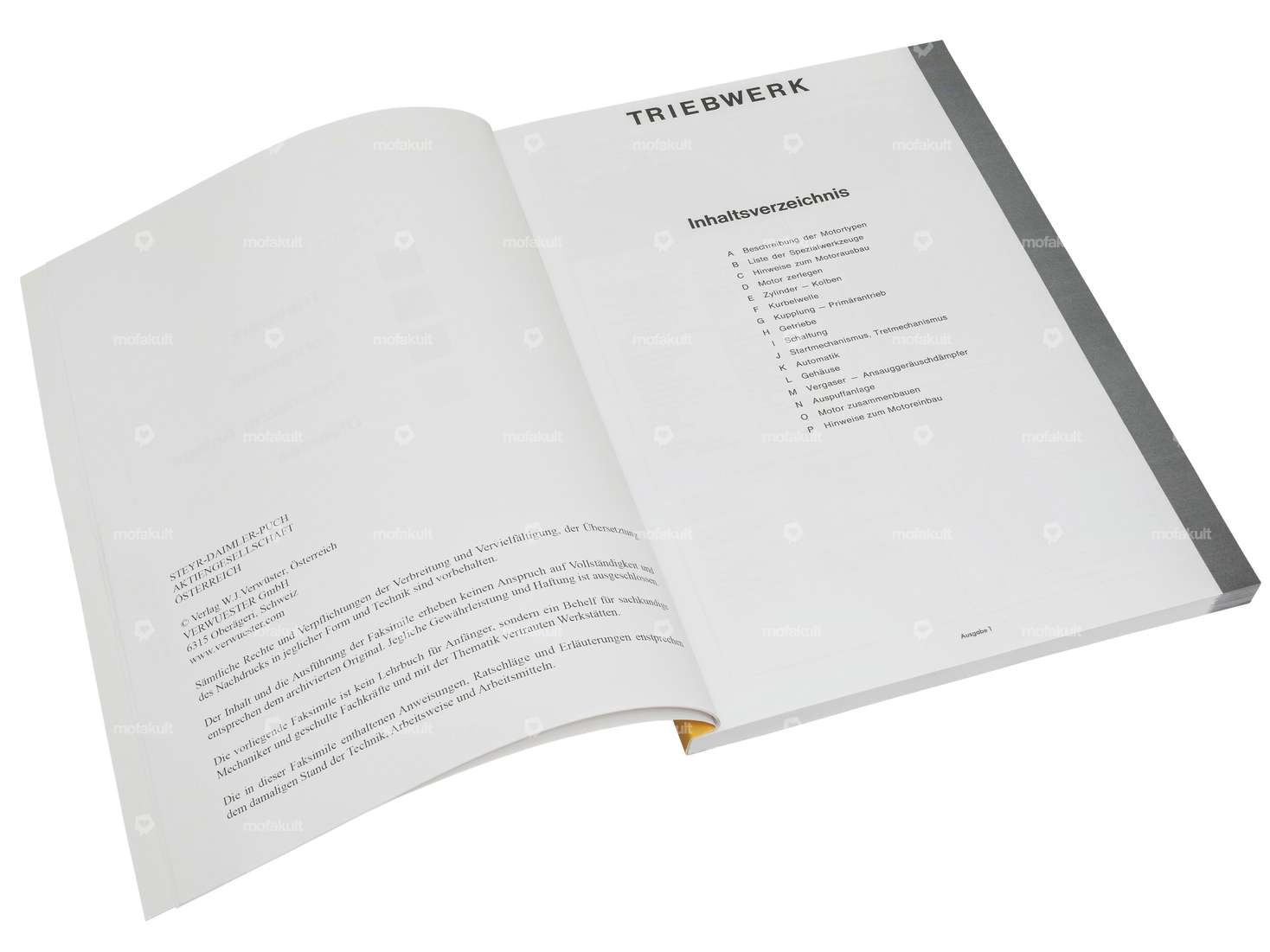

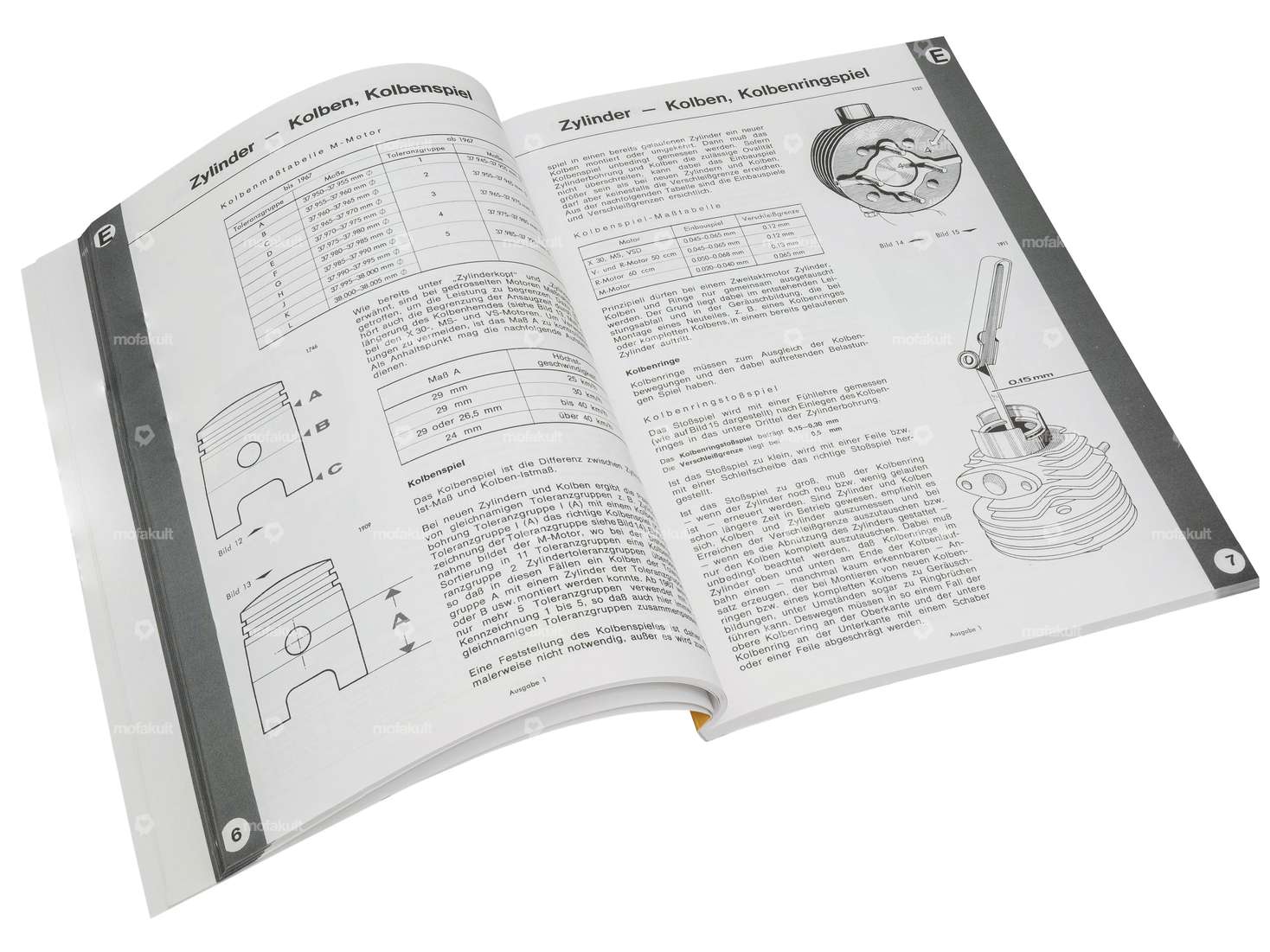

An extremely comprehensive repair manual for Puch mopeds, mopeds, mokicks or mopeds from 1955 onwards.
The manual is divided into 16 different categories and thus provides a simple overview of the variety of types described. The following models are described on 206 pages with many pictures and important facts:

  • X30
  • X30 Automatic
  • Maxi
  • MS 25/50
  • MSA 50 Automatic
  • VS 50
  • DS 50/60
  • MC 50/60
  • VZ 50/60
  • R 50/60
  • M 50
  • M 50 SE
  • Derived types

The following is also referred to;special tools, engine, carburetor, frame, front fork, brakes, wheels and the electrical system. This Puch bible should not be missing in any Puch workshop.

Size: A4 (210 x 297 mm)
Pages: 206
Language: German

High-quality facsimile (reproduction) of the original edition.

Further workshop manuals, spare parts catalogs and repair manuals can be found in the accessories section.

Details

MaterialPaper
Width210 mm
Height297 mm
DIN formatA4
Number of pages206 pcs

Suitable for the following models

Puch

E50

ZA50 (Fahrtwindgekühlt)

ZA50 (Gebläsegekühlt)

Z50 (X30 Sport)

2-Gang MS, MV, MV50

3-Gang VSD, DS, VZ, MC
