Revision kit for Sachs engines from the manual 503 series with the designation 2AL-CH / 2BL-CH.
The revision kit contains all wear parts that you should replace during an engine restoration.

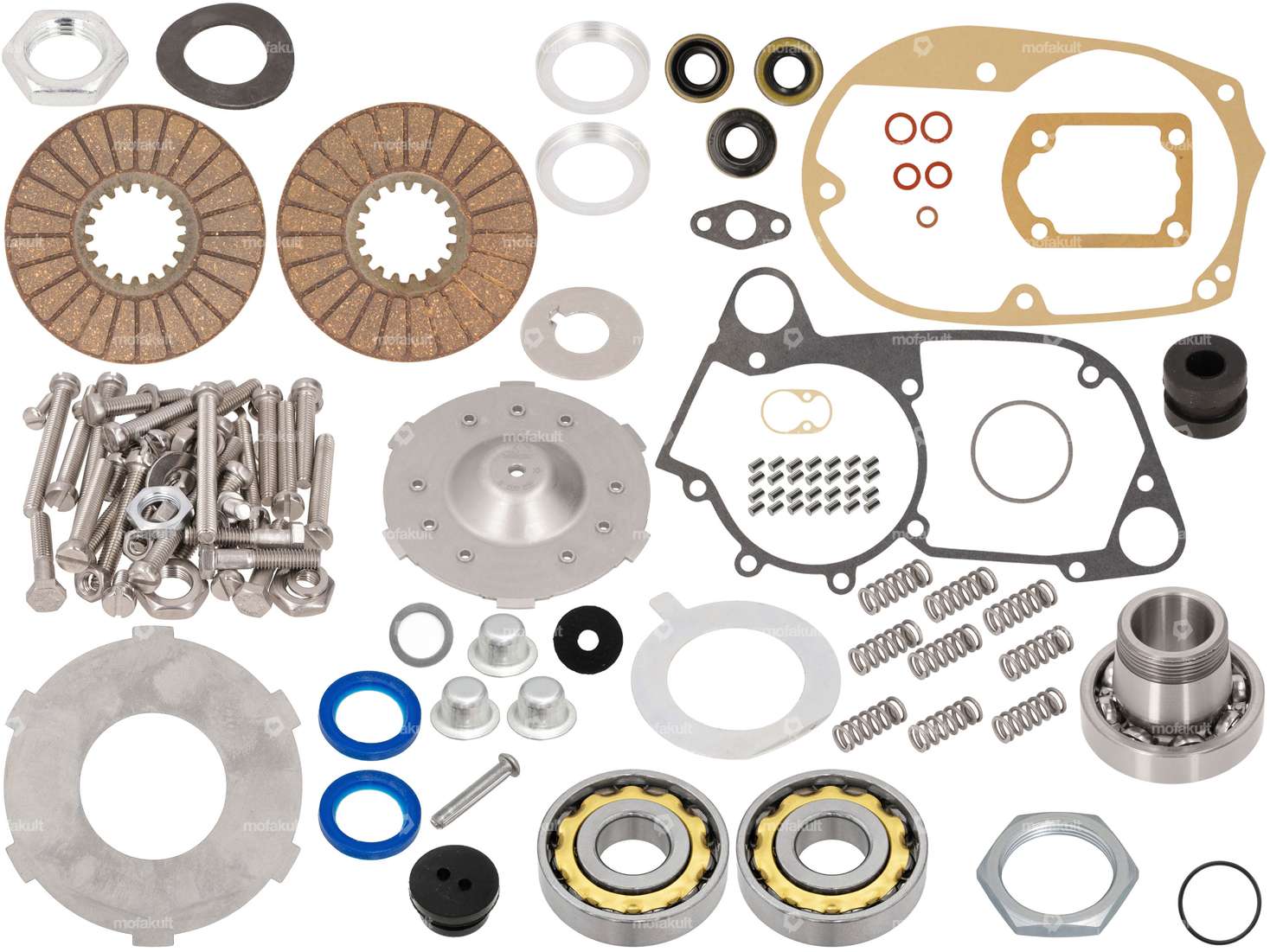

The revision kit includes all gaskets, oil seals, bearings, clutch parts, a chrome steel screw set and a crankshaft.

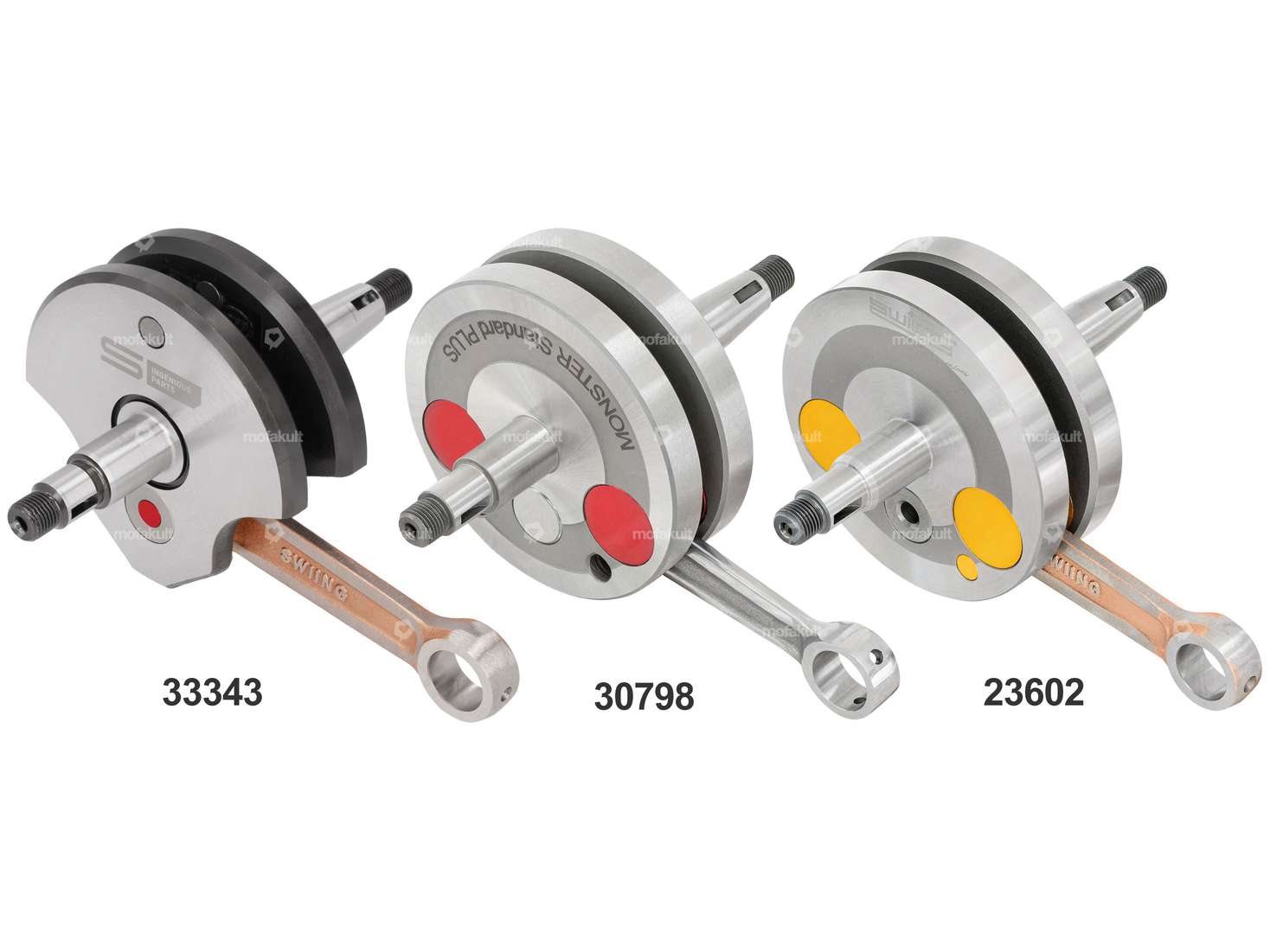

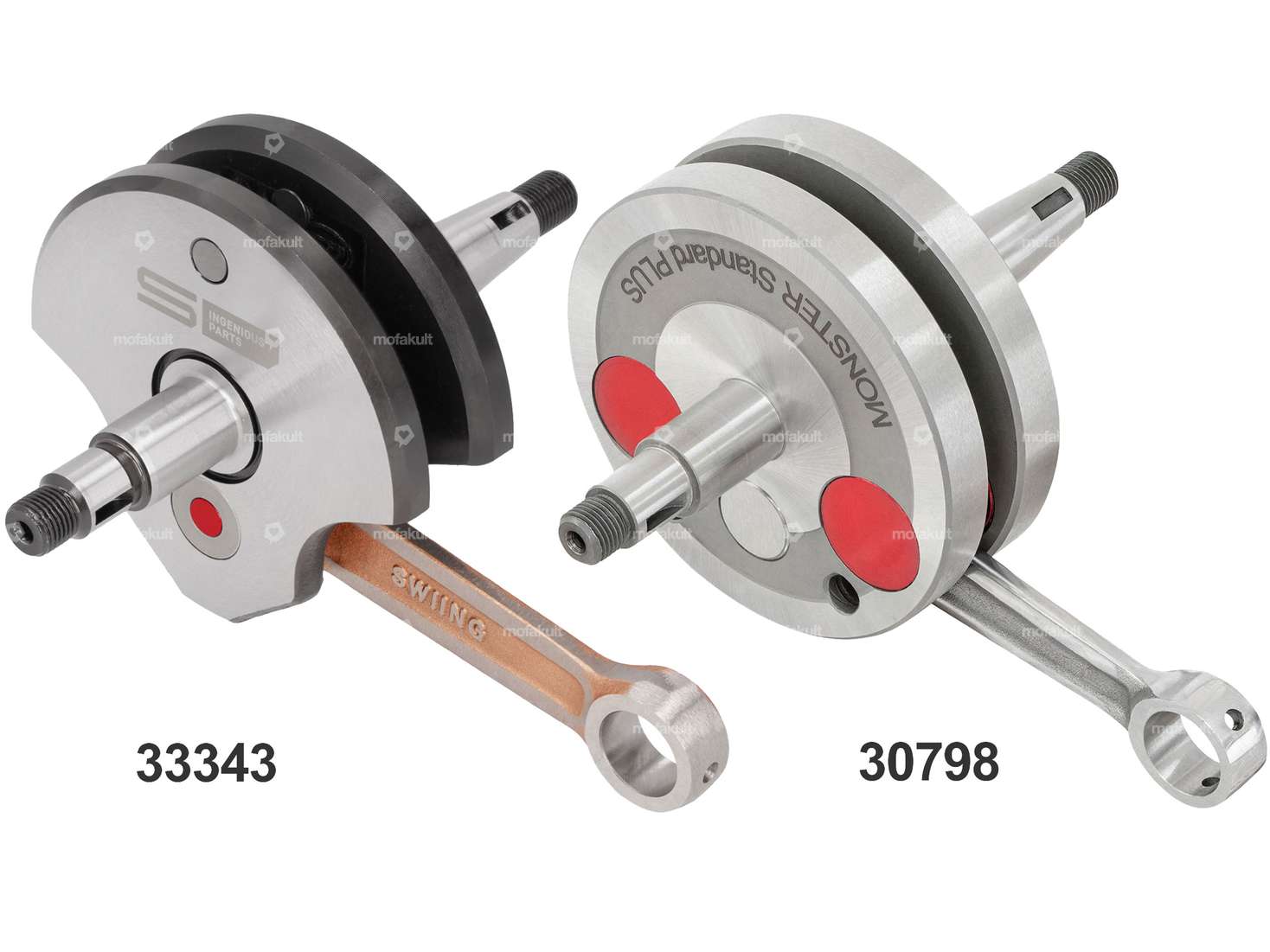

We offer you the option of choosing between a racing or high-end crankshaft. Make the appropriate choice in the selection field.
Top quality at a fair price!
When you purchase this complete set, you will receive a substantial percentage off the retail price of the individual parts.
Nostalgic product for the highest demands of the quality brand swiing®.
The set includes the following fixed parts:
Hole pattern [mm]: 60 x 40 · Material: Sealing paper, Sealing carton, Aluminum, Fiber, Copper · Number of components: 14 pcs · Hole spacing inlet: 32 mm · Ø outlet inside: 13.3 mm · Area of application: Standard
Manufacturer: swiing® revival parts · Material: Steel · Area of application: Standard, High End · Bearing type: Deep groove ball bearing · Stock number: E15 · Bearing clearance: CN (standard) · Ø inside: 15 mm · Ø outside: 35 mm · Width: 8 mm · Inner ring width: 25.6 mm · Bearing cage: "-" Sheet steel cage ball-guided · Thread type: MF20.8x1 LH (fine/left-hand thread) · Pony spare part no.: A2531 · Sachs spare part no.: 0286 079 105
Manufacturer: NSK · Material: Steel, Brass · Surface: blank · Area of application: Standard · Bearing type: Shoulder bearing · Stock number: BO15 · Ø inside: 15 mm · Ø outside: 40 mm · Width: 10 mm · Inner ring width: 10 mm · Ball bearing closed: No · Bearing cage: Brass cage ball-guided · Pony spare part no.: A4502 · Sachs spare part no.: 0932 007 001
Nut type: Hexagon flat nut · Drive: External hexagon · Thread type: MF21x1 LH (fine/left-hand thread) · Width across flats SW: 26 mm · Pony spare part no.: A1504 · Sachs spare part no.: 0242 030 005, 0242 030 105
Manufacturer: swiing® revival parts · Material: Steel, Composite materials · Recording type: Interlocking · Ø inside: 29.7 mm, 36 mm · Ø outside: 93.7 mm · Number of slats: 2 pcs · Thickness: 3.3 mm · Area of application: Standard · Pony spare part no.: A3887 · Sachs spare part no.: 0659 010 006
Manufacturer: GPO · Material: Rubber · Ø inside: 12.8 mm · Ø outside: 19 mm · Thickness: 2.4 mm · Pony spare part no.: A3844 · Sachs spare part no.: 0650 017 000
Manufacturer: BING · Material: Rubber · Surface: raw · Area of application: Standard · Place of use: Carburetor · Ø inside: 17.2 mm · Ø outside: 20 mm · Cord thickness: 1.4 mm · Color: black · Number of components: 1 pcs · Pony spare part no.: A4281 · Sachs spare part no.: 0250 160 101
Manufacturer: swiing® revival parts · Material: Steel · Area of application: Standard · Pony spare part no.: A1908 · Sachs spare part no.: 0259 015 000
Material: Steel · Area of application: Standard · Pony spare part no.: A4023 · Sachs spare part no.: 0686 018 005
Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel) · Number of lobes: 1 pcs · Thickness: 0.5 mm · Pony spare part no.: A1717 · Sachs spare part no.: 0246 049 000, A1717
Material: Steel · Surface: blue galvanized · Number of lobes: 1 pcs · Ø inside: 21 mm · Ø outside: 32 mm · Thickness: 0.5 mm
Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel)
Material: Steel · Surface: blue galvanized · Ø inside: 14.15 mm · Ø outside: 20 mm · Height: 2.4 mm · Pony spare part no.: A1687 · Sachs spare part no.: 0246 012 000
Manufacturer: Sachs · Material: Steel · Surface: blank / oiled · Ø inside: 12 mm · Ø outside: 18 mm · Thickness: 1 mm · Nominal diameter: 12 mm
Manufacturer: Sachs · Material: Steel · Surface: Hardened · Diameter: 4 mm · Width: 6 mm · Pony spare part no.: A1145 · Sachs spare part no.: 0232 002 000
Manufacturer: Sachs · Ø outside: 3 mm · Total length: 20 mm · Pony spare part no.: A1784 · Sachs spare part no.: 0249 023 000
Material: Rubber · Ø inside: 3 mm · Ø outside: 10 mm · Height: 1.8 mm · Color: black · Pony spare part no.: A3890 · Sachs spare part no.: 0660 002 000
Material: Rubber · Surface: raw · Area of application: Standard · Ø Cable bushing: 2.2 mm · Ø mounting hole: 8.5 mm · Ø outside: 12.8 mm · Ø Bundle: 10.5 mm · Waistband height: 2 mm · Total length: 7 mm · Color: black · Pony spare part no.: A1923 · Sachs spare part no.: 0260 020 000
Manufacturer: swiing® revival parts · Material: Rubber · Surface: raw · Area of application: Standard · Ø Cable bushing: 5.2 mm · Ø mounting hole: 8.5 mm · Ø outside: 10.5 mm · Ø Bundle: 10.5 mm · Waistband height: 3 mm · Color: black · Pony spare part no.: A4520, A4521 · Sachs spare part no.: 0960 135 000, 0960 136 000
Nut type: Hexagon nut · Drive: External hexagon · Thread type: MF12x1 (fine pitch thread) · Width across flats SW: 17 mm
Pony spare part no.: A3884 · Sachs spare part no.: 0659 006 000
Manufacturer: swiing® revival parts · Spring design: Pressure spring · Pony spare part no.: A1325 · Sachs spare part no.: 0239 015 000
Details
| Manufacturer | swiing® revival parts |
| Area of application | Standard |
Suitable for the following models
| Sachs | 503 - 2AL / 2BL |
