Complete clutch set suitable for the manually shifted Z50 engine of Puch X30 Sport NS / NL, as well as Puch X30 Velux mopeds.

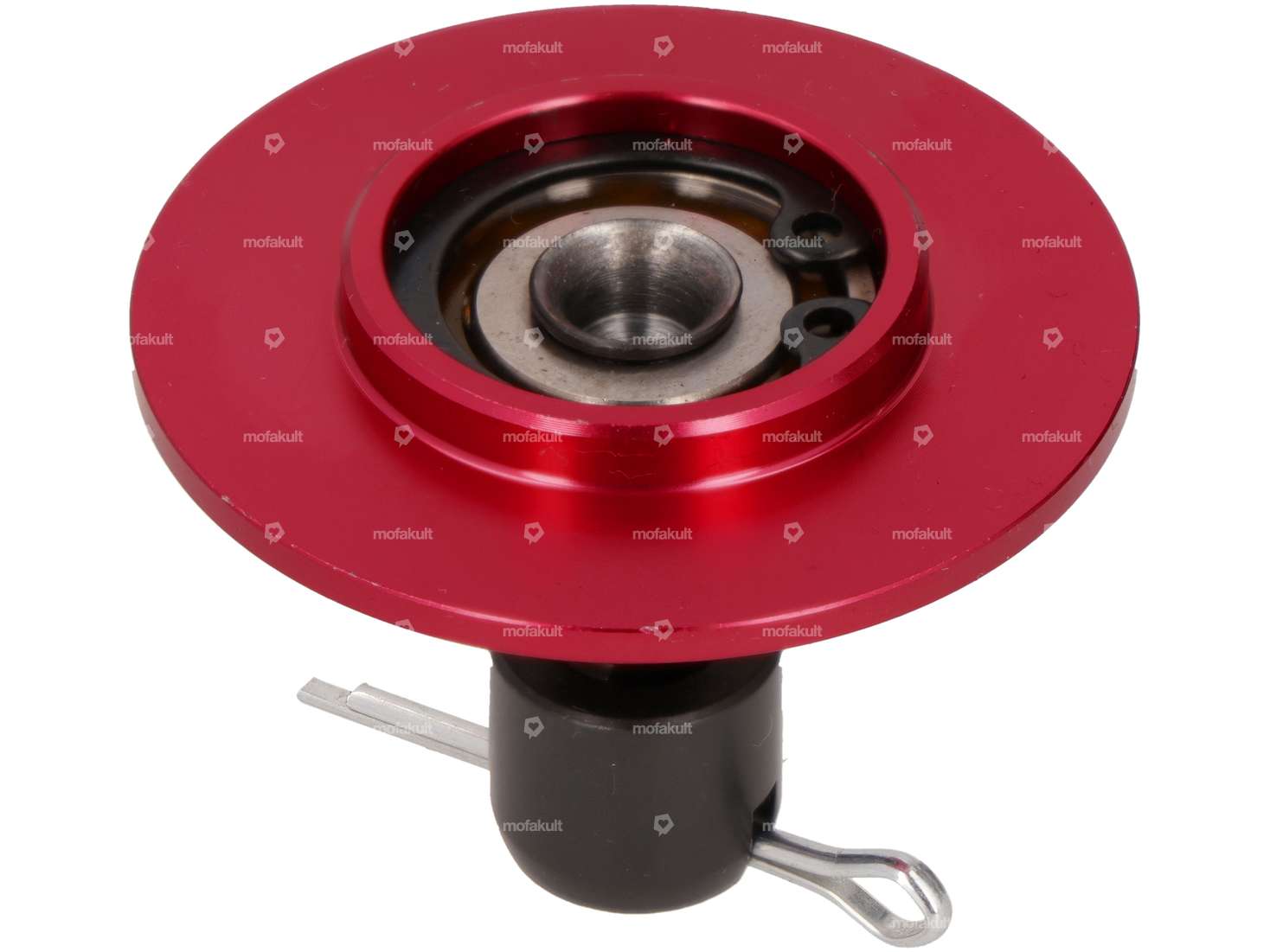

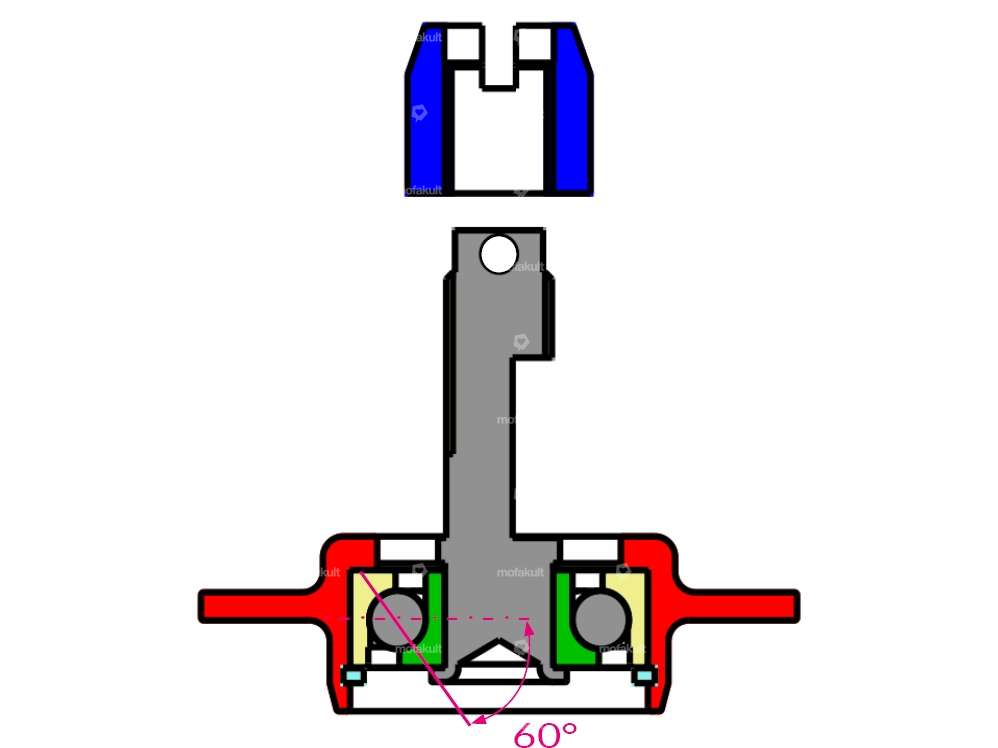

&Revised design of the pull pin: The specially developed swivel ball bearing with a contact angle of 60° (shown in Figure 4) guarantees durability even under the highest loads. The reinforced clutch springs at the bottom of the accessory can only be used in conjunction with the swivel pull pin.

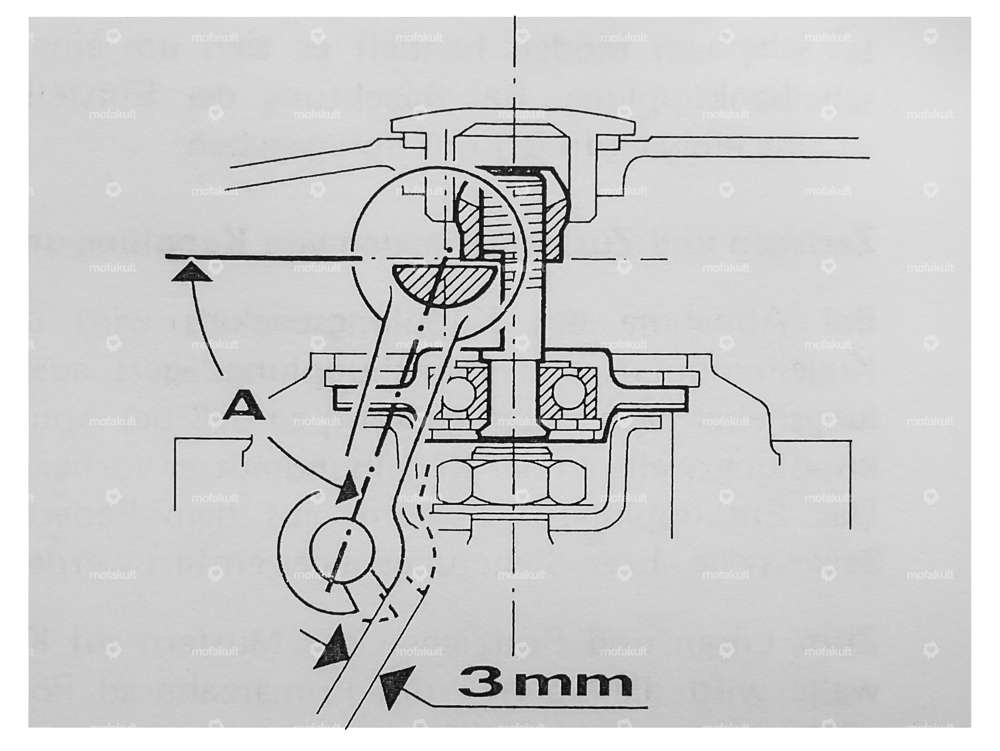

Adjusting the clutch: Figure 5 shows the position of the clutch release lever in relation to the abutment and the ball collar nut in relation to the clutch release shaft. This setting results in maximum disengagement travel with minimum effort. Particular attention must be paid to the play between the decoupling shaft and the conical collar nut, as the clutch bearing will inevitably break within a very short time if the play is too small. With the clutch cable engaged, the free travel on the clutch release lever should be approx. 3 mm.
The angle "A" on the picture is 58°. On the hand lever, these clearances result in a free travel of approx. 1 cm.
For a closer look, you will find all the individual parts in the accessories section below.
Please select the corresponding clutch spring (original / +20% / +40%) in the selection field.
When purchasing this complete set, you will receive a substantial percentage off the retail price of the individual parts.
Nostalgic product for the highest demands of the quality brand swiing®.

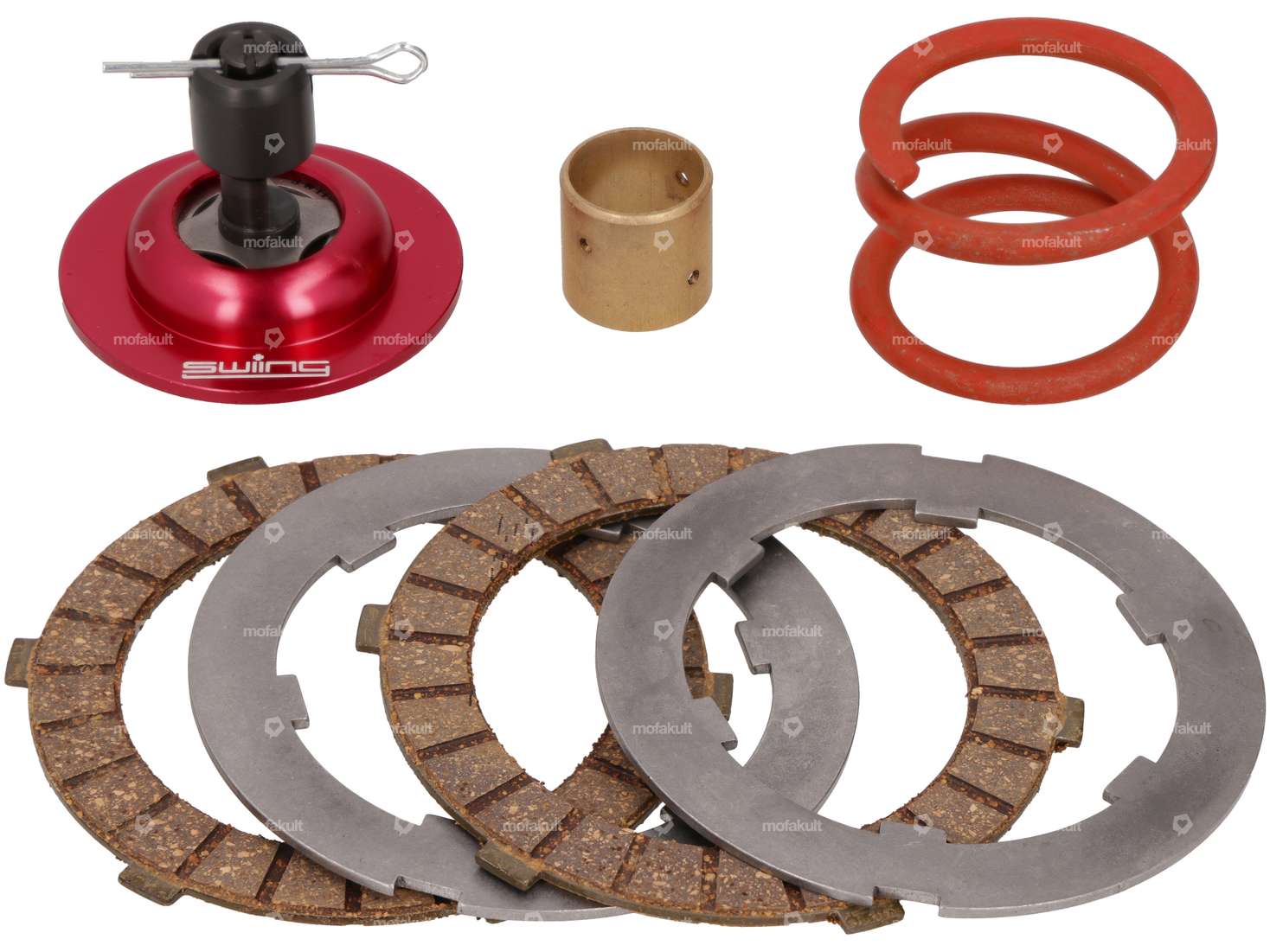

The set includes the following fixed parts:
Manufacturer: swiing® revival parts · Material: special bearing bronze · Ø inside: 15 mm · Ø outside: 17 mm · Total height: 16.2 mm · Nominal diameter: 15 mm
Manufacturer: swiing® revival parts · Material: Steel · Ø inside: 46 mm, 51 mm · Ø outside: 70 mm · Thickness: 1.5 mm
Manufacturer: swiing® revival parts · Material: Aluminum, Steel · Surface: anodized, blackened · Color: red, black · Total length: 35 mm · Ø outside: 44.8 mm · Area of application: High End
Manufacturer: swiing® revival parts · Number of slats: 2 pcs · Area of application: Tuning · Ø inside: 51 mm · Ø outside: 75 mm, 70 mm · Thickness: 2.5 mm
Details
| Manufacturer | swiing® revival parts |
| Ø inside | 51 mm |
| Number of slats | 2 pcs |
| Number of springs | 1 pcs |
| Ø outside | 75 mm, 70 mm |
| Thickness | 2.5 mm |
Suitable for the following models
| Puch | Z50 (X30 Sport) Z50 (X30 Velux) 2-Gang MS, MV, MV50 3-Gang VSD, DS, VZ, MC |
Accessories & related products
swiing® revival clutch spring 2-disc version (Version 2.0) | Puch Z50
Spring design: Pressure spring · Total length: 19.5 mm · Ø wire: 4 mm · Manufacturer: swiing® revival parts · Material: Spring steel · Surface: raw · Number of components: 1 pcs · Area of application: Original · Area of application: Standard · Color: gray · Ø inside: 30.5 mm · Ø outside: 39 mm
EUR 20,20
swiing® ingenious clutch spring reinforced +20% (Version 2.0) | Puch Z50
Spring design: Pressure spring · Ø inside: 30 mm · Ø wire: 4.6 mm · Manufacturer: swiing® ingenious parts · Area of application: Tuning · Material: Spring steel · Color: blue · Surface: coated · Total length: 20.5 mm · Ø outside: 39 mm · Number of components: 1 pcs
EUR 26,80
swiing® ingenious clutch spring reinforced +40% (Version 2.0) | Puch Z50
Spring design: Pressure spring · Ø wire: 4.5 mm · Manufacturer: swiing® ingenious parts · Ø inside: 30 mm · Number of components: 1 pcs · Material: Spring steel · Surface: coated · Color: red · Ø outside: 39 mm · Area of application: Tuning · Total length: 23.5 mm
EUR 26,80
HS-Retro drawbar "heavy-duty" Z50 engine 2-slats (1A quality) | Puch Sport, Velux
Manufacturer: HS-Retro · Area of application: High End · Area of application: Original · Material: Aluminum · Material: Steel · Surface: Hardened · Surface: anodized · Height: 35.2 mm · Color: black · Ø outside: 44.75 mm · Alternative version of the Puch spare part no.: 050.2.1230.0
EUR 98,40
