High-quality disc brake system for spoke wheels, which can be fitted without adjustments!
The complete set can be fitted universally for various mopeds / mopeds in conjunction with the corresponding hydraulic EBR telescopic fork.
All add-on parts are of the highest quality and fit perfectly.
The brake calliper including brake lever are already provided with brake fluid and therefore only need to be screwed on. The steel flex brake cable is 90 cm long. Please bear this in mind when selecting the handlebars.
All screw connections must be secured with Loctite.

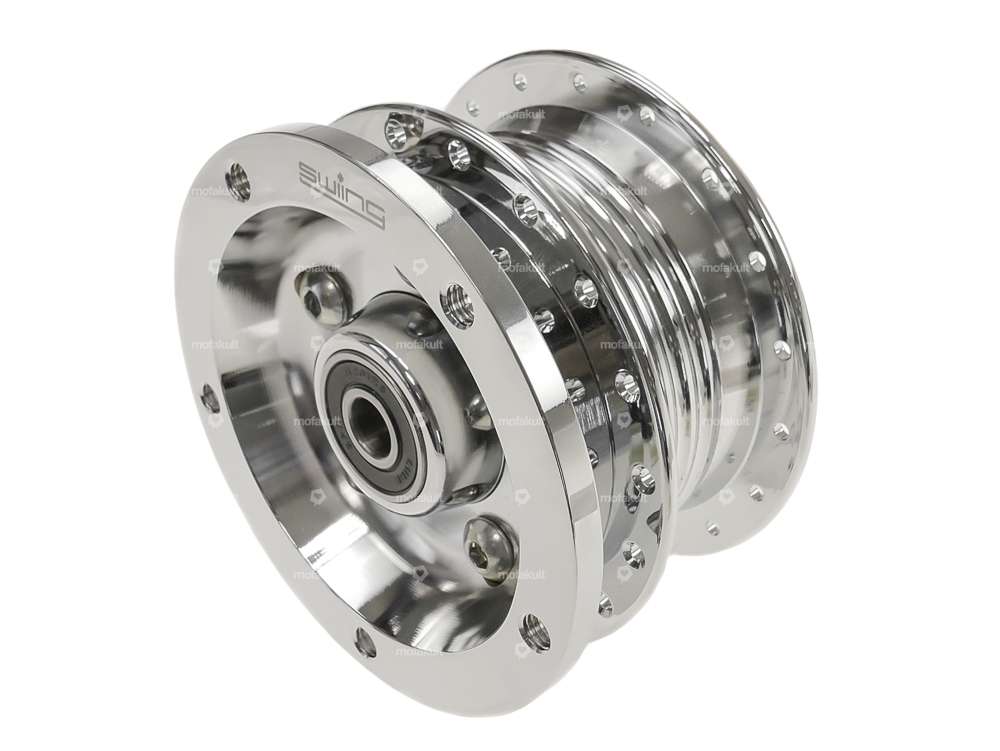

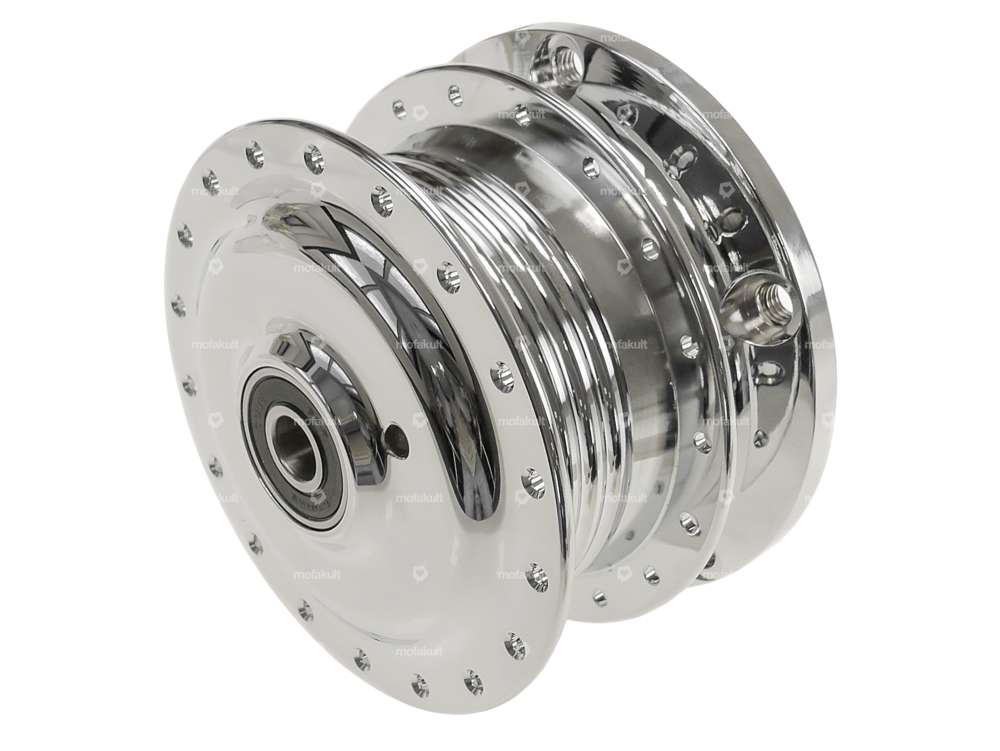

The CNC-machined aluminum wheel hub is chrome-plated. It has been subjected to various load tests and can withstand the increased forces of a disc brake without any problems.
The dimensions of the hub correspond to the original.
The two spacers are mounted in the direction of travel as follows: left: 21.25 mm long / right: 27.5 mm long.

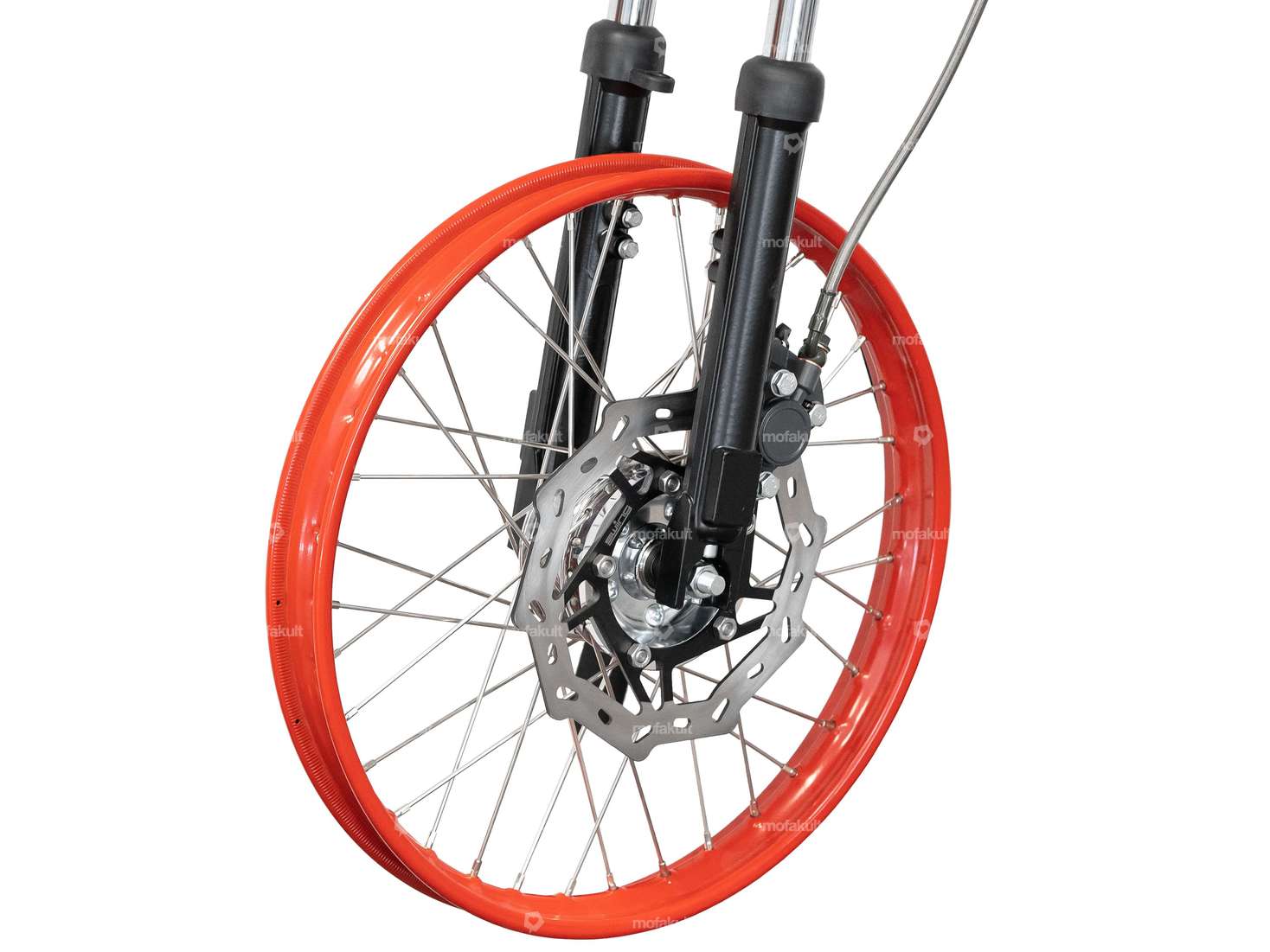

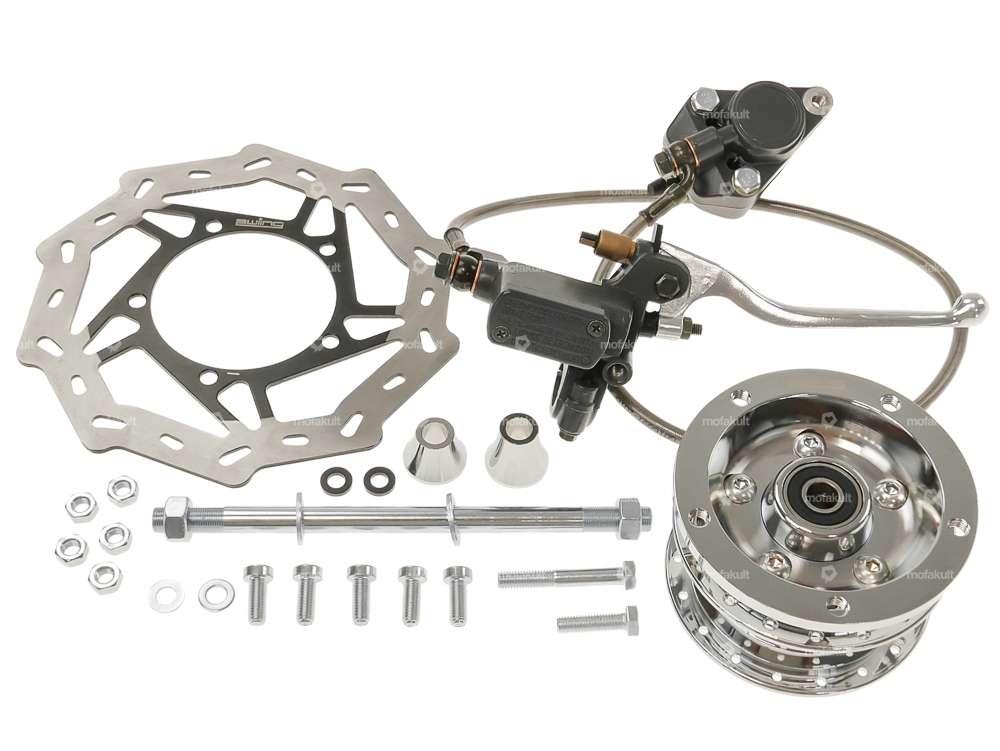

Scope of delivery corresponds to Figure 1. Figure 4 serves only to illustrate the installation.

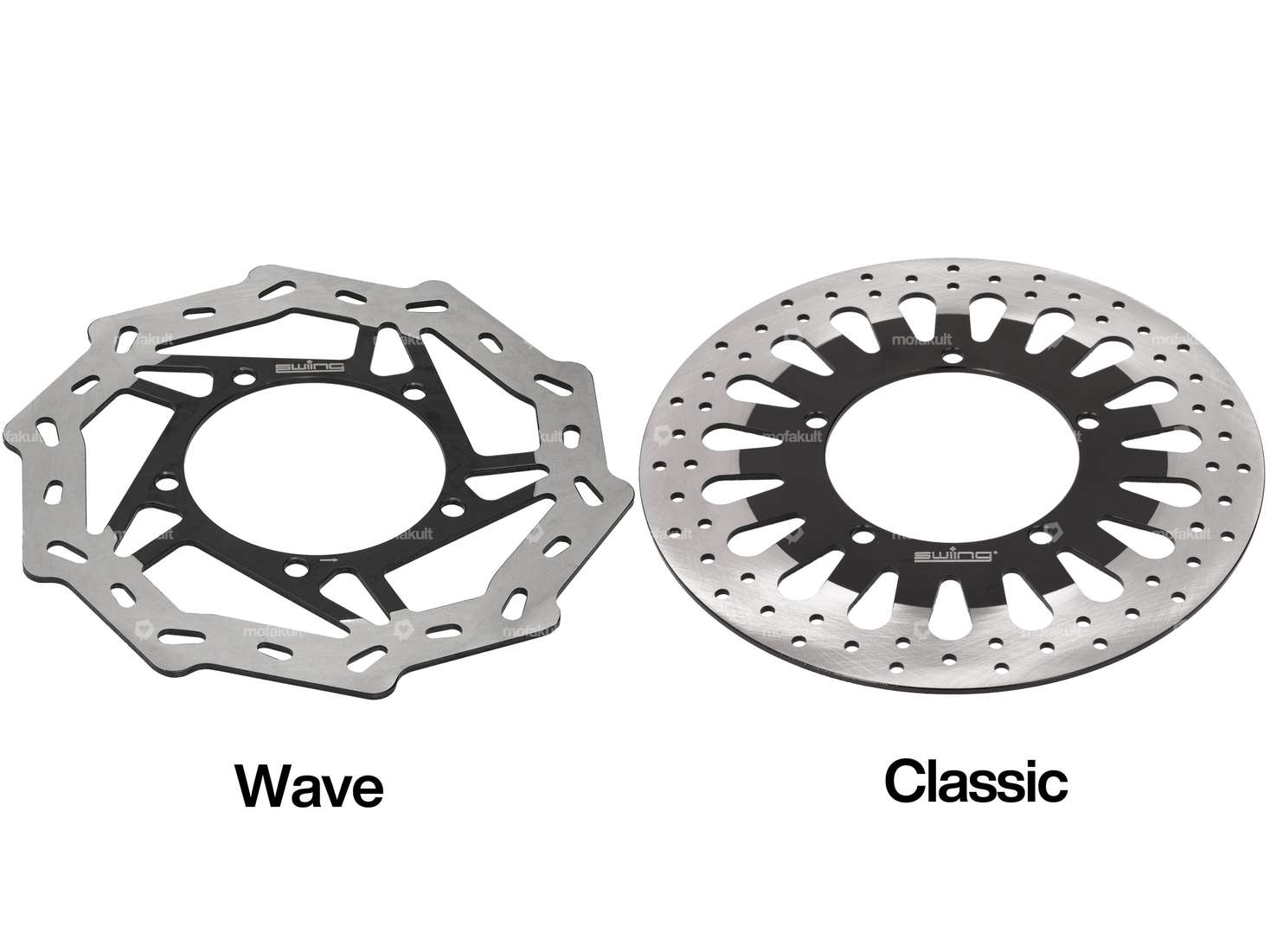

Brake disc, wheel axle, wheel hub, spacers and mounting material were manufactured by the quality brand swiing - swiss ingenious.
When you buy this complete set, you get a big discount on the retail price of the individual parts.
All individual parts for this disc brake system and other add-on parts can be found in the accessories section.
The set includes the following fixed parts:
Manufacturer: swiing · Color: Chrome · Material: Aluminum · Surface: chrome-plated · Area of application: Tuning, Racing, Cross, MX, Performance · Ø axle: 12 mm · Ø Receptacle: 12 mm · Ø outside: 120 mm · Ø bolt circle: 104.5 mm · Width: 77 mm · Thread type: M8x1.25 (standard thread) · Number of spoke holes: 36 pcs · Ø spoke hole: 3.7 mm · Number of fixing points: 5 pcs
Manufacturer: swiing® ingenious parts
Manufacturer: swiing® ingenious parts
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Ø shaft: 11.95 mm · Thread type: MF12x1 (fine pitch thread) · Thread length: 25 mm · Total length: 170 mm
Material: Cast aluminum · Surface: varnished · Color: gray · Cable length: 900 mm · Brake lever length (lever length): 162 mm · Mounting type: Nuts & bolts · Number of fixing points: 4 pcs · Ø Handlebars: 22 mm · Hole spacing: 60 mm, 32 mm · Thread type: M8x1.25 (standard thread)
Details
| Manufacturer | swiing® ingenious parts |
| Color | Chrome |
Suitable for the following models
| Puch | |
| Sachs | |
| Pony / Cilo (Beta 521 & 512) | |
| Piaggio |
Accessories & related products
EBR telescopic fork hydraulic silver | Puch
Total length: 635 mm · Manufacturer: EWC · Thread length: 58 mm · Material: Aluminum · Material: Steel · Adjustable: Yes · Surface: chrome-plated · Surface: varnished · Color: Chrome · Color: silver · Ø spars: 28 mm · Spar end distance (center-center): 150 mm · Ø outer head tube: 26 mm · Ø head tube inside: 22.3 mm · Head tube length: 200 mm · Fork bridge - center wheel axle: 410 mm · Distance brake cam to wheel axle center-center: 35 mm · Thread type: MF26x1 (fine pitch thread)
EUR 369,10
Loctite 243 medium-strength threadlocker 10 ml
Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Contents [ml]: 10 ml · Area of application: Chemistry · Color: blue · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Adhesion: medium strength · Temperature resistance (min.): -75 - 200 °C · Type of application: 1K · Gap dimension (max.): 0.01 mm · Alignment time: 600 sec · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m
EUR 25,70
EUR 2.570,00/l

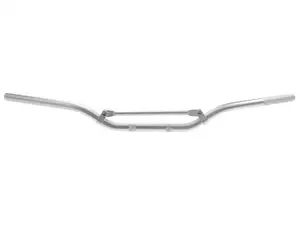

Racing handlebar fork plate 8 cm / wide aluminum silver
Ø outside: 22 mm · Material: Aluminum · Surface: anodized · Color: silver · Fork plate holder length: 150 mm · Mounting type: Fork plate · Clamping diameter: 22 mm · Length handlebar ends: 215 mm · Crossbar: Yes · Width: 810 mm · Height: 80 mm
EUR 51,50
EBR telescopic fork hydraulic black | Puch
Total length: 635 mm · Manufacturer: EWC · Thread length: 58 mm · Material: Aluminum · Material: Steel · Adjustable: Yes · Surface: chrome-plated · Surface: varnished · Color: Chrome · Color: black · Ø spars: 28 mm · Spar end distance (center-center): 150 mm · Ø outer head tube: 25.9 mm · Ø head tube inside: 22 mm · Head tube length: 200 mm · Fork bridge - center wheel axle: 410 mm · Distance brake cam to wheel axle center-center: 35 mm · Thread type: MF26x1 (fine pitch thread)
EUR 369,10
EBR telescopic fork hydraulic black EXTRA | Puch
Total length: 680 mm · Manufacturer: EWC · Thread length: 60 mm · Material: Aluminum · Material: Steel · Adjustable: Yes · Surface: chrome-plated · Surface: varnished · Color: Chrome · Color: black · Ø spars: 28 mm · Spar end distance (center-center): 150 mm · Ø outer head tube: 26 mm · Ø head tube inside: 22 mm · Head tube length: 200 mm · Fork bridge - center wheel axle: 605 mm · Thread type: MF26x1 (fine pitch thread)
EUR 467,70

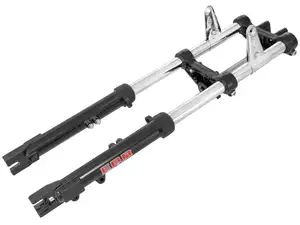

EBR telescopic fork hydraulic extended black (with tabs for disc brake) | Puch
Total length: 675 mm · Manufacturer: EWC · Thread length: 58 mm · Material: Aluminum · Material: Steel · Adjustable: Yes · Surface: chrome-plated · Surface: varnished · Color: Chrome · Color: black · Ø spars: 28 mm · Spar end distance (center-center): 150 mm · Ø outer head tube: 26 mm · Ø head tube inside: 22.15 mm · Head tube length: 200 mm · Fork bridge - center wheel axle: 445 mm · Distance brake cam to wheel axle center-center: 35 mm · Thread type: MF26x1 (fine pitch thread)
EUR 374,90
EBR telescopic fork hydraulic black | Sachs / Pony
Total length: 640 mm · Manufacturer: EWC · Thread length: 55 mm · Material: Aluminum · Material: Steel · Adjustable: Yes · Surface: chrome-plated · Surface: varnished · Color: Chrome · Color: black · Ø spars: 28 mm · Spar end distance (center-center): 150 mm · Ø outer head tube: 26 mm · Ø head tube inside: 22 mm · Head tube length: 220 mm · Fork bridge - center wheel axle: 385 mm · Distance brake cam to wheel axle center-center: 35 mm · Thread type: MF26x1 (fine pitch thread)
EUR 382,50

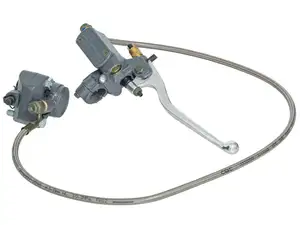

Brake caliper, brake hose & brake lever for EBR forks
Material: Cast aluminum · Surface: varnished · Color: gray · Mounting type: Nuts & bolts · Number of fixing points: 4 pcs · Hole spacing: 32 mm · Hole spacing: 60 mm · Brake lever length (lever length): 162 mm · Cable length: 900 mm · Ø Handlebars: 22 mm · Thread type: M8x1.25 (standard thread)
EUR 192,10
Motorex brake fluid DOT4 250 ml
Manufacturer: Motorex · DOT class (brake fluid): DOT 4 (230°C) · Contents [ml]: 250 ml · Area of application: Standard · Hazard warning: Can harm the child in the womb · Hazard warning: Causes serious eye irritation · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS08 - Harmful to health
EUR 10,20
EUR 40,80/l
Brake line 0.9 - 1.9 m (selection) black 28 / 90° incl. banjo bolts
Material: Rubber · Material: Steel · Color: black · Cable length: 900 mm · Cable length: 1000 mm · Cable length: 1150 mm · Cable length: 1400 mm · Cable length: 1600 mm · Cable length: 1700 mm · Cable length: 1900 mm · Mounting type: Screws · Thread type: MF10x1.25 (fine pitch thread)
EUR 28,00
Moped fans like you also bought:
EBR telescopic fork aluminum (Harry) black | Puch
Total length: 680 mm · Manufacturer: EWC · Thread length: 58 mm · Material: Aluminum · Material: Steel · Adjustable: Yes · Surface: chrome-plated · Surface: varnished · Color: Chrome · Color: black · Ø spars: 30 mm · Spar end distance (center-center): 150 mm · Ø outer head tube: 26 mm · Ø head tube inside: 22.3 mm · Head tube length: 200 mm · Fork bridge - center wheel axle: 450 mm · Thread type: MF26x1 (fine pitch thread)
EUR 280,20
GPO 19" spoke set incl. nipple (2.9 x 212 mm) galvanized steel
Nipple length: 14.7 mm · Manufacturer: GPO · Thread length: 11 mm · Material: Steel · Quantity: 36 pcs · Surface: galvanized (blue) · Surface: galvanized (yellow) · Length from hook: 212 mm · Nominal diameter (thread): 3.2 mm · Ø spoke head: 5.4 mm · Ø spoke: 2.9 mm · Ø nipple head: 8 mm · Ø Nipple neck: 5 mm · Hook length: 9.9 mm · Hook angle: 92 °
EUR 40,90
Brake caliper, brake hose & brake lever for EBR forks
Material: Cast aluminum · Surface: varnished · Color: gray · Mounting type: Nuts & bolts · Number of fixing points: 4 pcs · Hole spacing: 32 mm · Hole spacing: 60 mm · Brake lever length (lever length): 162 mm · Cable length: 900 mm · Ø Handlebars: 22 mm · Thread type: M8x1.25 (standard thread)
EUR 192,10
Hot

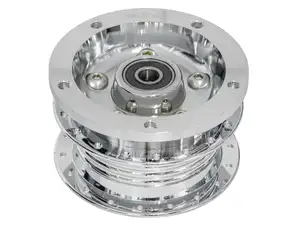

swiing wheel hub spoke rim with disc brake chrome
