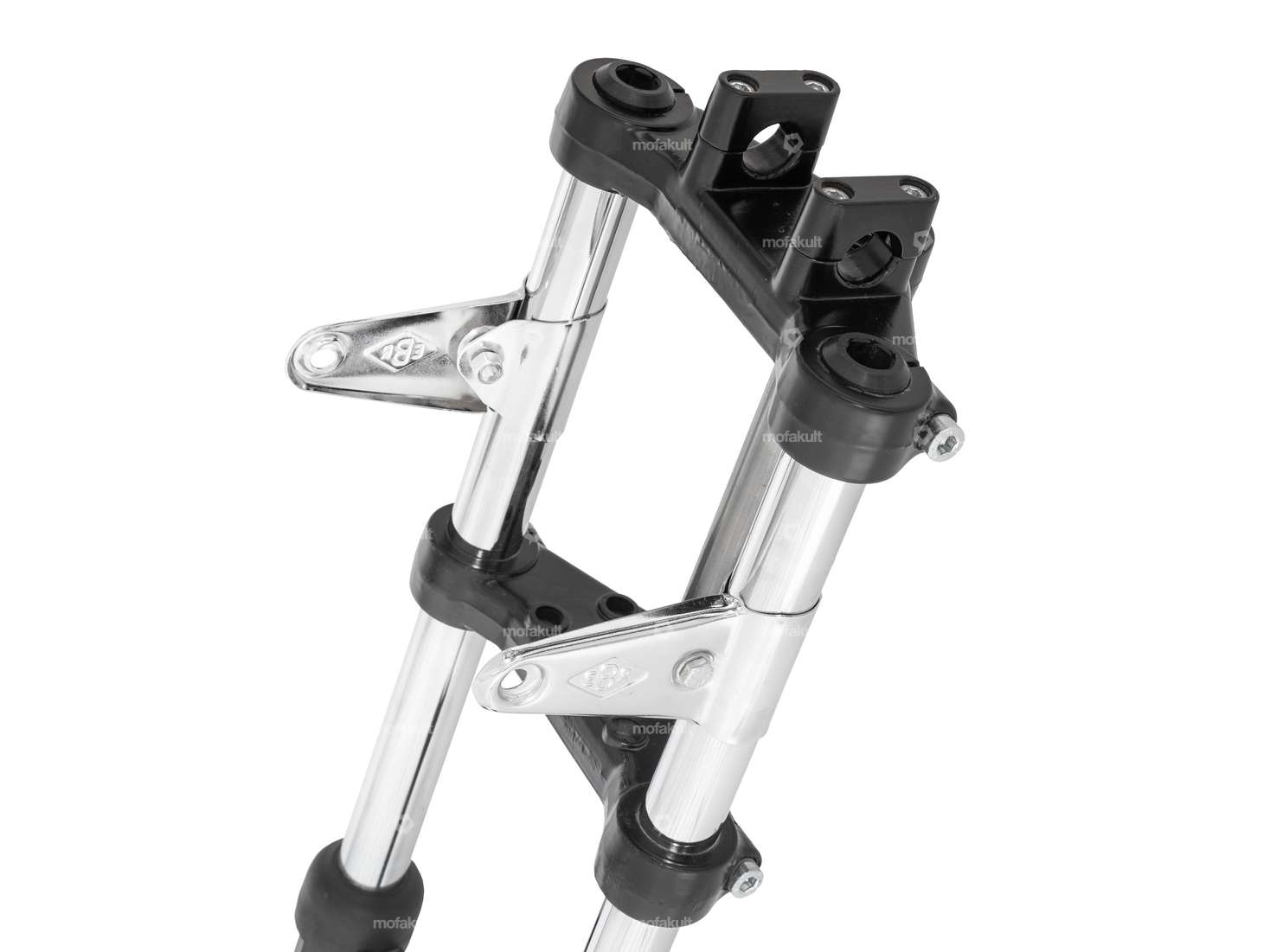

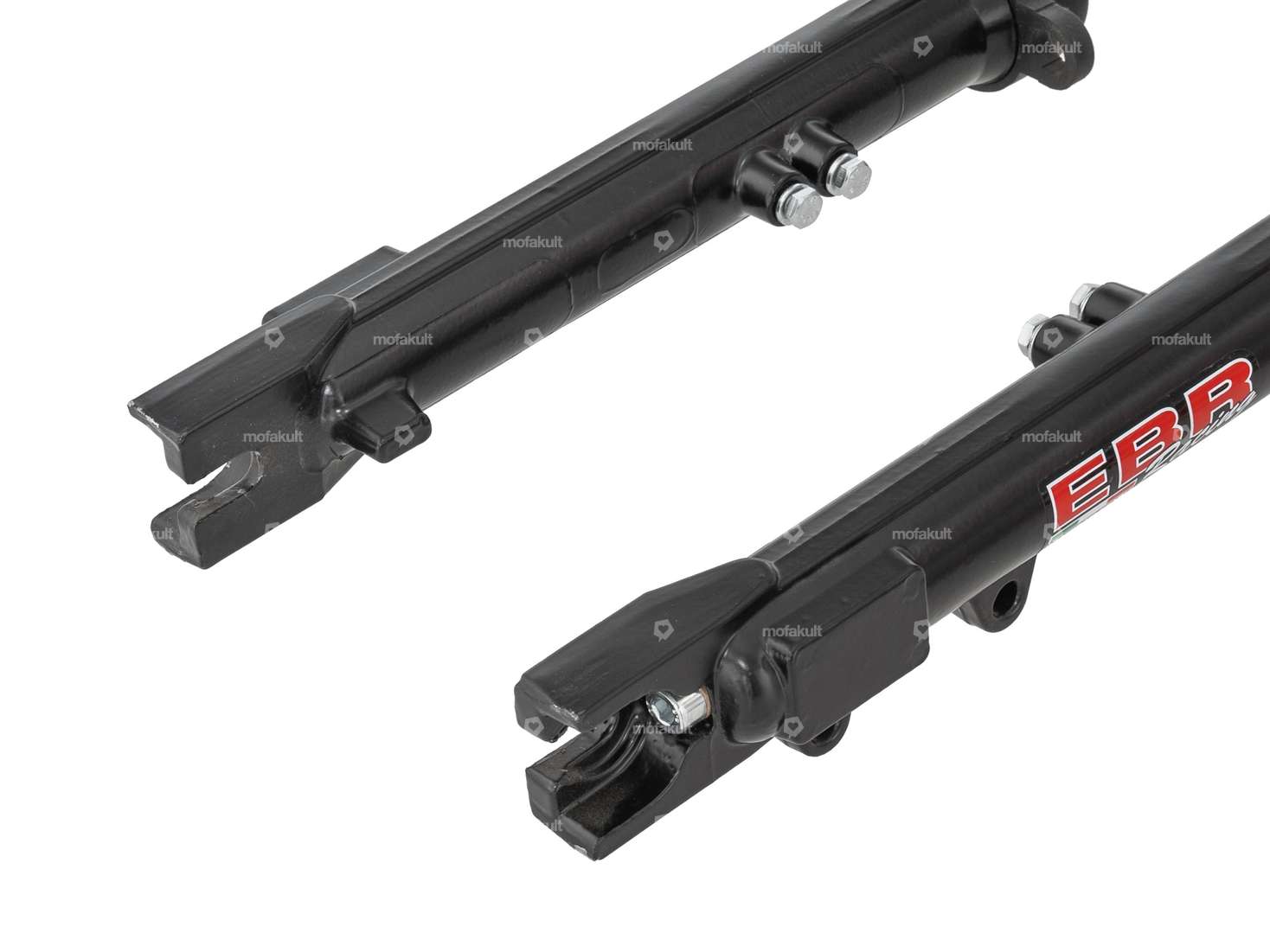

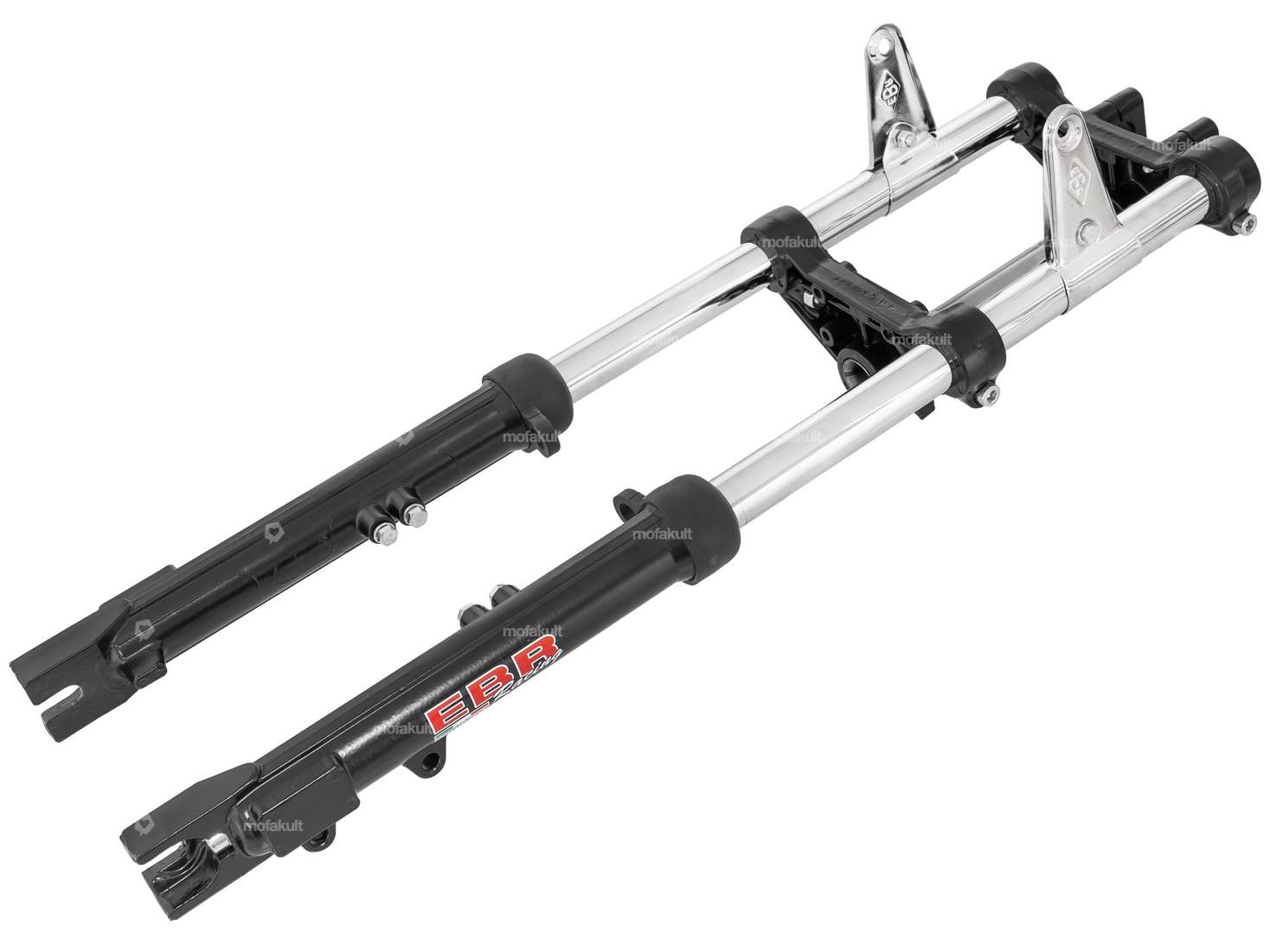

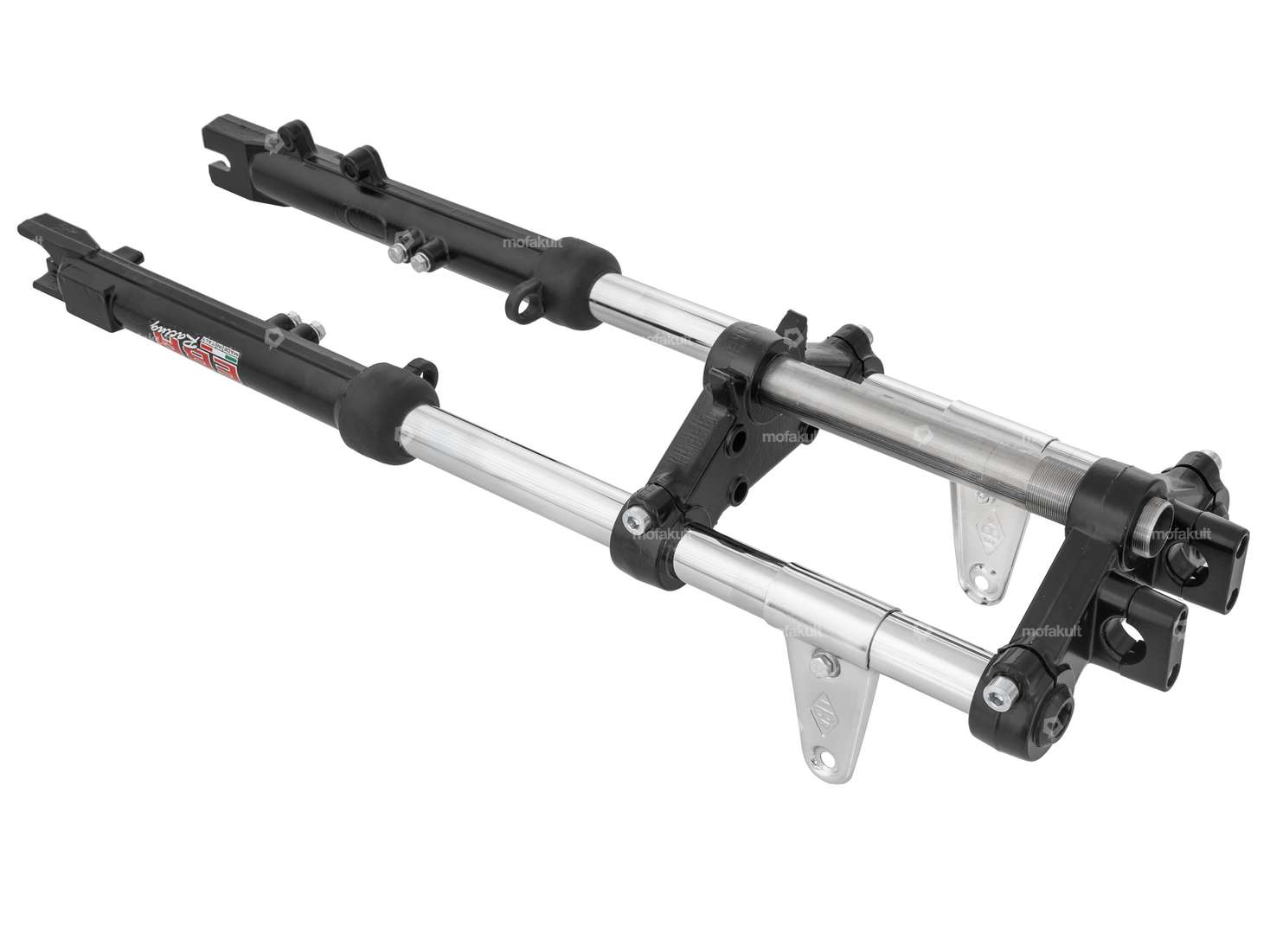

This hydraulic telescopic fork is currently the best fork available on the Puch market.
Specially manufactured for mounting a disc brake system. The lower mounting hole is 53 mm above the wheel axle.
The two mounting holes with Ø8.7mm are 61 mm apart. The upper one is therefore 114 mm above the wheel axle.
Mostly made of aluminum.
Including the handlebar clamps on the upper fork bridge.
Internal diameter head tube (for possible stem mounting): 22 mm
Head tube length: 20 cm
Head tube thread: M26x1
Total length: 67.5 cm
Length center of wheel axle to lower edge of lower fork crown: 44.5 cm
Distance from center of wheel axle to brake disc lock (right): 25mm
The fork also has two M6 fastening screws on the left and right for mounting a mudguard or a reinforcement arch.
These screws are located 166 and 184 mm above the wheel axle.
Branded product from the Italian manufacturer EBR.
Details
| Manufacturer | EWC |
| Material | Aluminum, Steel |
| Surface | varnished, chrome-plated |
| Color | black, Chrome |
| Thread type | MF26x1 (fine pitch thread) |
| Adjustable | Yes |
| Spar end distance (center-center) | 150 mm |
| Ø outer head tube | 26 mm |
| Ø spars | 28 mm |
| Ø head tube inside | 22.15 mm |
| Head tube length | 200 mm |
| Thread length | 58 mm |
| Total length | 675 mm |
| Fork bridge - center wheel axle | 445 mm |
| Distance brake cam to wheel axle center-center | 35 mm |
Suitable for the following models
| Puch |
