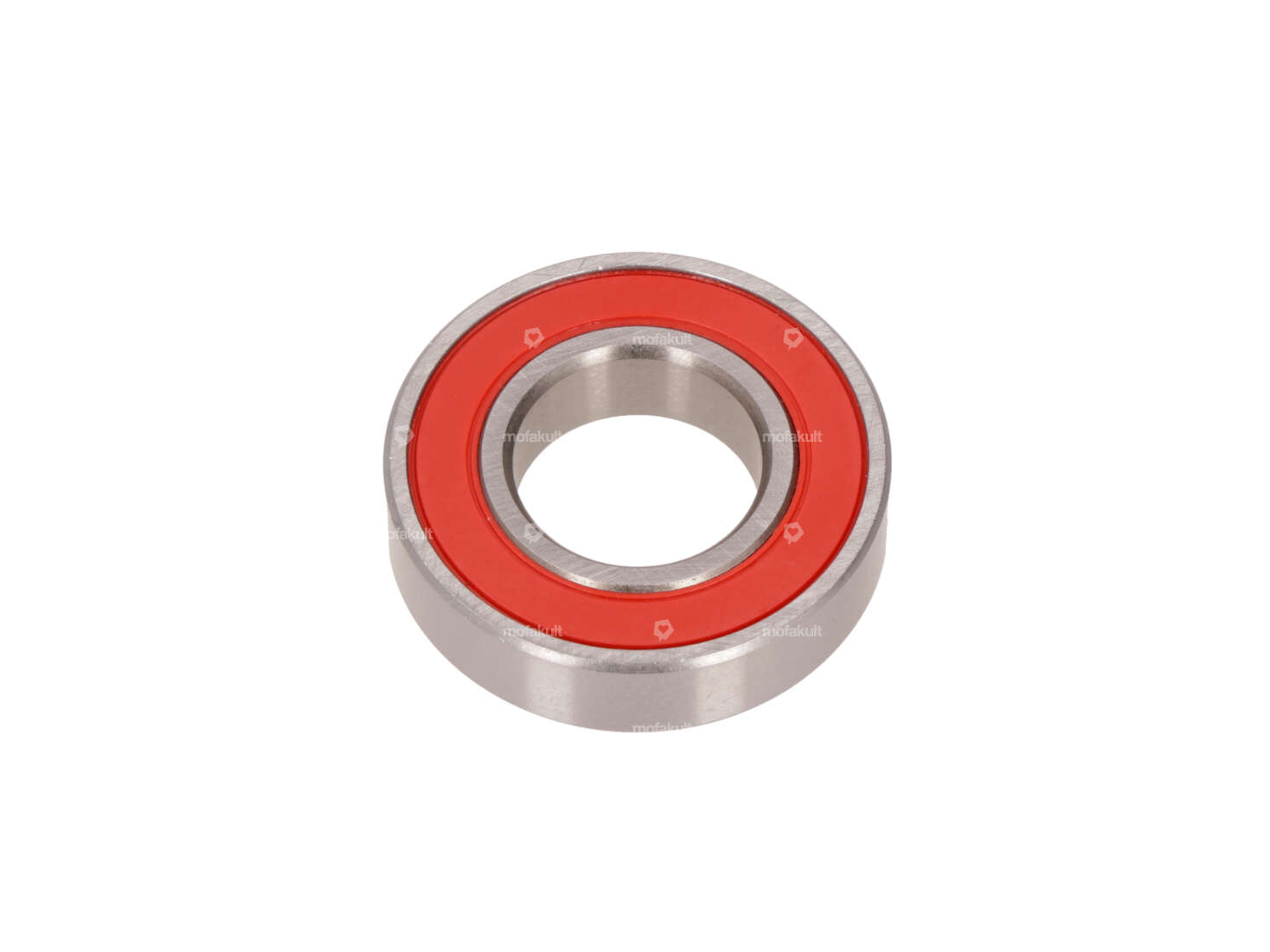

Special ball bearing 15.5x31.5x8 mm for the left side of the pinion shaft on your moped / moped with Sachs 502 AML (diaphragm), 50/2 ML, 50/3, 50/4 & 503 engine. Suitable on the right-hand side on 50/3 & 50/4 engines with splined gearbox.
The deep-groove ball bearing has a dust ring made of NBR on both sides.
This pinion shaft bearing replaces the roller race (bearing ring) A1157, the 6 x 4 mm cylindrical rollers A1145 and also the two thrust washers A1570 on the left-hand side (and on the right-hand side for 3- & 4-speed) of the main shaft in your Sachs gearbox.
Other form: 2RSH (two sheet steel reinforced NBR contact seals)
Bearing clearance: Standard
Ball bearings: Sheet steel ball bearing, ball-guided «-»
Installation instructions: Check the pinion shaft for scalloping or other damage before installation. First, the bearing should be shrunk into the housing. The shaft can then be inserted into the bearing without play and, if necessary, additionally secured with adhesive. The axial play of the shaft must be set to 0.1-0.2 mm.
Exceptional product for the highest demands of the quality brand swiing®.
Details
| Bearing cage | Sheet steel cage |
| Manufacturer | swiing® ingenious parts |
| Dust protection type | 2RS1 - NBR contact seal on both sides |
| Material | Steel |
| Bearing type | Deep groove ball bearing |
| Width | 8 mm |
| Ø inside | 15.5 mm |
| Ø outside | 31.5 mm |
| Ball bearing closed | Yes |
Suitable for the following models
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 PS, DE) 502 (Saxonette) - AML 50/2 - ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) 503 - AAL, ABL, 2AL / 2BL, AB, AC, ADV |
Accessories & related products
Oil seal NBR 14.96x31.5x3.5 Pinion shaft | Sachs 502, 50/2, 503 (A1134)
Manufacturer: Sachs · Material: NBR · Area of application: Standard · Surface: coated · Width: 3.5 mm · Ø inside: 14.96 mm · Place of use: Pinion shaft · Ø outside: 31.5 mm · Temperature resistance (min.): -30 - 100 °C · Pony spare part no.: A1134 · Sachs spare part no.: 0230 011 100 · Sachs spare part no.: 0230 011 200
