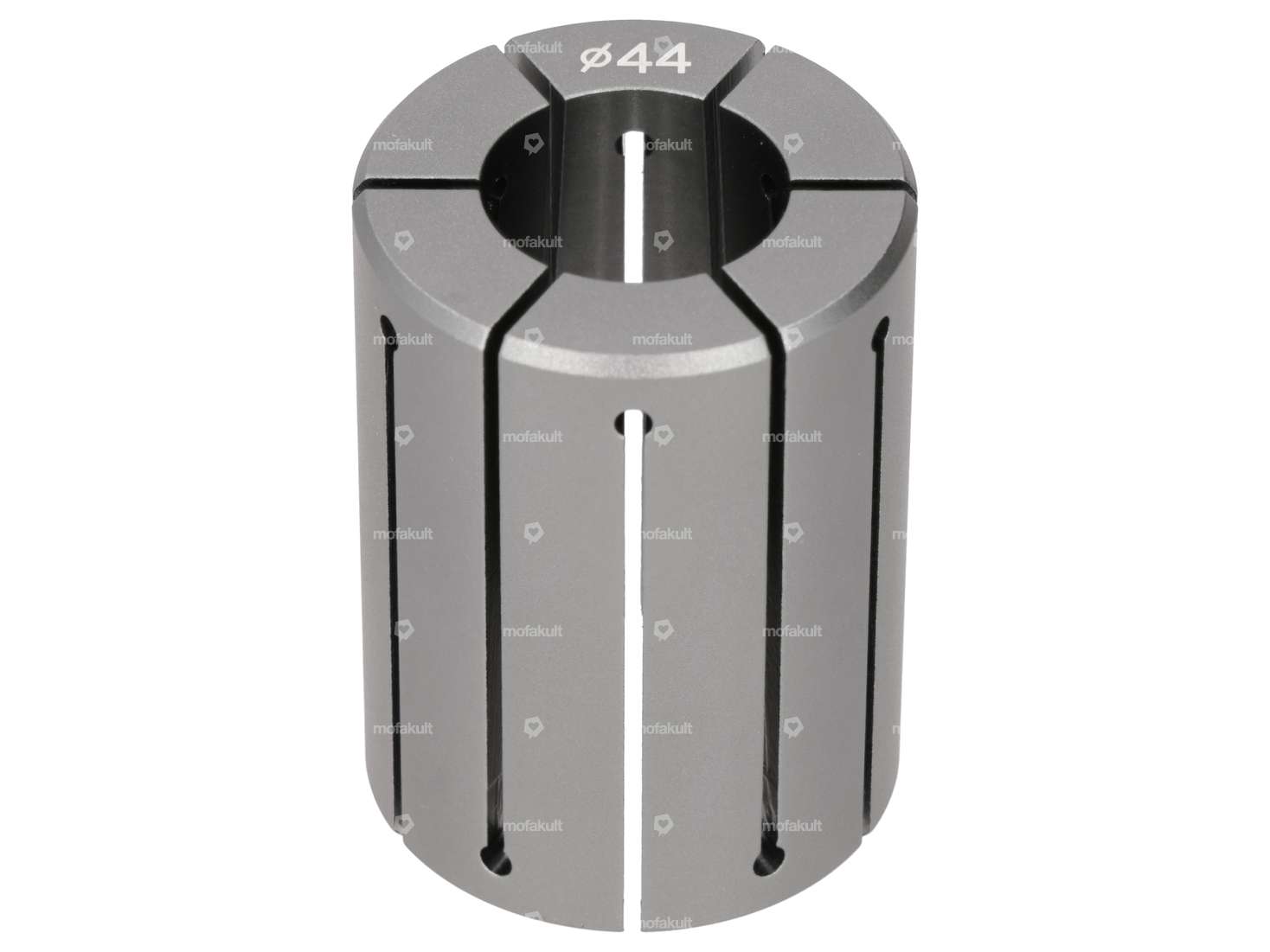

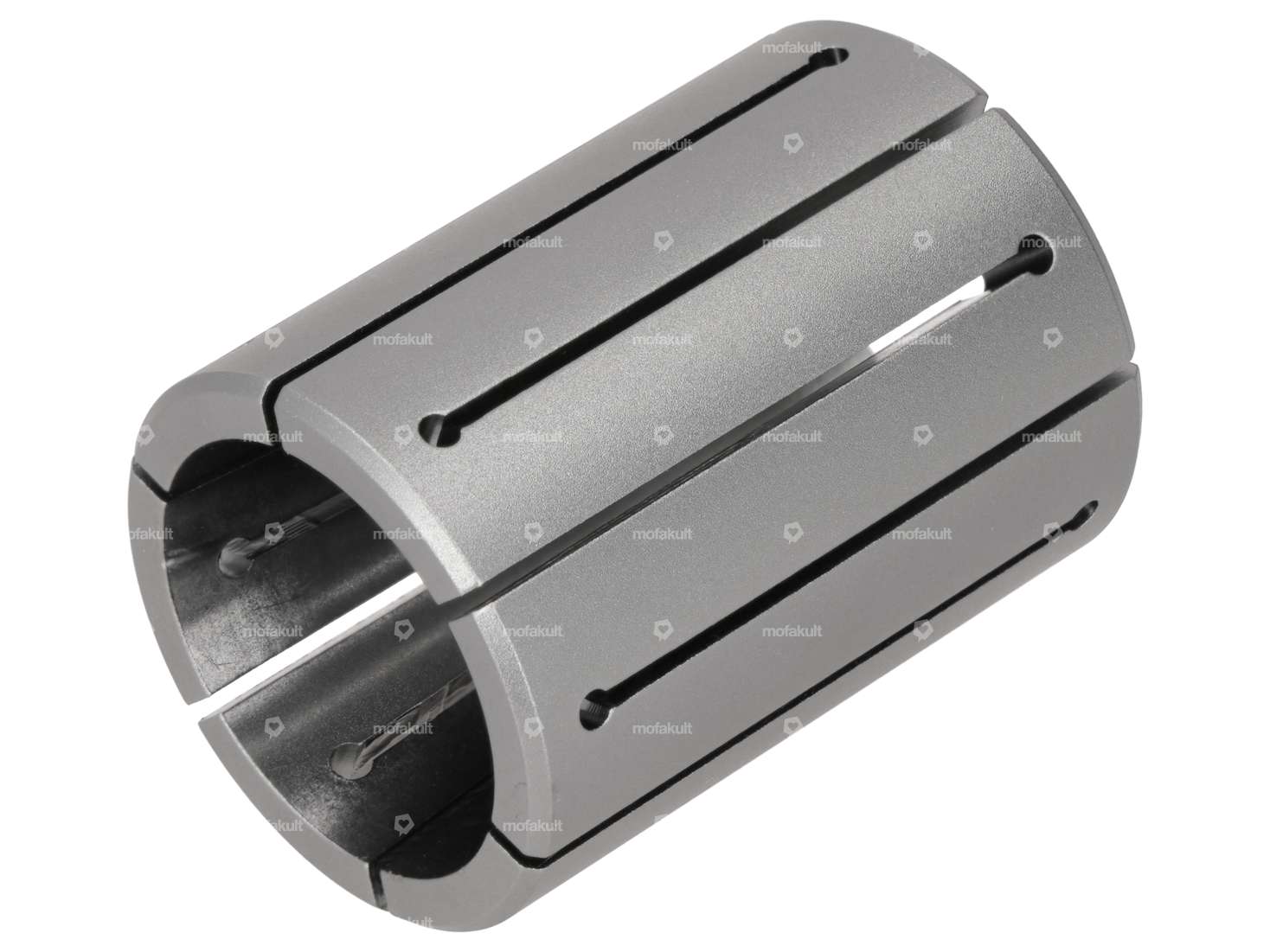

Grey anodized aluminium expanding sleeve for clamping 44 mm cylinders for mopeds, mopeds or small motorcycles.
The clamping sleeve is expanded in the cylinder using a mandrel and lock nut. The fixed cylinder can then be easily clamped in the lathe and turned as required.
The smooth anodization and clean chamfered edges protect the raceway from damage.
Clamping range: 43.6 - 44.6 mm
Total length: 60 mm

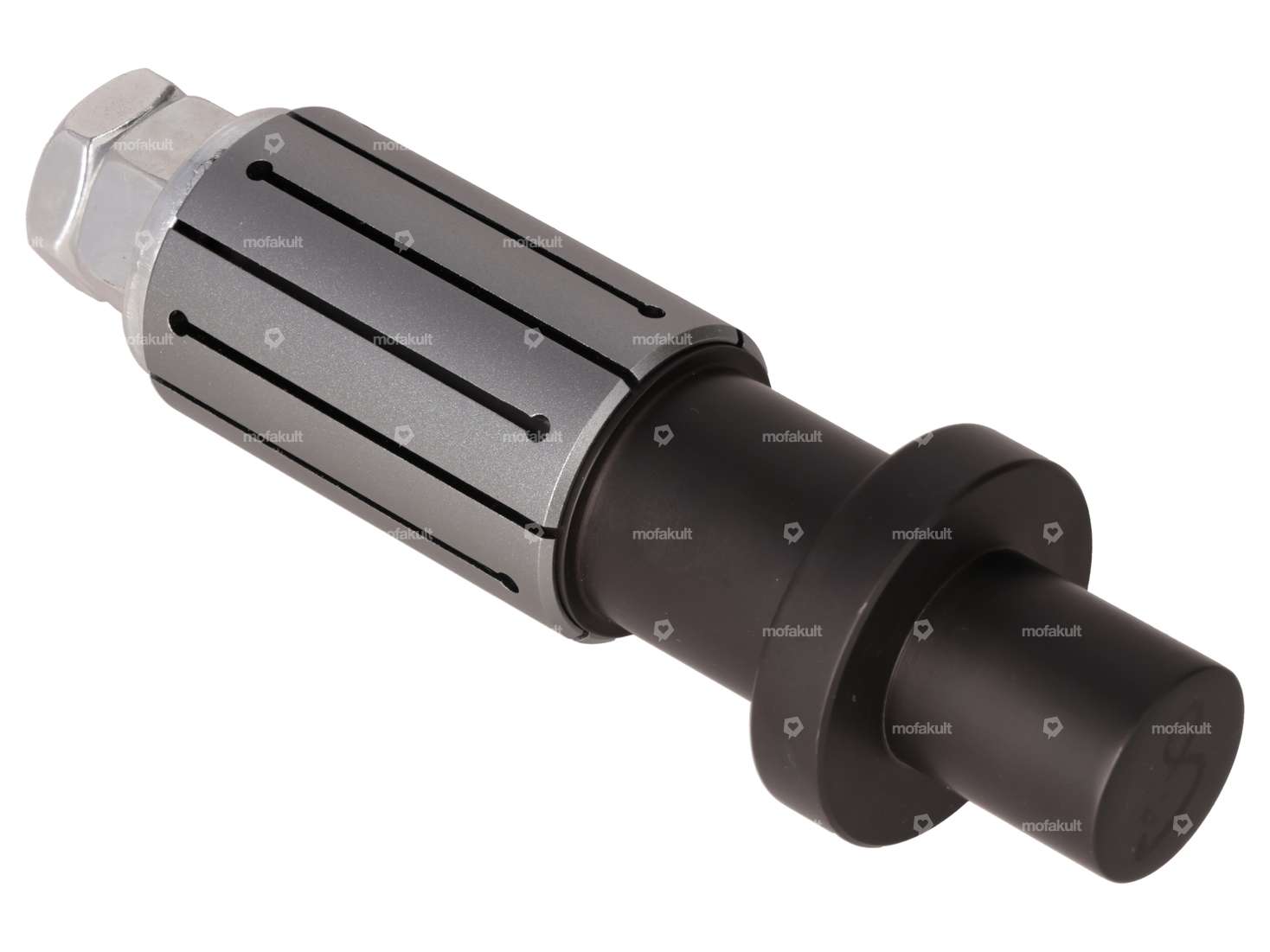

Note: Delivery does not include the required mandrel. Figure 3 is for illustration purposes with the clamping pin.
You can find more clamping sleeves and a selection of items in the accessories section.
A kick-ass custom product straight from the Siggnature workshop.
Details
| Manufacturer | Siggnature |
| Material | Aluminum |
| Surface | anodized |
| Diameter | 44 mm |
| Total length | 60 mm |
| Area of application | Special tool |
