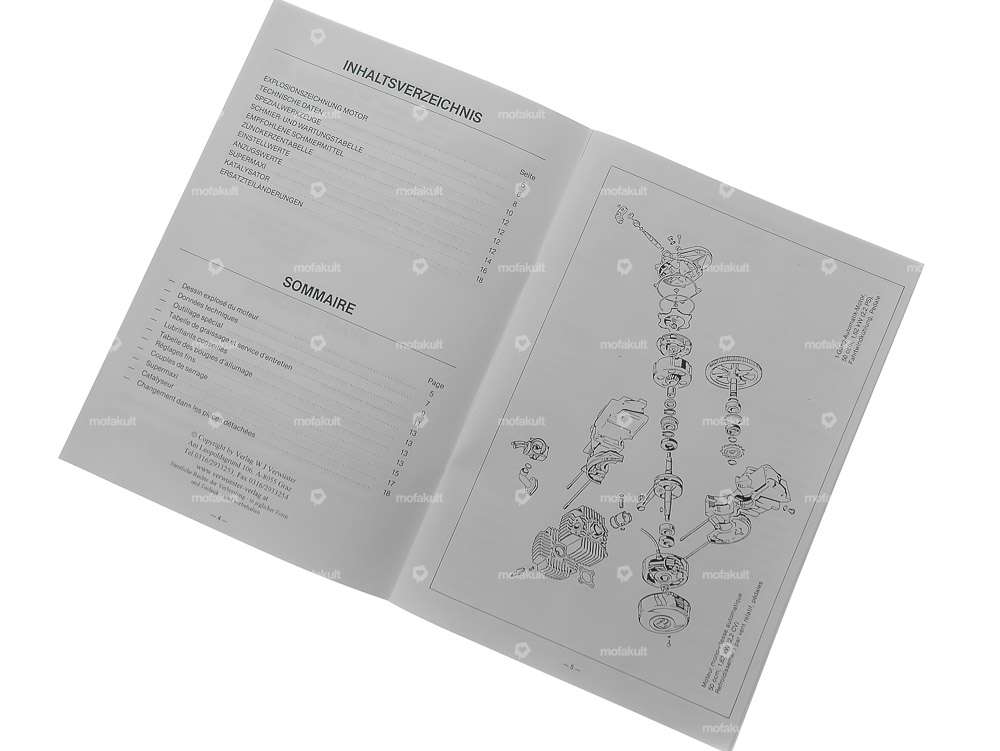

This service book was delivered to specialist dealers in 1987. It lists service intervals, technical data and setting values.

In addition, the new technical development, the "Super Maxi Kat", which was considered the world's lowest-emission petrol engine, was presented.

A4 format with 18 pages. In German and French.

Details

Material	Paper
DIN format	A4
Number of pages	18 pcs

Suitable for the following models

Puch
