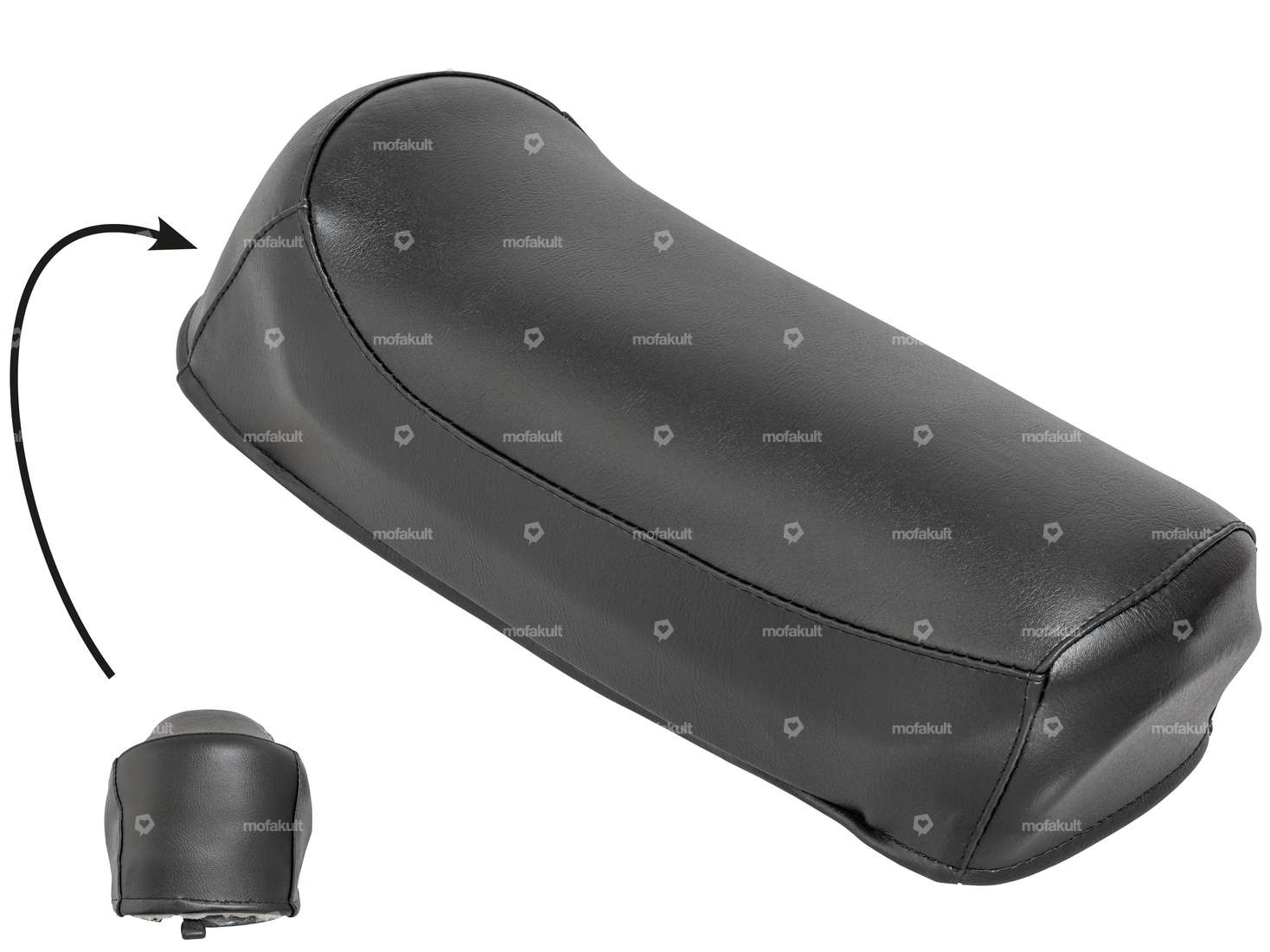

Classic saddle seat with black imitation leather cover, suitable for your Piaggio Boxer BTV2 moped / moped.

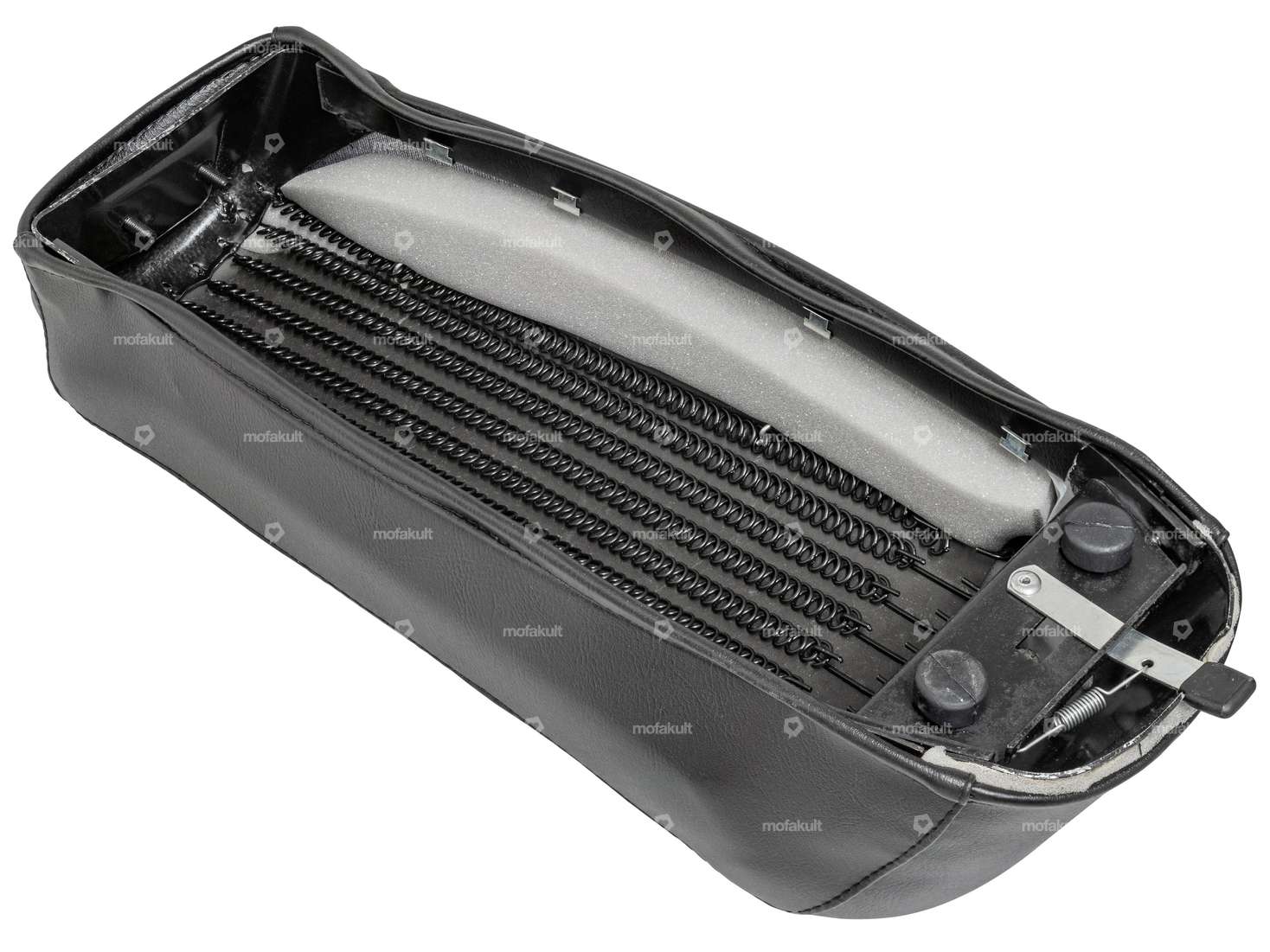

The black painted base frame and the locking latch are made of metal.
The seams on the seat base are neatly finished and the hardness of the upholstery is chosen so that your rear end can withstand longer rides without damage.
Mounting thread for hinge: M6 x 14 mm
Distance center / center thread: 40 mm
Seat length: 490 mm
Rear width: 180 mm
Front width: 140 mm
Front upholstery height: 120 mm
Rear upholstery height: 135 mm
Note: As far as we are aware, this saddle was only fitted to Italian and German versions of the Boxer and therefore requires its own construction in order to be mounted and unfolded on the Swiss frame.
Other parts for your Piaggio Boxer can be found in the accessories section.
Original Piaggio spare part number: 135676
A quality product made in Italy.
Details
| Manufacturer | Made in Italy |
| Material | Imitation leather |
| Color | black |
| Spring-loaded | Yes |
| Total length | 490 mm |
| Lettering | No |
| Width | 180 mm, 140 mm |
| Height | 120 mm, 135 mm |
| Piaggio spare part no. | 135676 |
Suitable for the following models
| Piaggio | Boxer |
