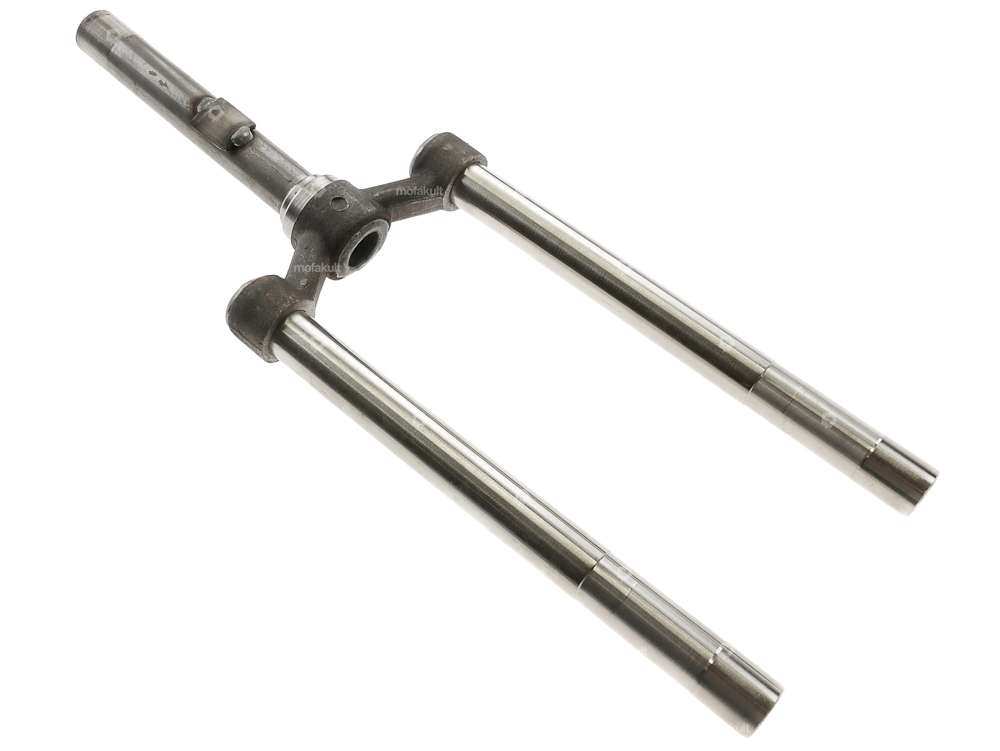

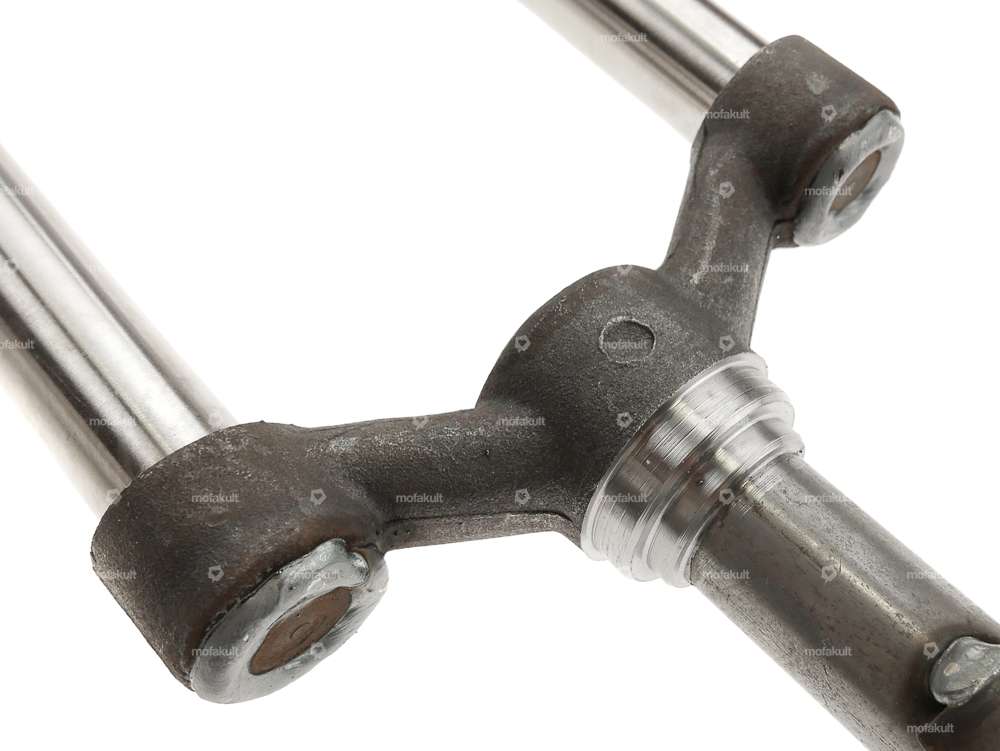

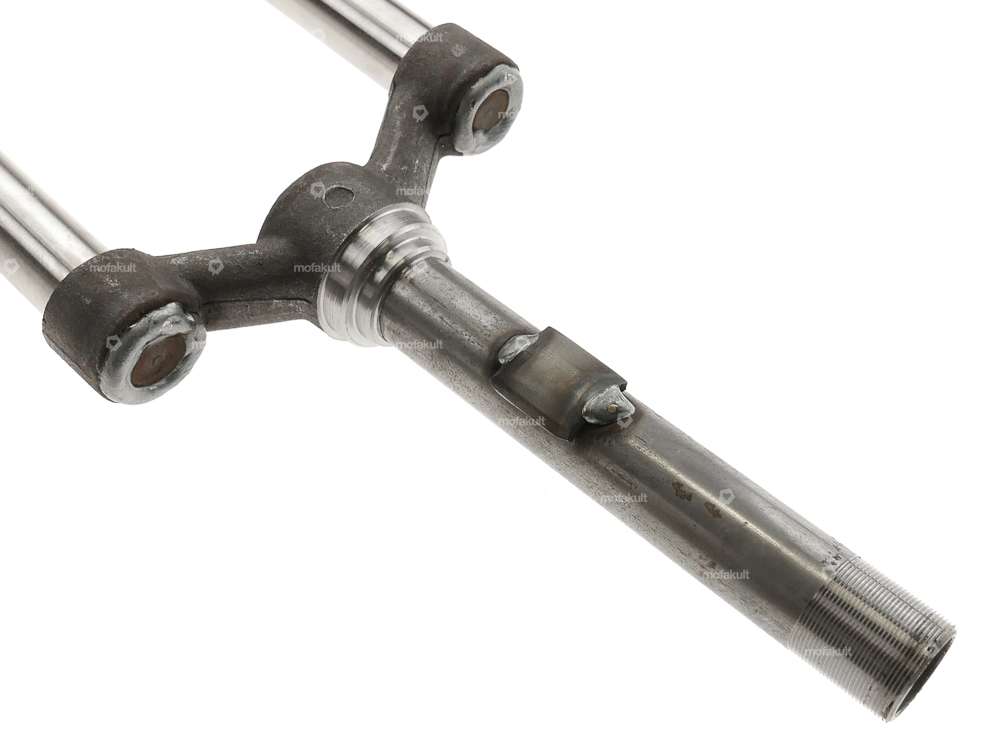

Fork top with M27.5x1 mm headset thread suitable for Piaggio Boxer mopeds / mopeds.
Total length: 495 mm
Head tube length to lower edge of bearing seat: 180 mm

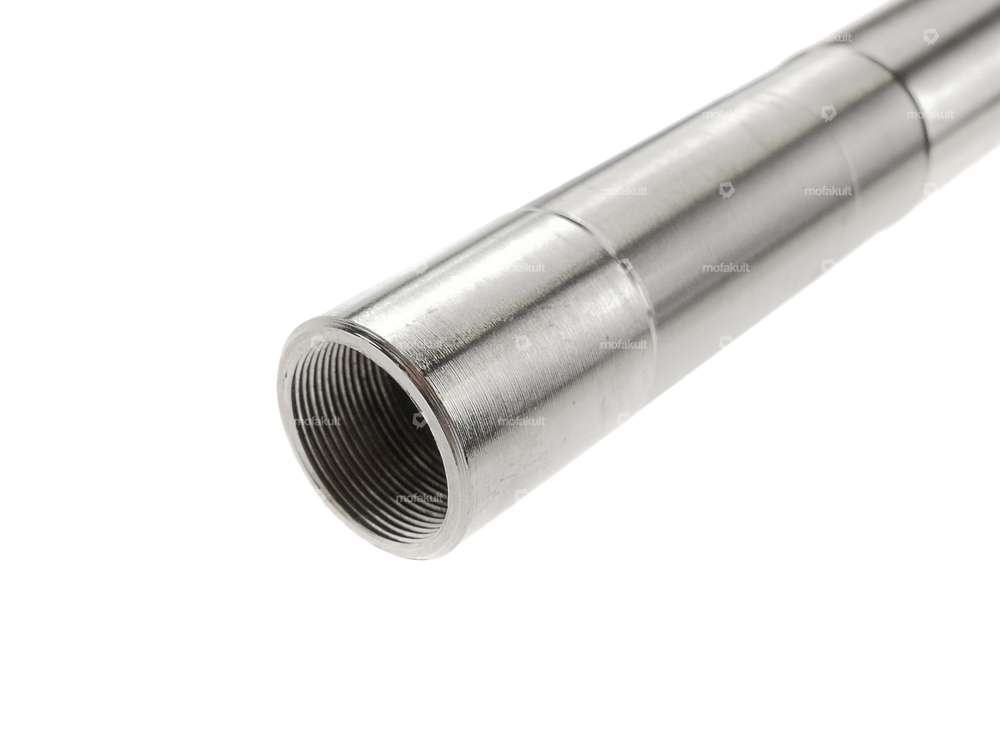

Length of uprights: 270 mm
Outer diameter of uprights: 25.6 mm
Center spar - center spar: 130 mm

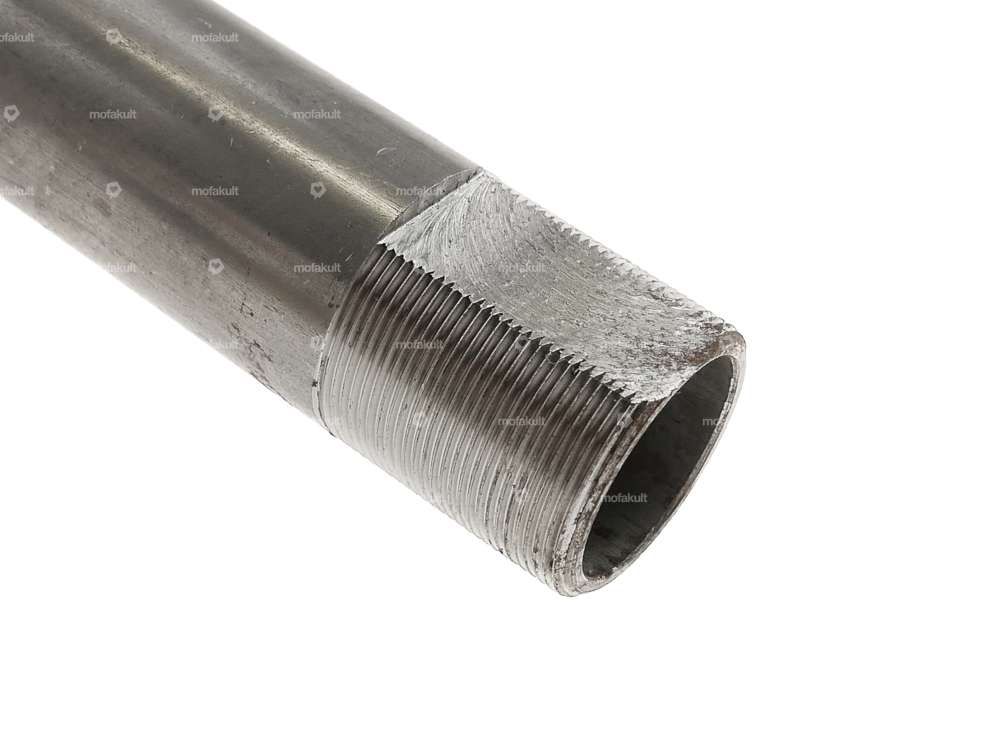

Note: The fork leg is often incorrectly described with an M28x1 mm thread. However, it is an MF27.5x1 mm thread.
Quality product from the Italian manufacturer Piaggio in original equipment quality.
Original Piaggio spare part number: 122614
Details
| Manufacturer | Piaggio |
| Material | Steel |
| Surface | raw |
| Ø spars | 25.6 mm |
| Spar end distance (center-center) | 130 mm |
| Thread type | MF27.5x1 (fine pitch thread) |
| Piaggio OEM number | 122614 |
Suitable for the following models
| Piaggio | Boxer |
