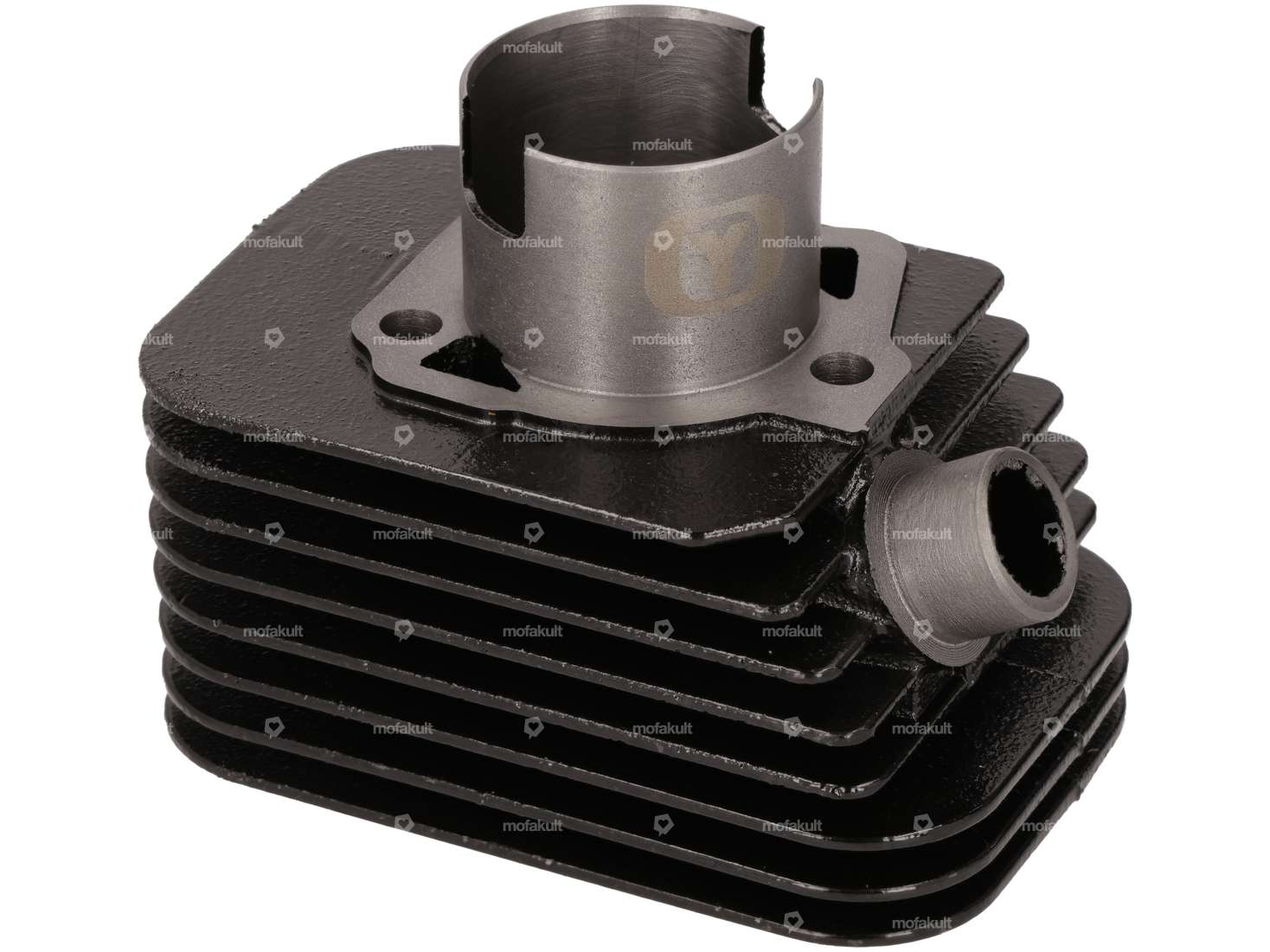

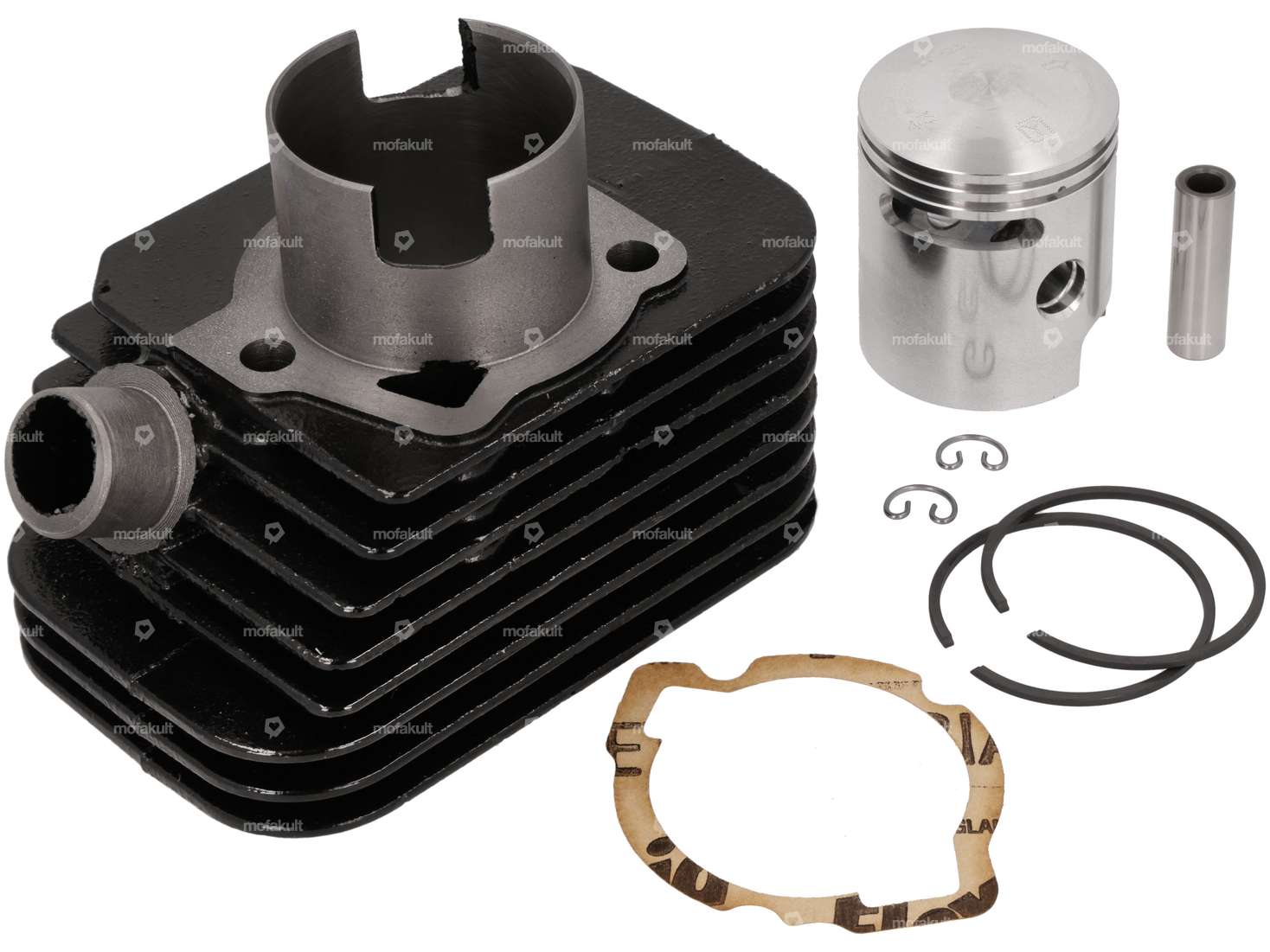

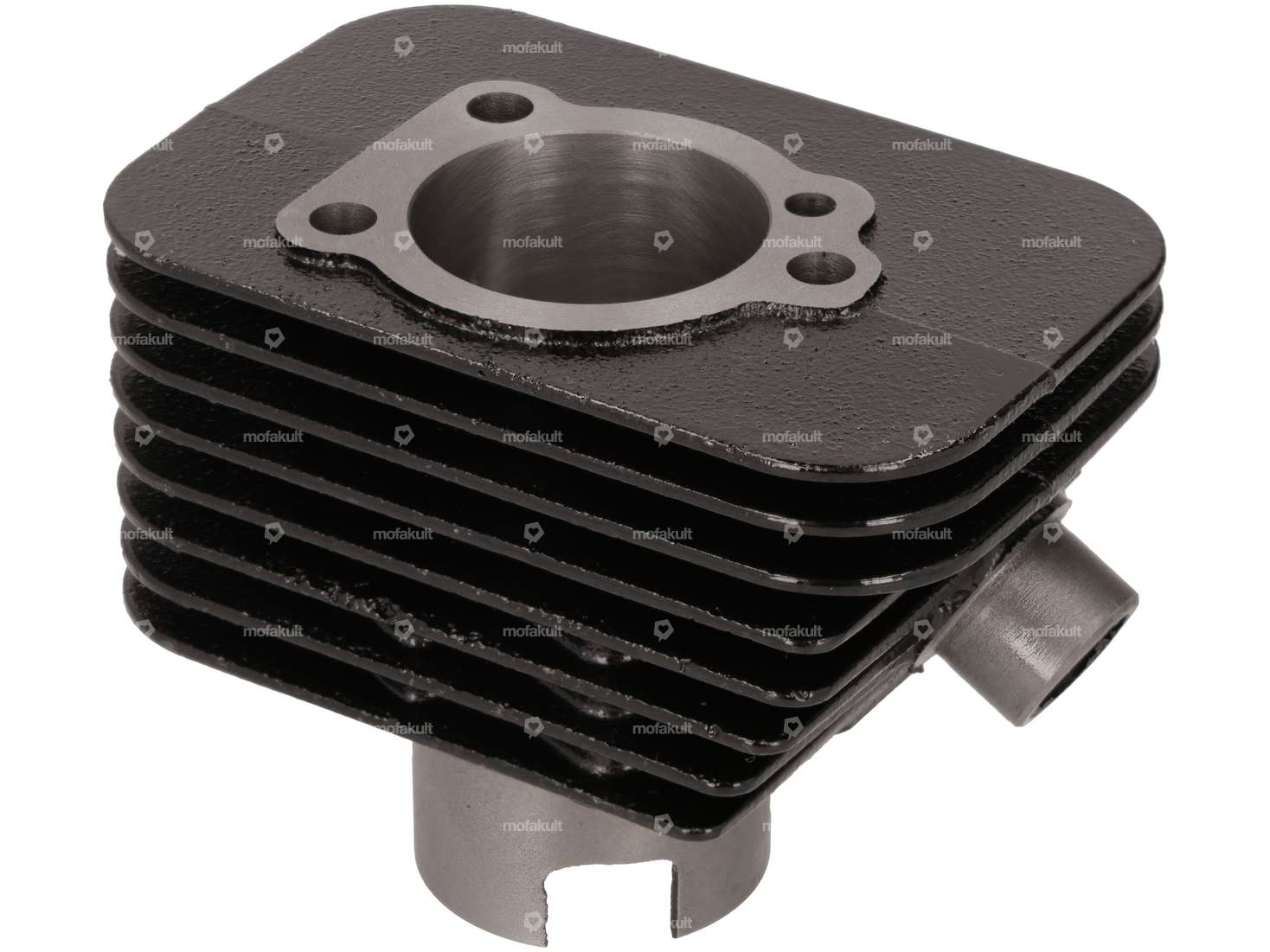

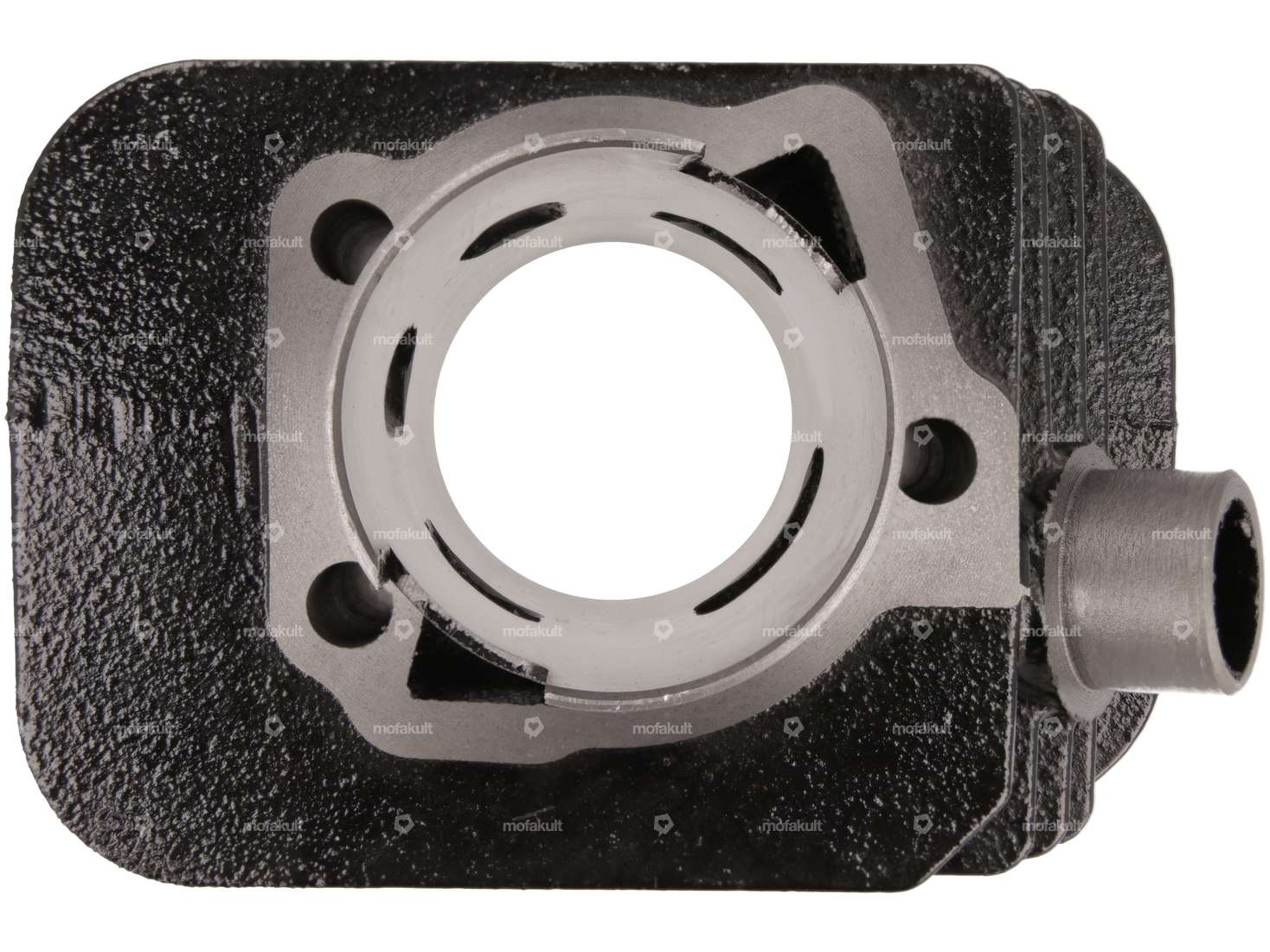

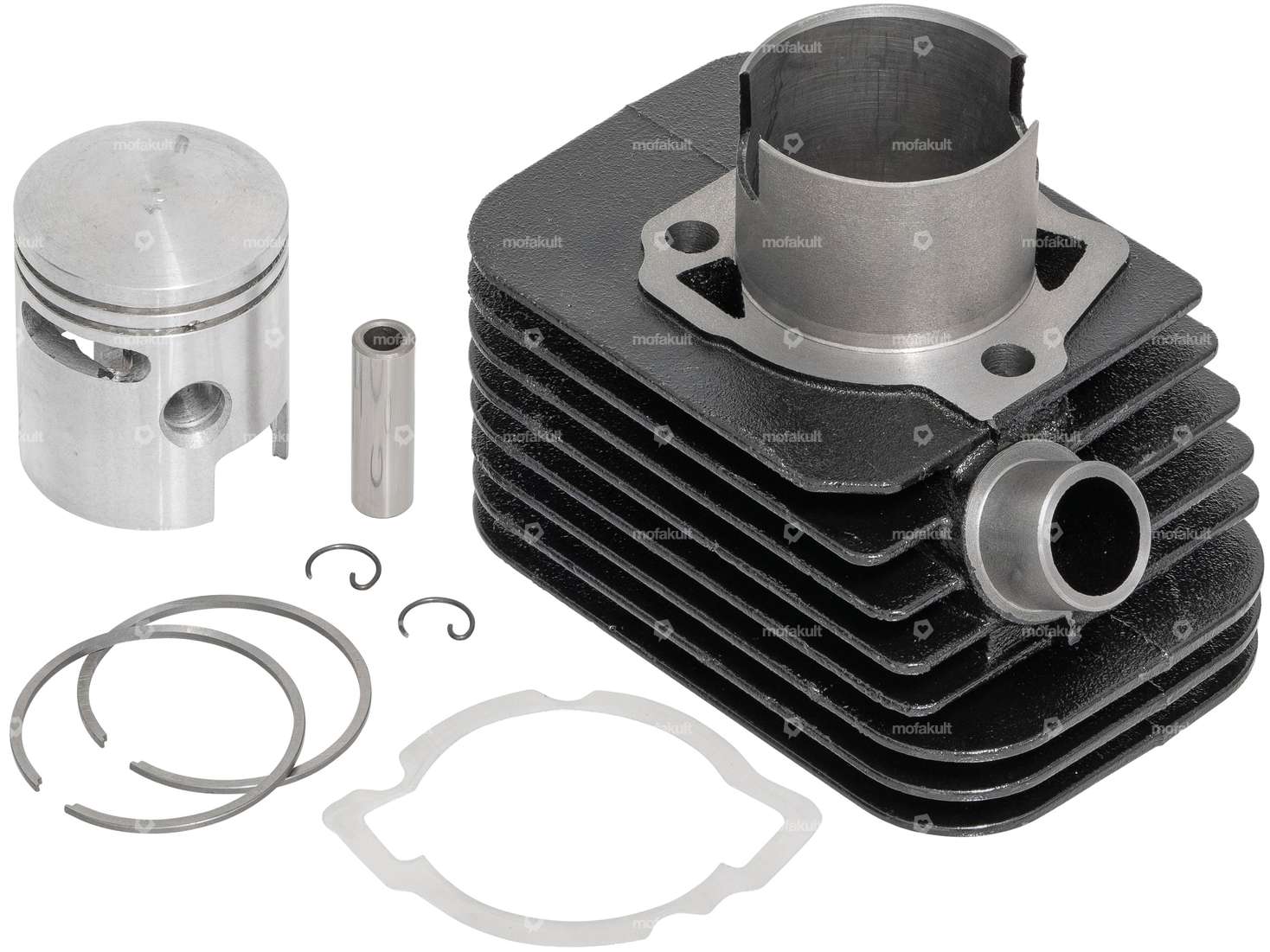

43 mm tuning cast cylinder with 63 cc and 10 mm KoBo suitable for your Piaggio moped / moped.
With the exception of the cylinder head, all parts required for assembly are included in the scope of delivery.
Notes: We recommend using this tuning cylinder in conjunction with a larger exhaust and a larger carburetor. This racing cylinder may still have residue from the manufacturing process. The cylinder should therefore be cleaned with compressed air or brake cleaner before installation. This should be between 0.15 - 0.4 mm to prevent the piston from jamming.
Details
Nominal diameter | 43 mm |
Manufacturer | Olympia |
Area of application | Tuning |
Material | Gray cast iron |
Surface | varnished |
Displacement | 63 ccm |
Crankshaft stroke | 43 mm |
Ø cylinder neck | 46 mm |
Ø Outlet outside | 22.3 mm |
Ø outlet inside | 17.8 mm |
Ø piston pin (B) | 10 mm |
Outlet type | clamped |
Number of fixing points | 3 pcs |
Hole pattern [mm] | 35 x 55 |
Decompressor | Yes |
Camouflaged | No |
Suitable for the following models
Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
