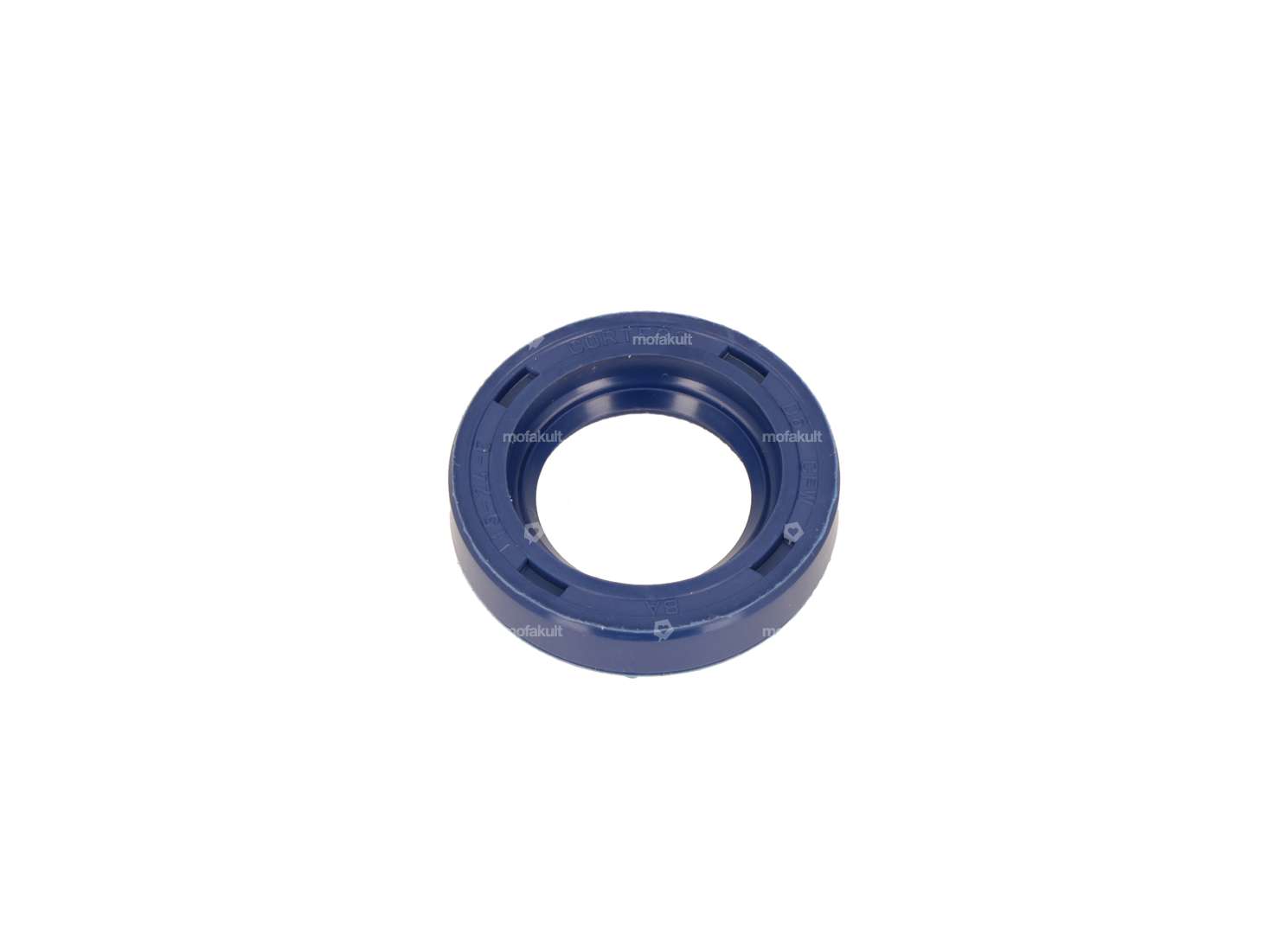

Shaft seal ring form A (also known under the protected brand name Simmerring®) with the dimensions 15x24x5 mm for the crankshaft of your Piaggio Ciao, Si, Bravo, Boxer moped / moped.
Other sealing rings and crankshafts can be found in the accessories section.
A quality product manufactured in Italy.
Original Piaggio spare part number: 480464
Details
| Place of use | Crankshaft |
| Temperature resistance (min.) | -30 - 100 °C |
| Simmering type | A - With rubberized outer part / one sealing lip. |
| Manufacturer | Made in Italy |
| Material | NBR |
| Surface | rubberized |
| Ø outside | 24 mm |
| Ø inside | 15 mm |
| Width | 5 mm |
| Piaggio OEM number | 480464 |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao Si Bravo/Superbravo Boxer Grillo Gilera CBA Gilera Citta |
Accessories & related products

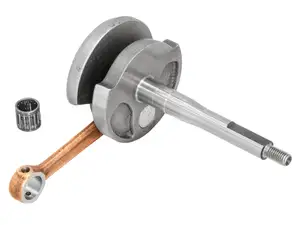

Mazzucchelli crankshaft "Original" 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Mazzucchelli · Material: Steel · Cheek type: standard · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Number of gears: 1 pcs · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.7 mm · Area of application: Original · Area of application: Standard · Ø Connecting rod eye: 15 mm · Bearing seat right: 15 mm · Ø piston pin (B): 12 mm · Weight: 698 g · Thread type: M8x1.25 (standard thread) · Ø Bearing seat (ignition side): 15 mm · Thread length: 16 mm · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Wide crank webs: 33 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 130 ° · Control time before O.T: 77 ° · Control time according to O.T: 53 °
EUR 169,40

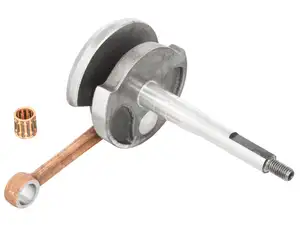

Mazzucchelli crankshaft "Original" 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Mazzucchelli · Material: Steel · Cheek type: standard · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 87 mm · Number of gears: 1 pcs · Total length crankpin ignition side: 90 mm · Total length crankpin ignition side: 106 mm · Ø crank webs: 69.7 mm · Area of application: Original · Area of application: Standard · Ø Connecting rod eye: 13 mm · Bearing seat right: 15 mm · Ø piston pin (B): 10 mm · Weight: 695 g · Thread type: M8x1.25 (standard thread) · Ø Bearing seat (ignition side): 15 mm · Thread length: 16 mm · Dimension needle bearing: 10 / 13 x 14.2 mm (axe 10) · Wide crank webs: 33 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 63.5 mm · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 14.4 mm · Ø 3rd step (on the clutch side): 12 mm · Inlet control time: 130 ° · Control time before O.T: 77 ° · Control time according to O.T: 53 °
EUR 175,20
Athena crankshaft "Racing" 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Athena · Cheek type: standard · Ø coupling pin / vario pin: 12 mm · Crankshaft stroke: 43 mm · Connecting rod length center-center: 85 mm · Number of gears: 1 pcs · Total length crankpin ignition side: 91.6 mm · Area of application: Racing · Ø Connecting rod eye: 13 mm · Ø piston pin (B): 10 mm · Ø Bearing seat (clutch side): 15 mm · Thread type: M8x1.25 (standard thread) · Ø Bearing seat (ignition side): 15 mm · Dimension needle bearing: 10 / 13 x 14.2 mm (axe 10) · Length 1st paragraph: 21.9 mm · Length 2nd paragraph: 43.2 mm · Length 3rd paragraph: 63.5 mm
EUR 182,20

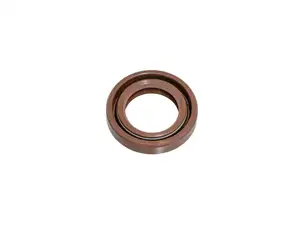

Malossi oil seal FPM 15/24/5 A crankshaft | Piaggio Ciao, SI, Bravo, Boxer
Temperature resistance (min.): -30 - 200 °C · Simmering type: A - With rubberized outer part / one sealing lip. · Manufacturer: Malossi · Place of use: Crankshaft · Material: FPM / FKM (known as VITON®) · Surface: rubberized · Width: 5 mm · Ø outside: 24 mm · Ø inside: 15 mm
EUR 16,70

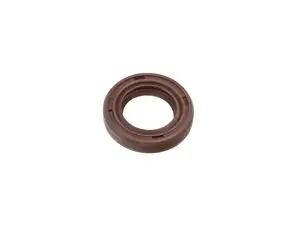

Oil seal FPM 15/24/5 AS crankshaft original | Piaggio Ciao, SI, Bravo & Boxer
