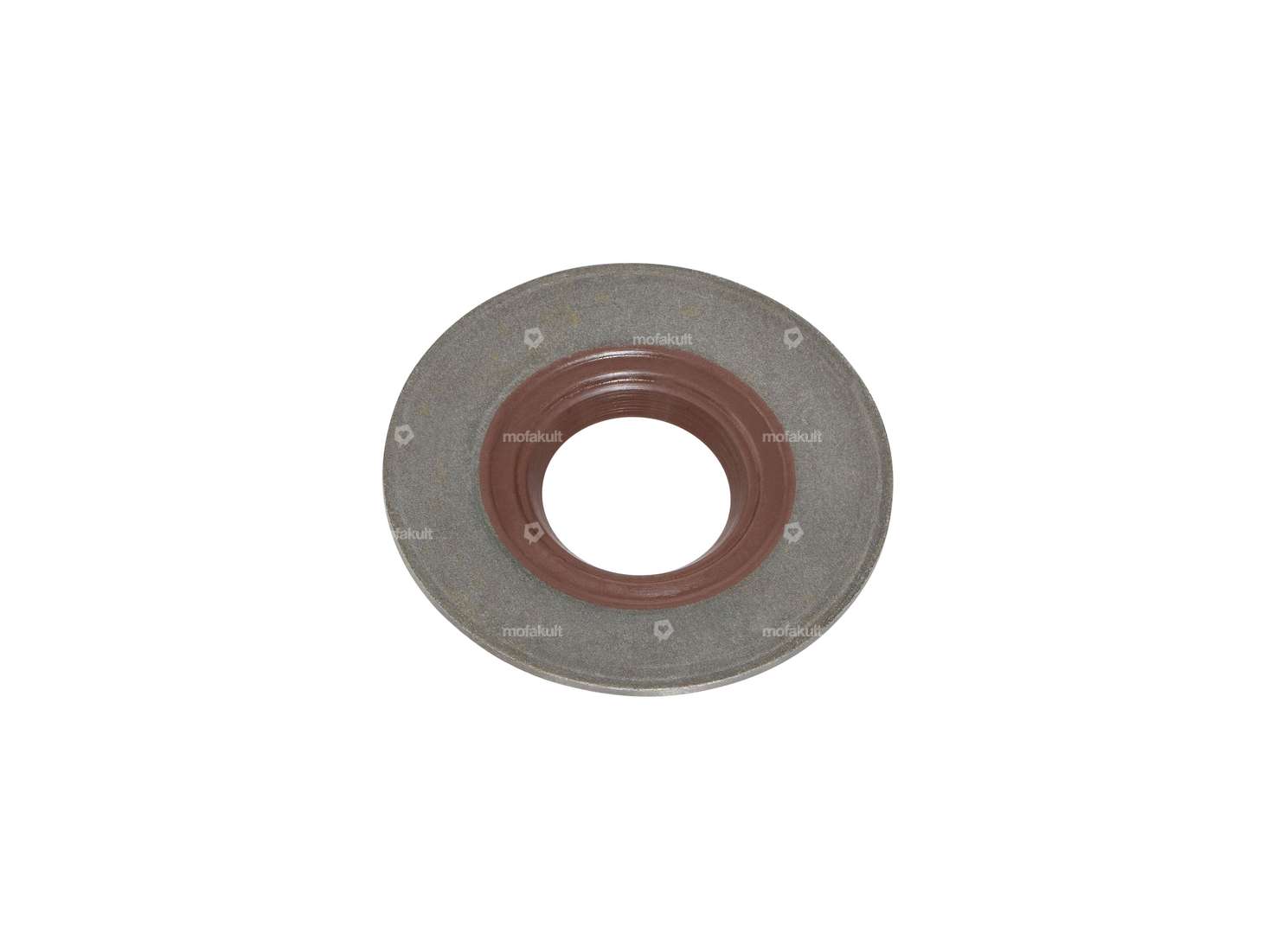

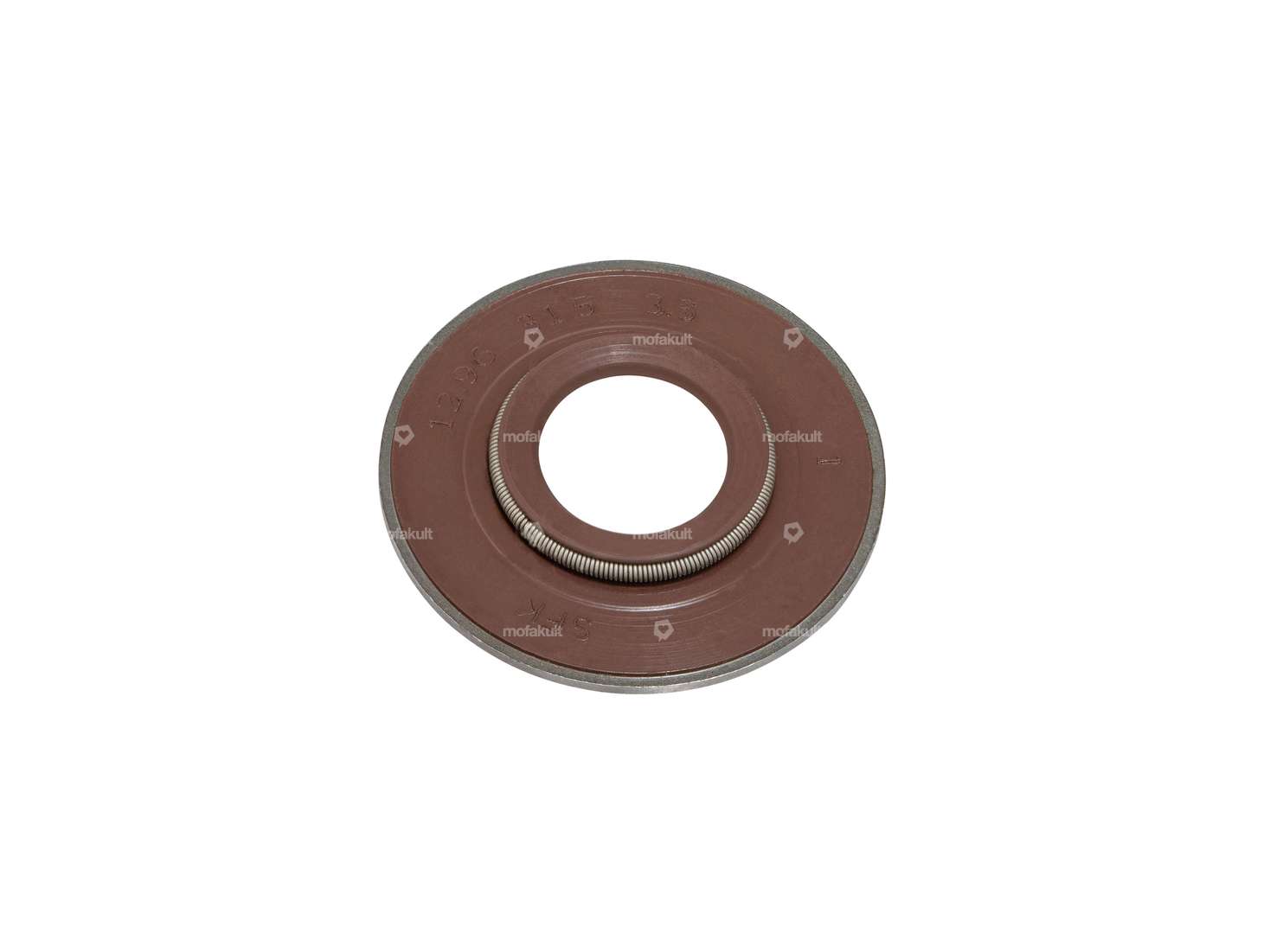

Shaft seal ring 12.96x31.5x3.5 for the pinion shaft of your Sachs moped / moped with the following engines: 502 CH L, CH AL,
The shaft seal ring is suitable for engines with slotted cylinders.
This axial shaft seal with fluorine rubber sealing lip is resistant up to a temperature of 200°C.
Manufactured NBR oil seals are temperature-resistant up to 100°C.
Viton radial shaft seals are particularly suitable for racing, as they are designed for higher speeds and can therefore withstand higher temperatures.
Ø inner: 12.96 mm
Ø outer: 31.40 mm
Height: 3.5 mm
Material: Fluorocarbon rubber FPM (Viton)
Temperature resistant: -30 to +200 °C, briefly up to 220 °C
Original Sachs spare part number: A1137
Details
| Temperature resistance (min.) | 200 - 220 °C |
| Simmering type | B - With sheet metal outer casing / one sealing lip. |
| Manufacturer | Sachs |
| Width | 3.5 mm |
| Area of application | Standard |
| Material | FPM - Rubber |
| Surface | raw |
| Place of use | Pinion shaft |
| Ø inside | 12.96 mm |
| Ø outside | 31.4 mm |
Suitable for the following models
| Universal | |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 PS, DE) 502 (Saxonette) - AL 50/2 - L CH (0.8 PS) |
