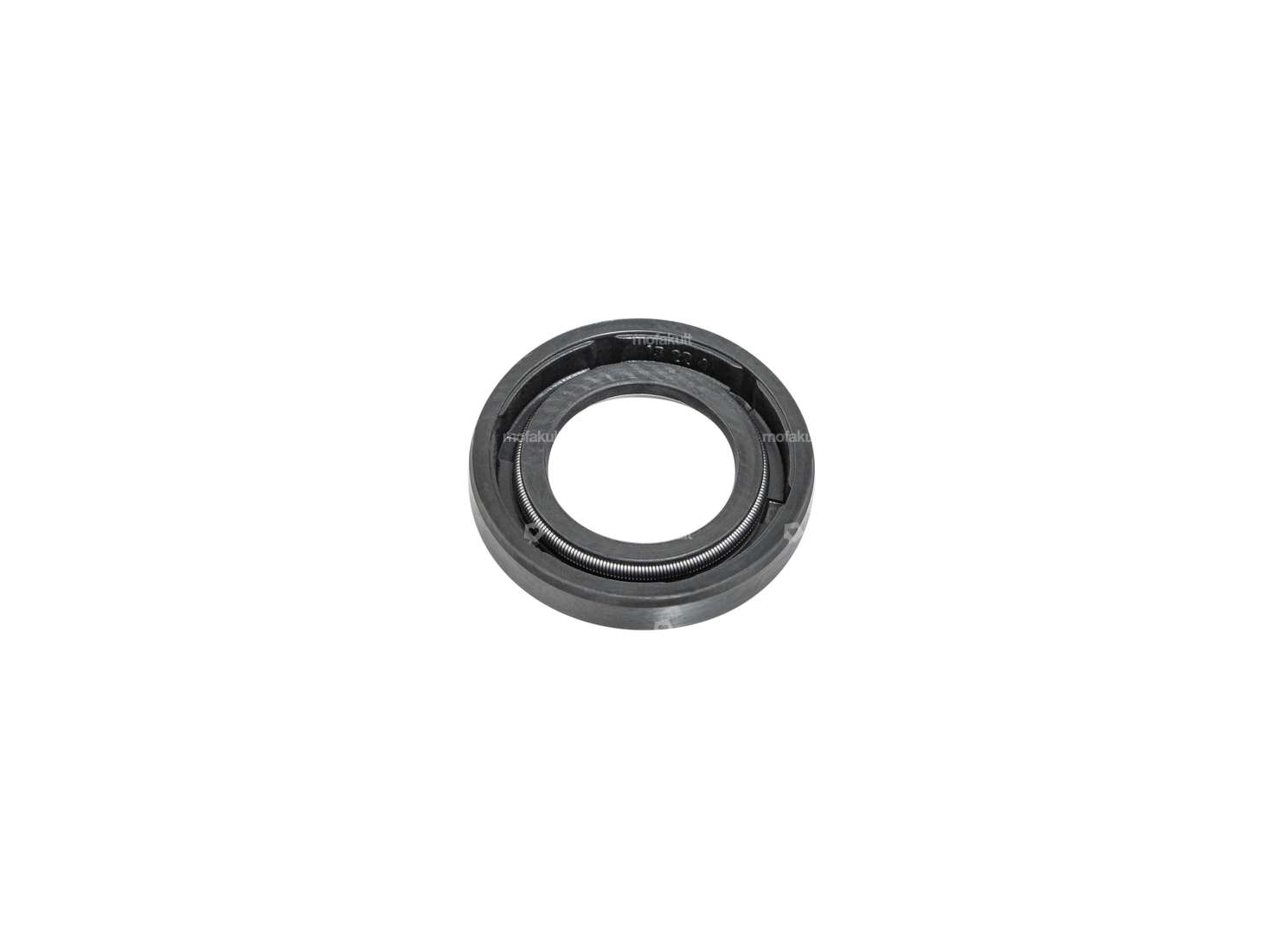

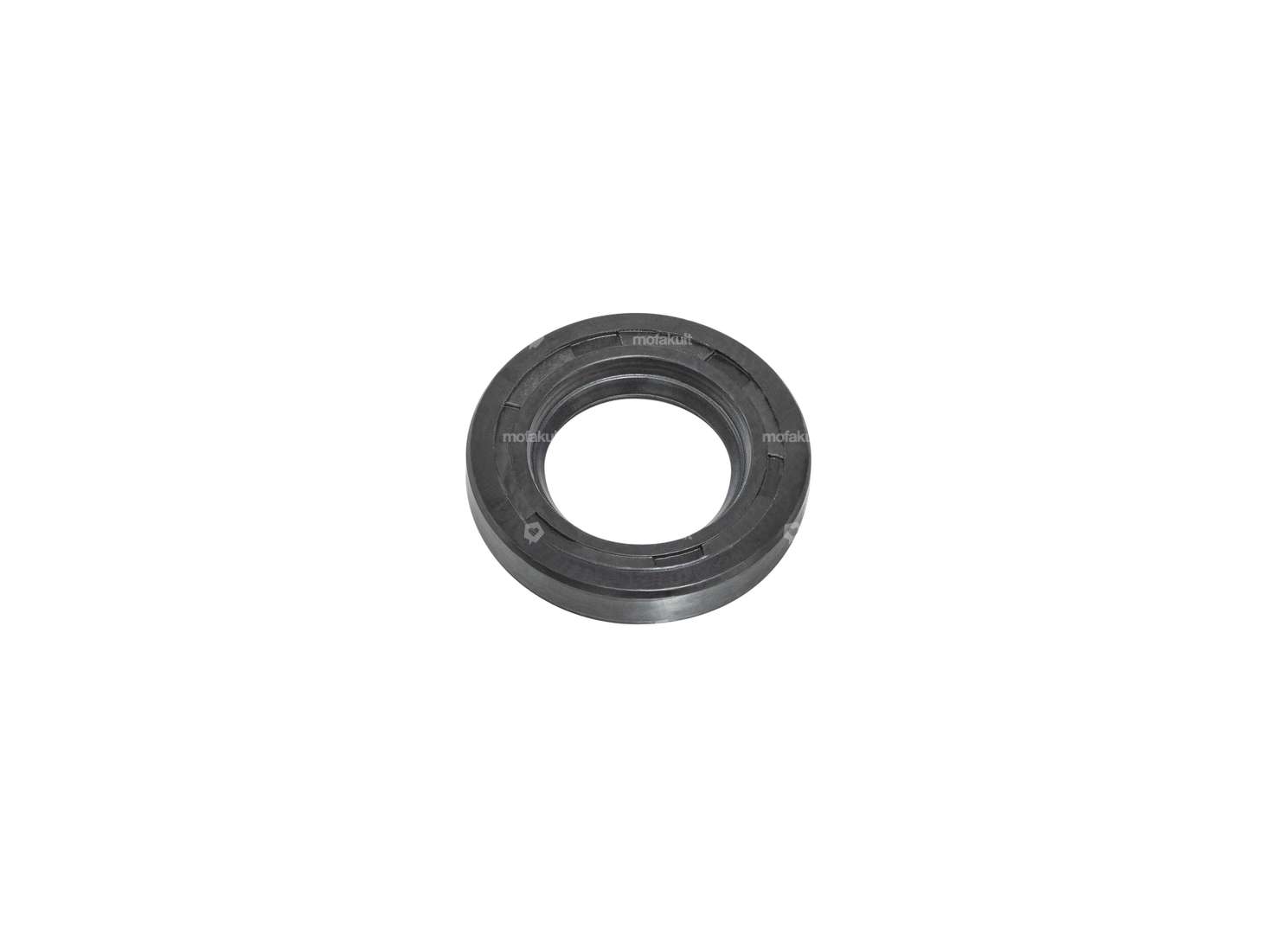

Shaft seal ring 13x22x4 mm for use on the variator gearbox of your Piaggio Ciao, Si, Bravo & Boxer moped / moped.
This radial shaft seal (also known by the popular brand name Simmerring®) is fitted to the torque converter shaft (input shaft).
Ø inner: 13 mm
Ø outer: 22 mm
Width: 4 mm
Material: NBR
Temperature-resistant: -30 to +100 °C, briefly up to 120 °C
Type: A - With rubberized outer casing and a sealing lip.
You can find the oil seal for the output shaft as well as other parts in the accessories.
Quality product from the Italian manufacturer Piaggio in original equipment quality.
Original Piaggio spare part number: 240222
Details
| Simmering type | A - With rubberized outer part / one sealing lip. |
| Manufacturer | Piaggio |
| Material | NBR |
| Surface | rubberized |
| Ø inside | 13 mm |
| Ø outside | 22 mm |
| Width | 4 mm |
| Temperature resistance (min.) | -30 - 100 °C |
| Piaggio OEM number | 240222 |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao Si Bravo/Superbravo Boxer Grillo |
