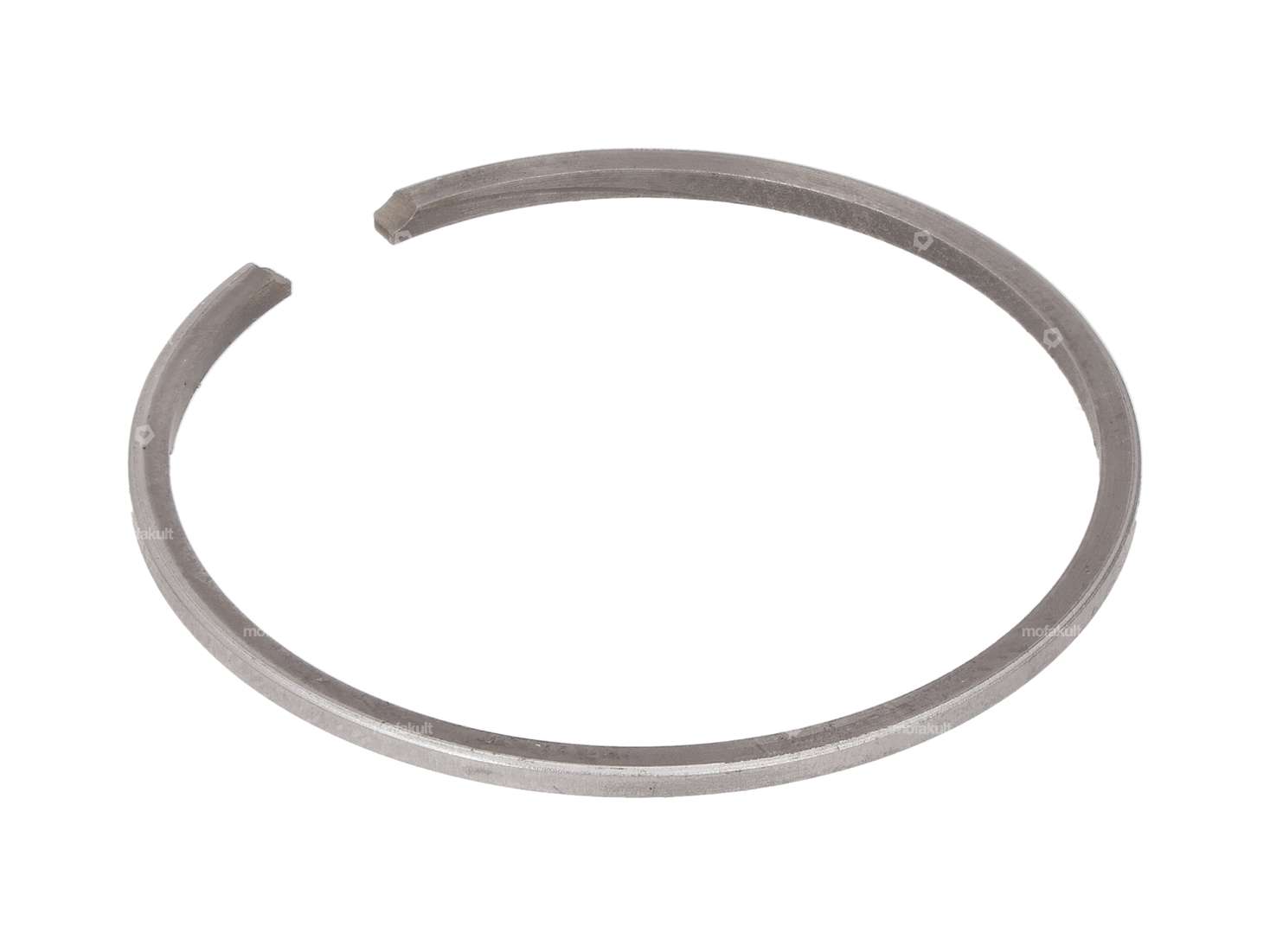

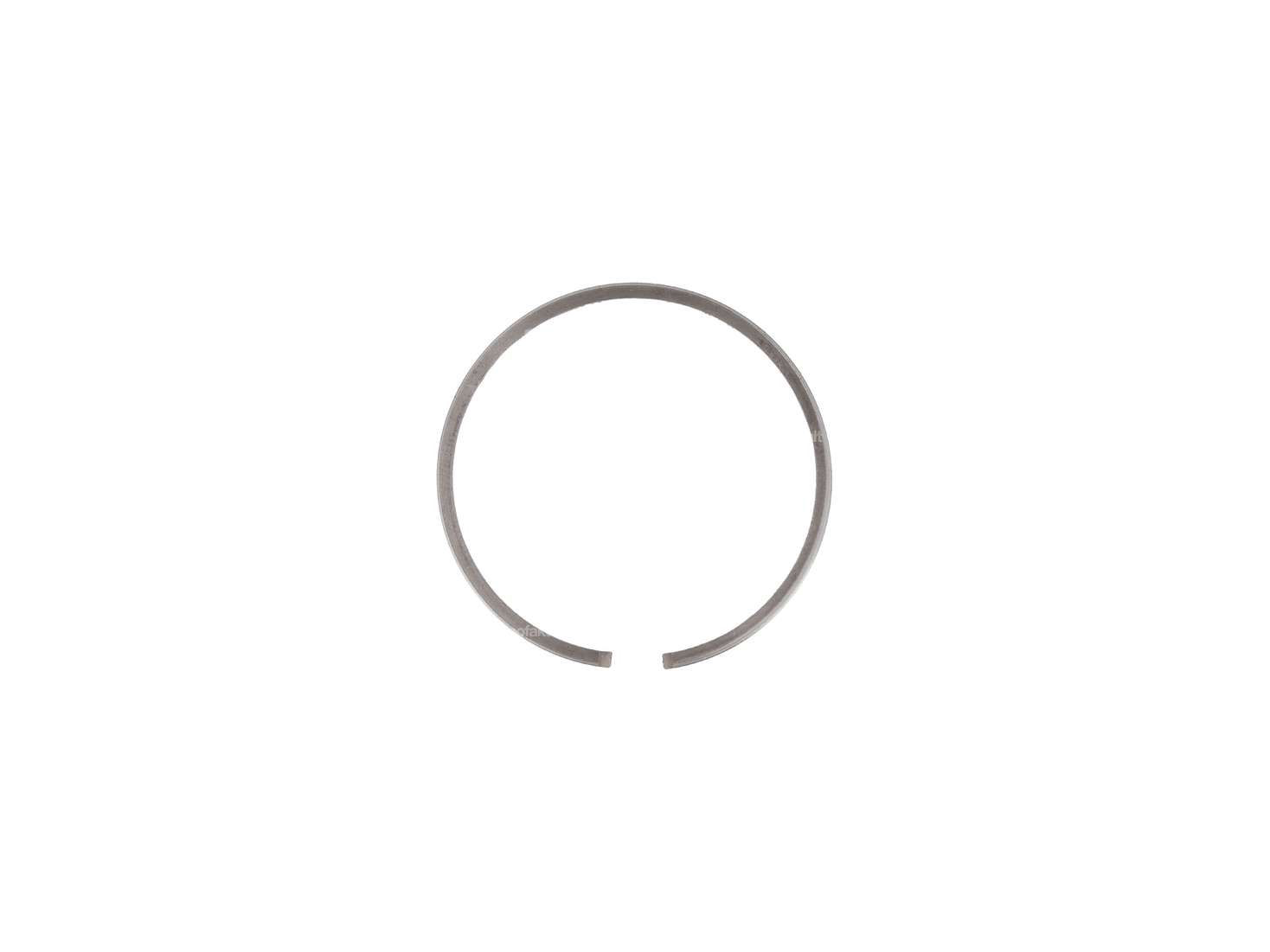

Universal, hard chrome-plated 38.0 x 1.5 mm compression ring suitable for various pistons on mopeds, mopeds and small motorcycles.
Note: Hard chrome-plated piston rings are specially developed for cylinders with a nickel-silicon carbide coating (also known under the brand name Nikasil®). They should not be used in cast iron cylinders as they can cause long-term damage to the cylinder surface.
Details
| Nominal diameter | 38 mm |
| Manufacturer | Meteor |
| Material | Steel |
| Surface | hard chrome plated |
| Height | 1.5 mm |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Flank safety device (FS) |
| Thick piston ring | 1.6 mm |
Suitable for the following models
| Universal | |
| Puch | E50 ZA50 (air-cooled) ZA50 (fan-cooled) Z50 (X30 Sport) Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS) |
