For: Puch

10969

Meteor piston 38 mm #2 | Puch Supermaxi Cat.

Home
| Motor
| Cylinder
| Piston
EUR 61,90

Incl. VAT, plus shipping costs

in stock

The item is in stock. Delivery time 2–4 workdays

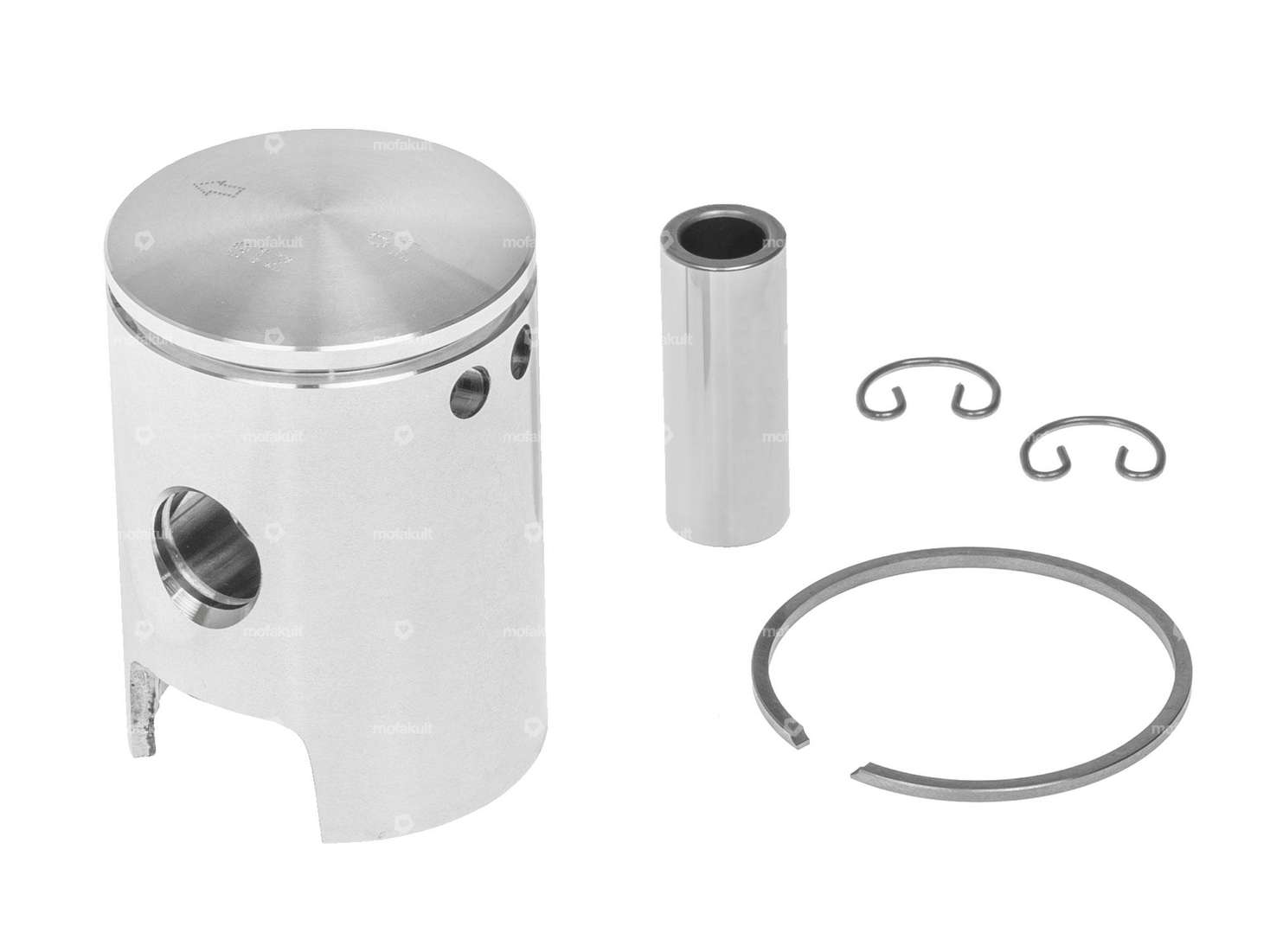

38.0 mm piston with a 1.5 mm rectangular piston ring with flank lock (FS) for your Puch Supermaxi LG1 & LG2 moped / moped with catalytic converter.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their positions and locking types on the legend in the images.

Tolerance no. 2

The piston kit contains piston pins, piston clips and piston rings.

Corresponding assembly tools, piston rings, piston pin locks etc. can be found under accessories.

Quality product from the Italian manufacturer Meteor.

Details

Nominal diameter38 mm
ManufacturerMeteor
Ø outside piston (A)37.96 mm
Compression height (C)24 mm
Curvature (D)2.3 mm
Total piston height (E)55.3 mm
Number of piston rings (F)1 pcs
Piston ring moldRectangular ring
Piston ring impactFlank safety device (FS)
Piston ring height1.5 mm
Ø piston pin (B)12 mm
Tolerance group2
Weight78 g

Suitable for the following models

Puch

E50

ZA50 (Fahrtwindgekühlt)
